Product Description

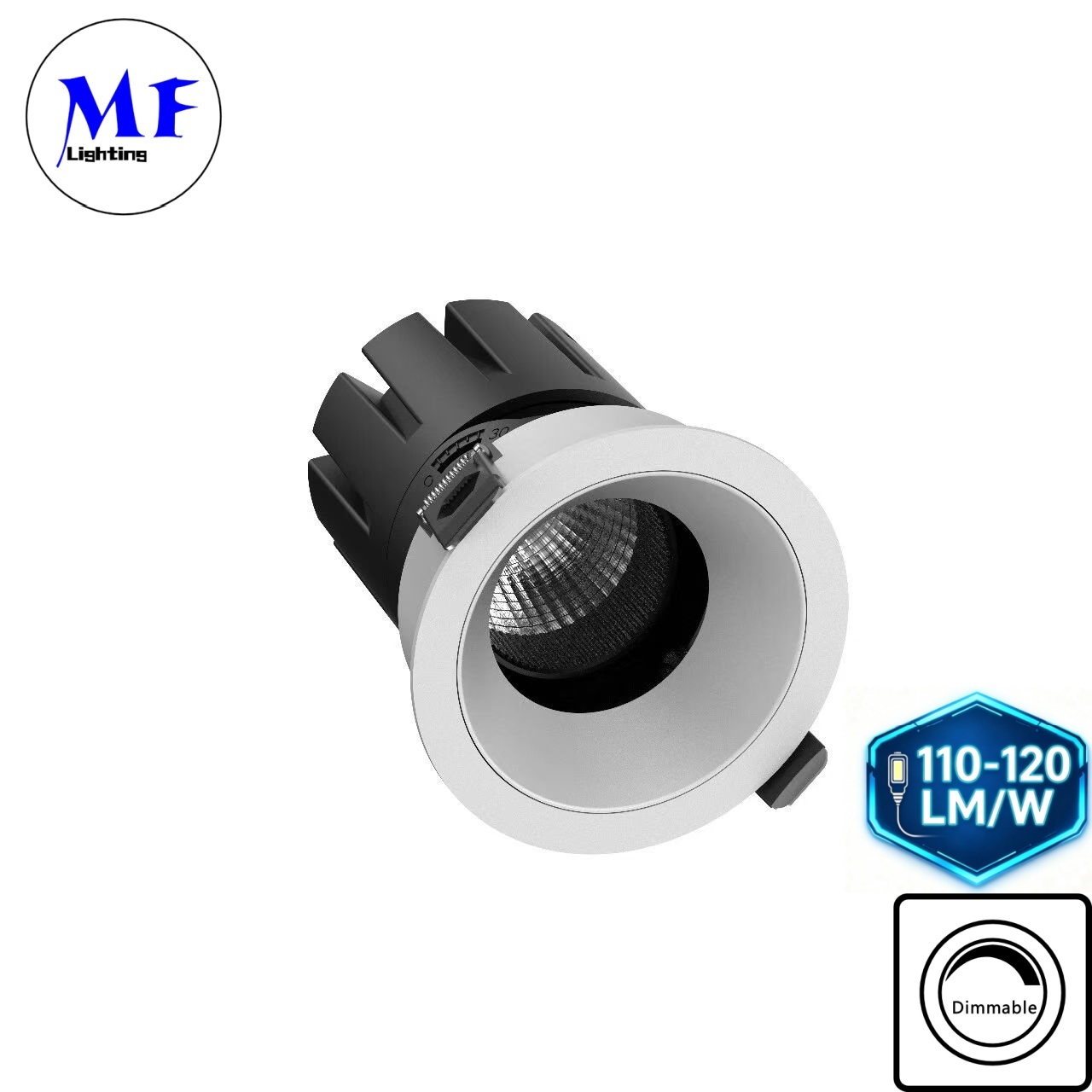

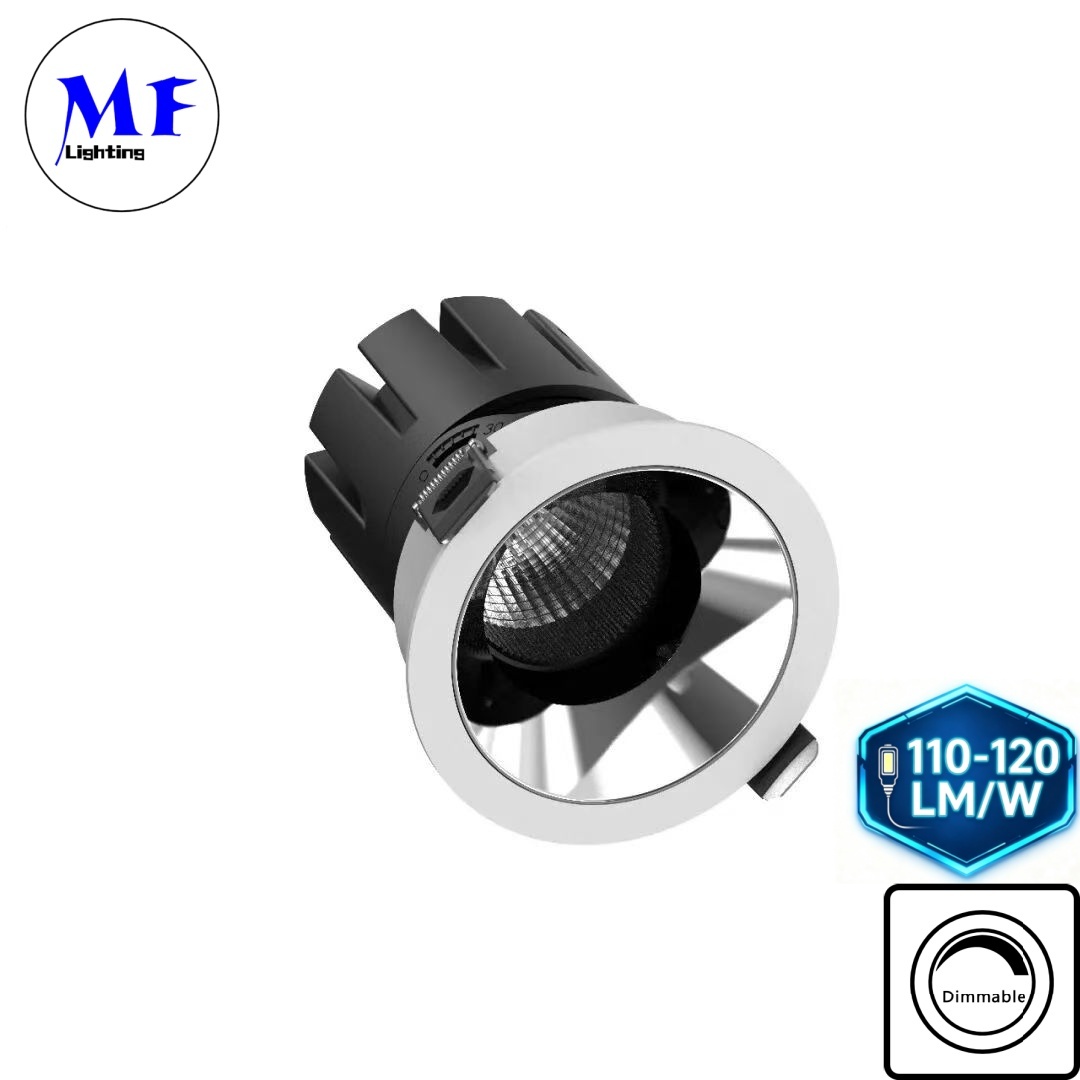

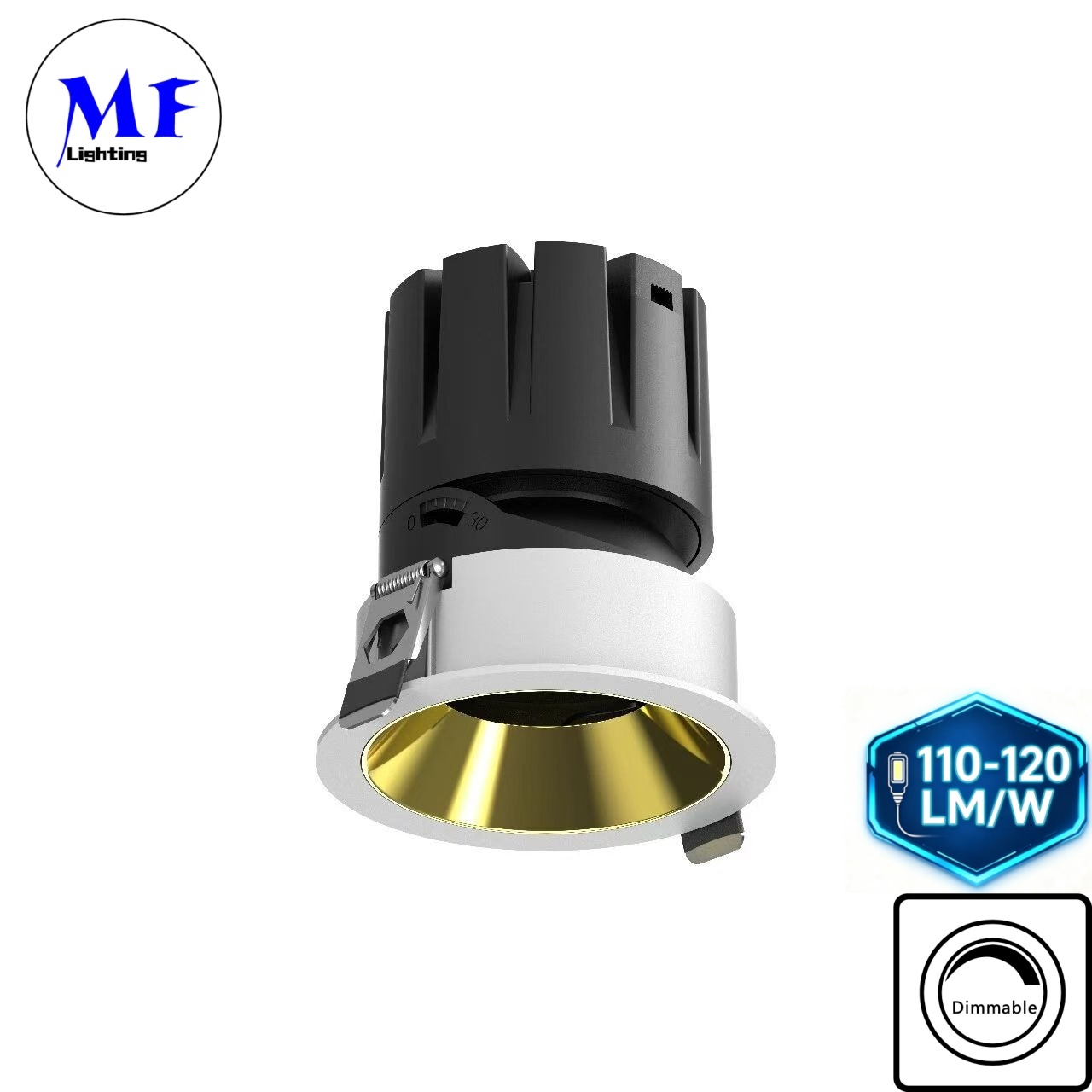

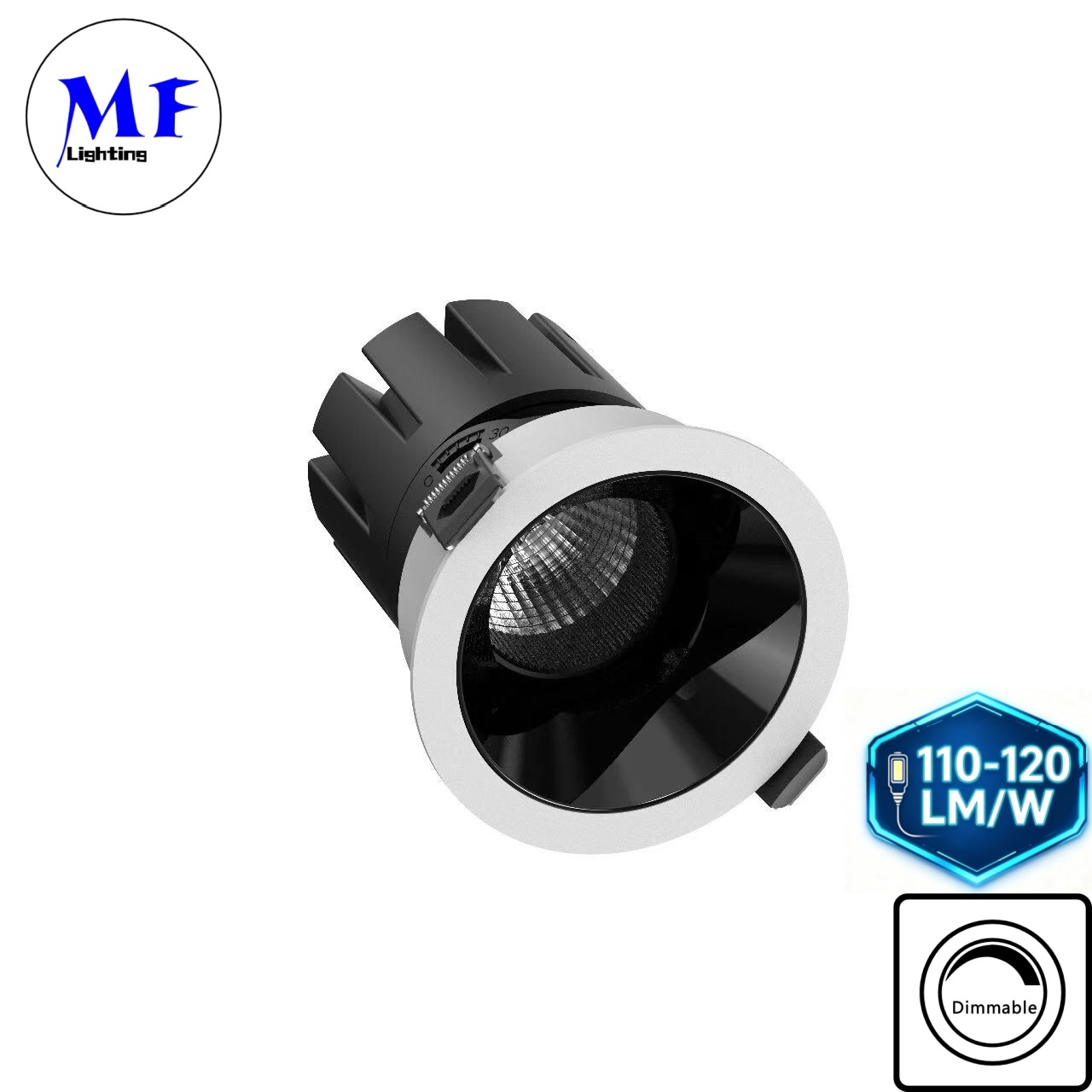

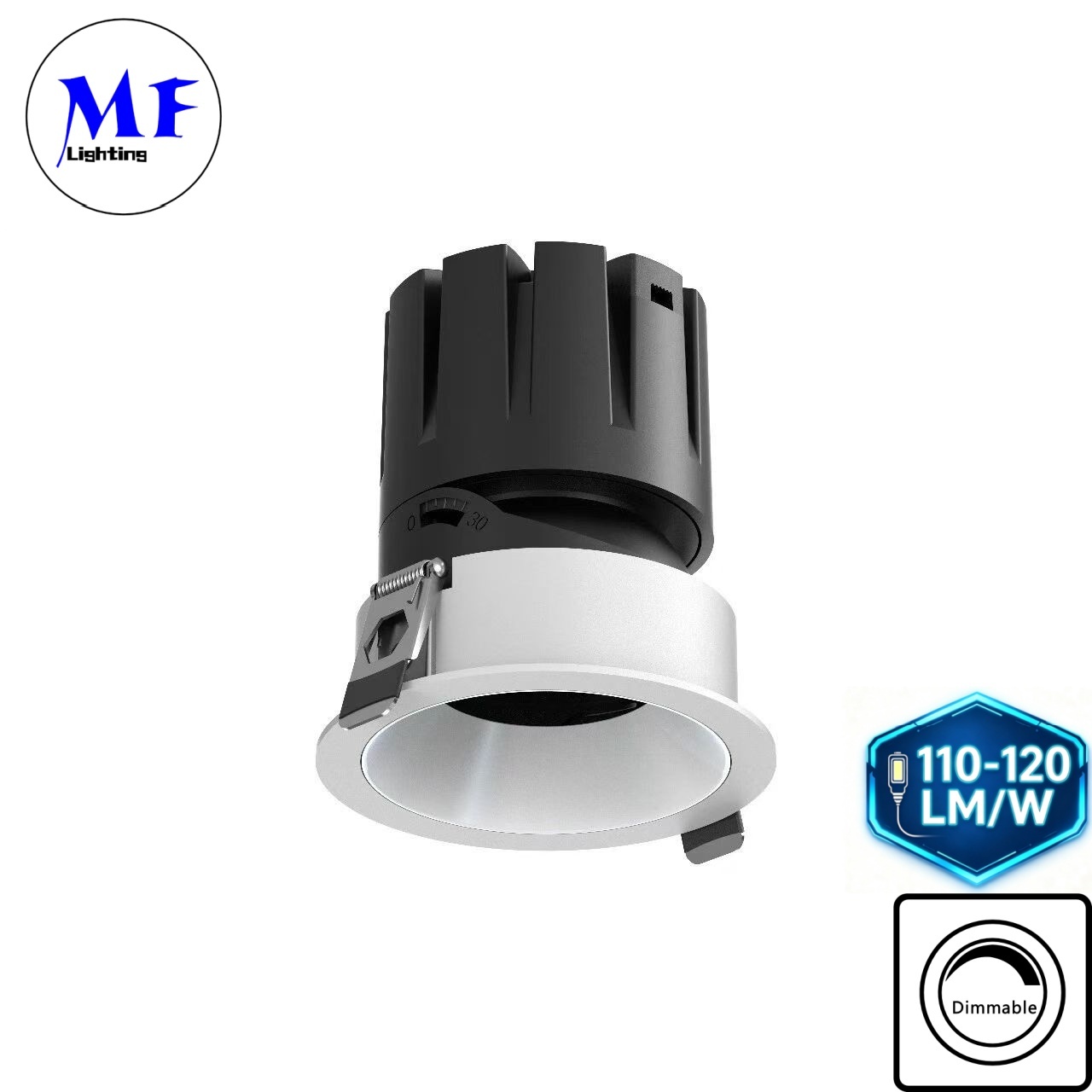

7W LED Down light UGR<3 Anti-glare Dimmable ETL Driver DIP 5CCT Adjustable 100LM/W High Lumens for Bathroom Industrial Retail Commercial Spaces
Features:
1.IP20/IP44 Protect Rating: Anti-humid and dustproof design suitable for wet areas like bathrooms spaces.
2.Long Lifespan: Integrated die-cast aluminum heat sink ensures lifespan of 50,000 hours or more.
3.Anti-Glare Design: Deep recessed structure with UGR<19 provides eye-friendly lighting for bedrooms and offices.
4.Flexible Dimming Options: Supports Non-Dim, TRIAC, 0-10V,Tuya and DALI dimming with smart control via APP.
5.Wide Color Temperature Range: Available in 2700/3000K/ 3500K/4000/ 5000K/6000K for 200-240Vac input version, American Standard 110Vac Driver support DIP 5 CCT 2700K-3000K-3500K-4000K-5000K .
6.High Luminous Efficiency: Delivers 110-120 lumens per watt with high CRI >90 for accurate color rendering.
7.Multiple reflector Colors: Available in Matte White/Matte Silver/Matte Black/bright Sliver/Gun Black/Rose Gold/ Champagne gold
8.Multi-level adjustable beam angle: 15°/24°/36°/55°, Also The illumination angle of the lamp body can be adjusted 0-30 °.
| Model |
MF-HGS24-7W/10W/12W/15W/20W/25W |
| Input voltage |
200-240Vac or 110Vac, 50hz/60hz, DC24V available |
| Power(watt) |
7W/10W/12W/15W/20W/25W |
| Color temperature |
2700K/3000K /3500K/ 4000K / 5000K /6000K, 2700-6000K Tunable |
| LED Chip |
Bridgelux COB |
| LED Driver |
Aohuaweiye/Lifud/BOKE Brand for different dim version |
| PF |
7-15W≥0.50, 20W-25W≥0.95 |
| Housing Colour |
White/Black |
| Reflector color |
Matte White/Matte Silver/Matte Black/bright Sliver/Gun
Black/Rose Gold/Champagne gold |
| Luminous Flux (lm) |
100LM/W |
| CRI(Ra) |
Ra90+ |
| Lifespan |
≥50000hrs |
| Beam Angle |
24°/36° |
| Material |
Die-casting Aluminum |
| Operating Temperature |
-200C ~500C |
| Dimmable |
Non-Dim/Triac/0-10V/Dali-2/Tuya dimmable as options |
| CCT Adjustable |
2700-6000K Tunable as optional if need |
| IP |
IP20/IP44 |
| UGR |
<3 |
| Certificate |
CE/ RoHS(Whole Lamp); CE/ROHS/CB/SAA(Driver) |
| Life Spain |
≥ 50,000Hrs |
| Warranty Period |
5 years |
High Luminous Efficiency MF-HGS24 Anti-Glare LED Downlight
MF-HGS23 are equipped with 15+ years lighting customization capability, support OEM & ODM service. This recessed COB downlight features high luminous efficiency of 110~120 lm/W, power options from 7W to 25W. With CRI>90, UGR<3 deep anti-glare design, 5 CCT color temperature switchable (2700K/3000K/3500K/4000K/5000K), flicker free, dimmable from 5%-100%.
Multiple dimming control available: Tuya, Zigbee, DALI, 0-10V, TRIAC.
Adopted premium aluminum heat sink & optical reflector cup, solid modular structure.
Rich housing & reflector color options to match diverse interior decoration styles, including Matt White, Matt Black, Matt Silver, Shiny Silver, Rose Gold, Champagne Gold.
High CRI>90 brings true-to-life color rendering, compared with low CRI lamps, it restores vivid color of objects, friendly for residential and commercial scene.
Available multiple beam angles: 24°,36°, and the lamp head can be adjusted within 0~30° to flexibly aim lighting target, meet accent lighting requirements.
5 CCT selectable & smooth dimmable function. One downlight can switch 5 color temperatures from warm white 2700K to daylight 5000K.
Triac / 0-10V dimming from 5% to 100%, achieves continuous brightness adjustment.
Deep recessed anti-glare optical design protects your eyes, stable COB light source, spring clip for quick & safe installation. Widely used for living room, corridor, hotel, supermarket and other residential & commercial projects.
High PF, IP54 optional, long lifespan 50000 hours, IK07 impact resistance, flicker free, reliable 5-year warranty.
| Power |
Carton Size(cm) |
G.W(KG) |
PCS/CTN |
| 7W |
52*37*24.5CM |
11.0KG |
50PCS |
| 10W |
60*37*30CM |
13.5KG |
30PCS |
| 12W |
60*37*30CM |
13.5KG |
30PCS |
| 15W |
60*37*30CMM |
13.5KG |
30PCS |
| 20W |
70*31*33CM |
14.6KG |
20PCS |
| 25W |
70*31*33CM |
14.6KG |
20PCS |
MF-HGS24 family are designed for recessed installation and are suitable for various applications such as:
Kitchen Lighting: In kitchens where steam and cooking splashes are common, waterproof downlights can provide both functional and aesthetic lighting solutions.
Industrial Settings: In industrial environments where dust, moisture, or water exposure can be an issue, waterproof lighting like these downlights can be beneficial.
Retail or Commercial Spaces: These downlights can also be used in retail stores, restaurants, or other commercial spaces where water resistance and durability are needed
Ming Feng Lighting Co., Ltd. is a leading LED lighting manufacturer with its own factory. Our company specializes in the design, production, and distribution of high-quality LED lighting products. With years of experience in the industry, we have established a reputation for excellence and innovation in LED lighting technology. Our team of skilled professionals is dedicated to providing customers with the best LED lighting products and services. At Ming Feng Lighting Co., Ltd., we pride ourselves on our commitment to quality and customer satisfaction. Whether you are looking for residential or commercial LED lighting solutions, we have the expertise and resources to meet your needs.
