Workshop Warehouse Led Canopy Lights Waterproof High Brightness

Minimum Order Quantity : 50PCS Price : Negotiable
Packaging Details : 45*45*22cm/1pcs, N.W: 7.2KG, G.W: 8.2KG Delivery Time : Depends on orders
Payment Terms : T/T, Western Union, Paypal Supply Ability : 5,000pcs/Month
Place of Origin: China Brand Name: MF
Certification: CE,RoHS Model Number: MF-HB120C

Detail Information

Lamp Power: 120W Lamp Luminous Efficiency: ≧13600LM@5000K
Lamp Body Material: Die-casting Aluminum Alloy Wattages: 30W To 200W
Warranty: 3 / 5 / 7 Years Optional Input Voltage: 85-265Vac, 50/60Hz
IP Rating: IP65 Lens Angle: 15°/ 30°/ 60°/90°/ 150°
Mounting Type: Suspended / Ceiling Mounted / Wall Mounted PF: > 0.9
Storage Temperature: -40~50℃
High Light:

LED Canopy Light

,

petrol station lighting

Product Description

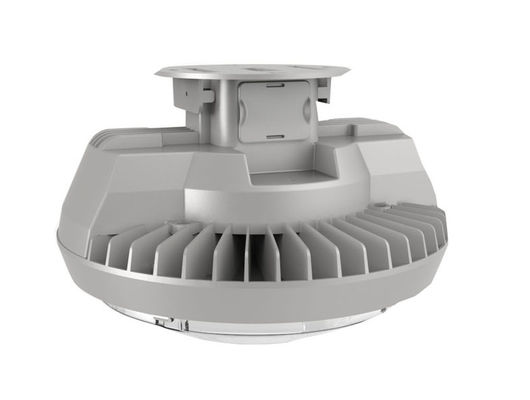

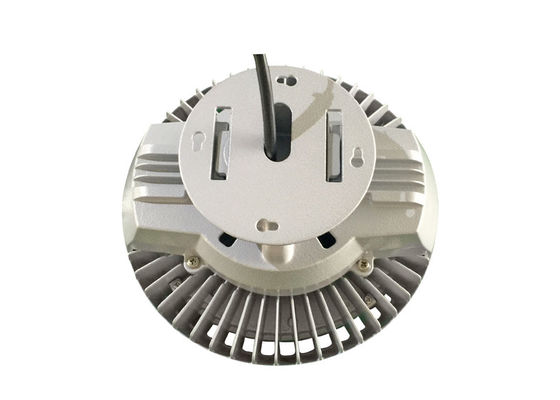

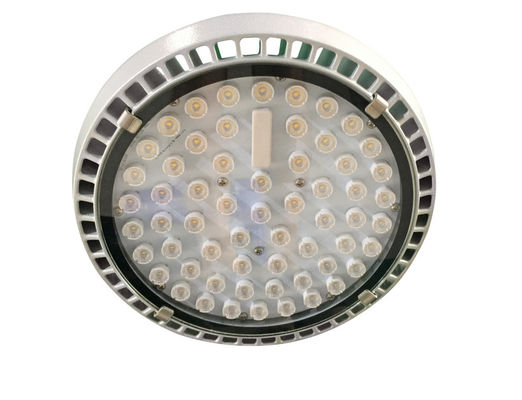

Workshop Warehouse Led Canopy Lights Waterproof High Brightness




Description:

Ming Feng Lighting Co., Ltd developed  UFO IP65 LED Canopy Light / LED high bay light,
With different beam angle lens as 15°/ 30°/ 60°/90°/ 150° apply to workshop, factory building, warehouse, highway toll stations, gas stations, supermarkets, exhibition halls, stadiums and other places of lighting required.  With Die-casting heat sinker,funnelled heat design, which own better heat dissipation. Varities of Joint, include ring, ceiling, bracket installation type. Unique design for Meanwell driver, to keep low temperature when operating. Beautiful appearance, chip is Samsung 3030, own high light efficiency, can achieve 110LM / Watt.

Ming Feng Lighting Co., Ltd this kinds of led canopy lights can used as canopy lights, used as high bay light, and used as street light. 3 / 5 / 7 years warranty available.




Specifications:


Item

MF-HB120C

Input voltage

85-277Vac  50Hz/60Hz

LED Power

120W

Luminaire Efficiency

110lm/W

Delivered Flux(Tj80°c)

13600lm

IP Rating

IP65

LED QTY

120 pcs

Color temperature

3000K/4000K/5000K

LED Chip

SAMSUNG

LED Driver

Meanwell(HLG series)

Color Rendering Index

>70 Ra

Power Factor

>0.90

Lifespan

≥50,000hrs

Operation Environment

Temperature:-40°C~50°C/Humidity:10%~95%

Material

Die-casting Aluminum Alloy

Product Size(mm)

Dia 342 * 157mm

Packing INFO 45 * 45 * 22cm/Carton

Net Weight

7.2Kg

Gross Weight 8.2Kg

Certificate

CE/RoHS

Warranty Period

5 years




Main Features:



1. Using 130-140LM/W Samsung3030 leds, the whole lamp luminous efficiency can reach 101lm/w.

2. Using Meanwell LED driver, With 5 years guarantee.

3. Protection Grade: IP65

5. The led driver is installed away from the heat sink. This separation of the led driver creates a lower heat working environment giving the lamp longer life span.

6.  Beam angle : 15°/ 30°/ 60°/90°/ 150° Lens optional.

7.  Installation: Suspended / Ceiling Mounted / Wall Mounted




Product Dimensions of led canopy lights(mm):


Workshop Warehouse Led Canopy Lights Waterproof High Brightness 0



Light distribution Curve of led canopy lights:



Workshop Warehouse Led Canopy Lights Waterproof High Brightness 1







Packing INFO:



Workshop Warehouse Led Canopy Lights Waterproof High Brightness 2





Applications:

Workshop, factory building, warehouse, highway toll stations, gas stations, supermarkets, exhibition halls, stadiums and other places of lighting required.



Workshop Warehouse Led Canopy Lights Waterproof High Brightness 3
