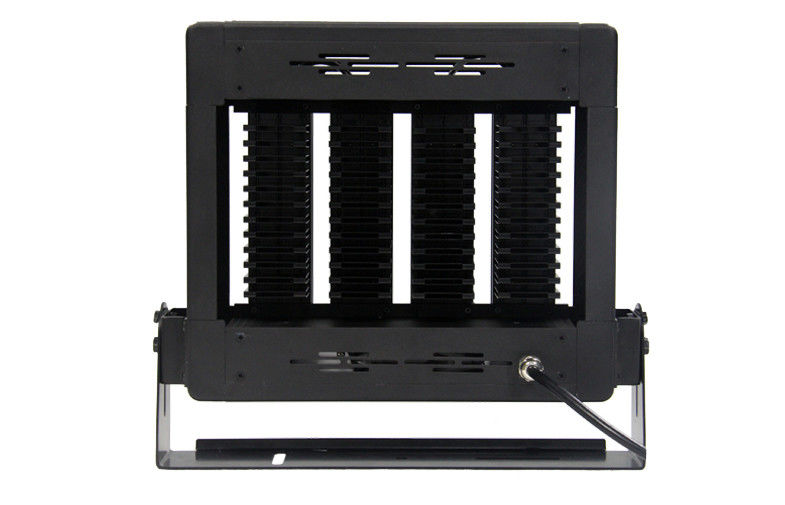

90 - 305Vac LED Stadium Lights IP67 100W Black housing Led Stadium Floodlights

Minimum Order Quantity : 100PCS Price : Negotiable
Packaging Details : 650*460*410mm/4pcs, G.W: 37kg Delivery Time : Depends on orders
Payment Terms : T/T, Western Union, L/C, Paypal Supply Ability : 5,000pcs/Month
Place of Origin: China Brand Name: MF
Certification: CE, RoHS, FCC,SAA CB,DLC, TUV, ETL Model Number: MF-FL-100W

Detail Information

Power: 100Watt Input: 90-305Vac, 50/60Hz
Chip Brand: CREE LED Driver: Meanwell
Beam Angle: 10°, 24°, 38°, 60°, 90° , 120° CRI: 80+,90+
IP Grade: IP67 House Color: Sliver / Black/Grey
Efficiency: 130-150lm/Watt CCT: 3000K / 4000K / 5000K / 6500K
Dimmable: 0-10V, DALI, DMX512 Warranty: 8 Years
High Light:

outdoor stadium lighting

,

led sport lights

Product Description

100W 90-305Vac Real anti-corrosion LED stadium lights of module design, 150lm/w
 90 - 305Vac LED Stadium Lights IP67 100W Black housing Led Stadium Floodlights

Description:

Ming Feng Lighting Co.,Ltd IP67 led stadium lights use USA CREE LED, Customized higher efficiency 130-150lm/w are available.Biggest cooling area, best heat dissipation in the market. Surface temperature 50℃-75℃,Ultra-low luminous decay <5% in 5 years. Design lifespan 100,000hrs, No flickering for slow-motion image. Applicable to HDTV live broadcasting Real anti-corrosion. Water Proof Rating-IP67.

Flexible installation, save more your cost CE,RoHS,TUV,CB,FCC,DLC,GS,SAA,C-Tick certificated 5 years free warranty. Lowest maintenance cost.



Ming feng LED Flood Light is an ideal replacement for Traditional Metal Halide Lamps, widely used in stadiums, football field, basketball court, golf and tennis court, racetrack, badminton, roads, high-rise buildings, light towers, parking lot, tunnels, high mast lighting and etc.


Can also be applied to large square, airport, commercial building, construction engineering, farm, amusement parks, parking lots, harbor, industrial buildings, and other special lighting environment.






Competitive Advantage:


1.100w High power led floodlight with CREE chip,Meanwell drive,and 5 years warranty;

2.High lumen-130-150lm/w , Japan Calculus optical lens, Unique unitized design,and ventilation on all side; 4 dimentional cooling design.

3.Working life up to 100,000 hours;

4.Certifications: CE/RoHS/TUV/GS/SAA/FCC/DLC/ETL 100w led floodlight;

5.The IP67 100w high power led floodlight rating is applicable to outdoor environment.

6. Multi-angle 10°, 24°, 38°, 60°, 90° , 120° for optional

7. Intelligent dimming system, 0-10V, 1-10V, Dali, DMX512 dimming models are available

8. Applications: Ming feng LED Flood Light widely used in stadiums, football field, basketball court, golf and tennis court, racetrack, badminton, roads, high-rise buildings, light towers, parking lot, tunnels, high mast lighting and etc.




Specifications: MF-FL-100W Spec.pdf



Item

MF-FL-100W

Input voltage

90-305Vac  50Hz/60Hz

LED Power

100W

System Consumption

100±10W

Delivered Flux

14300-16500lm

IP Rating

IP67

Beam Angle

10°, 24°, 38°, 60°, 90° , 120°

Color temperature

3000K / 4000K / 5000K / 6500K

LED Chip

CREE

LED Driver

Meanwell

Color Rendering Index

Ra>80/90

Power Factor

0.95

Color of Housing Silver / Gery / Black

Lifespan

100,000hrs

Operation Environment

Temperature:-40°C~65°C/Humidity:10%~90%

Storge Temperature -40°C~50°C(Best 25°C)

Material

Anti-corrosion Die Cast Aluminum

Product Size(mm)

385*298*104mm

Net Weight

7.0Kg

Certificate

CE/RoHS/TUV/GS/SAA/FCC/DLC/ETL

Warranty Period

8 years






90 - 305Vac LED Stadium Lights IP67 100W Black housing Led Stadium Floodlights 0



90 - 305Vac LED Stadium Lights IP67 100W Black housing Led Stadium Floodlights 1

90 - 305Vac LED Stadium Lights IP67 100W Black housing Led Stadium Floodlights 2
