IP44 3W Dimmable LED Ceiling Spotlights Recessed Led Cabinet Lights 250LM DC12-24V

Minimum Order Quantity : 100PCS Price : Negotiable
Packaging Details : 16.2*4*18cm/9pcs/inner box,0.38KG/inner box 43*51*31.5cm/60 inner box/carton ,22.8KG/carton Delivery Time : Depends on orders
Payment Terms : T/T, Western Union, Paypal,L/C Supply Ability : 10,000pcs/Month
Place of Origin: China Brand Name: MF
Certification: CE, RoHS Model Number: MF-TY3W

Detail Information

Name: 3W Dimmable LED Down Lights Input Voltage: DC12-24V
Power: 3Watt LED Brand: CREE-XTE LED
Luminous Flux: 250LM Beam Angle: 25 °/ 60°
CCT: WW(2700-3000K)/ NW(4000-4500K)/ CW(6000-6500K) IP Rating: IP44
Material: 6063 Aluminum + Glass Cover Dimmable: NO
High Light:

cob led downlights

,

recessed led downlights

Product Description

IP44 3W Dimmable LED Ceiling Spotlights Recessed Led Cabinet Lights 250LM DC12-24V


Description:

As a professional LED lighting products manufacturer, MingFeng are specializing in providing energy saver led down lights. The 3W Dimmable LED Down lights and recessed led cabinet lights with 250LM, using brightness CREE-XTE LED,Input voltage DC3V, DC12-24V optional. beside Warm white, pure white, cool white, the RED, GREEN, BLUE color available too.

This 3W LED Down lights and recessed led cabinet lights with IP44, light body with high quality 6063 aluminum, lifetime more than 35000Hrs. Have two dimension for different cut out application. Two kinds of wiring installation, one is access to constant current power transformer in-line mode, another is access to constant voltage power transformer parallel connection. With color box package, nine pieces lamp each one package.

Easy to install, widely use at room decorative lighting, KTV room, TV cabinet back wall lights, cabinets showcase, entrancecorridor...etc.

Specifications:


Model No

MF-TY3W

Input voltage

DC3V/630mA, DC12-24V

Power(watt)

3W

Dimension

A: Ф35×H25mmCutting hole size: 30mm,
B: Ф35×H35mm Cutting hole size: 30mm

Color temperature

WW(2700-3000K) NW(4000-4500K) CW(6000-6500K)

LED Chip

CREE-XTE LED

PF

>0.92

Housing Color

Silver

Luminous Flux (lm)

250LM

CRI(Ra)

80

Lifespan

≥40000hrs

Beam Angle

25 °/ 60°

Material

Aluminum Alloy + Glass

Operating Temperature

-200C ~500C

IP Rating

 IP44

Dimmable

 NO

Certificate

CE/RoHS/FCC/SAA

Warranty Period

3 years


Competitive Advantage:

  1. Use original USA CREE-XTE LED, light sense of authentic, high color rendering, effective reduction was illuminated by color.
  2. Independent research and development, private-mode products, uncompromising attention to, light compact ultra-thin, flexible wide range of applications.
  3. Light color rich options, warm white, pure white, cool white.
  4. Protection class can IP44, available for bathroom, washroom application.
  5. Input voltage DC3V, DC12-24V optional
  6. Have two dimension for different cut out application. Two kinds of wiring installation, one is access to constant current power transformer in-line mode, another is access to constant voltage power transformer parallel connection
  7. Quality aluminum material and milky cover.
  8. Long lifespan over 35000 hours.

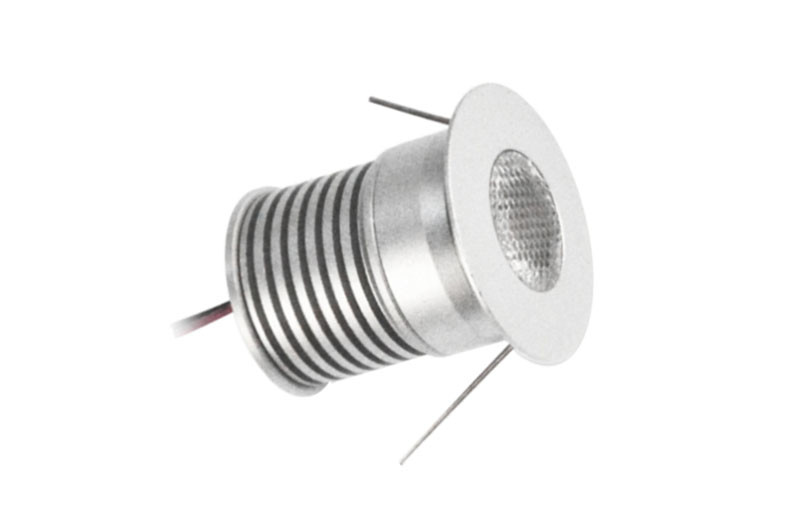

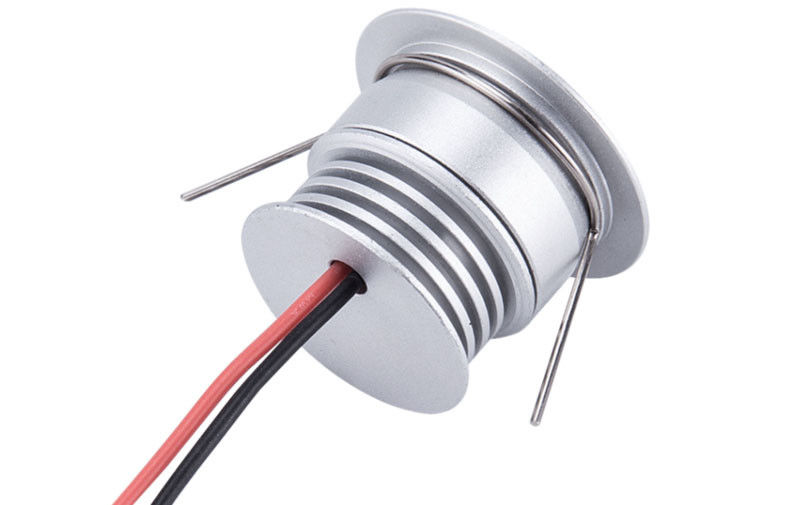

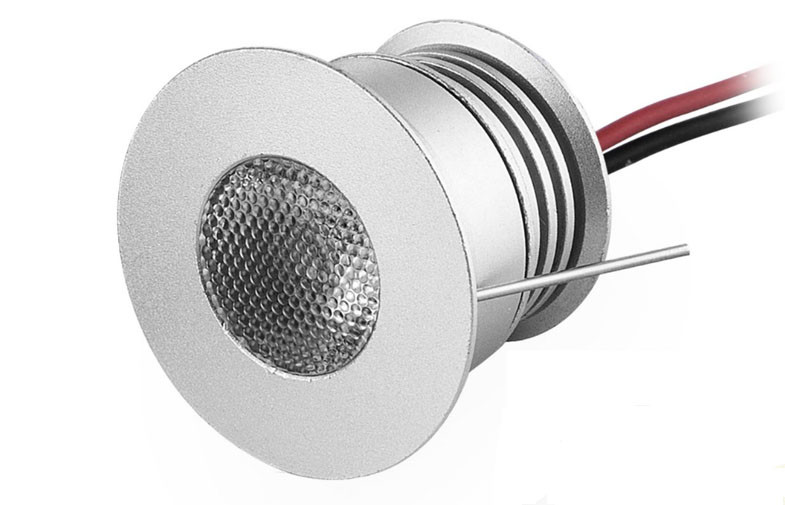

3W LED Down lights and recessed led cabinet lights details:

IP44 3W Dimmable LED Ceiling Spotlights Recessed Led Cabinet Lights 250LM DC12-24V 0

IP44 3W Dimmable LED Ceiling Spotlights Recessed Led Cabinet Lights 250LM DC12-24V 1
IP44 3W Dimmable LED Ceiling Spotlights Recessed Led Cabinet Lights 250LM DC12-24V 2

IP44 3W Dimmable LED Ceiling Spotlights Recessed Led Cabinet Lights 250LM DC12-24V 3
