Full Cycle 630 Watt LED Grow Panel Light For Seedling / Growing / Blooming / Fruiting

Certification
China Ming Feng Lighting Co.,Ltd. certification
China Ming Feng Lighting Co.,Ltd. certification
Customer Reviews
I have been working with MF-Claire for the past 6 months,Miss Claire have shown full cooperation and professional action all over this period, and we are so happy for dealing with her and MF company.

—— Ing. Ibrahim Amer-Spain

Hi Claire that's perfect thanks again, I will spread your name far and wide among the UK growing community! You've been a lot of help.

—— Tom Strichen---UK

It was a great experience having an opportunity to work with such a professional supplier like MF and having received finest services from you.

—— Shashi

I need more your 60pcs 200W Pionner led grow lights , This lamp work good for my flowers

—— Richard

MF is a reliable supplier of LED lighting products. I have known her and buy from the factory since 2009.

—— David Hale--USA

Professinonal across the MING FENG LIGHTING CO,.LTD company featured with best people such as Allen. I'm impressed!

—— Florian--UK

I must thanks a lot for MING FENG team, without their great support, especial the EXCELLENT DIALUX SIMULATION we can't win the parking lot project.

—— Ricardo--Brazil

I really would like to work with MING FENG, their professional service on the lighting solution and reliable products help me win much market!

—— Thierry Baron--UK

I'm Online Chat Now

Full Cycle 630 Watt LED Grow Panel Light For Seedling / Growing / Blooming / Fruiting

Full Cycle 630 Watt LED Grow Panel Light For Seedling / Growing / Blooming / Fruiting
Full Cycle 630 Watt LED Grow Panel Light For Seedling / Growing / Blooming / Fruiting Full Cycle 630 Watt LED Grow Panel Light For Seedling / Growing / Blooming / Fruiting Full Cycle 630 Watt LED Grow Panel Light For Seedling / Growing / Blooming / Fruiting

Large Image :  Full Cycle 630 Watt LED Grow Panel Light For Seedling / Growing / Blooming / Fruiting

Product Details:
Place of Origin: China
Brand Name: MF
Certification: CE, RoHS, FCC,SAA CB,DLC, UL, ETL, TUV
Model Number: MF-3GA06
Payment & Shipping Terms:
Minimum Order Quantity: 10PCS
Price: Negotiable
Packaging Details: 900*320*170mm/pcs/carton G.W:14.5KG
Delivery Time: Depends on orders
Payment Terms: T/T, Western Union, L/C, Paypal
Supply Ability: 1,000pcs/Month

Full Cycle 630 Watt LED Grow Panel Light For Seedling / Growing / Blooming / Fruiting

Description
Power: 630Watt Input Voltage: 100-265Vac, 50/60Hz
Input Current: 2.86-5.73A Dimension: 650*370*75mm
Weight: N.W: 13.5KG, G.W: 14.5KG Spectrum: Full Cycle
LED Brand: German Osram SSL80 Coverage: 4x6'
Storage Temp: 0℃~40℃ Operation Temp: -10℃~45℃
Lamp Control: 2 ON/OFF Switches,CH1- Veg Light, CH1 + CH2- Full Light Waterproof Grade: IP44
Mounted: Wire Hanging Kit For Suspended Mounting Warranty: 3 Years
High Light:

led grow lamp

,

led growing lights


Full cycle 630 watt LED grow panel light, seeding/growing/blooming/fruiting


Description:

Ming feng lighting co.,ltd full spectrum 630watt LED grow panel no need to add extra ballast with 252pcs German Osram SSL80 LEDS, more yield, more energy saving and less heat.Secondary 90 degree optical lens direct light downward to magnifies PAR and increases canopy penetration by up to 200%. 6 band carefully selected spectrum grow smarter and better, Patent pending cross-flow design for extremely quiet operation.

Usage: first, attach the included light hanger kit to the unit using the brass eyelets on the back of the led grow panel housing and the clips of the hanger.

Next, hang the led grow light fixture in a position that leaves at least 12"  between the top of the light housing and surface. This will ensure ample airflow  for maximum heat dispersion. For primary lighting, position the light 12"-36" from the top of the canopy. Ideal positioning will vary depending upon plant size, strain and species.



Specifications: MF-3GA06 Spec.pdf



Item

MF-3GA06

Input voltage

100-265Vac  50Hz/60Hz

LEDS

Osram ss180

Actual power

630W

Lamp Control

2 ON/OFF switches, CH1- Veg light, CH1 + CH2- Full light

Coverage

4x6'

IP Rating

IP44

LED Driver

Meanwell

Color Rendering Index

Ra>80

Power Factor

0.95

Beam angle 60°, 90°, 120°options. Secondary lens 90°

Color Ratio

Full Spectrum

Lifespan

>50,000hrs

Operation Temp.  -10℃~45℃
Storage Temp. 0℃~40℃

Material

Aluminum Alloy

Product Size(mm)

650*370*75mm

Net Weight

13.5Kg

Certificate

CE/RoHS/TUV/GS/SAA/FCC/DLC/UL/ETL

Warranty Period

3 years



Full cycle 630 watt LED grow panel light Main characteristics:

1). Using German Osram ssl80 LEDs, more stable, higher Luman and PAR output
2). Unique secondary Magnifies PAR Lens---much better PAR value and intensity
3). Patent pending cross-flow design for extremely quiet operation.
4). Easy to use the two on/off switches to fit different grow stages.



Features:

1. Light Source:
German Osram ss180 LEDs
2.Spectrum/Ratio: Full Spectrum, 6 band carefully selected spectrum grow smarter and better.
3. Driver: Taiwan Meanwell LED Drivers, Wide AC100-265V, PF>0.95
4. Waterproof Grade: IP44
5. Beam Angle: Secondary 90 degree optical lens direct light downward to magnifies PAR and increases canopy penetration by up to 200%.
6. Lamp Control: 2 ON/OFF switches, CH1- Veg light, CH1 + CH2- Full light.
7. Coverage: Vegetative: 6'X4', Flowering: 4'X4'
8. Environment: OperationTemperature: -10℃~45℃,Storage Temp.: 0℃~40℃
9. Warranty: Design lifespan > 50,000Hrs,3 years warranty available

10. Certificated: CE, TUV, RoHS,CB,SAA, FCC, ETL


Full cycle 630 watt LED grow panel light Details:

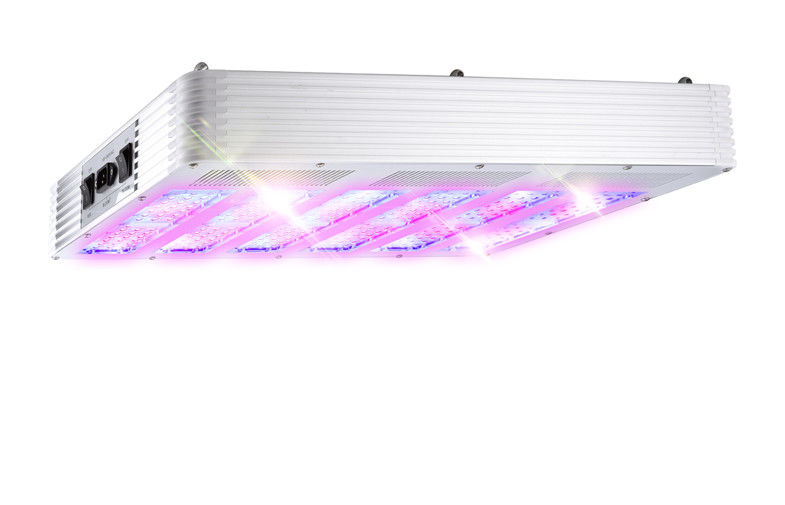

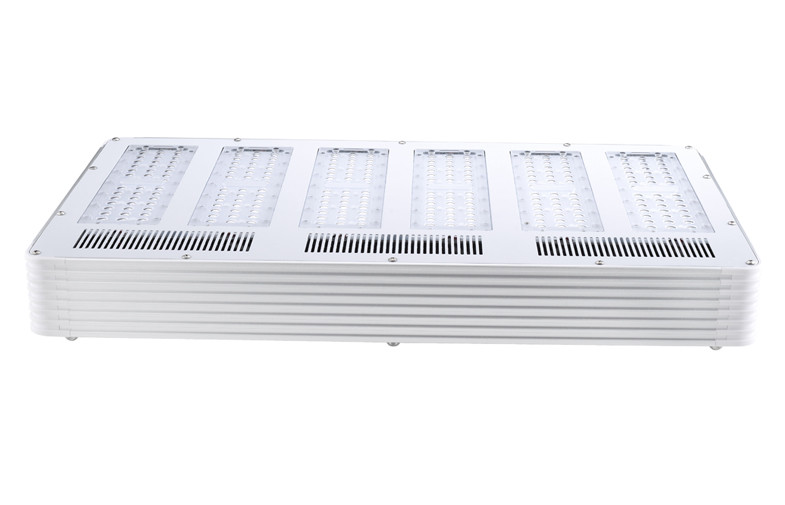

Full Cycle 630 Watt LED Grow Panel Light For Seedling / Growing / Blooming / Fruiting 0


SUN SPECTRUM of Full cycle 630 watt LED grow panel light:

Full Cycle 630 Watt LED Grow Panel Light For Seedling / Growing / Blooming / Fruiting 1


PAR READING OF Full cycle 630 watt LED grow panel light:


Full Cycle 630 Watt LED Grow Panel Light For Seedling / Growing / Blooming / Fruiting 2
