230Vac Input IP65 LED Down Lights 10 Watt 3inch 100lm/w, daylight 4000K

Minimum Order Quantity : 100PCS Price : Factory price
Packaging Details : 54*34*38.5cm/24pcs, G.W: 16.7KG Delivery Time : Depends on orders
Payment Terms : T/T, Western Union, Paypal, L/C Supply Ability : 10,000pcs/Month
Place of Origin: China Brand Name: MF
Certification: CE, RoHS Model Number: MF-E300098

Detail Information

Power: 10W Color: White RAL9003
Luminous Flux: 800lm IP: IP65
Beam Angle: 40 Deg. Dimmable: Triac Dimamble
Input: 220-240Vac, 50/60Hz LED Brand: COB CREE
LED Driver: Waterproof Weanmell Driver Warranty: 5 Years
High Light:

led ceiling lights

,

recessed led light

Product Description



230Vac Input IP65 LED Down Lights 10 Watt 3inch 100lm/w, daylight 4000K




Description:

MingFeng, as a prominent China LED down light manufacotry, devotes himself to providing high quality IP65 Waterproof COB LED down lights for the replacement of traditional down lights in residential, museum, office and commercial applications.
MingFeng IP65 waterproof COB led down lights is the most comprehensive architectural LED downlights in the market to replace CFL downlight, power are 12W/16W/22W/30W/40W/50W,
Luminous Flux efficiency up to 90lm/w,Also CRI>80 is available, the whole series provide a collection of intelligent led lighting solutions,

 A reliable heat management and different optical systems based on the size of the lamps help exploit at the best characteristics of every luminaires, Dimmable LED DOWN LIGHTS maximize efficacy with minimum maintenance,making surroundings more dynamic. Advanced optic design precisely control the beam angle to achieve an ideal lighting effect. Anti-glare strcuture brings pleasant and comfortable visual experience.




Applications:

Widely used in automobile exhibition, clothing shop, furniture store, shoe stores, jewelry store, exhibition, art exhibition hall, the villa, and hotel, etc.



Specifications:   MF-E300098 Spec -10 & 12W.pdf


Model No

MF-E300098

Input voltage

200-240Vac, 50hz/60hz

Power(watt)

10W

Dimension

Product Size: Dia109*52mm Cutting hole size:98mm

Color temperature

3000K /4000K/5000K/6000K

LED Chip

COB CREE

LED Driver  Waterproof weanmell driver

PF

>0.92

Housing Color

Matt White(RAL9003)

Luminous Flux (lm)

960LM

CRI(Ra)

≥80

Lifespan

≥40000hrs

Beam Angle

400

Material

Die-casting Aluminum

Operating Temperature

-200C ~400C

Dimmable

Y

IP

IP65

Protection Against Shock

IK01

Dimension Single Package

160x160x90mm,

Weight Single Package

0.64KG

Certificate

CE/RoHS

Warranty Period

3 /5 years




Competitive Advantage:



  1. Die-casting aluminum heatsink, advanced cooling system.
  2. High output CREE COB LED Chips.
  3. Stable performance IP67 waterproof driver.
  4. 40 degree flood beam angle, soft light effect.
  5. Excellent reflector, complete visual comfort.
  6. IP65 design suitable for outdoor application.
  7. Both CRI>80 and CRI>90 for option.
  8. Kn<10 driver, waterproof meanwell led driver, reliable performance.
  9. Smooth dimming on most dimmers.
  10. Life to 70% lumen maintenance, 45,000 hours.
  11. High power factor>0.92.
  12. 3 or 5 years guarantee options.

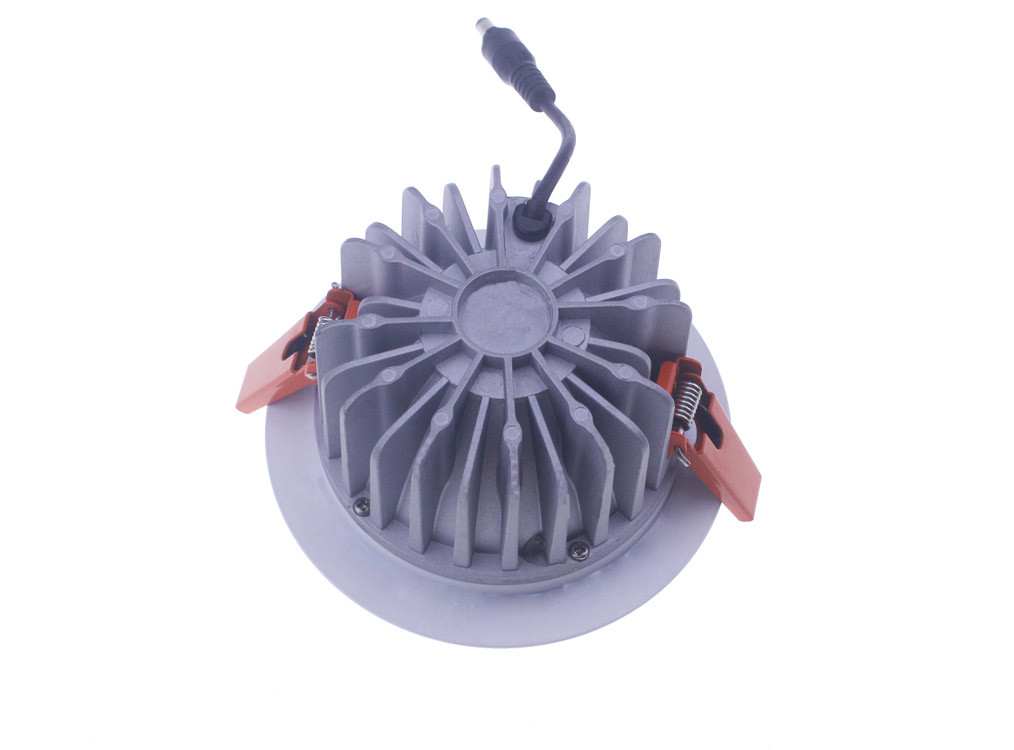

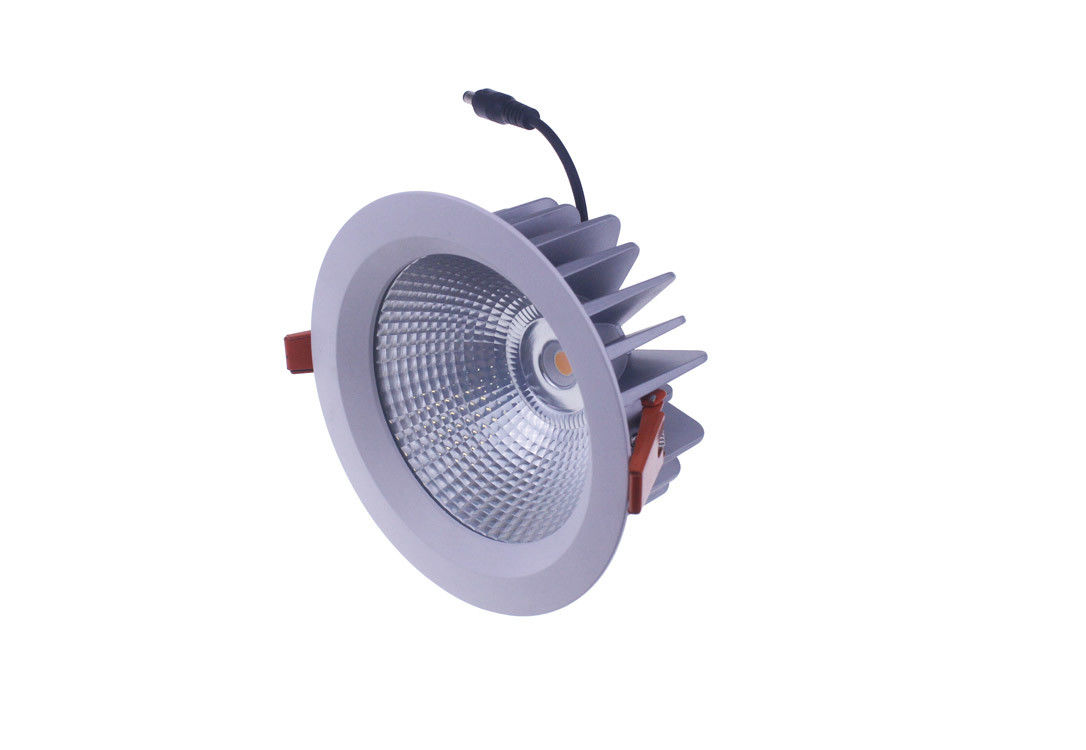

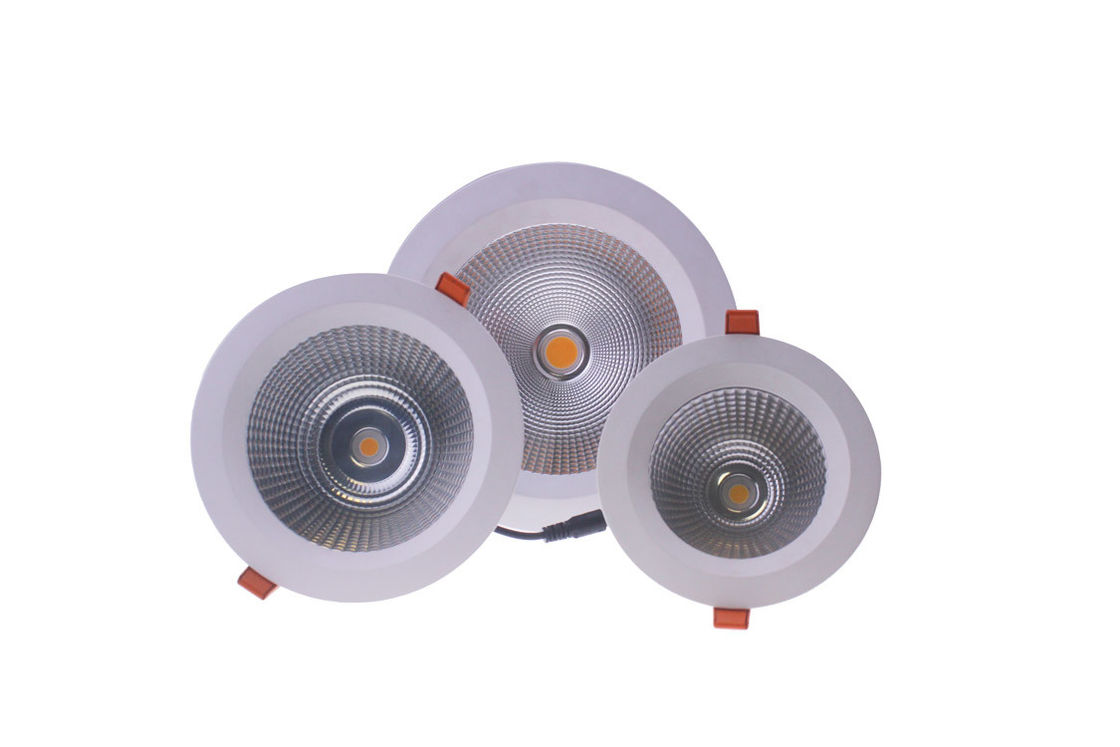

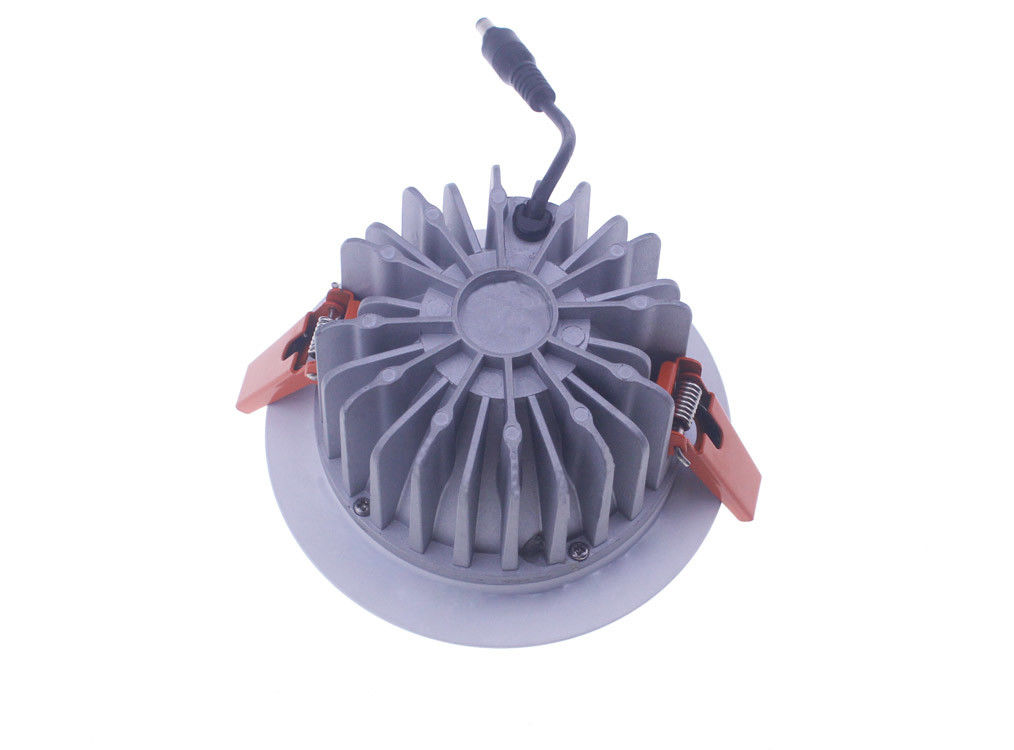

 230Vac Input IP65 LED Down Lights 12 Watt  SHOW:



230Vac Input IP65 LED Down Lights 10 Watt 3inch  100lm/w, daylight 4000K 0

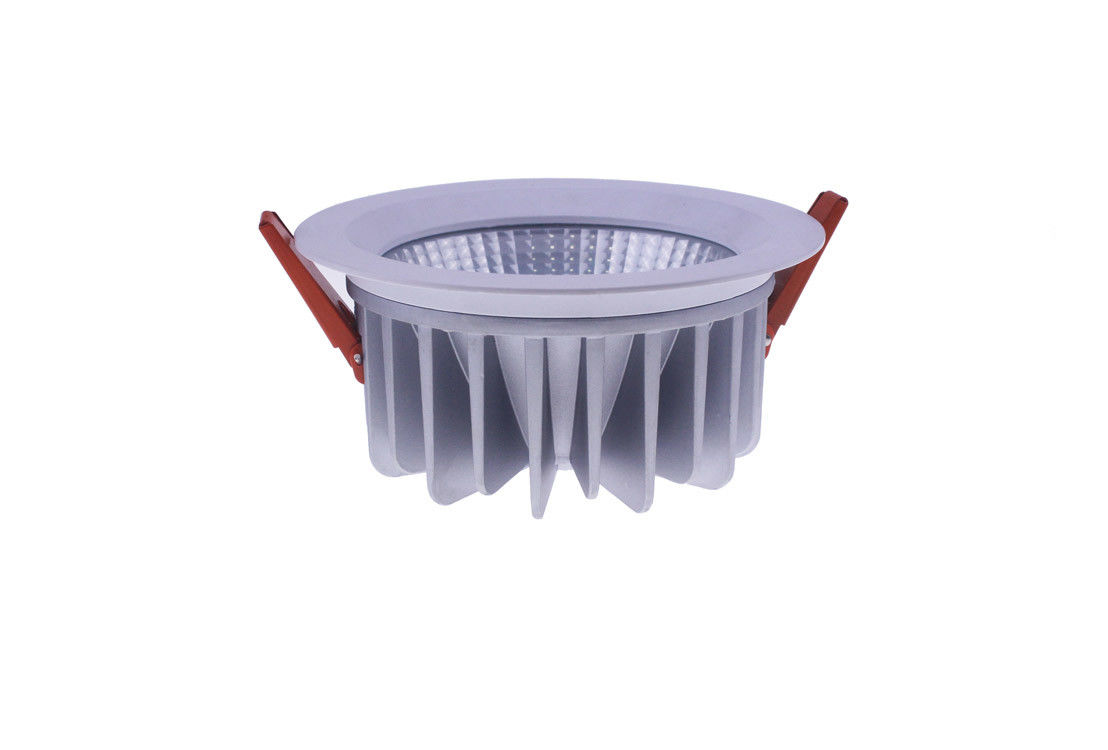

230Vac Input IP65 LED Down Lights 10 Watt ​ dimension​:



230Vac Input IP65 LED Down Lights 10 Watt 3inch  100lm/w, daylight 4000K 1
