Bridgelux Leds 3000lm 30W COB LED Courtyard Light 5000K Aluminium Use For Road

Contact Now

Bridgelux Leds 3000lm 30W COB LED Courtyard Light 5000K Aluminium Use For Road

Minimum Order Quantity :	100PCS	Price :	Negotiable
Packaging Details :	460390390mm/pcs, G.W:7.0Kg	Delivery Time :	Depends on orders
Payment Terms :	T/T, Western Union, L/C, Paypal	Supply Ability :	5,000pcs/Month

Place of Origin:	China	Brand Name:	MF
Certification:	CE, RoHS	Model Number:	MF-CS030W

Detail Information
Model No::	MF-CS030W	Input Voltage::	AC 85 -265V
LED Power：:	30W	LED Chip::	Bridgelux
LED Driver::	Meanwell	CCT：:	3000K -6500K
IP Rating::	IP65
High Light:	samsung led light , garden led light

Product Description

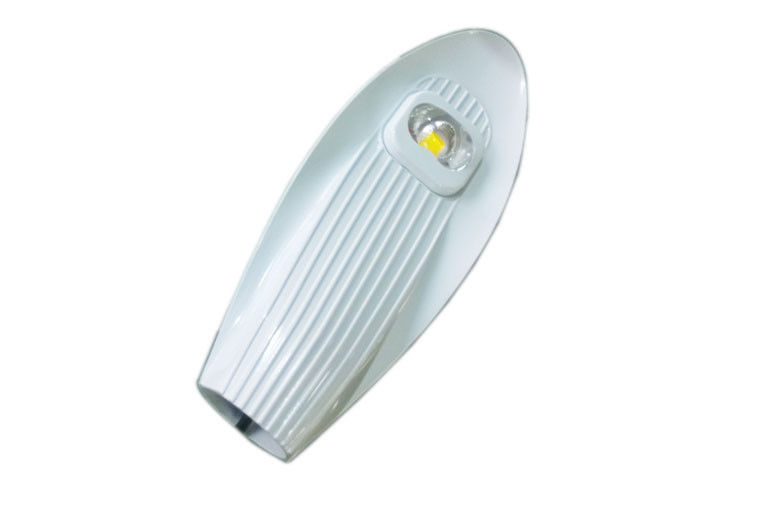

Bridgelux Leds 3000lm 30W COB LED Courtyard Light 5000K Aluminium

Quick Detail:

30W COB LED courtyard light
Input: AC 90V-264V, 50/60Hz
Luminous Flux:≧3000 Lm
CRI: >70
Brand chip: Bridgelux
LED Driver: Meanwell
Adjustable: -15 to +15
IP:65
CE, RoHS certificated

Description:

Excellent manufacturers of LED street lights in china, Ming Feng Come out COB LED courtyard light series in 2014. These LED street lighting series combines all street LED lighting features together including economic, long lifespan and environment protection. Applied with the best LED from Bridgelux , the street light attains over 90 lm/w illumination efficiency. Accelerated by Professional Unique Optical Lens, Ming Feng LED street light distribute all the light onto road with maximum effect.

COB LED courtyard light embrace typical European and American style solid and slender , flexible current driving range , thermal and optical integrated modular system , the light distribution of multiple choice , free tool for installation and maintenance, complete solutions , widely applicable installation transition from the old and the various control methods.

Specifications:

Item	MF-CS030W
Input voltage	90-264Vac 50Hz/60Hz
LED Power	30W
Rated Power	35W
Delivered Flux(Tj80°c)	3000lm
IP Rating	IP65
Luminous Efficiency	86LM/W
Color temperature	3000K-6500K
LED Chip	Bridgelux
LED Driver	Meanwell
Color Rendering Index	>70
Power Factor	>0.9
Lifespan	≥50,000hrs
Operation Environment	Temperature:-40°C~50°C/Humidity:10%~95%
Material	Aluminum Alloy
Product Size(mm)	402(L)149(W)88(H)
Packing Size(mm)	460(L)390(W)390(H)/pcs
Net Weight	1.2Kg
Certificate	CE/RoHS
Warranty Period	5 years

Competitive Advantage:

1. Epistar or Bridgelux chip

2. The light source use 100M/W Bridgelux chip, the luminaire reach 85M/W

3. Beautiful appearance for the shell

4. High efficiency driver system from Meanwell

5. The product is suitable for use in the streets, walkways, park, garden light, etc

6. Warranty:5 years

Light Distribution Curve:

Bridgelux Leds 3000lm 30W COB LED Courtyard Light 5000K Aluminium Use For Road 0

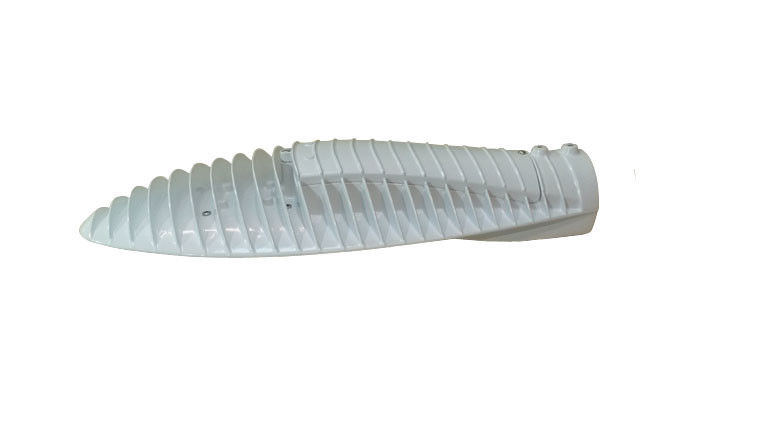

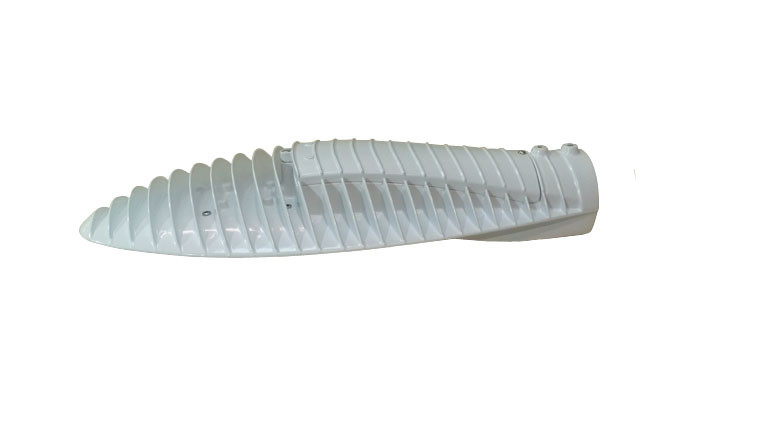

Product Size:

Bridgelux Leds 3000lm 30W COB LED Courtyard Light 5000K Aluminium Use For Road 1

Installation

Applications:

The product is suitable for use in the streets, walkways, park, garden light, etc.
