LED Project Lights 75W At 155lm/W, Water-Proof , DALI , 1-10V Dimmable

Contact Now

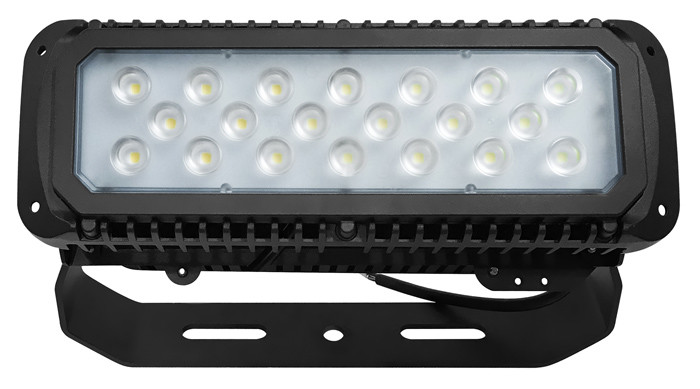

LED Project Lights 75W At 155lm/W, Water-Proof , DALI , 1-10V Dimmable

Minimum Order Quantity :	1PCS	Price :	factory price
Packaging Details :	790(L)X 440(W)X 370(H)MM/4PCS/CTN, N.W: 9.6Kg G.W: 11.8kg. 220 CTN/20ft	Delivery Time :	1 week for sample, 2 weeks for bulk order
Payment Terms :	T/T, Western Union, L/C, Paypal	Supply Ability :	5,000pcs/Month

Place of Origin:	China	Brand Name:	MF
Certification:	CE, RoHS, ETL,SAA CB,DLC, TUV	Model Number:	MF-L75W

Detail Information
Power:	75Watt	Input:	90-305Vac, 50/60Hz
Chip Brand:	Osram/Lumileds	LED Driver:	Meanwell
Beam Angle:	25°,60°, 90° , 110°,130°x60°	CRI:	80+/70+ Optional
IP Grade:	IP65	House Color:	Black In Stock,other Color Customized
Efficiency:	130lm/Watt,155lm/W Optional	CCT:	3000K / 4000K / 5700K
Dimmable:	1-10V, Dali,PWM	Warranty:	5 Years
Lifespan:	100,000H	Operating Temp:	-40℃~+65℃
High Light:	led sport lights , led flood lights

Product Description

LED project lights 75W at 155lm/W, water-proof , DALI,1-10V dimmable

Product Features:

LED flood lights

1. UV-resistance PC lens, no color changing after long time under sun-exposure, Janpan Brand raw material.

LED flood lights

2. Symetric lens and asymetric lens as options, symetric lens gets 25°,60°, 90° and 110° as options,there is asymetric lens 130°x60° for different applications.

LED flood lights

3. heat disspation is made of Die-casting Aluminum, fin shape, comply with air flow engineering, make heating goes away quickly from lamp body,which secure LED chips an

d driver works under junction temperature, life-span of the lamp are secured with the help of this deisgn. life-span is 500 000 hours,(100K hours @ conditions), the lamp can work 9 years when lamp works 15 hours daily.

4. Energy saving rate is 50%+, 75W LED sports lights can substitute 150W HID or HPS.

5. The IK rate is IK10, can be wildly used in harsh conditions,such as mine area, tunnels,bridges,Apron,basketball playground,footbal,tennis court,sea seaside and so on.

6. Meanwell driver with universal input 85~265V AC,

Dim at three options,1~10V, DAli and PWM.

7. IES files, LM-79 test report, Certificates are available,Engineer team provide Dialux simulation service for any lighting projects.

8.U shape bracket with angle adjutable of 0°~180°,Each modular can be angle adjustable as well, which can enable the lamp projects to the illumination needed area.

Specifications:

Item	MF-L75W
Input voltage	85-265Vac 50Hz/60Hz
LED Power	68W
System Consumption	76W
Delivered Flux	75x130lm,75x155lm
IP Rating	IP65
Beam Angle	25°,60°, 90° and 110° ,asymetric lens 130°x60°
Color temperature	3000K / 4000K / 5700K
LED Chip	Lumileds/Osram
LED Driver	Meanwell
Color Rendering Index	Ra>80,70 as options
Power Factor	≧0.98
Color of Housing	Black in stock, color can be customzied
Lifespan	1000,000hrs @ conditions, regular life span:50,000 hours, 9 years.
Operation Environment	Temperature:-40°C~65°C/Humidity:10%~90%
Storge Temperature	-40°C~50°C(@25°C)
Material	Anti-corrosion Die Cast Aluminum Alloy
Product Size(mm)	320(L)x 130(W)x 275(H)
Net Weight	3.20 Kg/PCS. 4PCS/CTN
Certificate	CE/RoHS/TUV/ETL/GS/SAA/FCC/DLC
Warranty Period	5 years

Competitive Advantage:

1.Lumileds and Osram LED, 130lm/w or 155lm/W, CRI up to Ra80. Junction temperature <70°C.
2.World Calss Brand, MeanWell LED Drivers, wide AC90V~305V, PF>0.98, low THD<9%.Built-in Mean well drivers, make the lamp safer for operation.
3.L70>80,000hrs. Design lifespan 100,000hrs @ conditions.9 years @ 15 hours/day.
4.Module angle adjustable to project aimed lighting area accurately.
5. Constant current design, much more reliable in life-span.
6. Japan secondary optical DIWL lens, light transmittance up to 98%.
7. Intelligent dimming system, 1-10V, Dali, PWM dimming models are available

LED Flood lights

8. Certificated: CE, TUV, RoHS,ETL,CB,SAA, FCC, DLC
LED Sports Lights Certificates
