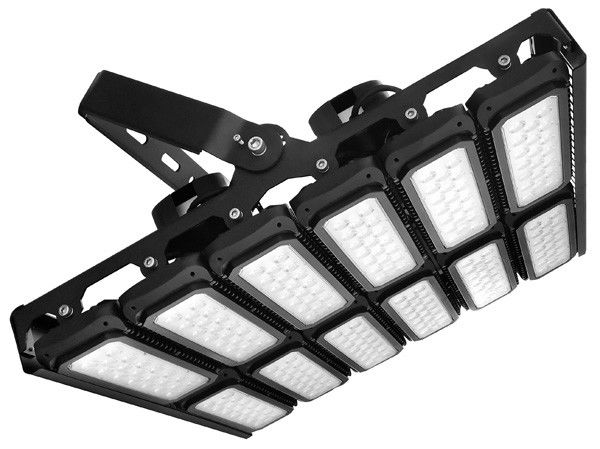

900W LED sports lamp, area light, anti-corrosion powder coating, 155lm/W,9 years lifetime

Minimum Order Quantity :	1PCS	Price :	factory price
Packaging Details :	755(L)X 675(W)X 205(H)MM/1PCS/CTN, N.W: 29.35Kg G.W: 33.1kg. 271 CTN/20ft	Delivery Time :	1 week for sample, 2 weeks for bulk order
Payment Terms :	T/T, Western Union, L/C, Paypal	Supply Ability :	5,000pcs/Month

Place of Origin:	China	Brand Name:	MF
Certification:	CE, RoHS, ETL,SAA CB,DLC, TUV	Model Number:	MF-L900W

Detail Information
Power:	900Watt	Input:	90-305Vac, 50/60Hz
Chip Brand:	Osram/Lumileds	LED Driver:	Meanwell
Beam Angle:	25°，60°, 90° , 110°，130°x60°	CRI:	80+/70+ Optional
IP Grade:	IP65	House Color:	Black In Stock,other Color Customized
Efficiency:	130lm/Watt,155lm/W Optional	CCT:	3000K / 4000K / 5700K
Dimmable:	1-10V, Dali,PWM	Warranty:	5 Years Or 10 Year @ Conditions
Lifespan:	9 Years Min.	Operating Temp:	-40℃~+65℃
Highlight:	led sport lights , sport field lights

Product Description

900W LED sports lamp Product Features:

1. World brand chip-Lumiled and Osram as options
900W LED sports lamp, area light, anti-corrosion powder coating, 155lm/W,9 years lifetime 0

2. TaiWan MeanWell LED Drivers, wide AC90V~305V, PF>0.98, low THD<9%.Built-in Mean well drivers, make the lamp safer for operation, Intelligent dimming system, 1-10V, Dali, PWM dimming models are available, And Top class power gear covered by aluminum cover.

900W LED sports lamp, area light, anti-corrosion powder coating, 155lm/W,9 years lifetime 2

3. Module angle adjustable to project aimed lighting area accurately.

4. Japan secondary optical DIWL lens, light transmittance up to 98%.

5. L70>80,000hrs. Design lifespan 100,000hrs @ conditions.

6. Certificated: CE, TUV, RoHS,ETL,CB,SAA, FCC, DLC
900W LED sports lamp, area light, anti-corrosion powder coating, 155lm/W,9 years lifetime 6

7. 900W LED Sports light for air port lighting, mine area,auto dealership lighting,architecture lighting,industrial lighting, warehouse lighting, high mast lighting,stadium lighting,Tennis Court,Badminton hall,Hockey hall.

Specifications:

Item	MF-L900W
Input voltage	85-265Vac 50Hz/60Hz
LED Power	854W
System Consumption	899W
Delivered Flux	899x130lm,899x155lm
IP Rating	IP65
Beam Angle	25°,60°, 90° and 110° ,asymetric lens 130°x60°
Color temperature	3000K / 4000K / 5700K
LED Chip	Lumileds/Osram
LED Driver	Meanwell
Color Rendering Index	Ra>80,70 as options
Power Factor	≧0.98
Color of Housing	Black in stock, color can be customzied
Lifespan	1000,000hrs @ conditions, regular life span:50,000 hours, 9 years.
Operation Environment	Temperature:-40°C~65°C/Humidity:10%~90%
Storge Temperature	-40°C~50°C(@25°C)
Material	Anti-corrosion Die Cast Aluminum Alloy
Product Size(mm)	628(L)x 690(W)x 390(H)
Net Weight	29.35 Kg
Certificate	CE/RoHS/TUV/ETL/GS/SAA/FCC/DLC
Warranty Period	5 years or 10 years @ conditions

900W LED sports lamp dimension:

900W LED sports lamp, area light, anti-corrosion powder coating, 155lm/W,9 years lifetime 7

900W LED sports lamp installation:

Step1: Open the box and check your product, In case of damage contact your merchandiser.
Step2: Fasten the brackets on the wall/surface with stainless steel screws.
Step3: Adjust the floodlighttodirect the light in desired direction beforetighteningthe screws.
Step4: Be sure to connect the wires correctly. Brown-Live,Blue-Null, Yellow/Green-Grounding.
Make surepower cord was fixed for anti-pull purpose,and the connection is waterproofinoutdoor
applicaiton.
Step5: Switch the voltage on and check to see that the floodlight works properly.

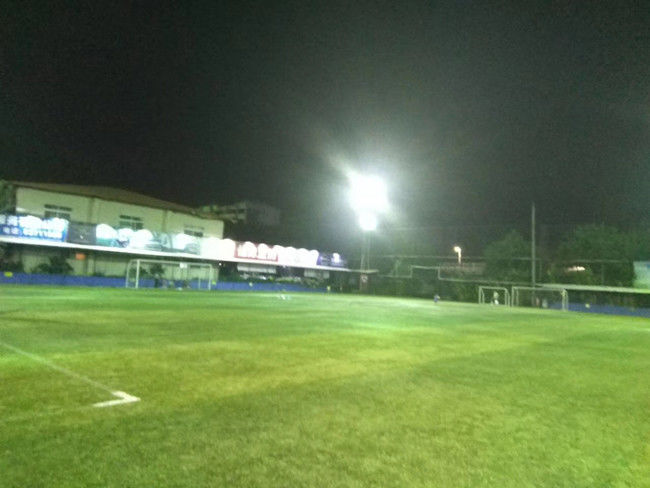

Application photos

900W LED sports lamp, area light, anti-corrosion powder coating, 155lm/W,9 years lifetime 9
