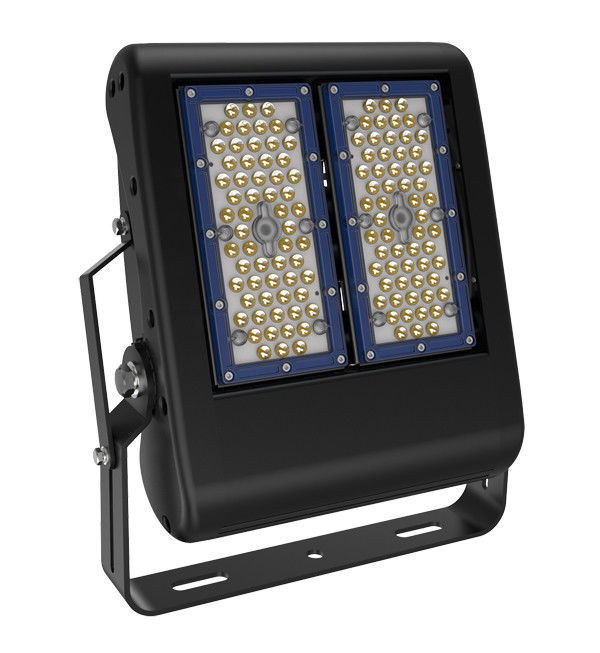

100W High Power LED Flood Light Outdoor 160lm/W, Varouis Mountings , IP67

Product Details:
Place of Origin: China
Brand Name: MF
Certification: CE, RoHS, ETL,SAA CB,DLC, TUV
Model Number: MF-FL-100S
Payment & Shipping Terms:
Minimum Order Quantity: 1PCS
Price: Factory price
Packaging Details: 450(L)X 390(W)X 170(H)MM/1PCS/CTN, N.W: 6.0Kg G.W: 7.5kg. 952 CTN/20ft
Delivery Time: 1 week for sample, 2 weeks for bulk order
Payment Terms: T/T, Western Union, L/C, Paypal
Supply Ability: 5,000pcs/Month

Detail Information

System Consumption: 100Watt Input: 90-305Vac, 50/60Hz
LED Type: Lumileds 3030 Or Lumileds 5050 LED Driver: Meanwell
Beam Angle: 30°,60°, 90° , 120°,60°x135°,85°x135° IP Grade: IP67
House Color: Black In Stock, Grey,white As Options Efficiency: 130lm/Watt,160lm/W Optional
CCT: 3000K / 5000K / 6000K Dimmable: Zigbee,Microwave,Day Light Sensor, DALi,DMX512
Warranty: 5 Years And10 Years @ Conditions Lifespan: 9 Years@ 15 Hours Daily
High Light:

billboard led lights

,

led construction lights

Product Description

100W LED contruction light for tunnels,bridges,hotels, landscapes, construction zone,disaster sight, outside building.


100W High power flood light data sheet down load: MF-FL-100S Tech data sheet.pdf



100W High power flood light Product characteristic :



1.Top class chip brand,p Lumileds 3030 and 5050 chips acheives at 130lm/w and 160lm/w, top class driver-meanwell brand secure the life-span of the luminaire.







LED construction lights, LED flood lights, LED flood light   LED Construction lights, LED flood lights, LED flood light











2. 3 type bracket with angle adjustable for options, heavy duty design.



100W High Power LED Flood Light Outdoor 160lm/W, Varouis Mountings , IP67 2



3. Many options for mountings

LED construction lights, LED Flood lights



4. lamp can be easily controlled via Zigbee, Microwave, daylight sensor, DALi, DMX512, contact with our sales engineers for more details.



LED Construction lights, LED flood light, LED flood lights


Technical data:



Item

MF-FL-100S

Input voltage

85-265Vac  50Hz/60Hz

LED Power

97W

System Consumption

100W

Delivered Flux

100x130lm,100x160lm

IP Rating

IP67

Beam Angle

30°,60°, 90° and 120° ,asymetric lens 135°x60° and 135°x85°

Color temperature

3000K / 5000K / 6000K

LED Chip

Lumileds

LED Driver

Meanwell

Color Rendering Index

Ra>80,70 as options

Power Factor

0.90

Color of Housing Black in stock, grey, white as options

Lifespan

1000,000hrs @ conditions, regular life span:50,000 hours, 9 years.

Operation Environment

Temperature:-30°C~45°C/Humidity:10%~90%

Storge Temperature -40°C~+50°C(@25°C)

Material

Anti-corrosion Die Cast Aluminum Alloy

Product Size(mm)

377(L)x 321(W)x 91(H)

Net Weight

6.0 Kg/PCS. 1PCS/CTN

Certificate

CE/RoHS/TUV/ETL/GS/SAA/FCC/DLC

Warranty Period

5 years,and 10 years @ conditions




Description:


Ming Feng this high power flood light family ranging from 80W-600W, Advantages include custom design patented housing, multiple installation options. high lumen output and multiple application uses. Works not only as an excellent floodlight for sports elds and industrial areas but is also a perfect luminaire for billboard advertising.

The led driver comeswith 10kv SPD(Surge protection device)inside, which provides safety protection in a bad weather. With fully integrated heat sink is designed to specifically improve airflow and maximise heat dissipation to help reduce the operating temperature of the fitting, and improve reliability.



Comes with a waterproof rubber ring inside. its well-designed heat sink with fins helps air to flow and prevent waterto accumulatre. each led module is totally-enclosed. 90 deg preventing water to permeate. additionally, this 100W high power flood lightgets a IK10 impact-resistant grade, which provides better protection for outdoor usage.



 Application photos

LED construction lights, LED flood lights, LED flood light



LED Constructioin lights, LED flood light, LED flood lights
