Product Details:
|
|
Place of Origin: | China |
---|---|
Brand Name: | MF |
Certification: | CE, RoHS, ETL,SAA CB,DLC, TUV |
Model Number: | MF-FL-150S |
Payment & Shipping Terms:
|
|
Minimum Order Quantity: | 1PCS |
Price: | Factory price !! |
Packaging Details: | 485(L)X 450(W)X 170(H)MM/1PCS/CTN, N.W: 7.4Kg G.W: 8.2kg. 763 CTN/20ft |
Delivery Time: | 1 week for sample, 2 weeks for bulk order |
Payment Terms: | T/T, Western Union, L/C, Paypal |
Supply Ability: | 5,000pcs/Month |
Detail Information |
|||
Power: | 150W±4% | Input: | 90-305Vac, 50/60Hz |
---|---|---|---|
Power Efficiency: | >93% | LED Driver: | Meanwell |
Beam Angle: | 30°,60°, 90° , 120°,60°x135°,85°x135° | IP Grade: | IP67 |
House Color: | Black In Stock, Grey,white As Options | THD: | <15% |
CCT: | 3000K / 5000K / 6000K | Dimmable: | Zigbee,Microwave,Day Light Sensor, DALi,DMX512 |
Warranty: | >70/>80 For Options | Lifespan: | 9 Years@ 15 Hours Daily |
High Light: | billboard led lights,led construction lights |
Product Description

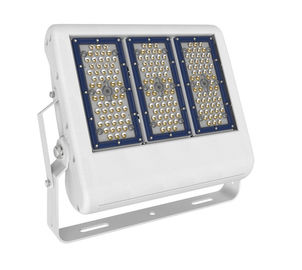

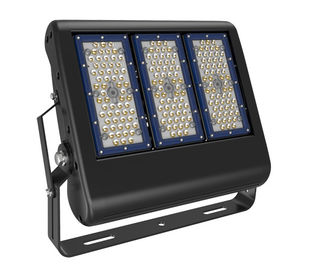

150W IP67 waterproof construction lamp,meanwell driver,10 years warranty, factory cost
150W IP67 waterproof construction lamp data sheet down load:MF-FL-150S Tech data sheet.pdf
150W IP67 waterproof construction lamp parameters:
Item | MF-FL-150S |
Input voltage | 85-265Vac 50Hz/60Hz |
LED Power | 144W |
System Consumption | 150W |
Delivered Flux | 150x130lm,150x160lm |
IP Rating | IP67 |
Beam Angle | 30°,60°, 90° and 120° ,asymetric lens 135°x60° and 135°x85° |
Color temperature | 3000K / 5000K / 6000K |
LED Chip | Lumileds |
LED Driver | Meanwell |
Color Rendering Index | Ra>80,70 as options |
Power Factor | ≧0.90 |
Color of Housing | Black in stock, grey, white as options |
Lifespan | 1000,000hrs @ conditions, regular life span:50,000 hours, 9 years. |
Operation Environment | Temperature:-30°C~45°C/Humidity:10%~90% |
Storge Temperature | -40°C~+50°C(@25°C) |
Material | Anti-corrosion Die Cast Aluminum Alloy |
Product Size(mm) | 418(L)x 376(W)x 91(H) |
Net Weight | 7.4 Kg/PCS. 1PCS/CTN |
Certificate | CE/RoHS/TUV/ETL/GS/SAA/FCC/DLC |
Warranty Period | 5 years,and 10 years @ conditions |
Competitive Advantage:
1.Lumileds chips, 130lm/w or 160lm/W, CRI up to Ra80. Junction temperature <75°C.
2.World Calss Brand, MeanWell LED Drivers, wide AC90V~305V, PF>0.98, low THD<15%.Built-in Mean well drivers, make the lamp safer for operation.
3.L70>80,000hrs. Design lifespan 100,000hrs @ conditions.9 years @ 15 hours/day.
4.Adjustable to project aimed lighting area accurately.
5. Constant current design, much more reliable in life-span.
6. Japan secondary optical DIWL lens, light transmittance up to 92%.
7. Intelligent dimming system, 1-10V, Dali, PWM dimming models are available
8. Certificated: CE, TUV, RoHS,ETL,CB,SAA, FCC, DLC
150W IP67 waterproof construction lamp Installation Steps:
Step1: Open the box and check your product, In case of damage contact your merchandiser.
Step2: Fasten the brackets on the wall/surface with stainless steel screws.
Step3: Adjust the floodlighttodirect the light in desired direction beforetighteningthe screws.
Step4: Be sure to connect the wires correctly. Brown-Live,Blue-Null, Yellow/Green-Grounding.
Make surepower cord was fixed for anti-pull purpose,and the connection is waterproofinoutdoor
applicaiton.
Step5: Switch the voltage on and check to see that the floodlight works properly.
150W IP67 waterproof construction lamp:
150W IP67 waterproof construction lamp main features:
