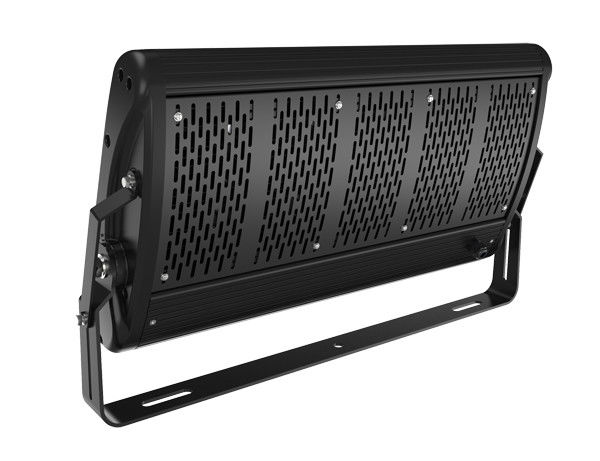

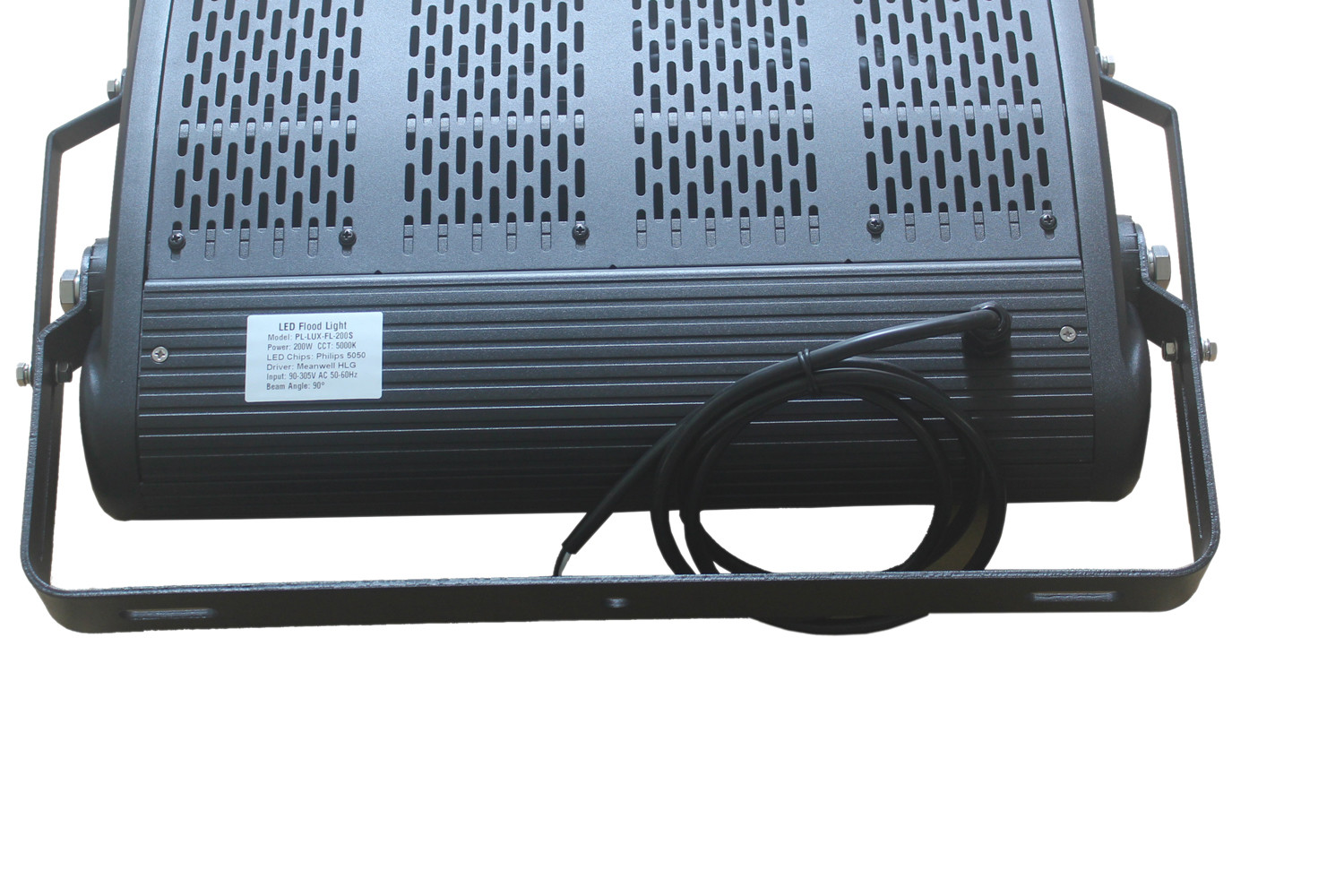

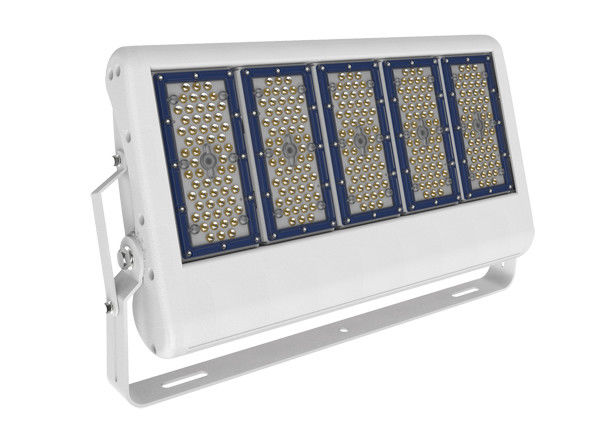

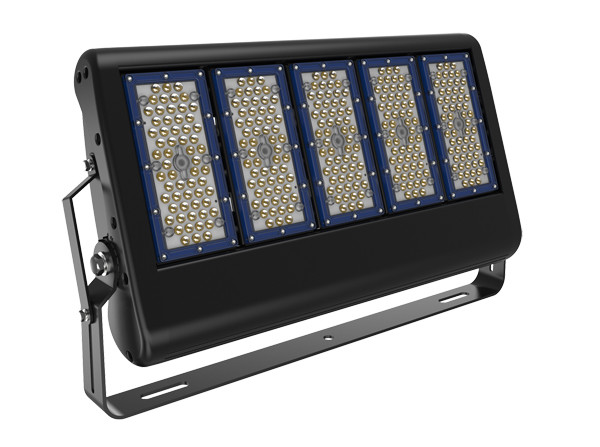

250 W 160lm/W High Power Led Flood Light Save 50% Energy , IP67 Billboad Lights

Minimum Order Quantity : 1PCS Price : Factory price
Packaging Details : 690(L)X 450(W)X 170(H)MM/1PCS/CTN, N.W: 11.5Kg G.W: 12.7kg. 537 CTN/20ft Delivery Time : 1 week for sample, 2 weeks for bulk order
Payment Terms : T/T, Western Union, L/C, Paypal Supply Ability : 5,000pcs/Month
Place of Origin: China Brand Name: MF
Certification: CE, RoHS, ETL,SAA CB,DLC, TUV Model Number: MF-FL-250S

Detail Information

Power: 250Watt Input: 90-305Vac, 50/60Hz
Chip Brand: Lumileds 3030 Or Lumileds 5050 LED Driver: Meanwell
Beam Angle: 30°, 60°, 90° , 120°,60°x135°,85°x135° IP Grade: IP67
House Color: Black In Stock, Grey,white As Options Efficiency: 130lm/Watt,160lm/W Optional
CCT: 3000K / 5000K / 6000K Warranty: 5 Years And10 Years @ Conditions
Lifespan: 9 Years@ 15 Hours Daily THC: <15%
Highlight:

billboard led lights

,

led construction lights

Product Description

high power led flood light 250 W,160lm/W, save 50% energy,IP67 billboad lights



Data sheet down load: MF-FL-250S tech data sheet.pdf



250W LED contruction light for tunnels,bridges,hotels, landscapes, construction zone,outside building. 250W LED substitutes 500W HPS or HID.


250 W 160lm/W High Power Led Flood Light Save 50% Energy , IP67 Billboad Lights 0





Product Features:



250 W 160lm/W High Power Led Flood Light Save 50% Energy , IP67 Billboad Lights 1250 W 160lm/W High Power Led Flood Light Save 50% Energy , IP67 Billboad Lights 2



material is made of PC , Japan brand raw material. UV-resistance, high light transmittance 92%+

250 W 160lm/W High Power Led Flood Light Save 50% Energy , IP67 Billboad Lights 3

250 W 160lm/W High Power Led Flood Light Save 50% Energy , IP67 Billboad Lights 4

Symetric lens of beam angle 30°,60°, 90°, 120° and asmytric lens beam of 60°x135° and 85°x135° for various applications.



250 W 160lm/W High Power Led Flood Light Save 50% Energy , IP67 Billboad Lights 5

With the help of different mounting brackets and light distributions.



250 W 160lm/W High Power Led Flood Light Save 50% Energy , IP67 Billboad Lights 6

Certified by CE,CB, ENEC, GS, RoHS, and UL listed, DLC, SAA, EMC, LM-79,PSE certificates are available, this family is an universal version for all around the world.



Little fuse SPD is available for 10KV and 20KV, work stable even in unstable power grid.



250 W 160lm/W High Power Led Flood Light Save 50% Energy , IP67 Billboad Lights 7



Top brand powder coating workman ship--AkzoNobel.





IES files and photometric test reports are vailable, highly skilled engineer and designer team can provide light calculations and solutions for all kinds of applications.

250 W 160lm/W High Power Led Flood Light Save 50% Energy , IP67 Billboad Lights 8250 W 160lm/W High Power Led Flood Light Save 50% Energy , IP67 Billboad Lights 9



Top class chip brand, Lumileds 3030 and 5050 chips acheives at 130lm/w and 160lm/w, top class driver-meanwell brand secure the life-span of the luminaire.



280° angle adjustable bracket, heavy duty design.



250 W 160lm/W High Power Led Flood Light Save 50% Energy , IP67 Billboad Lights 10



Pole installation bracket is available as well, which enable lamp 360° rotational.



Fishing net allow heat releasing in good performance while reducing the weight of luminaire.



250 W 160lm/W High Power Led Flood Light Save 50% Energy , IP67 Billboad Lights 11

lamp can be easily controlled via Zigbee, Microwave, daylight sensor, DALi, DMX512, contact with our sales engineers for more details.



250 W 160lm/W High Power Led Flood Light Save 50% Energy , IP67 Billboad Lights 12



Standard export carton box design



The IK rate is IK10, can be wildly used in harsh conditions,such as mine area, tunnels,bridges,sea seaside and so on.


Specifications:



Item

MF-FL-250S

Input voltage

85-265Vac  50Hz/60Hz

LED Power

244W

System Consumption

250W

Delivered Flux

250x130lm,250x160lm

IP Rating

IP67

Beam Angle

30°,60°, 90° and 120° ,asymetric lens 135°x60° and 135°x85°

Color temperature

3000K / 5000K / 6000K

LED Chip

Lumileds

LED Driver

Meanwell

Color Rendering Index

Ra>80,70 as options

Power Factor

0.90

Color of Housing Black in stock, grey, white as options

Lifespan

1000,000hrs @ conditions, regular life span:50,000 hours, 9 years.

Operation Environment

Temperature:-30°C~45°C/Humidity:10%~90%

Storge Temperature -40°C~+50°C(@25°C)

Material

Anti-corrosion Die Cast Aluminum Alloy

Product Size(mm)

631(L)x 376(W)x 91(H)

Net Weight

11.5 Kg/PCS. 1PCS/CTN

Certificate

CE/RoHS/TUV/ETL/GS/SAA/FCC/DLC

Warranty Period

5 years,and 10 years @ conditions



 Application photos



250 W 160lm/W High Power Led Flood Light Save 50% Energy , IP67 Billboad Lights 13



250 W 160lm/W High Power Led Flood Light Save 50% Energy , IP67 Billboad Lights 14
