Payment & Shipping Terms:
|Chip Brand:||Lumileds 3030 Or Lumileds 5050||LED Driver:||Meanwell|
|Beam Angle:||30°，60°, 90° , 120°，60°x135°,85°x135°||IP Grade:||IP67|
|House Color:||Black In Stock, Grey,white As Options||Efficiency:||130lm/Watt,160lm/W Optional|
|CCT:||3000K / 5000K / 6000K||Warranty:||5 Years And10 Years @ Conditions|
|Lifespan:||9 Years@ 15 Hours Daily||THC:||<15%|

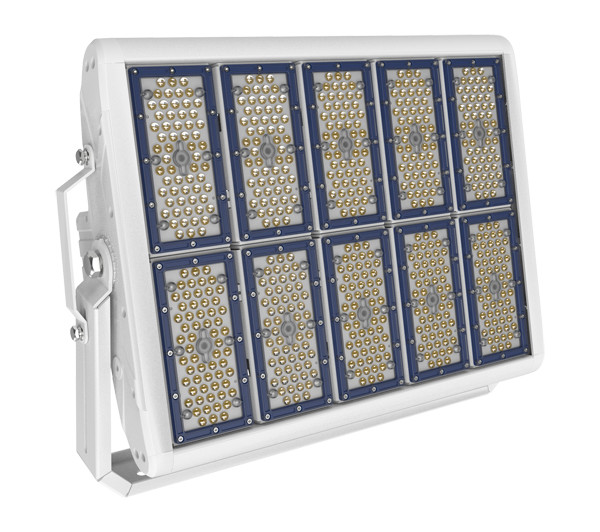

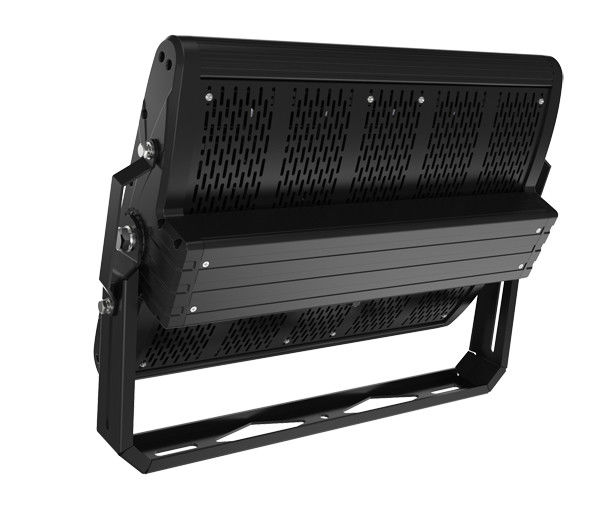

LED construction lights,9 years lifetime,400W,160lm/W,IP67, factory design,factory price

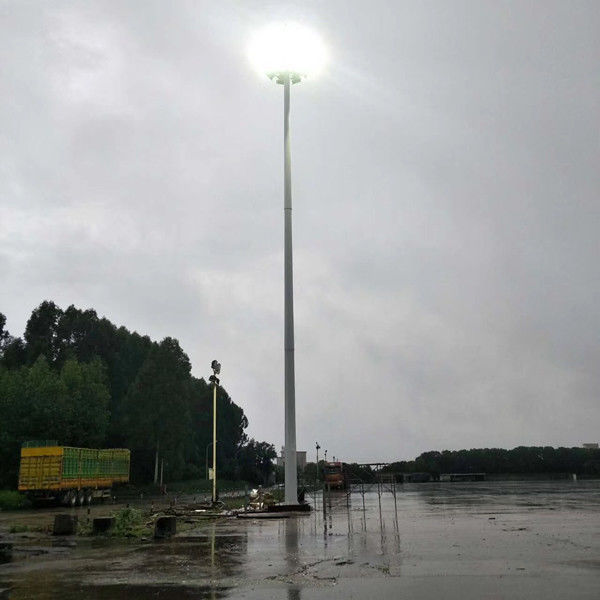

400W LED contruction light for tunnels,bridges,hotels, landscapes, construction zone,outside building,sea port,sport lighting.
Download the data sheet by clicking: MF-FL-400S Tech data sheet.pdf
1. material is made of PC , Japan brand raw material. UV-resistance, high light transmittance 92%+
2. Symetric lens of beam angle 30°,60°, 90°, 120° and asmytric lens beam of 60°x135° and 85°x135° for various applications.
3. With the help of different mounting brackets and light distributions.
4. Certified by CE,CB, ENEC, GS, RoHS, and UL listed, DLC, SAA, EMC, LM-79,PSE certificates are available, this family is an universal version for all around the world.
5. Little fuse SPD is available for 10KV and 20KV, work stable even in unstable power grid.
6. Top brand powder coating workman ship--AkzoNobel.
7. IES files and photometric test reports are vailable, highly skilled engineer and designer team can provide light calculations and solutions for all kinds of applications.
8. Top class chip brand, Lumileds 3030 and 5050 chips acheives at 130lm/w and 160lm/w, top class driver-meanwell brand secure the life-span of the luminaire.
9. 280° angle adjustable bracket, heavy duty design.
10. Pole installation bracket is available as well, which enable lamp 360° rotational.
11. Fishing net allow heat releasing in good performance while reducing the weight of luminaire.
12. lamp can be easily controlled via Zigbee, Microwave, daylight sensor, DALi, DMX512, contact with our sales engineers for more details.
13. The IK rate is IK10, can be wildly used in harsh conditions,such as mine area, tunnels,bridges,sea seaside and so on.
400W LED billboad light Technical data:
30°,60°, 90° and 120° ,asymetric lens 135°x60° and 135°x85°
3000K / 5000K / 6000K
Color Rendering Index
Ra>80,70 as options
|Color of Housing||Black in stock, grey, white as options|
1000,000hrs @ conditions, regular life span:50,000 hours, 9 years.
Anti-corrosion Die Cast Aluminum Alloy
654(L)x 506(W)x 148(H)
19.4 Kg/PCS. 1PCS/CTN
5 years,and 10 years @ conditions

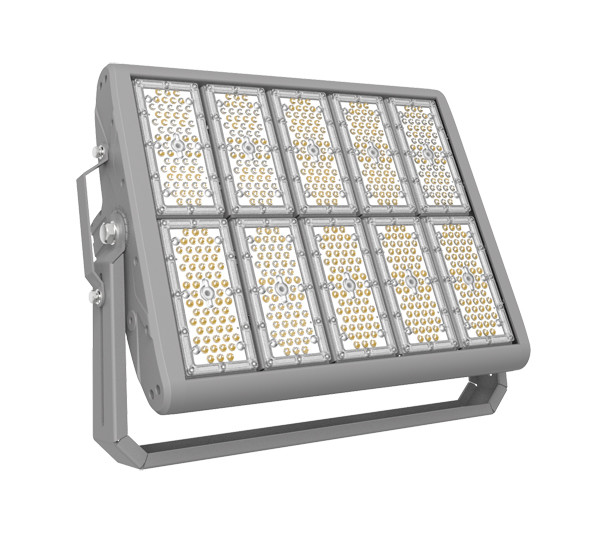

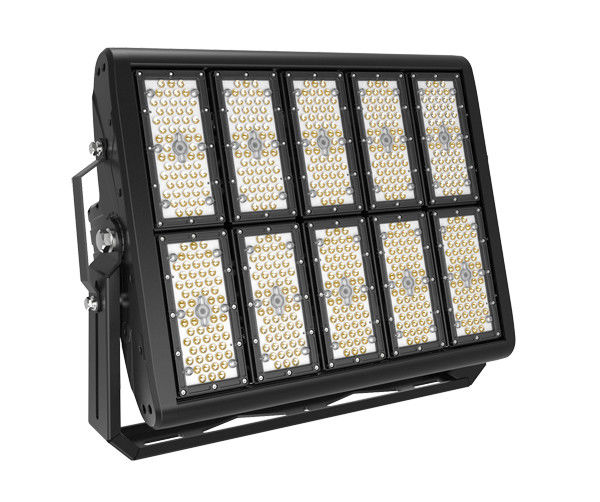

400W LED construction lights housing color for choose:
400W LED construction lights Package:
