600W LED Construction Lamp Microwave 10KV Surge Protection For Area Lighting

Contact Now

600W LED Construction Lamp Microwave 10KV Surge Protection For Area Lighting

Minimum Order Quantity :	1PCS	Price :	Factory price !!
Packaging Details :	770(L)X 600(W)X 223(H)MM/1PCS/CTN, N.W: 24.0Kg G.W: 25.7kg. 274 CTN/20ft	Delivery Time :	1 week for sample, 2 weeks for bulk order
Payment Terms :	T/T, Western Union, L/C, Paypal	Supply Ability :	5,000pcs/Month

Place of Origin:	China	Brand Name:	MF
Certification:	CE, RoHS, ETL,SAA CB,DLC, TUV	Model Number:	MF-FL-600S

Detail Information
Power:	600Watt	Input:	90-305Vac, 50/60Hz
Chip Brand:	Lumileds 3030 Or Lumileds 5050	LED Driver:	Meanwell
Beam Angle:	30°，60°, 90° , 120°，60°x135°,85°x135°	IP Grade:	IP67
House Color:	Black In Stock, Grey,white As Options	Efficiency:	130lm/Watt,160lm/W Optional
CCT:	3000K / 5000K / 6000K	Dimmable:	Zigbee,Microwave,Day Light Sensor, DALi,DMX512
Warranty:	5 Years And 10 Years @ Conditions	Lifespan:	9 Years@ 15 Hours Daily
Operating Temp:	-30℃~+45℃	THC:	<15%
Highlight:	led flood lights industrial , billboard led lights

Product Description

600W LED contruction lights for construction zone,outside building,sporting area,sea port.

Data sheet download by clicking MF-FL-600S Tech Data sheet.pdf

Specifications:

Item	MF-FL-600S
Input voltage	85-265Vac 50Hz/60Hz
LED Power	588W
System Consumption	600W
Delivered Flux	600x130lm,600x160lm
IP Rating	IP67
Beam Angle	30°,60°, 90° and 120° ,asymetric lens 135°x60° and 135°x85°
Color temperature	3000K / 5000K / 6000K
LED Chip	Lumileds
LED Driver	Meanwell
Color Rendering Index	Ra>80,70 as options
Power Factor	≧0.90
Color of Housing	Black in stock, grey, white as options
Lifespan	1000,000hrs @ conditions, regular life span:50,000 hours, 9 years.
Operation Environment	Temperature:-30°C~45°C/Humidity:10%~90%
Storge Temperature	-40°C~+50°C(@25°C)
Material	Anti-corrosion Die Cast Aluminum Alloy
Product Size(mm)	763(L)x 506(W)x 148(H)
Net Weight	24.0 Kg/PCS. 1PCS/CTN
Certificate	CE/RoHS/TUV/ETL/GS/SAA/FCC/DLC
Warranty Period	5 years,and 10 years @ conditions

Competitive Advantage:

1.Lumileds chips, 130lm/w or 160lm/W, CRI up to Ra80. Junction temperature <75°C.
2.World Calss Brand, MeanWell LED Drivers, wide AC90V~305V, PF>0.98, low THD<15%.Built-in Mean well drivers, make the lamp safer for operation.
3.L70>80,000hrs. Design lifespan 100,000hrs @ conditions.9 years @ 15 hours/day.
4.Adjustable to project aimed lighting area accurately.
5. Constant current design, much more reliable in life-span.
6. Japan secondary optical DIWL lens, light transmittance up to 92%.
7. Intelligent dimming system, 1-10V, Dali, PWM dimming models are available

8. Certificated: CE, TUV, RoHS,ETL,CB,SAA, FCC, DLC

IP67 LED Construction light power range:

Model Number	MF-FL-80S	MF-FL-100S	MF-FL-150S	MF-FL-200S	MF-FL-250S	MF-FL-300S	MF-FL-400S	MF-FL-500S	MF-FL-600S
Lumen Output	10,400lm	13,000lm	19,500lm	26,000lm	32,500lm	39,000lm	52,000lm	65,000lm	78,000lm
Wattage	80W	100W	150W	200W	250W	300W	400W	500W	600W
Luminous Efficiency	130LM/W, 160LM/W for choose
CCT	2000K-6500K
CRI	70+, 80+ Ra for option
Beam Angel	30°, 60°, 90° , 120°, 60°x135°,85°x135°
Inut voltage	100-240Vac/180-528Vac, 50/60Hz PF>0.97
IR Rating	IP67
LED Driver	Meanwell
HID Equivalent	150-200W	250W	300-350W	400-450W	5000W	600-700W	800-900W	1000-1100W	1200-1500W
Certficated	ETL, SAA, CE, FCC, ROHS

Application photos

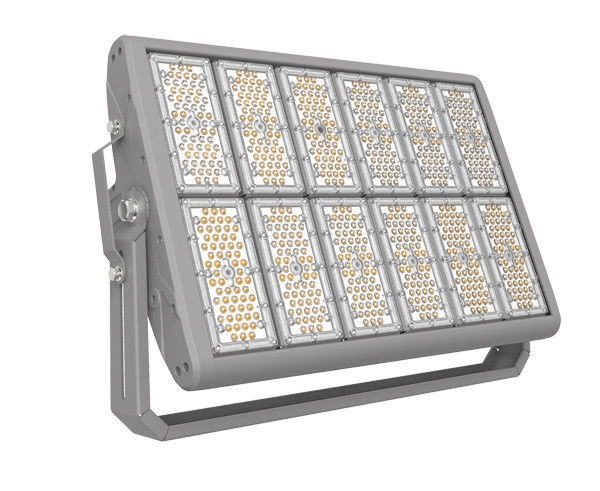

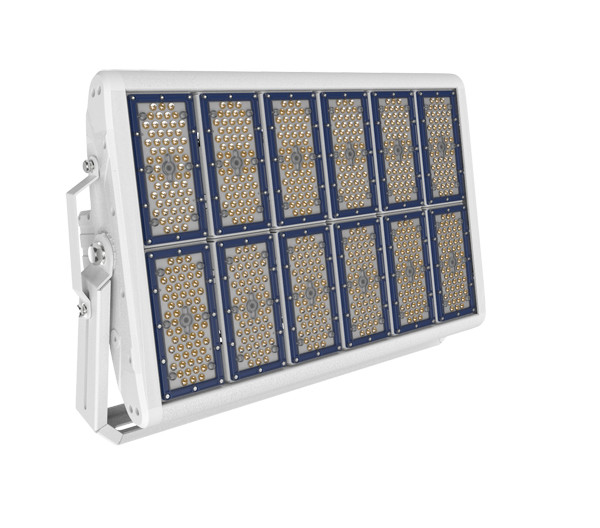

600W LED Construction Lamp Microwave 10KV Surge Protection For Area Lighting 1

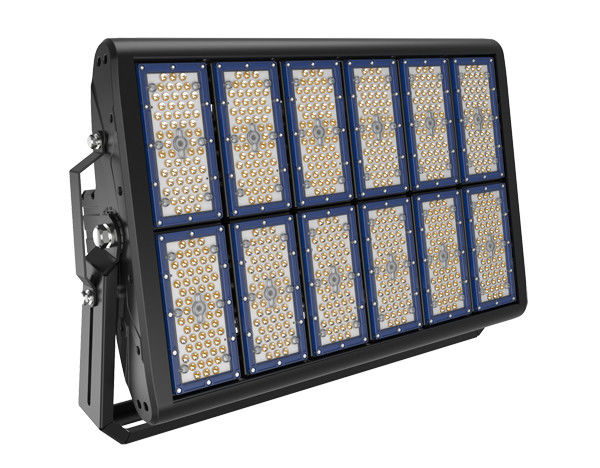

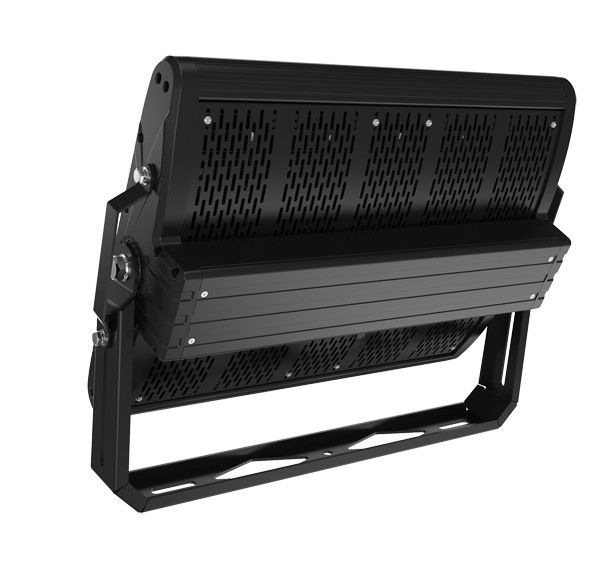

600W LED Construction Lamp Microwave 10KV Surge Protection For Area Lighting 2
