450 Watt Waterproof LED Flood lights Dimming DALi Driver

Minimum Order Quantity : 1pcs Price : FOB/Ex-work price
Packaging Details : 675(L)X 395(W)X205(H)/PCS , N.W:13.4Kg ,G.W: 14.4KG Delivery Time : 7-10 days
Payment Terms : T/T, Western Union, Paypal Supply Ability : 800pcs/Month
Place of Origin: China Brand Name: MF
Certification: CE,RoHS Model Number: MF-L450W

Detail Information

Item Name: LED Flood Light Input Voltage: AC100-240V 50/60Hz
Power: 450W Luminous Flux: 57000LM
IP Rating: IP65 CCT: 27K-30K/40K-50K/57K-65K
Driver: Meanwell Warranty: Five Years
High Light:

led sport lights

,

sport field lights

Product Description



450 Watt Outdoor LED Spotlights Waterproof





Main Feature :



1. Different beam angle 110°,25°,60°, 90°,130°x60° Asymmetric.

2. Meanwell ELG drivers.

3. Die-casting Aluminum housing with AkzoNobel powder coating.

4. Long lifetime over 50,000hrs,extremely low maintenance cost.

5. CRI>80 , CRI>70 optional.

6. Osram/Lumileds 3030/5050, LEDs up to 155lm/watt@80Ra.

7. Dali, 1-10V, PWM Dimmable available.

8. 5 years warranty.



MF LED Flood Light Description :



MF flood light housing kit uses aluminum alloy bracket, stainless steel screw accessories and high-quality power chip to form a perfect shape. It has a variety of angles and adjustable functions. The irradiation angle can be changed at will. Meet the needs of Stadiums' light sources; unique heat sink design, using aluminum material with high thermal conductivity as the main body of heat dissipation, effectively dissipating heat and ensuring the life of the light source and power supply; good color rendering, and the real color rendering is more true.

Various light colors are available to meet the needs of different environments. The surface is baked and electrophoretic treated to enhance protection performance, excellent anti-corrosion and rust protection, and the protection level reaches IP65, which is suitable for long-term use in various outdoor harsh environments.





Specification :



MF-L600W Floodlight Technical Data sheet.pdf

Model: MFL450W-110 MFL450W-25 MFL450W-60 MFL450W-90 MFL450W-130X60
Light Source:

Osram/Lumileds

3030 2D

Osram/Lumileds

5050

Osram/Lumileds

5050

Osram/Lumileds

5050

Osram/Lumileds

5050

Luminous flux: 58100LM 58100lm 58100lm 58100lm 58100lm
Beam Angle: 110° 25° 60° 90° 130°x60°
Optical Cover: Clear/Foggy Glass PC lens PC lens PC lens PC lens
Input Voltage : 100-240VAC 50/60Hz IP Class : IP65
LED power : 427W Housing: Die-casting Aluminum
System Power: 459W Working Temperature : -20℃ to +50℃
Power Factor: >0.95 Working Humidity : 10% - 90%
System Efficiency: 115lm/w to 130lm/w Power cable:

3x1.5mm2H07RN-F

Color Temperature : 3000K/4000K/5700K Net weight: 13.4KG(glass) 12.9kg(PC)
CRI:

>80(3030 LEDs)

>70(5050 LEDs)

Dimension of Outer Carton: 68cm x 40cm x 21 cm (1pcs/carton)

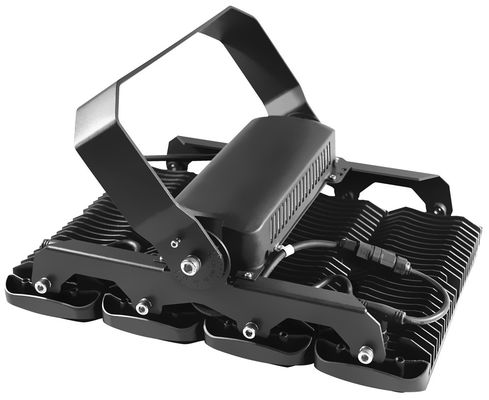

Product Images :



450 Watt Waterproof LED Flood lights Dimming DALi Driver 0

450 Watt Waterproof LED Flood lights Dimming DALi Driver 1





MF Technology DIALux Simulation :



450 Watt Waterproof LED Flood lights Dimming DALi Driver 2



Dimension :



The following is the 450W dimension, we also have other wattages, like 75W, 150W, 230W,300W,450W,600W,900W, 1200W.



450 Watt Waterproof LED Flood lights Dimming DALi Driver 3





Luminous Intensity Distribution Diagram :



For this MF-L series, we can make different beam angles, like 25°/60°/90°/130*80°, we use PC lens. And 110° beam angle, we use glass lens.





450 Watt Waterproof LED Flood lights Dimming DALi Driver 4





Applications :



Suitable for sport field,warehouse,gymnasium,workshop,Gas stations,Toll stations, parking area, etc.
