230W Waterproof LED Flood Light For Security

230W Waterproof LED Flood Light For Security
230W Waterproof LED Flood Light For Security
230W Waterproof LED Flood Light For Security 230W Waterproof LED Flood Light For Security 230W Waterproof LED Flood Light For Security

Large Image :  230W Waterproof LED Flood Light For Security

Product Details:
Place of Origin: China
Brand Name: MF
Certification: CE,RoHS
Model Number: MF-L230W
Payment & Shipping Terms:
Minimum Order Quantity: 10pcs
Price: FOB/Ex-work price
Packaging Details: 675(L)X 395(W)X205(H)/PCS , N.W:13.4Kg ,G.W: 14.4KG
Delivery Time: 7-10 days delivery time
Payment Terms: T/T, Western Union, Paypal
Supply Ability: 800pcs/Month

230W Waterproof LED Flood Light For Security

Description
Item Name: LED Flood Light / LED Outdoor Spotlight Input Voltage: AC100-240V 50/60Hz
Power: 230W Luminous Flux: 28000LM
IP Rating: IP65 CCT: 27K-30K/40K-50K/57K-65K
High Light:

led flood lights

,

sport field lights





230W Waterproof LED Flood Light For Security





Main Feature :



1. Different beam angle 110°,25°,60°, 90°,130°x60° Asymmetric.

2. Meanwell ELG drivers.

3. Die-casting Aluminum housing with AkzoNobel powder coating.

4. Long lifetime over 50,000hrs,extremely low maintenance cost.

5. CRI>80 , CRI>70 optional.

6. Osram/Lumileds 3030/5050, LEDs up to 155lm/watt@80Ra.

7. Dali, 1-10V, PWM Dimmable available.

8. 5 years warranty.





Specification :

MF-L230W Floodlight Tehnical Data sheet.pdf

Model: MFL230W-110 MFL230W-25 MFL230W-60 MFL230W-90 MFL230W-130X60
Light Source:

Osram/Lumileds

3030 2D

Osram/Lumileds

5050

Osram/Lumileds

5050

Osram/Lumileds

5050

Osram/Lumileds

5050

Luminous flux: 28000LM 25800lm 26500lm 26900lm 29900lm
Beam Angle: 110° 25° 60° 90° 130°x60°
Optical Cover: Clear/Foggy Glass PC lens PC lens PC lens PC lens
Input Voltage : 100-240VAC 50/60Hz IP Class : IP65
LED power : 203W Housing: Die-casting Aluminum
System Power: 230W Working Temperature : -20℃ to +50℃
Power Factor: >0.95 Working Humidity : 10% - 90%
System Efficiency: 115lm/w to 130lm/w Power cable:

3x1.5mm2H07RN-F

Color Temperature : 3000K/4000K/5700K Net weight: 6.7KG(glass) 6.4kg(PC)
CRI:

>80(3030 LEDs)

>70(5050 LEDs)

Dimension of Outer Carton: 68cm x 40cm x 21 cm (1pcs/carton)





Advantage :



1. Wide beam angles including 110°,25°,60°, 90°,130°x60° Asymmetric. If you want others, we can customize it.

2. IP65 Meanwell ELG drivers: TaiWan MeanWell LED Drivers, wide AC90V~305V, PF>0.98, low THD<9%.Built-in Mean well drivers, make the lamp safer for operation, it can reach IP65. Waterproof. Drivers are available.

Waterproof Connectors

3. Die-casting Aluminum housing with AkzoNobel powder coating.

4. Module angle adjustable to project aimed lighting area accurately. U shape bracket with angle adjutable of 0°~180°,Each modular can be angle adjustable as well, which can enable the lamp projects to the illumination needed area.

5. Certificated: CE, TUV, RoHS,ETL,CB,SAA, FCC, DLC

6. 5 years warranty. Life-span is 50000 hours to 100000 hours.

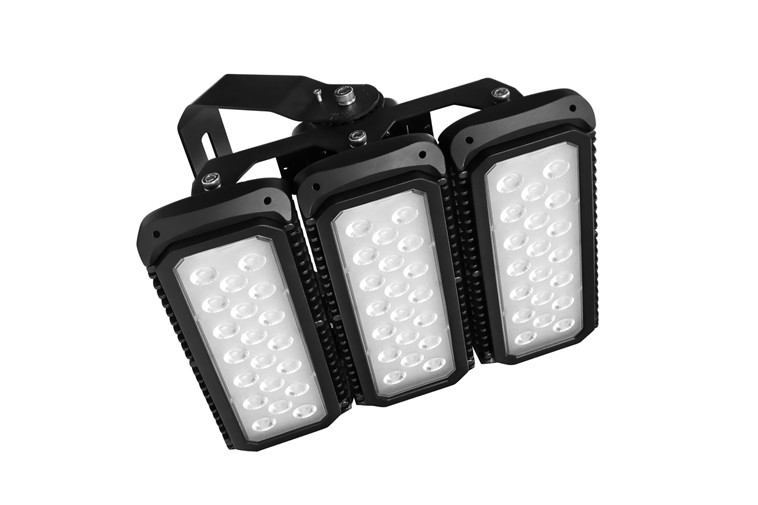

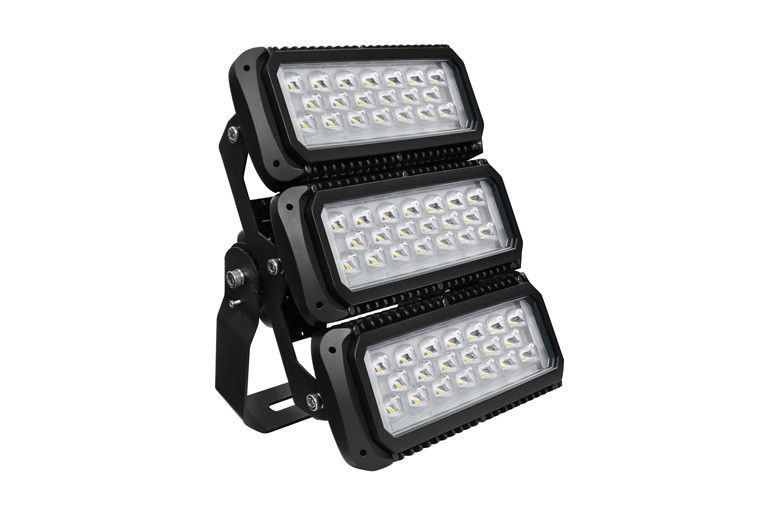

Product Images :



230W Waterproof LED Flood Light For Security 0





Dimension :



230W Waterproof LED Flood Light For Security 1





Luminous Intensity Distribution Diagram :



230W Waterproof LED Flood Light For Security 2





Applications :



Suitable for sport field,warehouse,gymnasium,workshop,Gas stations,Toll stations, parking area, etc.



230W Waterproof LED Flood Light For Security 3
