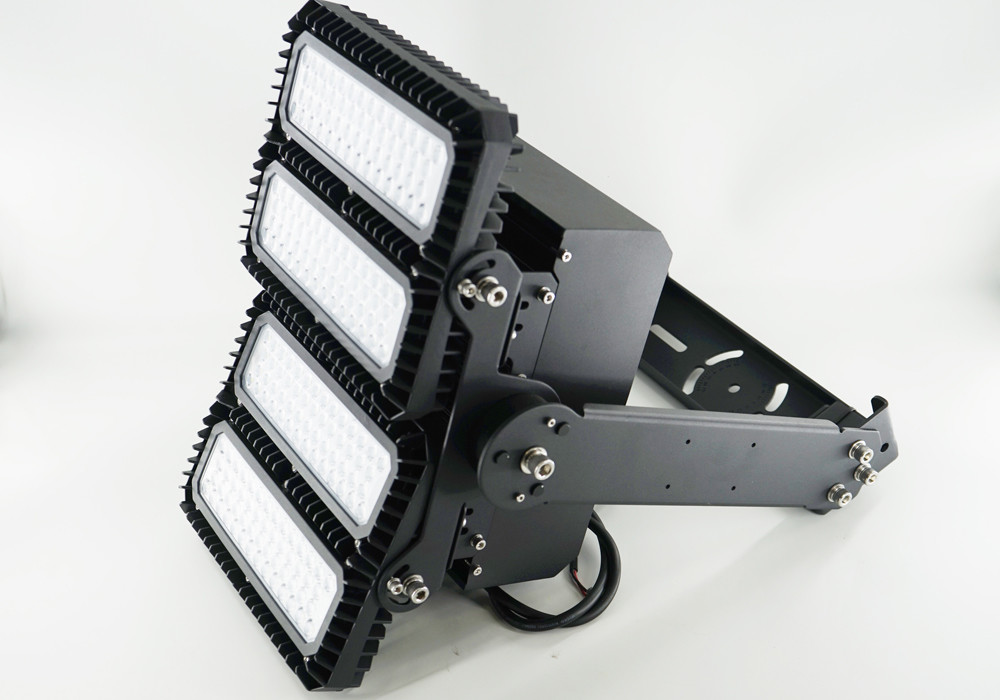

IP65 Modular Osram Lumileds LED Construction Lights For Workshop

Minimum Order Quantity : 1pcs Price : FOB/Ex-work price
Packaging Details : 675(L)X 475(W)X205(H)/PCS , N.W:17.5Kg ,G.W: 18.5KG Delivery Time : 10-15 days delivery time
Payment Terms : T/T, Western Union, Paypal Supply Ability : 1000pcs/Month
Place of Origin: China Brand Name: MF
Certification: CE,RoHS Model Number: MF-L series

Detail Information

Item Name: LED Stadium Light/led Flood Light Industrial Input Voltage: AC100-240V 50/60Hz
Power: 210W - 1350W Available Luminous Efficiency: 140LM/W To 150LM/W
IP Rating: IP65 CCT: 27K-30K/40K-50K/57K-65K
Chip Brand: Osram/Lumileds Beam Angles: 15°/25°/60°/90°/130*40°/110°/130*25°
House Color: Black In Stock,other Color Customized Dimmable: 1-10V, Dali,PWM
Lifetime: 50000 Hours To 100000 Hours Warranty: 5 Years
High Light:

Lumileds LED Construction Lights


Modular Osram LED Construction Lights


IP65 construction flood lights

Product Description

IP65 Modular LED Flood Lights Industrial High Power LED Construction Lights
MF flood light housing kit uses aluminum alloy bracket, stainless steel screw accessories and high-quality power chip to form a perfect shape. It has a variety of angles and adjustable functions. The irradiation angle can be changed at will. Meet the needs of Stadiums' light sources; unique heat sink design, using aluminum material with high thermal conductivity as the main body of heat dissipation, effectively dissipating heat and ensuring the life of the light source and power supply; good color rendering, and the real color rendering is more true.
Various light colors are available to meet the needs of different environments. The surface is baked and electrophoretic treated to enhance protection performance, excellent anti-corrosion and rust protection, and the protection level reaches IP65, which is suitable for long-term use in various outdoor harsh environments.
Specification :


Item No.: MF-L230W50B MF-L450W50B MF-L650W50B MF-L900W50B MF-L1350W50B
Light Source:

Osram, Lumileds 5050 , Lumileds 3030

Lumens Efficiency: 140LM/W to 150LM/W
Beam Angle: 110° 25° 60° 130°x25° 130°x40°
Optical Cover: Clear/Foggy Glass PC lens PC lens PC lens PC lens
Input Voltage : 100-240VAC 50/60Hz IP Class : IP65
Housing Color: Black/Silver/Grey Housing: Die-casting Aluminum
Driver: IP65 Meanwell Working Temperature: -40℃ to +65℃
Power Factor: >0.95 Storge Temperature: -40°C~50°C
Power cable: 3x1.5mm2H07RN-F
Color Temperature : 27K-30K/40K-50K/57K-65K

>80(3030 LEDs)
>70(5050 LEDs)

Warranty: 5 years


Main Feature :


1. Wide beam angles including 110°,25°,60°, 90°,130°x40°,130°x25° Asymmetric. If you want others, we can customize it.


IP65 Modular Osram Lumileds LED Construction Lights For Workshop 0


2. IP65 Meanwell ELG drivers: TaiWan MeanWell LED Drivers, wide AC90V~305V, PF>0.98, low THD<9%.Built-in Mean well drivers, make the lamp safer for operation, it can reach IP65. Waterproof. Drivers are available.

    Waterproof Connectors


IP65 Modular Osram Lumileds LED Construction Lights For Workshop 1


3. Die-casting Aluminum housing with AkzoNobel powder coating.


4. Module angle adjustable to project aimed lighting area accurately. U shape bracket with angle adjutable of 0°~180°,Each modular can be angle adjustable as well, which can enable the lamp projects to the illumination needed area.


IP65 Modular Osram Lumileds LED Construction Lights For Workshop 2


5. Certificated: CE, TUV, RoHS,ETL,CB,SAA, FCC, DLC


6. 5 years warranty. Life-span is 50000 hours to 100000 hours.

Applications :
Suitable for sport field,warehouse,gymnasium,workshop,Gas stations,Toll stations, parking area,excellent for Tennis Court,Badminton hall,Hockey hall...etc area lighting.
