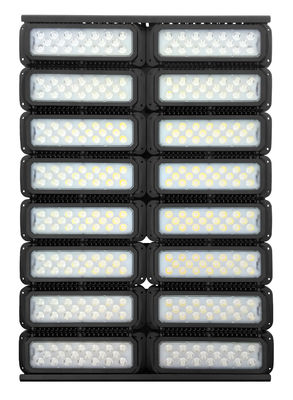

1200 Watt Modular Dimmable LED Stadium Lights

Minimum Order Quantity : 10PCS Price : Ex-work/FOB price
Packaging Details : 75*45*30cm/pcs/CTN, N.W: 17.4KG, G.W: 19.0Kg Delivery Time : 2 weeks
Payment Terms : T/T, Paypal,L/C Supply Ability : 10,000pcs/Month
Place of Origin: China Brand Name: MF
Certification: CE, RoHS, CB, IK10 Model Number: MF-L1200W

Detail Information

Model No:: MF-L1200W Input Voltage:: 100~240V Ac, 50/60Hz
Power: 1200W LED Type: Osram/Lumileds
Power Supply: Meanwell SPD: 10KV/20KV As Options
Beam Angle: 15°/25°/60°/130° X 40°/130°x 25°/110° Ingress Protection: IP65
UGR: <19 Luminous Efficiency: 130LM/W
High Light:

Dimmable LED Stadium Lights

,

Modular Osram LED Stadium Lights

,

1200W Waterproof LED Flood Light

Product Description

1200Watt Modular Adjustable Asymmetric Dimmable LED Flood Lights LED Stadium Lights





Features:



1. Different beam angle 15°/25°/60°/110° symmetric, and asymmetric 130° x 40°/130°x 25°.

2. Lumileds 3030/5050, System efficiency up to 150LM/Watt.

3. Meanwell Driver.

4. Glass/PC optic lens for optional.

5. Dali, 0-10V dimmable available.

6. Built-in10KV surge protection.

7. Long lifetime over 50,000hrs, extremely low maintenance cost.

8. 5 years warranty.

9. Die-casting Aluminum housing with Akzonobel powder coating.

10.Suitable for sport fields,high mast, harbor, gymnasiums,warehouse, billboard, garden/buildingdecoration.m,




Specifications:



Electrical Data Model No MF-L1200W
Input voltage AC100-277V/AC277-480V,50/60Hz
Power(watt) 75W,150W,230W,300W,450W,600W,900W,1200W
Power Factor 0.90
Power Efficiency >90%
Total Harmonic Distortion <15%
Optical Data LED Type Lumileds
Efficiency 150lm/W
Luminous Flux 34500/67500/97500/135000/202500Lm
CCT 3000K/4000K/5000K/6000K
CRI >70Ra
System Efficiency >90%
Beam Angle 15°/25°/60°/130° x 40°/130°x 25°/110°
SDCM <5
Others IP IP66
Lens Material PC/Glass
Heat Radiator die-cast aluminum
Net weight 38.3kg(1200W)





Module adjustable IP66 LED Sport lights characters:



1. Power range 1200W

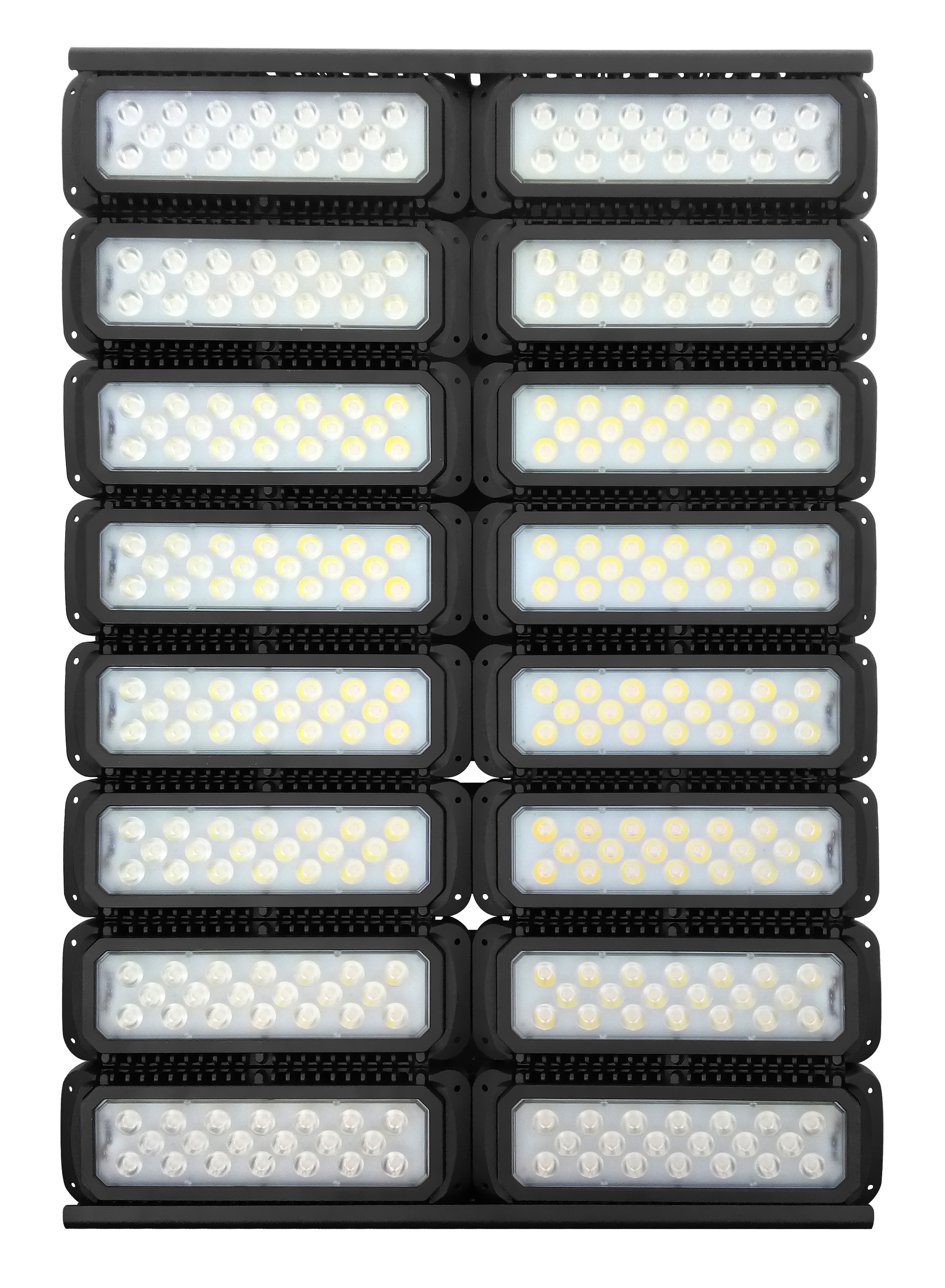

1200 Watt Modular Dimmable LED Stadium Lights 0

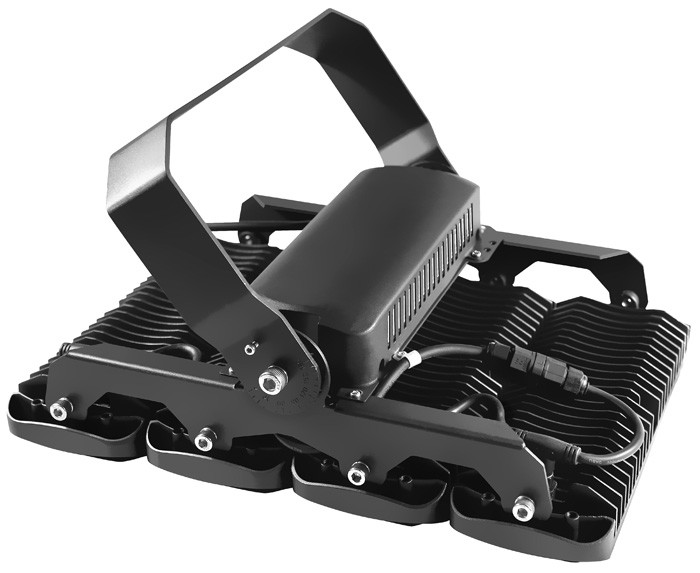

2. Driver Box:



a) Driver control board



One driver failed, whole fitting still work



The indicator lights will show which driver is failed,very easy for maintenance



b) Build-in 10KV SPD, Higher Reliability

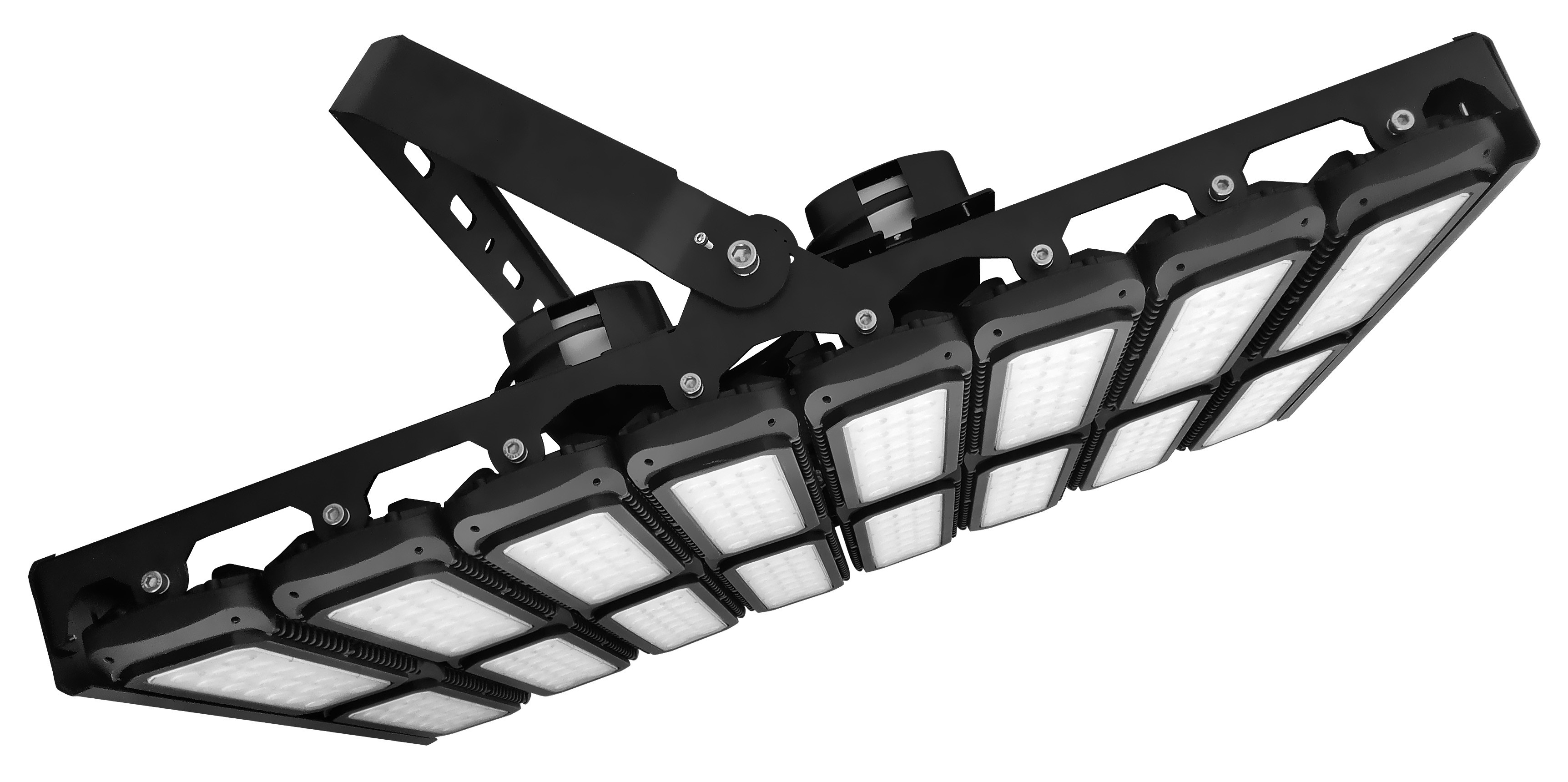

1200 Watt Modular Dimmable LED Stadium Lights 1

3.Competitive remote driver solution:



 Using only 1 Cable & 3 Junction Boxes to connect the body and drivers



 Minimized the power loss by cable (<0.5%), and save the cost of cable



1200 Watt Modular Dimmable LED Stadium Lights 21200 Watt Modular Dimmable LED Stadium Lights 3







One of our Germany customer Basketball court installation case for rerreference.



Applications: Football field, tennis court, basketball court, basketball court, golf course, all kinds of sports fields, as well as squares, parks and other outdoor open areas



1200 Watt Modular Dimmable LED Stadium Lights 4



Also outdoor football yard.



1200 Watt Modular Dimmable LED Stadium Lights 5
