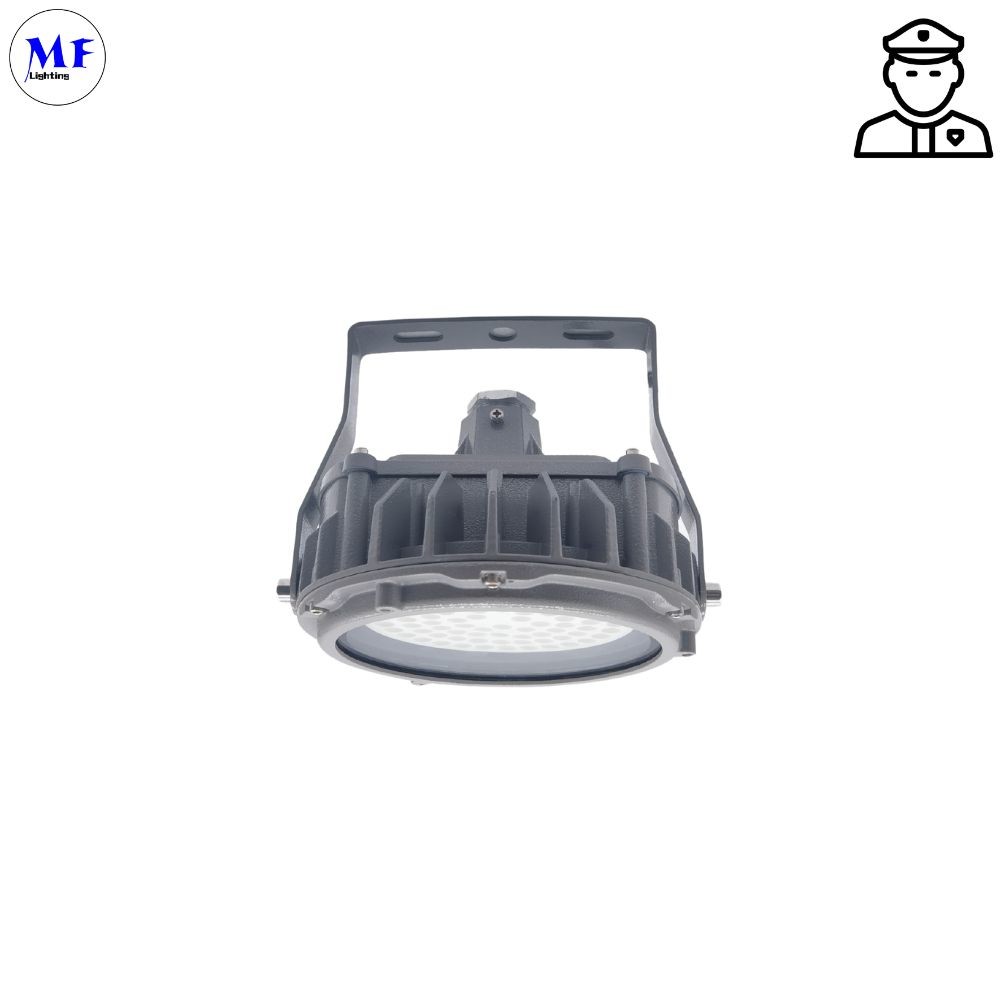

20W 40W 60W IP66 LED Explosion Proof Light Atex Approval Explosion Proof Emergency Light Explosion Proof High Bay Light

Minimum Order Quantity : 100PCS Price : Negotiable
Packaging Details : 30x30x20.5cm/1pcs, G.W: 2.8KG Delivery Time : Depends on orders
Payment Terms : T/T, Western Union, L/C, Paypal Supply Ability : 5,000pcs/Month
Place of Origin: China Brand Name: MF
Certification: CE, RoHS, SAA, CB, Atex, Iecex, TUV Model Number: EX-XXWB3YZDA

Detail Information

Chip Matching: Cree·lumen·atmospherics LED Driver: IEC Certified
Working Temp: -40°~+60 Output Voltage: DC12-48V
Warranty: 5 Years CRI: 70
Emergency Time: 3 Hrs CCT: 2000K-7000K
Luminous Efficiency: 130lm/W Ik: Ik10
High Light:

led highbay lights

,

ufo high bay lights

Product Description



20W 40W 60W IP66 IK10 100V~227V 140LM/W 2000K-7000K 5 Years Warranty LED Explosion Proof Light for Harsh Environment



Quick Detail:



  1. 20W 40W 60W LED Explosion Proof light
  2. Input: AC100-277V ac 50~60Hz
  3. Luminous Flux: 130LM/W
  4. CCT: 2000K-7000K
  5. Brand Chip: World Class Brand Chip
  6. IP: IP66 IK10
  7. CRI: 70Ra
  8. Material: Aluminium





Description:



As one of excellent LED lights suppliers in led lighting industry, Ming Feng newly released high bay light series products, which are most completely serialized, low pitched, but powerful in leds lighting industry.



LED high bay light heat dissipation management system is triple effect of heat dissipation and enhancing luminaries performance to elongate lifespan. High vertical illumination, high uniformity of luminance, meet requirements of large space lighting. Plug-play structure is convenient for installation/maintenance. Multiple features of this model such as accurate light distribution, anti-glaring, uniform light color, etc.With an input voltage range of AC 100-277V ac and a frequency of 50~60Hz, this explosion-proof light is suitable for a wide range of applications.

Featuring a world-class brand chip and a high luminous flux of 140LM/W, this explosion-proof light delivers bright and clear lighting with customizable color temperature options ranging from 2000K-7000K. The light is also designed with an IP66 rating, ensuring protection from dust, water, and physical impacts.

Constructed from high-quality aluminum materials, this explosion-proof light is durable and reliable, making it ideal for use in harsh industrial environments such as oil and gas plants, chemical plants, and other hazardous locations.

With a CRI of 70Ra, this LED explosion-proof light provides superior color rendering, enhancing the visibility in hazardous areas. It is a safe and dependable lighting solution that ensures the safety of workers in hazardous environments.

In conclusion, the
60W LED Explosion Proof Light from our company is a high-quality, reliable, and durable lighting option that provides superior performance in hazardous environments. Its customizable lighting options, high IP rating, and superior color rendering make it the perfect lighting solution for industrial and hazardous environment lighting applications.

20W 40W 60W IP66 LED Explosion Proof Light Atex Approval Explosion Proof Emergency Light Explosion Proof High Bay Light 0





Specifications:



Mechanical
Optical
Housing Material
Die-castlumps UL844
Lumen Output
Max 7800lm
Glass
Tempered glass
Lumens Per Watt
130lm/W
Surface
Explosion-proof joint surface
CCT
2200K-7000K
Fasteners
Stainless steel
CRI
70
Protection
IP66 IK10
Chip Matching
Cree·lumen·atmospherics
Mounting
Pole, Trunnion, Arm, Slip fifitter, Bracket
LED Driver
IEC Certified
Electrical
Power
Max 60W
Input Voltage AC 100-277V
Ambient OperatingTemperature
-40ºC to +60ºC
Input Frequency
50/60Hz







Main Features:



1. The heat sinker is using high quality 250*160 mm diameter sun flower pure aluminum, anodic oxidation for the surface heat sinker

2. The anodic oxidation spinning reflector can be separated from the main body part, easy to transport

3. High light transmittance PC cover used upon the LED

4. Using Epistar or Bridgelux COB LED, make the light even

5. 45°,90°and 120°,three beam angles can be optional



Dimensions & Packing:



20W 40W 60W IP66 LED Explosion Proof Light Atex Approval Explosion Proof Emergency Light Explosion Proof High Bay Light 1

Packing Information



Model
Net Weight
(Product)
Package Dimensions
(LxWxH)
Quantity/
Carton
Gross Weight
B3
2.2KG
30x30x20.5cm
1 pc
2.8KG



Light Distribution Curve:



20W 40W 60W IP66 LED Explosion Proof Light Atex Approval Explosion Proof Emergency Light Explosion Proof High Bay Light 2









Accessories:



20W 40W 60W IP66 LED Explosion Proof Light Atex Approval Explosion Proof Emergency Light Explosion Proof High Bay Light 3



Installation:



20W 40W 60W IP66 LED Explosion Proof Light Atex Approval Explosion Proof Emergency Light Explosion Proof High Bay Light 4

Applications:



Oil and Gas industry
• All petroleum production and refining
• Petroleum loading and transportation
• Petroleum storage and retail
• LNG industry
• All mining operations and service

20W 40W 60W IP66 LED Explosion Proof Light Atex Approval Explosion Proof Emergency Light Explosion Proof High Bay Light 5



Metal treatment
• Steel and aluminum factories
• Pumping stations in any environment
• Metal smelting, foundry and fabrication

20W 40W 60W IP66 LED Explosion Proof Light Atex Approval Explosion Proof Emergency Light Explosion Proof High Bay Light 6



Ocean, marine and aerospace field
• Ocean platform operation
facilities and structure
• Aerospace clean room and production
• Ocean vessel operations

20W 40W 60W IP66 LED Explosion Proof Light Atex Approval Explosion Proof Emergency Light Explosion Proof High Bay Light 7



Chemical industry
• All types of paint facilities
• Chemical production and storage

20W 40W 60W IP66 LED Explosion Proof Light Atex Approval Explosion Proof Emergency Light Explosion Proof High Bay Light 8



Food and alcohol industry
• Flour and fine particle production
and storage
• Food and distilling production
• Alcohol industry

20W 40W 60W IP66 LED Explosion Proof Light Atex Approval Explosion Proof Emergency Light Explosion Proof High Bay Light 9
Other high humidity, high dust,
high temperature, vapor locations

20W 40W 60W IP66 LED Explosion Proof Light Atex Approval Explosion Proof Emergency Light Explosion Proof High Bay Light 10
