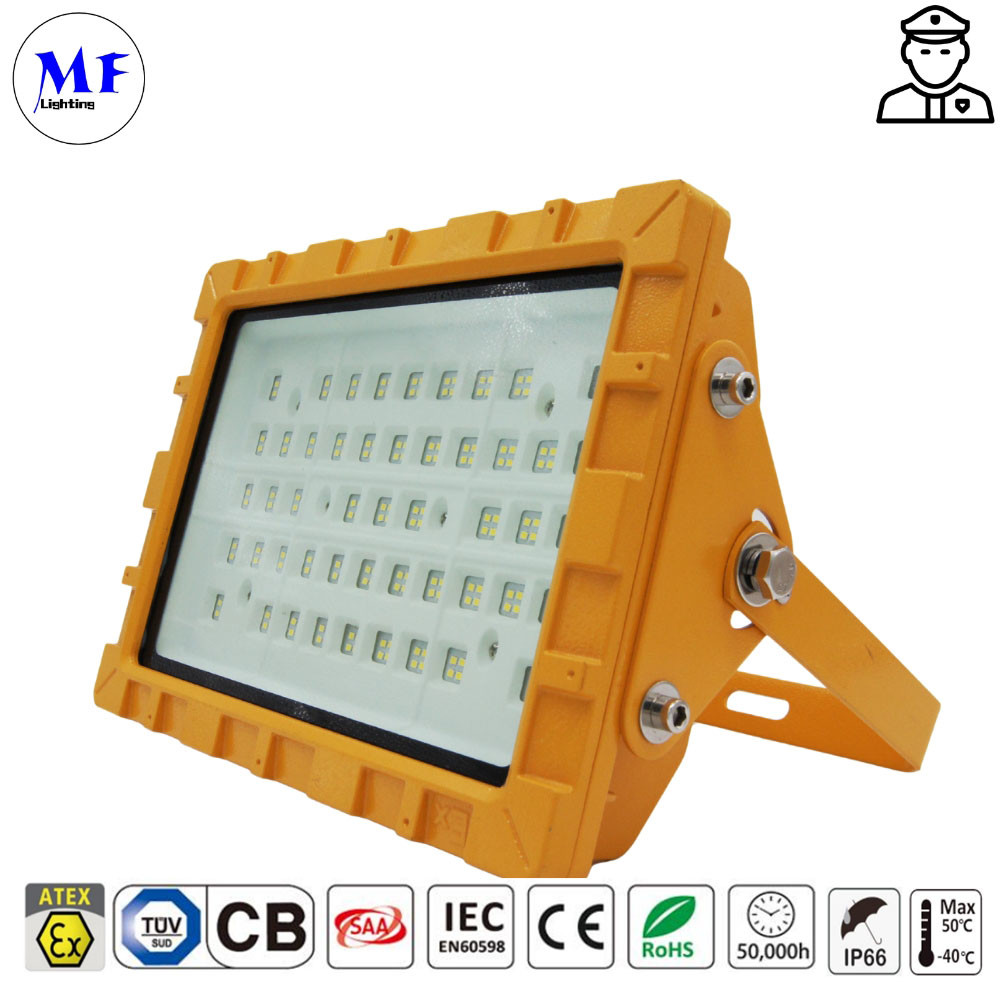

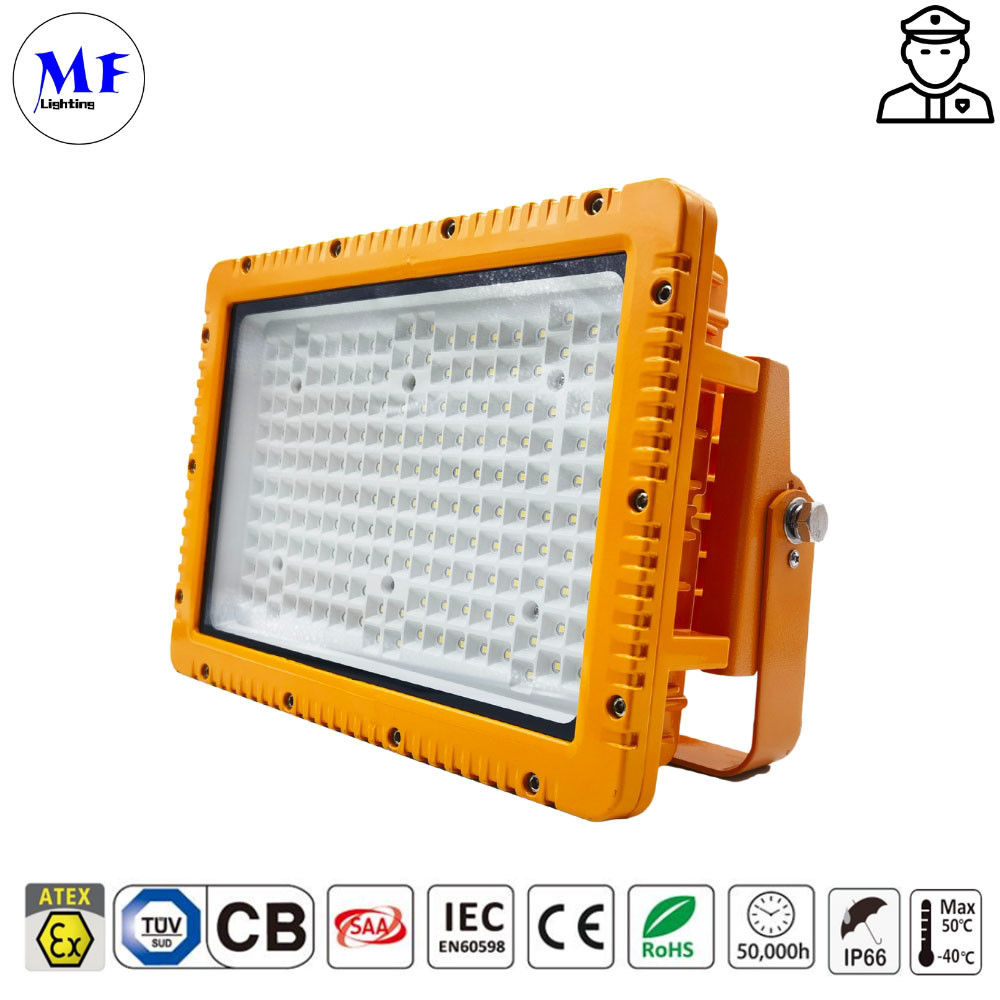

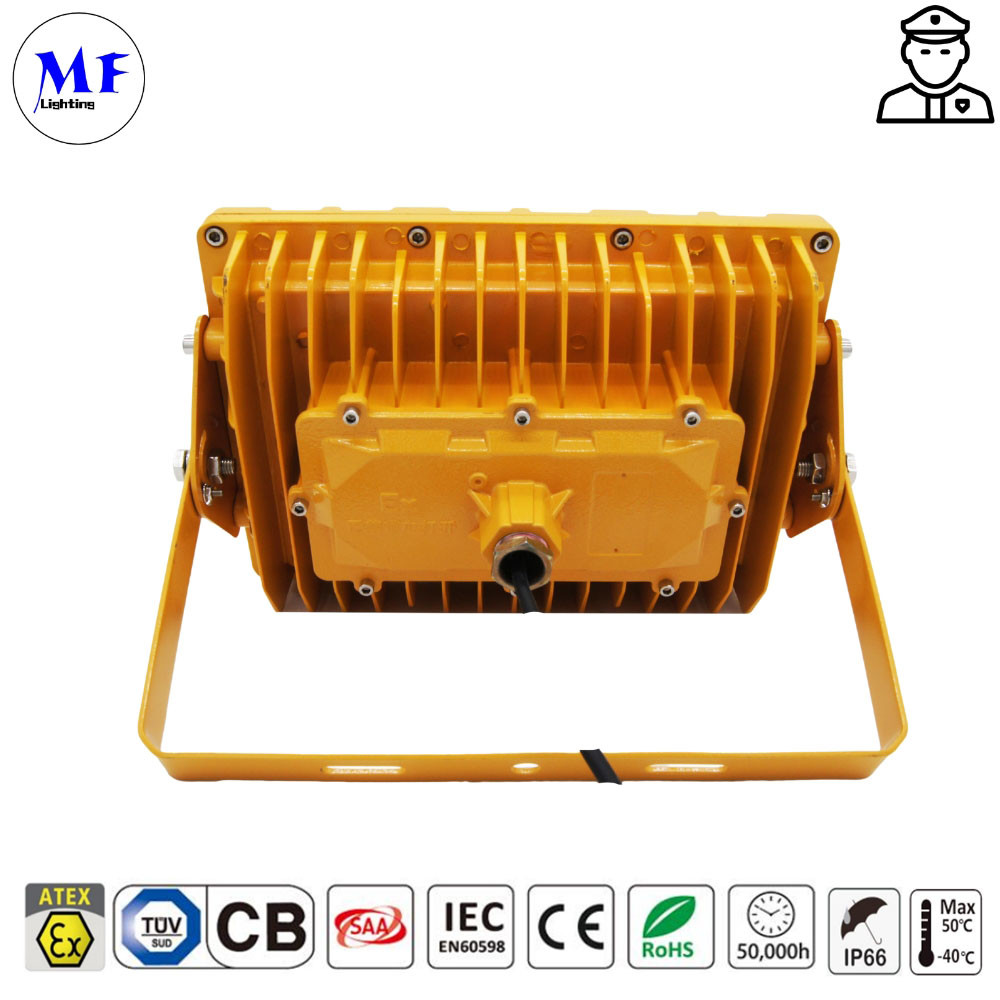

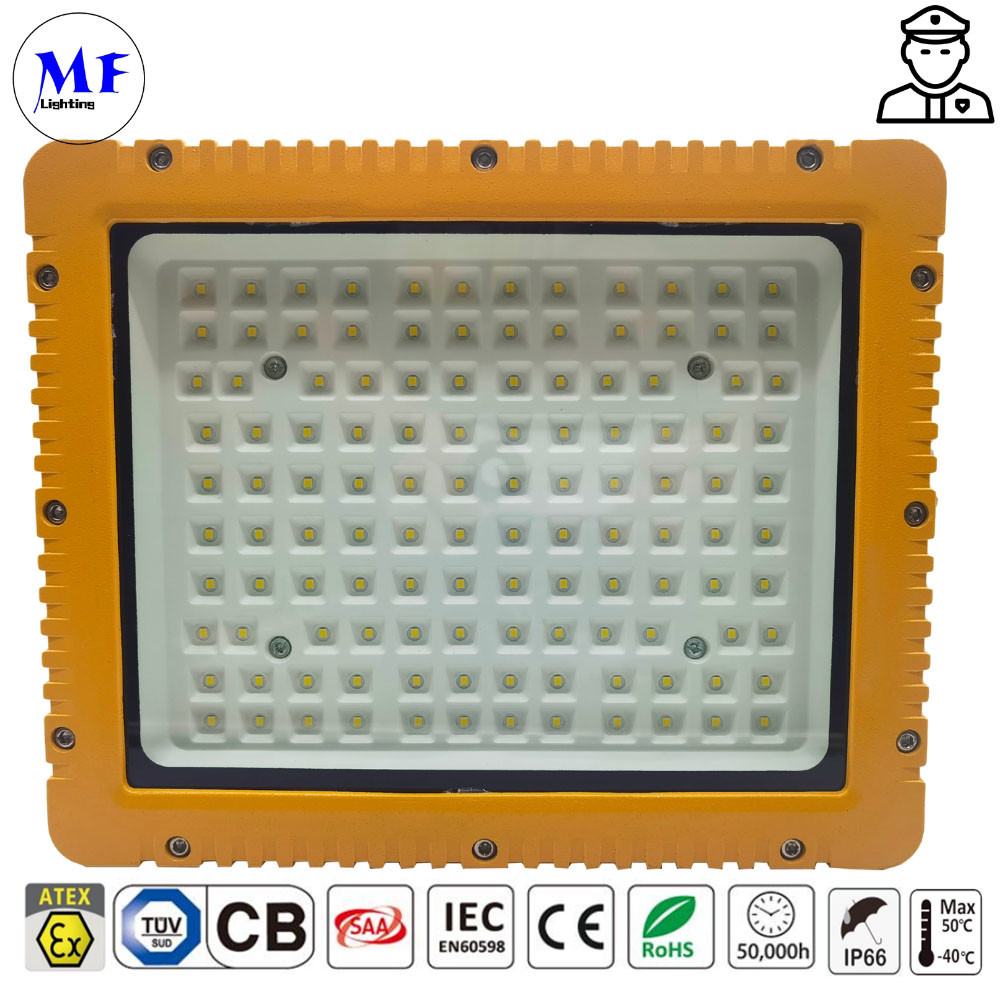

LED Explosion Proof Light Atex Certified High Power ADC12 Aluminum Housing Zone 1 Zone 2 LNG Gas Station Oil Industry

Minimum Order Quantity : 100PCS Price : Negotiable
Packaging Details : 16.5*15*22cm/1pcs, G.W: 1.2Kg Delivery Time : Depends on orders
Payment Terms : T/T, Western Union, L/C, Paypal Supply Ability : 5,000pcs/Month
Place of Origin: China Brand Name: MF
Certification: CE, RoHS,SAA,EX,ATEX,TUV,CB/UL844/Atex/Iecex/Ex Model Number: MF-Security man5

Detail Information

CCT: 2000K-7000K Material: Aluminum Stainless Steel Tempered Glass
Input: AC200-250V/DC12-48V Power: 30W/50W/60W/80W/100W/120W/150W/180W/200W/240W
IP Rate: IP66 Warranty: 5years
Lifespan: >50,000hours Luminous Flux: 140lm/W
Ik Rate: Ik10 Chip Brand: CREE/Lumen/Atmospherics
Power Frequency: 50-60Hz Certification: CCC/CE/ROHS/SAA/CB/ATEX/EX/TUV
LED Driver: IEC Certified Working Temp: -40°C~+60°C
Application: Oil Gas Refinery/Chemical Plant/Mining Operation/Offshore Platform Other Application: Chemical Plant Processing Industrial Park
Installation: Pole, Trunnion, Arm, Slip Fitter, Bracket Beam Angle: 40°/60°/90°/120°/T3/T5
Dimming: 0-10V Dimming PF: >0.95
High Light:

DC48V LED Explosion Proof Light

,

High Power Explosion Proof LED Light

,

ADC12 Explosion Proof LED Light

Product Description

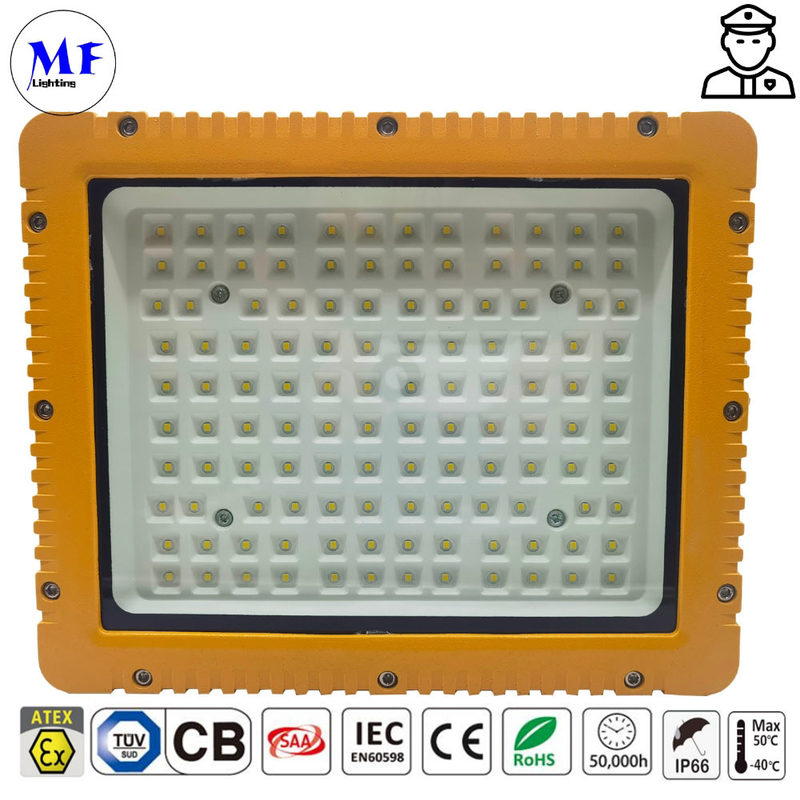

Factory price Atex certified High Power 100W ADC12 aluminum housing Zone 1 Zone 2 LNG Gas Station Oil Industry Chemical Plant Explosion proof light

Product Description

Factory Price Atex Certified High Power 100W ADC12 Aluminum Housing Zone 1 Zone 2 LNG Gas Station Oil Industry Chemical Plant Explosion Proof Light
Materials
• Housing: Aluminum
• Lens: Tempered Glass
• Hardware: Aluminum
• Mounting Bracket: Aluminum/SUS 304


Features

1:Die-castlumps UL844.Atex,IECEx Standard Class I, Division 2, Groups A, B, C, D Class II, Division 1, Groups E, F, G Class II, Division 2, Groups F, G Class III
2:20W/40W/60W/80W/100W/200W/240W ,Voltage Range:100V~227V.
3:CCT Range:2000K-7000K
4:Efficiency:140lm/w,
5:chip matching:cree·lumen·atmospherics
6:LED Driver:IEC certified
7:Warranty 5Years
8:IP66,IK10
9:Working Temp -40°~+60
Factory Price Atex Certified High Power 100W ADC12 Aluminum Housing Zone 1 Zone 2 LNG Gas Station Oil Industry Chemical Plant Explosion Proof LightSuitable for Zone 1&2 (Gas), Zone 21&22 (Dust)

High luminous efficacy - Up to 120-140 lumens per watt

0-10V dimming Waterproof and dust-proof, without internal cleaning and maintenance

Simple structure for easy and quick installation

Stainless steel fasteners, ADC12 aluminum housing, good corrosion resistance

Tempered glass, high light transmittance and impact resistance

5-Year Standard Warranty

LED lumen Maintenance: L70> 150,000 Operation Hours@55°C


Factory Price Atex Certified High Power 100W ADC12 Aluminum Housing Zone 1 Zone 2 LNG Gas Station Oil Industry Chemical Plant Explosion Proof Light

ATEX Standard (Zone 1):
II 2 G Ex eb mb IIC T6...T4 Gb
II 2 D Ex tb IIIC T95°C...T125°C Db IP66

ATEX Standard (Zone 2):
II 3G Ex ec mb IIC T6...T4 Gc
II 2D Ex tb IIIC T80°C...T125°C Db

IECEx Standard (Zone 1):
Ex eb mb IIC T6...T4 Gb
Ex tb IIIC T95°C...T125°C Db IP66

IECEx Standard (Zone 2):
Ex ec mb IIC T6...T4 Gc
Ex tb IIIC T80°C...T125°C Db

Class I Zone 2 Group IIC
Class II Zone 21 Group IIIC


IP66/IP67

IK06/07 (without wire guard)

IK09 (with wire guard)

1000 hours salt spray
Factory Price Atex Certified High Power 100W ADC12 Aluminum Housing Zone 1 Zone 2 LNG Gas Station Oil Industry Chemical Plant Explosion Proof Light
Product Number Wattage Color
Temperature
Voltage Lumens Warranty CRI Emergency
Time
EX-30WFL3YZDA
Ex-50WFL3YZDA
Ex-6OWFL3YZDA
30w
50W
60w
2200K-7000K AC200-250V/
DC12-48V
4200
6000
8400
5 Years 70 3 Hours
EX-80WFL3YZDA
Ex-100WFL3YZDA
80W
100W
2200K-7000K AC200-250V/
DC12-48V
11200
14000
3 Hours
Ex-150WFL3YZDA
Ex-18OWFL3YZDA
Ex-200WFL3YZDA
150W
180W
200W
2200K-7000K AC200-250V/
DC12-48V
21000
25200
28000
3 Hours
EX-240WFL3YZDA 240W 2200K-7000K AC200-250V/
DC12-48V
33600 3 Hours

"A,A3,A4"=Product code.
"Y"=D or N D:Dimmable or N: non-dimmable
"Z"=CCT, from 2200-7000k, 22 for 2200k...70 for 7000K.
"D" =Beam angle, D40 for 40°, D60 for 60°, D90 for 90°, D120 for 120°.
"A"=glass type. blank for flat glass, C for spherical glass.

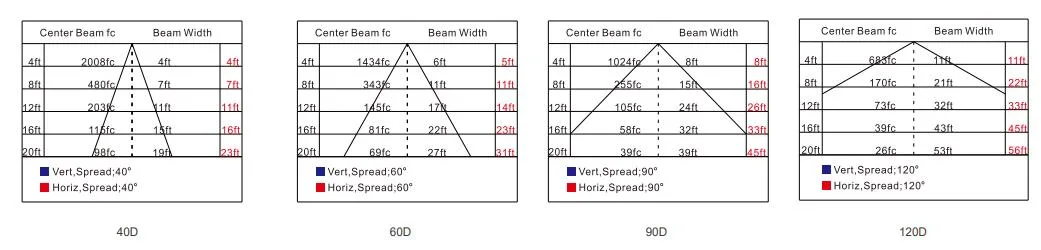

Photometry
Factory Price Atex Certified High Power 100W ADC12 Aluminum Housing Zone 1 Zone 2 LNG Gas Station Oil Industry Chemical Plant Explosion Proof Light

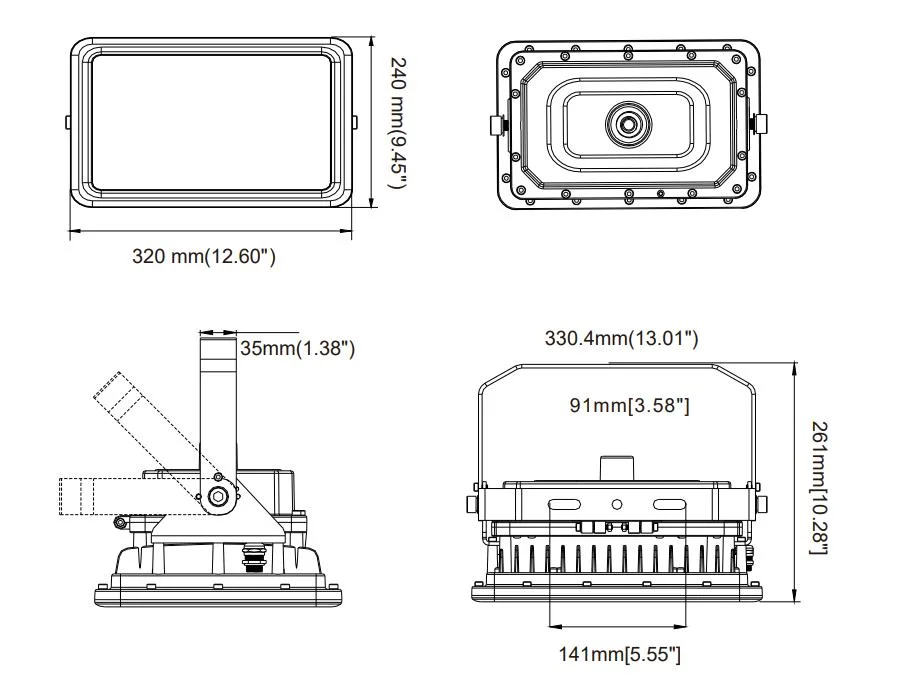

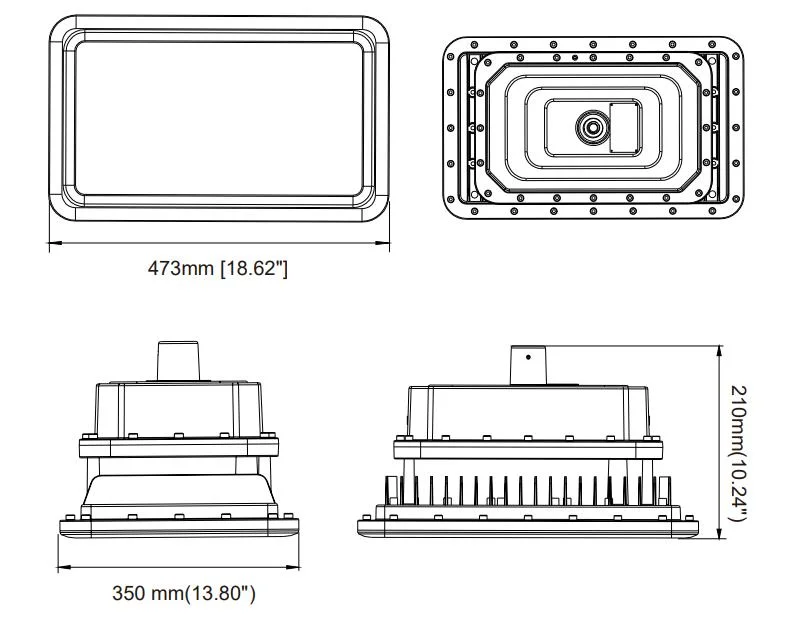

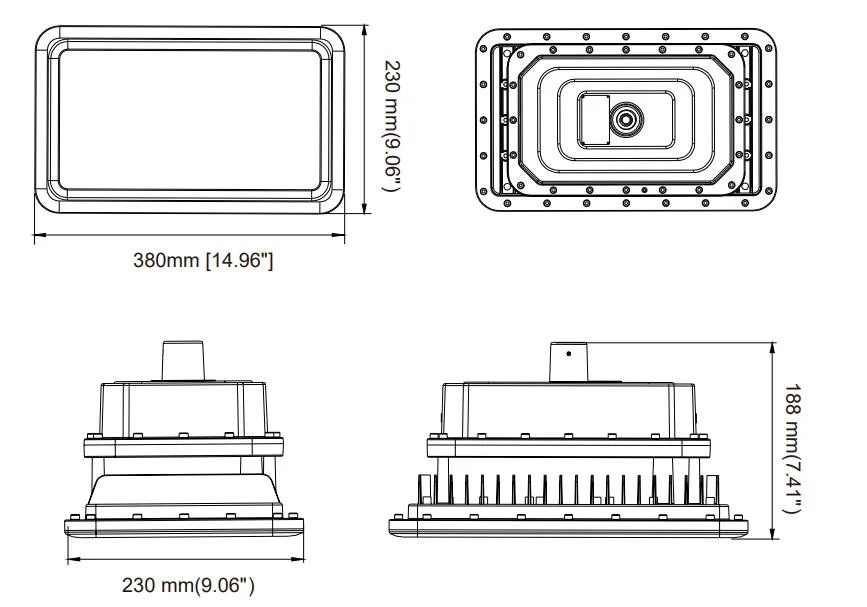

Product dimension:

Factory Price Atex Certified High Power 100W ADC12 Aluminum Housing Zone 1 Zone 2 LNG Gas Station Oil Industry Chemical Plant Explosion Proof LightFactory Price Atex Certified High Power 100W ADC12 Aluminum Housing Zone 1 Zone 2 LNG Gas Station Oil Industry Chemical Plant Explosion Proof LightFactory Price Atex Certified High Power 100W ADC12 Aluminum Housing Zone 1 Zone 2 LNG Gas Station Oil Industry Chemical Plant Explosion Proof Light

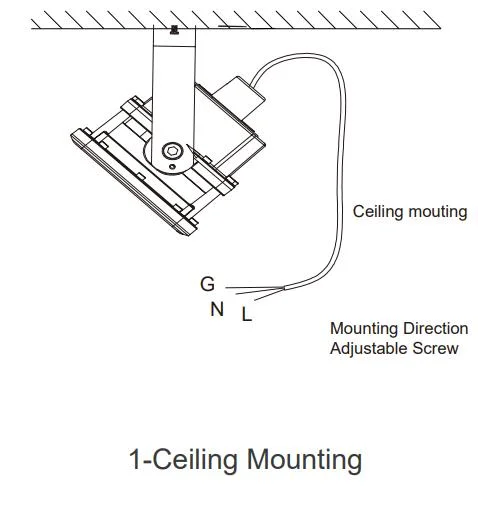

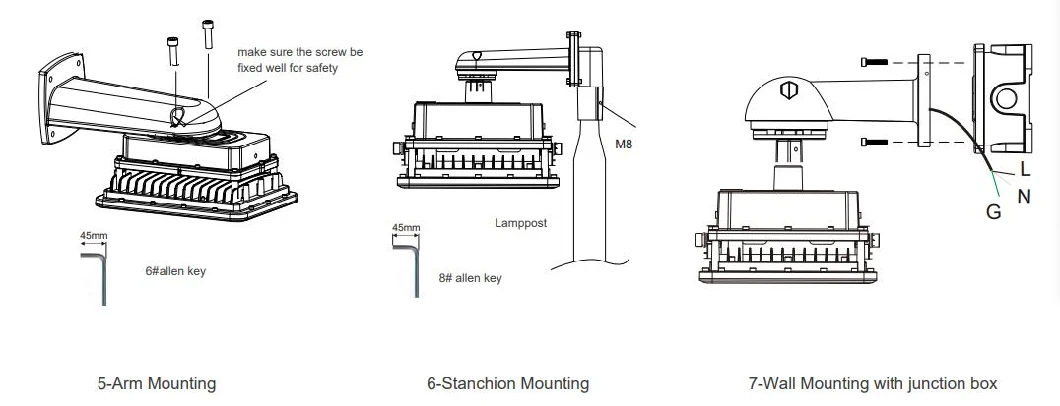

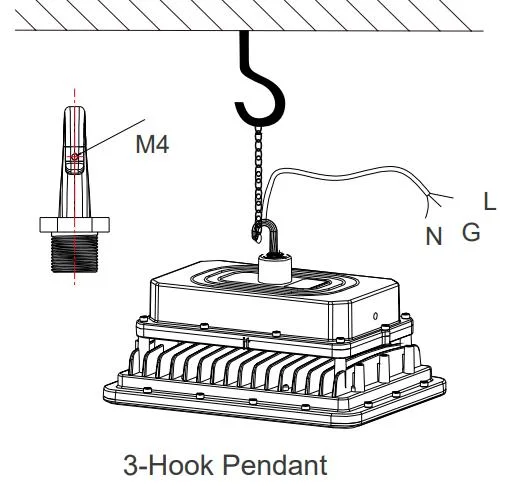

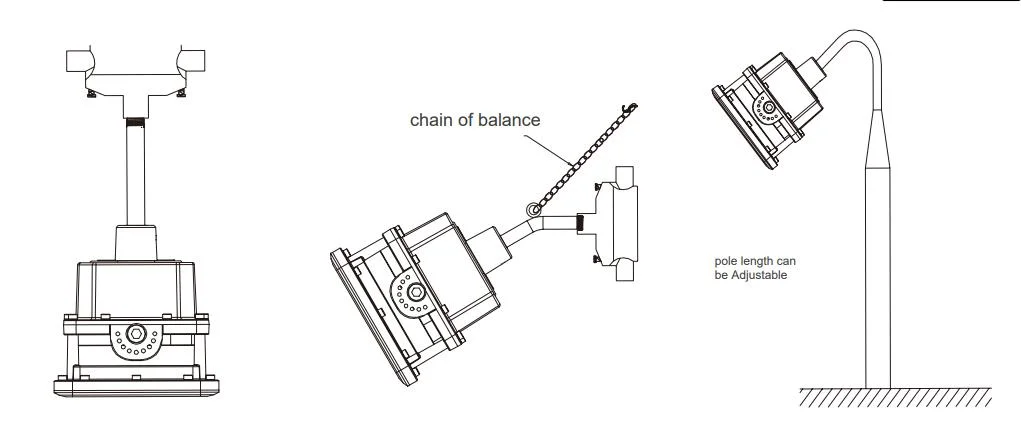

Installation Instructions

Factory Price Atex Certified High Power 100W ADC12 Aluminum Housing Zone 1 Zone 2 LNG Gas Station Oil Industry Chemical Plant Explosion Proof Light
Factory Price Atex Certified High Power 100W ADC12 Aluminum Housing Zone 1 Zone 2 LNG Gas Station Oil Industry Chemical Plant Explosion Proof Light

Factory Price Atex Certified High Power 100W ADC12 Aluminum Housing Zone 1 Zone 2 LNG Gas Station Oil Industry Chemical Plant Explosion Proof LightFactory Price Atex Certified High Power 100W ADC12 Aluminum Housing Zone 1 Zone 2 LNG Gas Station Oil Industry Chemical Plant Explosion Proof Light

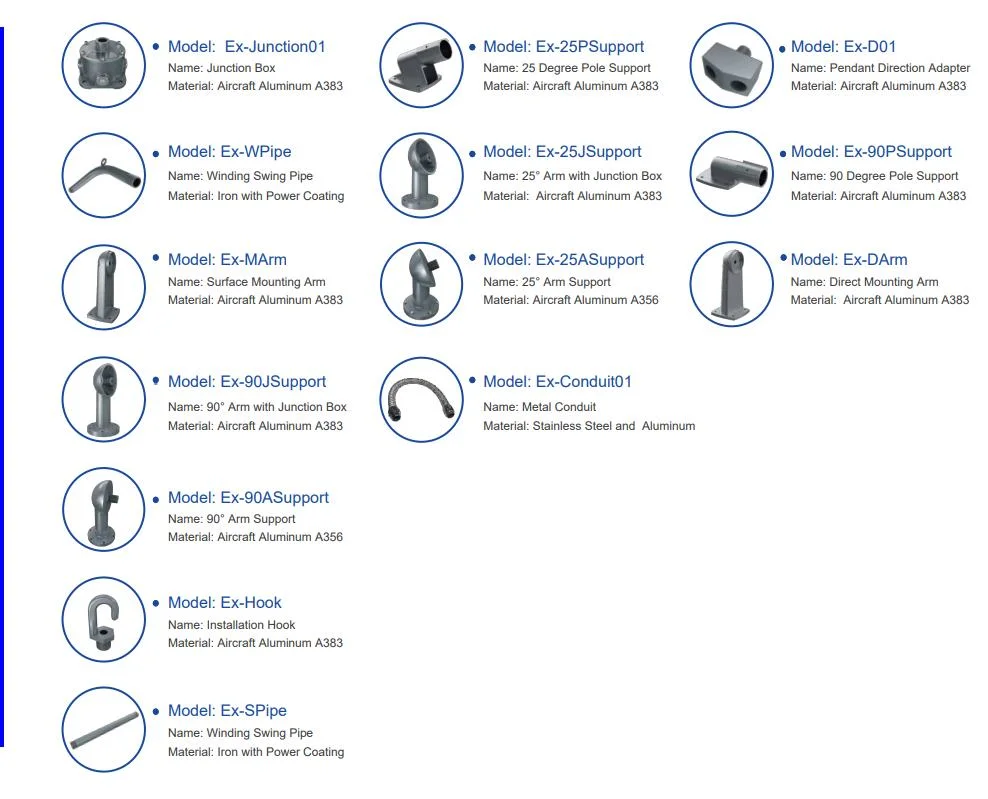

Accessories
Factory Price Atex Certified High Power 100W ADC12 Aluminum Housing Zone 1 Zone 2 LNG Gas Station Oil Industry Chemical Plant Explosion Proof Light

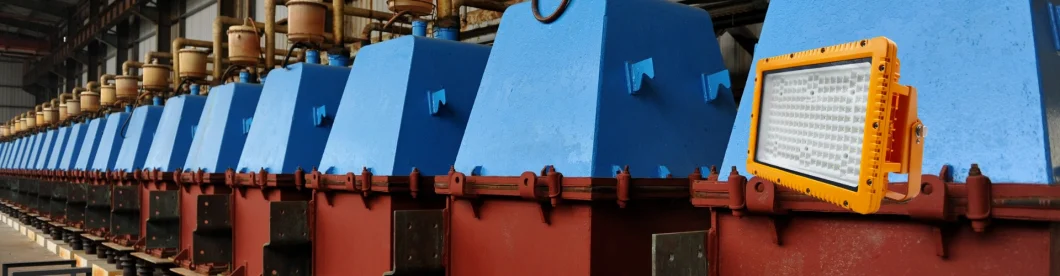

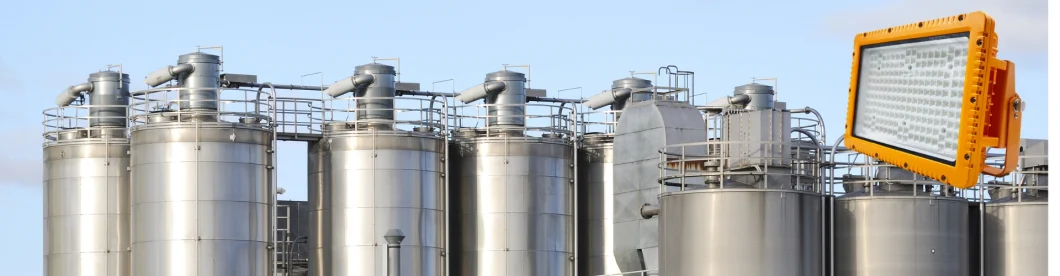

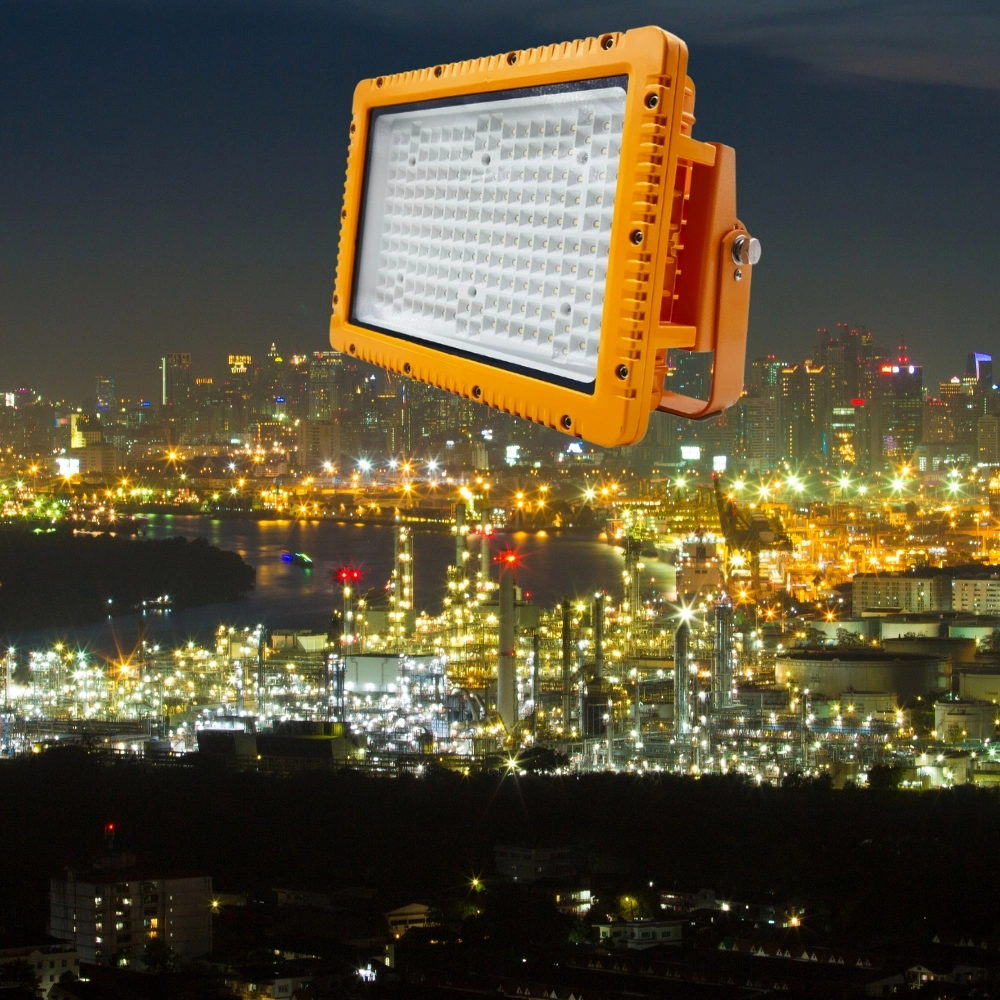

Application


Oil and Gas industry
• All petroleum production and refining
• Petroleum loading and transportation
• Petroleum storage and retail
• LNG industry
• All mining operations and service

Chemical industry
• All types of paint facilities
• Chemical production and storage Ocean, marine and aerospace field
• Ocean platform operation

facilities and structure
• Aerospace clean room and production
• Ocean vessel operations

Metal treatment
• Steel and aluminum factories
• Pumping stations in any environment
• Metal smelting, foundry and fabrication

Food and alcohol industry
• Flour and fine particle production and storage
• Food and distilling production
• Alcohol industry

Other high humidity, high dust,high temperature, vapor locations
Factory Price Atex Certified High Power 100W ADC12 Aluminum Housing Zone 1 Zone 2 LNG Gas Station Oil Industry Chemical Plant Explosion Proof Light


What is the function of explosion-proof lights
Explosion-proof lamps are one level lighting fixtures with explosion-proof performance, mainly used in industrial places. They are industrial lighting fixtures, so what is the use of explosion-proof lamps?
The main function of explosion-proof lamps is to prevent electric arcs, sparks, and high temperatures that may occur inside the lamp from causing flammable gases and dust in the surrounding environment, thereby achieving
According to the explosion-proof requirements, qualified explosion-proof lamps must be used for lighting in flammable and explosive places.
Where are explosion-proof lamps mainly used
Factory Price Atex Certified High Power 100W ADC12 Aluminum Housing Zone 1 Zone 2 LNG Gas Station Oil Industry Chemical Plant Explosion Proof Light
Explosion proof lamps are mainly used in hazardous areas where combustible gases and dust exist, including:
1. Petrochemical enterprises
With the rapid expansion of petrochemical enterprises, the level of labor protection technology has also been correspondingly improved. Petrochemical industry is a continuous large-scale production that is technology intensive and capital intensive
Full production is particularly important, and explosion-proof lamps are one of the necessary equipment for safe production in the petrochemical industry.
2. Ports and docks
Ports and docks are used to handle and store the increasing amount of crude oil, liquefied natural gas, and sensitive grain, all of which increase the need for on-site use of hazardous area lighting
Seek. The nature of port applications and their coastal location also require the use of anti slow lighting fixtures.
Factory Price Atex Certified High Power 100W ADC12 Aluminum Housing Zone 1 Zone 2 LNG Gas Station Oil Industry Chemical Plant Explosion Proof Light
3. Offshore Platforms
The nature of offshore platforms provides a challenging environment for designated lighting- Once a danger occurs, the relevant areas of the platform may experience or accumulate explosive hazards
Gas. When this gas reaches the explosive concentration range and encounters an open flame, it will explode. Considering continuous exposure to ocean conditions such as high wind speeds and saline environments, high quality and
Durable explosion-proof lighting fixtures that can withstand these factors are crucial.

4. Coal mining industry
The coal mining industry contains explosive mixtures of gases such as methane and coal dust. It is also necessary to use explosion-proof lamps for floodlighting in underground tunnels and chambers of coal mines.
Factory Price Atex Certified High Power 100W ADC12 Aluminum Housing Zone 1 Zone 2 LNG Gas Station Oil Industry Chemical Plant Explosion Proof Light
5. Medical Pharmaceuticals
Pharmaceutical companies, whether they are biopharmaceuticals, chemical synthetic drugs, or raw materials, often use various flammable and slow organic solvents in their production processes and processes
The quality belongs to flammable and explosive substances, so a series of explosion-proof measures must be taken to ensure safe production, and the use of explosion-proof lamps is one of them.


After Sales Service

1.From the date of purchase, the product is provided with a free warranty for 5 years, and the following conditions are not included in the free warranty during the warranty period:

Failure and damage caused by unpacking products;
Failure caused by falling and touching during handling and use;

Failure to operate in accordance with the instructions.

2.After the warranty period, if the parts need to be replaced during the maintenance process, only the cost of materials to replace the parts, free of time costs.

Packaging & Shipping

Factory Price Atex Certified High Power 100W ADC12 Aluminum Housing Zone 1 Zone 2 LNG Gas Station Oil Industry Chemical Plant Explosion Proof Light

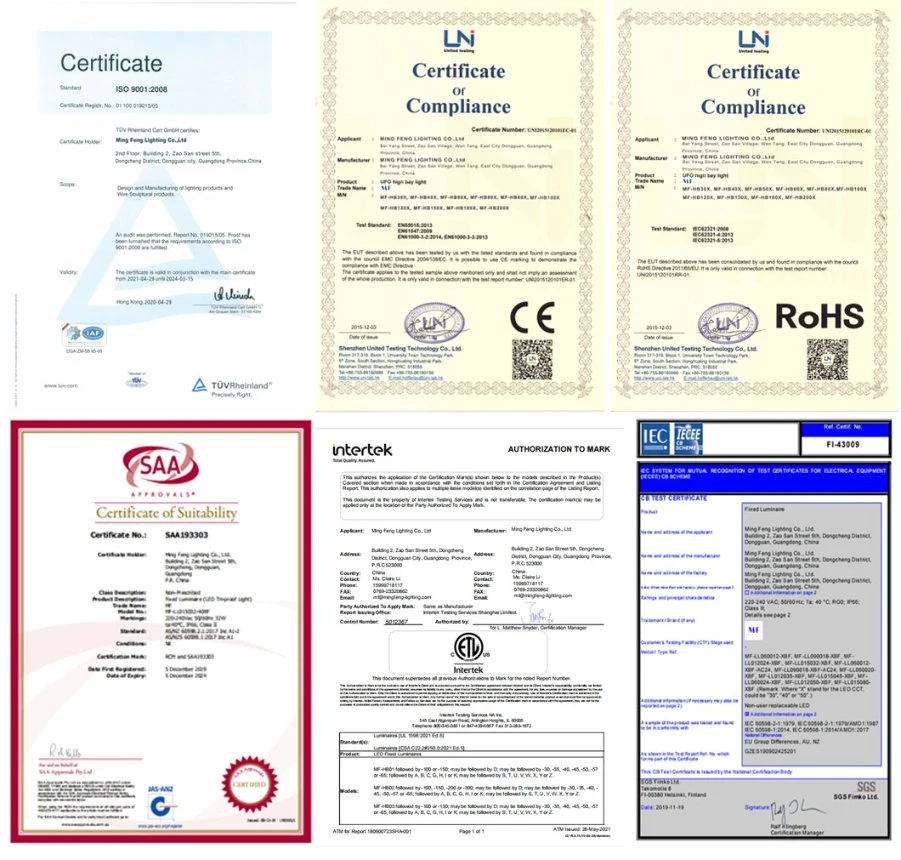

Certifications

Factory Price Atex Certified High Power 100W ADC12 Aluminum Housing Zone 1 Zone 2 LNG Gas Station Oil Industry Chemical Plant Explosion Proof Light

Company Profile

Factory Price Atex Certified High Power 100W ADC12 Aluminum Housing Zone 1 Zone 2 LNG Gas Station Oil Industry Chemical Plant Explosion Proof LightFactory Price Atex Certified High Power 100W ADC12 Aluminum Housing Zone 1 Zone 2 LNG Gas Station Oil Industry Chemical Plant Explosion Proof LightFactory Price Atex Certified High Power 100W ADC12 Aluminum Housing Zone 1 Zone 2 LNG Gas Station Oil Industry Chemical Plant Explosion Proof Light
Ming Feng Lighting Co.,Ltd is one of the leading LED light product, located in Guangdong Province, China. Established in year 2009 and has more than 14 years experience in exporting LED lighting products. Ming Feng LED lighting factory produce LED Indoor Light and LED outdoor lamp. For the LED indoor light, we are producing the LED Triproof Lights, LED Vapor Tight Lights,LED down lights ,LED Flat panel, For the Outdoor LED Light, we are producing the LED flood light, LED high bay lighting, LED sports lights and some of outdoor LED landscape light.With the rapid growth of our sales volume in the market, our R&D are expanding quickly to meet the market demands.

Our main market is in European, South American and North American. Our factory locates between Shenzhen port and Guangzhou, it's convenient to visit our factory and delivery the container to all around the world based on Shenzhen port.



Ming Feng Lighting Co., Ltd warmly welcome all the partners visit our factory and share the ideas of the LED light. Ming Feng Lighting factory stays with you all the time to share the happiness of the LED light, let's work together to create an outstanding future.

HISTORY
Ming Feng Lighting Co.Ltd factory established in year 2009 and has 14 years great experience in exporting LED lighting products. We dedicate ourselves in the LED lighting area to develop the market-oriented LED light product. We are proud of that, our factory can manufacture the outstanding LED light with high quality standard.
Factory Price Atex Certified High Power 100W ADC12 Aluminum Housing Zone 1 Zone 2 LNG Gas Station Oil Industry Chemical Plant Explosion Proof Light


SERVICE
Ming Feng lighting CO.,Ltd providing the OEM & ODM service for all the partners all around the world, Our LED light is in high quality standard at reasonable and competitive price, our designer and engineer help our LED light in tasteful design and excellent performance.We are able to offer our valuable clients:

OEM/ODM Serivce
Photometric/IES file
Dialux simulation design
PCB Design/Driver Design
Heat Management/Optical Design
Industry Design
Market Support
3D Printing
Multiple Listing/Private Label.

OUR TEAM
Ming Feng Lighting Co.Ltd has 200 employees, which include administrative staff 30 people, engineers 10, industrial designer 5, quality control department 8, and 150 people involve in production line as well warehouse and logistics department.



Factory Price Atex Certified High Power 100W ADC12 Aluminum Housing Zone 1 Zone 2 LNG Gas Station Oil Industry Chemical Plant Explosion Proof Light

FAQ:

Q1: Are you a manufacturer?
MF: Yes, we are a manufacturer with our own factory. We have over 14 years of experience in research and development, as well as manufacturing, and we operate based on ISO quality management since 2009.

Q2: Can I order a sample of the LED Tri-proof Light?
MF: Yes, we welcome sample orders to test and check the quality of our products. Mixed samples are also acceptable.

Q3: What is the lead time for the LED Tri-proof Light?
MF: For sample orders, the lead time is 3-7 days, and for mass production orders, it is 15-25 days. The exact lead time depends on the order quantities.

Q4: How do you ship the finished products?
MF: We offer optional shipping methods such as by SEA, AIR, or Express (DHL, UPS, FedEx, TNT, etc.).

Q5: Can I print my logo on the LED Tri-proof Light?
MF: Yes, we provide OEM service to our customers. We can help to make the label and color box according to your requirements.

Q6: How do I proceed with an order for the LED Tri-proof Light?
MF: Firstly, please let us know your detailed requirements and application environment. Secondly, we will recommend some suitable products and solutions to you based on your request. Thirdly, after confirming all the details, customers will issue a purchase order and make the payment to confirm, and then we will start production and arrange shipment.

Q7: How do you handle defective products?
MF: All of our products are produced in strict quality control systems, and the defective rate is less than 0.2% according to our shipment records. We offer a 5-year warranty for this product. If there is any defect during the warranty period, please provide pictures or videos of the defective lights in working situations, and we will ship new lights to you within a few days or together with your next order.
