LED Explosion Proof Light Atex Certified High Power ADC12 Aluminum Housing Zone 1 Zone 2 LNG Gas Station Oil Industry
Contact Person : Claire Li
Phone Number : 86-15999718117
WhatsApp : +8615999718117
Minimum Order Quantity : | 10PCS/Negotiable | Price : | Negotiable |
---|---|---|---|
Packaging Details : | 2450*130*105mm, 5.2kg | Delivery Time : | Depends on orders |
Payment Terms : | T/T, Western Union, Paypal | Supply Ability : | 5,000pcs/Month |
Place of Origin: | China | Brand Name: | MF |
---|---|---|---|
Certification: | CE, RoHS, CB, ERP, EX, ISO | Model Number: | MF-AT120C |
Detail Information |
|||
IK RATE: | IK10 | CRI: | >80 |
---|---|---|---|
Color Temperature: | 3000K-6000K | IP Rating: | IP66 |
Lifespan: | 50,000hrs | Luminous Flux: | 100-200lm/w |
Material: | Aluminum | Power: | 80/120/150/200W |
Voltage: | AC100-265V | Warranty: | 5 Years |
Highlight: | IP65 LED Light,petrol station lighting |
Product Description

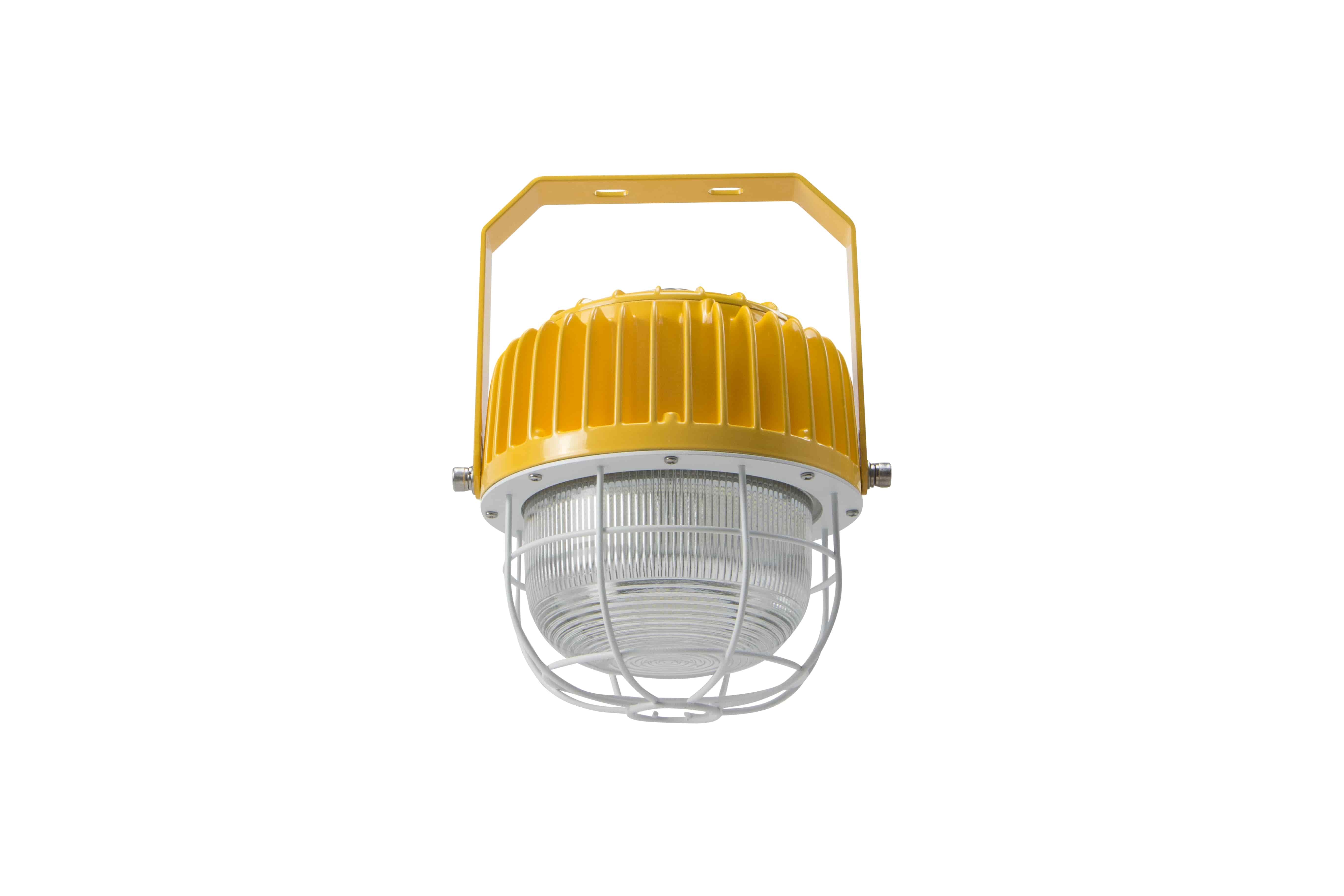

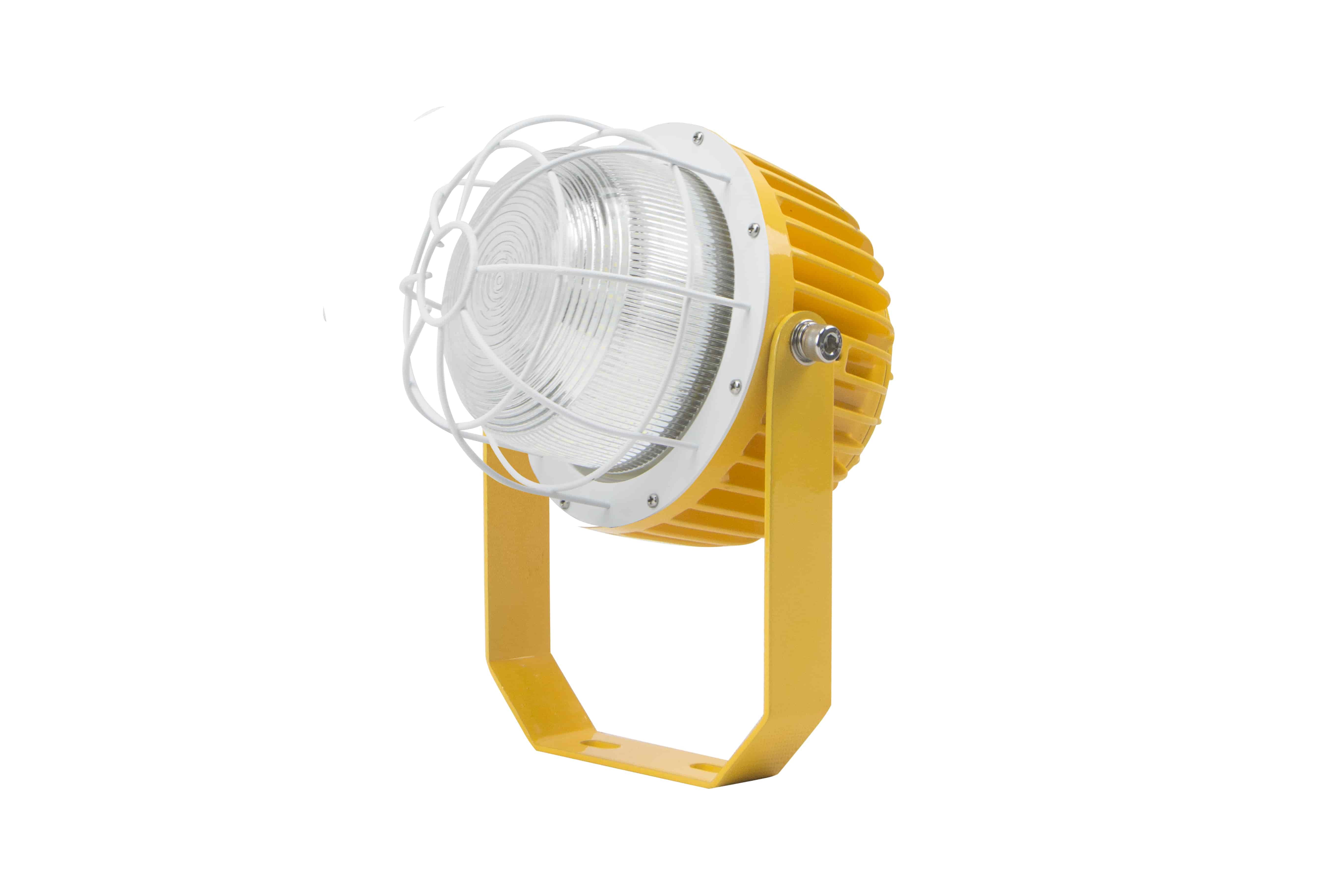

Rugged LED Explosion-Proof Light Waterproof Durable Energy-Efficient Food Processing Industry
Feature:
Safety:
Energy efficiency:
Durability:
Low maintenance:
Customization:
Certificate:
DISCRIPTION:
Lighting Data | Electrical Data | ||
LED Type | Phil,LUMILEDS | Power Supply | iEC Certified gear |
System Efficacy | 130lm/w | Input Voltage | 100~240V ac |
system Power Consumption | 4ow,6oW,8oW,10Ow~200w | Power Frequency | 50~60Hz |
ccr | 5000K | sPD | 6kv |
Beam Angle | 330° | Class Rate | class l |
CRI | Ra70/Ra80 | Power Efficiency | >90% |
Lens | Mist | Power Factor | >o.90 |
SDCM | <5 | Total Harmonic Distortion | l<20% |
Material Data | Packing Data | ||
Fixture Material | Alu+PC | Junction Temperature(TD | <7o°c(Ta=3oc) |
Powder Coating | AkzoNobelpo | storage Temperature | -40~+80°℃ |
Cable | 3x0.75mm | operating Temperature | -40~+60°C |
Ingress Protection | IP66 | outlook Size(MM) | Refer to specified drawings |
Life Span | 10 years at 12 hours/day | Export Carton Size | Refer to specified data sheet |
Product dimension:
Other information:
Installation Method | Wall/Pendent/Ceiling |
Fixture Color | Grey/Yellow(Standard) |
Intelligent Control | 1~10V Dim/DALi as options |
Applications:
LED explosion-proof lights are widely used in industrial and commercial settings where there is a risk of explosion due to the presence of flammable gases, liquids, or dust. They are commonly used in oil and gas refineries, chemical plants, mining operations, and other hazardous environments. LED explosion-proof lights can also be found in transportation facilities such as airports, train stations, and ports, where they provide safe and reliable lighting for fueling and loading operations. In addition, they are suitable for applications such as outdoor lighting, emergency lighting, and general area lighting in hazardous locations. Overall, LED explosion-proof lights are essential for ensuring safety and reliability in a variety of industrial and commercial settings.
FAQ:
What products do you manufacture?
We manufacture a wide variety of products, including LED Indoor light and outdoor light or anyother product about lighting.
What is your minimum order quantity (MOQ)?
Our MOQ varies depending on the product and the specific requirements of the customer. However, we typically require a minimum order of 500 units per product.
Can you provide samples before we place an order?
Yes, we can provide samples for most of our products. However, customers are responsible for the cost of shipping.
What is your lead time for production and delivery?
Our lead time for production and delivery varies depending on the product and the quantity ordered.
What payment methods do you accept?
We accept a variety of payment methods, including T/T, L/C, and PayPal. However, the specific payment method will depend on the order size and the customer's location.
