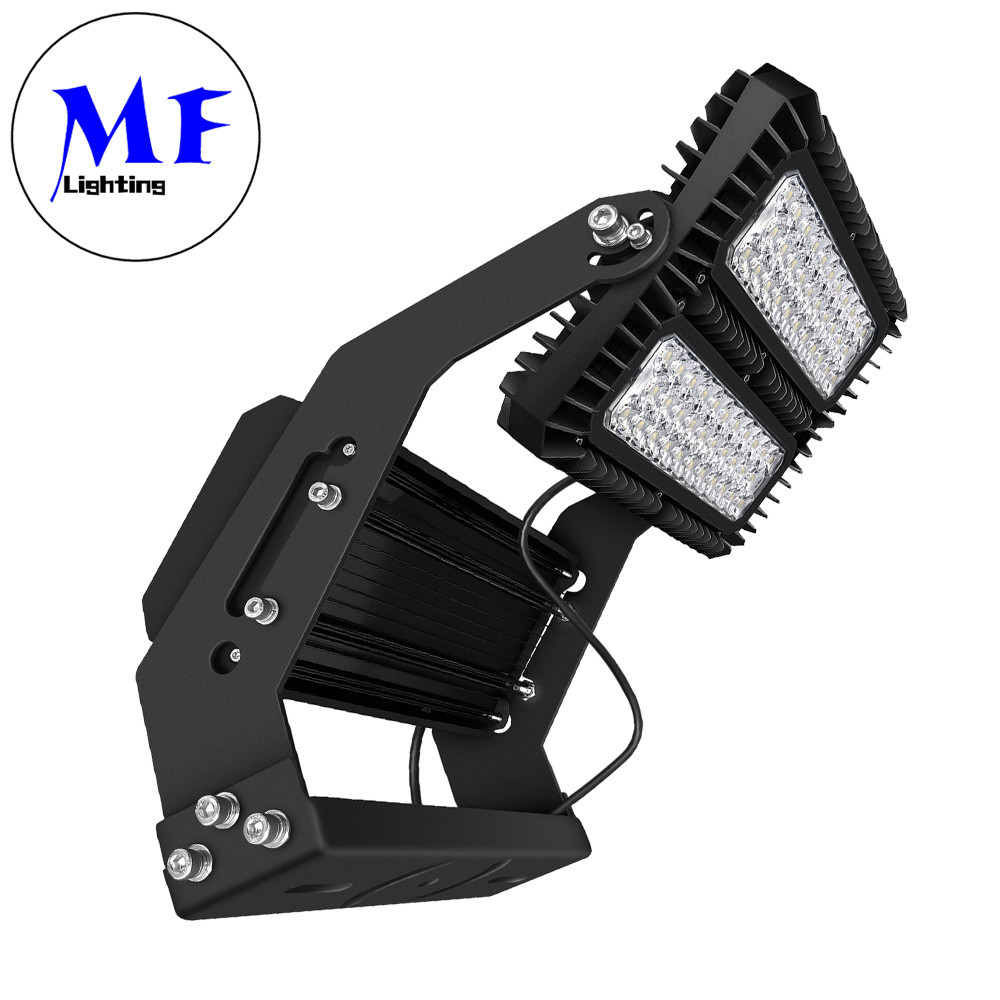

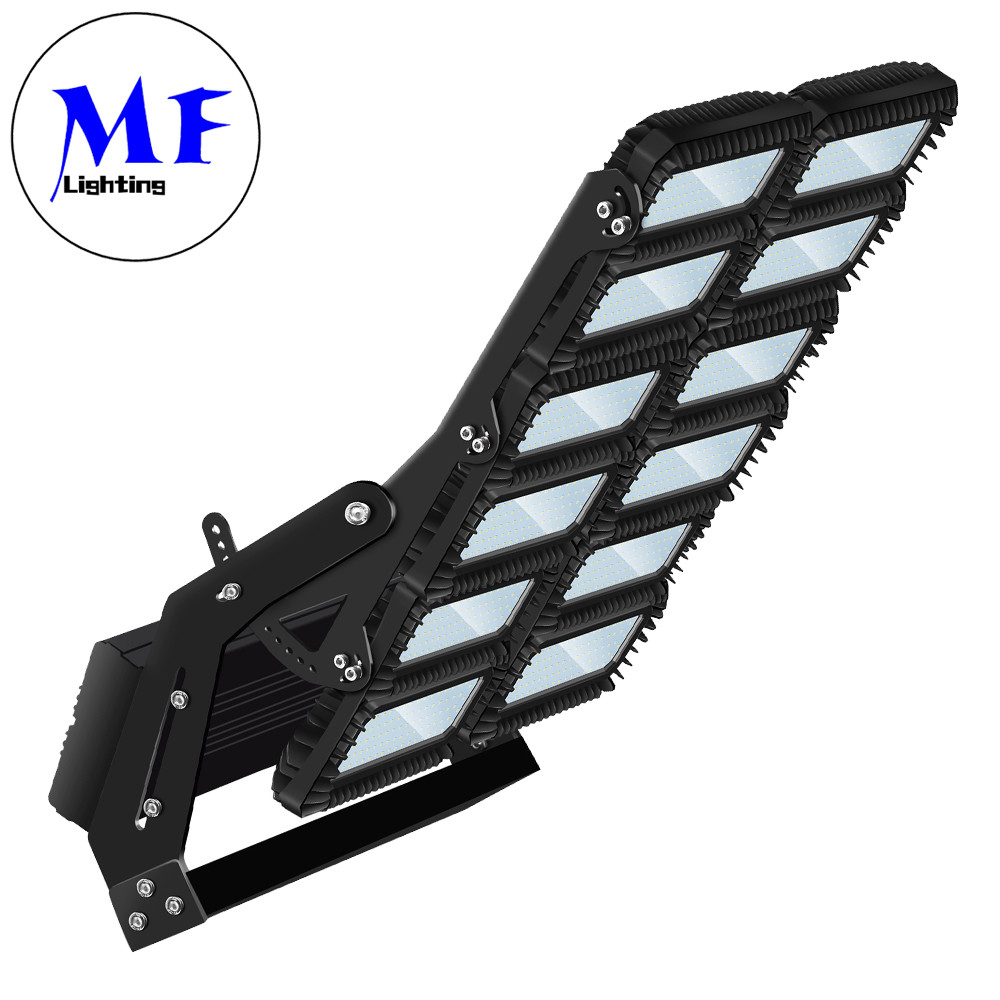

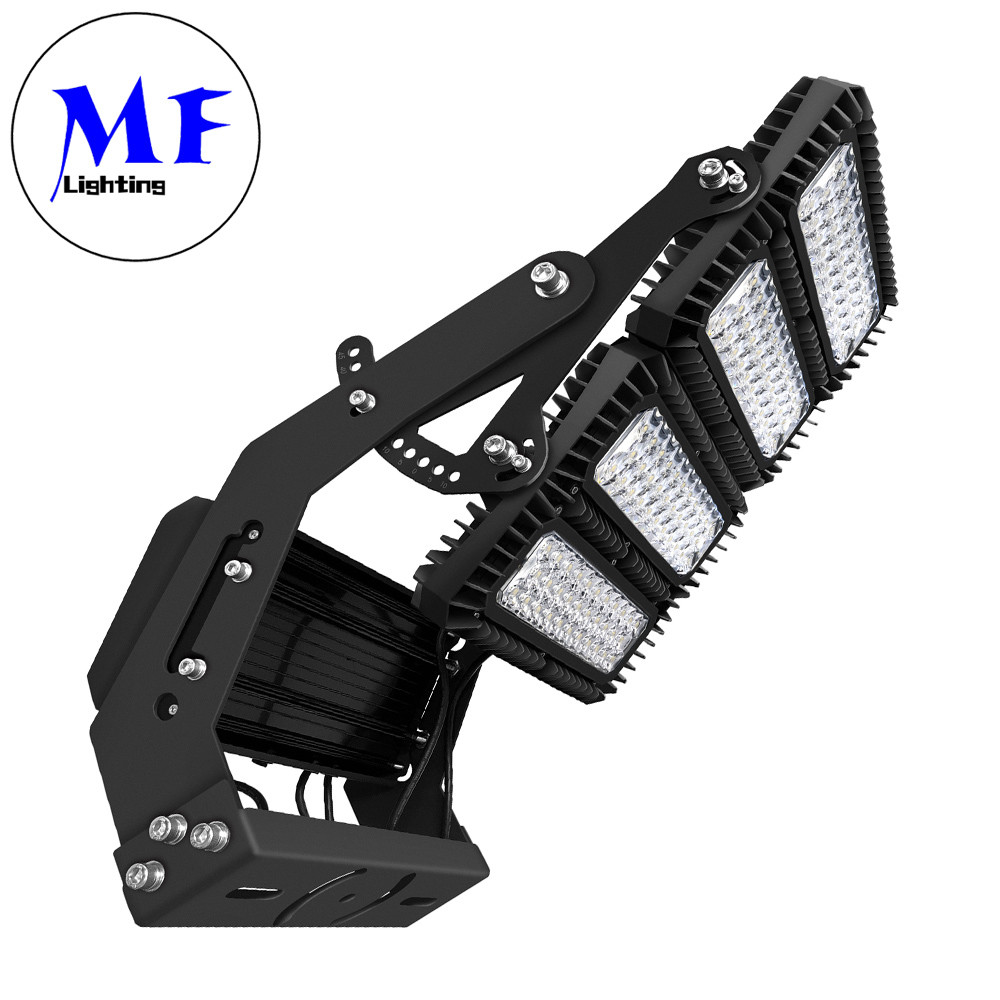

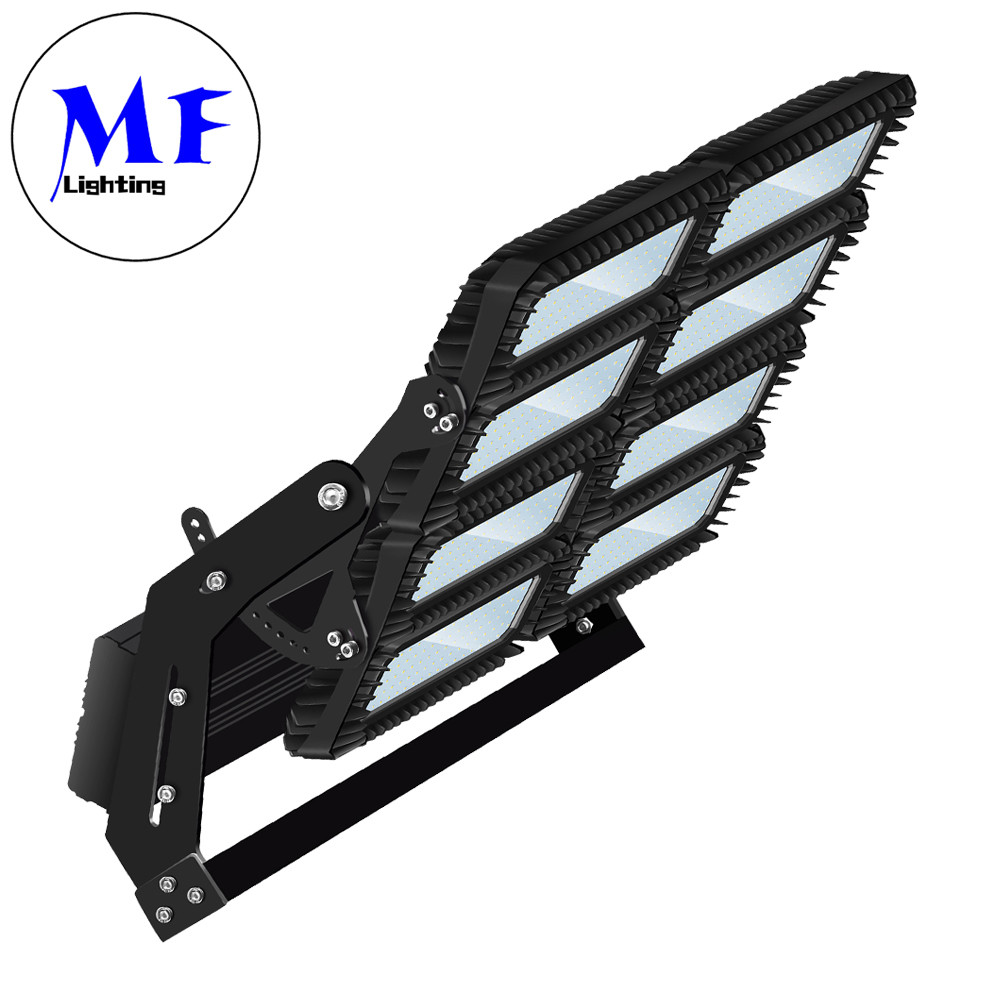

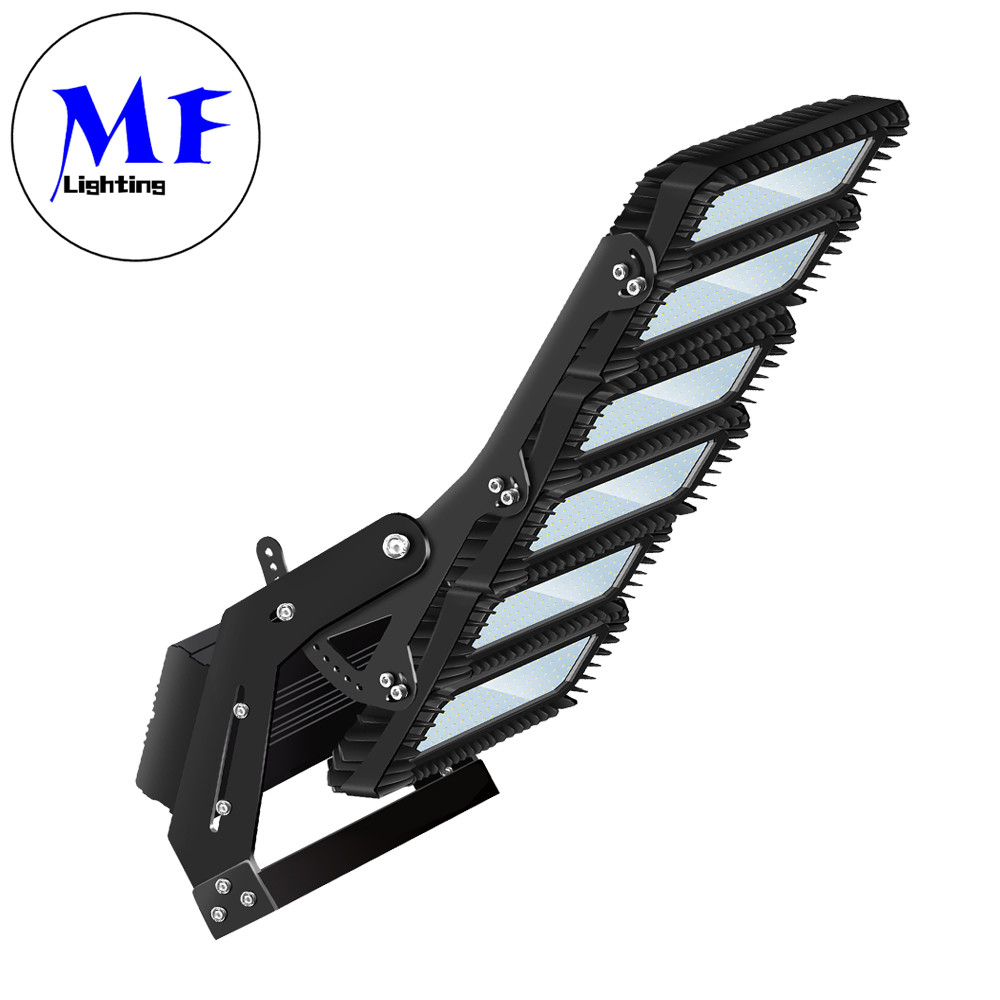

230W 450W 650W 900W 1350W IP66 LED Industrial Floodlight Waterproof LED Flood Light for Garden Square

Minimum Order Quantity : 10PCS Price : USD211-USD1173/PCS
Delivery Time : 2 weeks Payment Terms : L/C, T/T, Western Union
Supply Ability : 5000pcs/Month
Place of Origin: China Brand Name: MF
Certification: CE, RoHS Model Number: 2MFLXXXW35B-Asy

Detail Information

Power: 230W 450W 650W 900W 1350W Input Voltage: AC100-240V 50-60Hz
PF: >0.95 LED Brand: Lumileds
CCT: 3000K-5700K CRI: >70
Driver: Meanwell Lumen: 155lm/W
IP Rating: IP66 Warranty: 5 Years
High Light:

1200mm LED Tri Proof Lights

,

50W LED Tri Proof Lights

,

LED Triproof Light With Stripped Cover

Product Description

230W 450W 650W 900W 1350W 155lm/W IP66 IK10 3000K-5700K 0-10V DALI Dimming MF LB Family Flood Light



Technical Spec:



Model No.
2MFL230W35B-Asy
2MFL450W35B-Asy
2MFL650W35B-Asy
2MFL900W35B-Asy
2MFL1350W35B-Asy
Light Source 144xSMD5050 288xSMD5050 432xSMD5050 576xSMD5050 864xSMD5050
LED Brand Seoul Seoul Seoul Seoul Seoul
Input Voltage AC100-240V 50-60Hz AC100-240V 50-60Hz AC100-240V 50-60Hz AC100-240V 50-60Hz AC100-240V 50-60Hz
LED Power (W) 204-221 408-442 612-663 816-884 1224-1326
System Power (W) 219-237 438-475 658-713 877-951 1316-1426
Luminous Flux (lm)
33100
64800
93600
129600
194300
Power Factor >0.95 >0.95 >0.95 >0.95 >0.95
CCT (K) 3000K-5700K 3000K-5700K 3000K-5700K 3000K-5700K 3000K-5700K
CRI >70 >70 >70 >70 >70
Beam Angle 80°x30° Asymmetric 80°x30° Asymmetric 80°x30° Asymmetric 80°x30° Asymmetric 80°x30° Asymmetric
IP Class IP66 IP66 IP66 IP66 IP66
Surge Protection 6KV 10KV 10KV 10KV



Optional Accessories:



230W 450W 650W 900W 1350W IP66 LED Industrial Floodlight Waterproof LED Flood Light for Garden Square 0

230W 450W 650W 900W 1350W IP66 LED Industrial Floodlight Waterproof LED Flood Light for Garden Square 1

Main Features:



1. Different beam angle110°,15°,25°,60°,90°symmetric;130°x25°,130°x40°,130°x60°,100x60°,80°x30°asymmetric.
2. Lumiled 3030/5050,System Efficiency up to155lm/Watt
3. Meanwell drivers available.
4. Precision aiming device optional.
5. Dali,0-10V Dimmable available.
6. Built-in 10KV surge protection
7. Long lifetime over 50,000 hrs,extremely low maintenance cost.
8. 5 years warranty.

230W 450W 650W 900W 1350W IP66 LED Industrial Floodlight Waterproof LED Flood Light for Garden Square 2



Detailed Photos:



  1. Design and Construction: The MF LB Family Flood Light features a robust and durable design, built to withstand harsh outdoor environments. It is crafted using premium materials, ensuring long-lasting performance and reliability.

  2. Lighting Performance: This floodlight delivers outstanding lighting performance, providing bright and even illumination across a wide area. It is designed to enhance visibility and security in various outdoor applications.

  3. Wattage and Options: The MF LB Family Flood Light comes in a range of wattages, allowing you to choose the appropriate level of brightness for your specific requirements. It offers flexibility in terms of lighting power and coverage.

  4. Energy Efficiency: This floodlight incorporates energy-efficient LED technology, providing significant energy savings compared to traditional lighting solutions. It harnesses solar energy effectively and contributes to reducing electricity consumption.

  5. Customization and Accessories: The MF LB Family Flood Light can be customized with additional accessories and features to meet specific project needs. Options may include adjustable brackets, different beam angles, and various control options for enhanced functionality.

230W 450W 650W 900W 1350W IP66 LED Industrial Floodlight Waterproof LED Flood Light for Garden Square 3

Light Distribution:





230W 450W 650W 900W 1350W IP66 LED Industrial Floodlight Waterproof LED Flood Light for Garden Square 4



Side View:



230W 450W 650W 900W 1350W IP66 LED Industrial Floodlight Waterproof LED Flood Light for Garden Square 5

Dimensions:



230W 450W 650W 900W 1350W IP66 LED Industrial Floodlight Waterproof LED Flood Light for Garden Square 6

230W 450W 650W 900W 1350W IP66 LED Industrial Floodlight Waterproof LED Flood Light for Garden Square 7

Installation:



230W 450W 650W 900W 1350W IP66 LED Industrial Floodlight Waterproof LED Flood Light for Garden Square 8

230W 450W 650W 900W 1350W IP66 LED Industrial Floodlight Waterproof LED Flood Light for Garden Square 9

230W 450W 650W 900W 1350W IP66 LED Industrial Floodlight Waterproof LED Flood Light for Garden Square 10

230W 450W 650W 900W 1350W IP66 LED Industrial Floodlight Waterproof LED Flood Light for Garden Square 11

230W 450W 650W 900W 1350W IP66 LED Industrial Floodlight Waterproof LED Flood Light for Garden Square 12



Packing & Shipping:



Model No. 230W 450W 650W 900W 1350W
Outer Carton (cm) 44*40.5*24.5(1PCS/CTN) 86.5*49.5*34(1PCS/CTN) 86.5*49.5*34(1PCS/CTN) 87*82.5*34(1PCS/CTN) 86.5*49.5*34(1PCS/CTN)
N.W (KG) 7.0 19.2 24.1 33.3

42.8



230W 450W 650W 900W 1350W IP66 LED Industrial Floodlight Waterproof LED Flood Light for Garden Square 13

Delivery:

Mingfeng Lighting is committed to providing timely and reliable delivery services. We offer a range of shipping options, including air, sea, or land transportation, to ensure that products are delivered safely and efficiently. Delivery times vary depending on the destination and shipping method, and we work closely with customers to provide accurate delivery estimates and tracking information.

230W 450W 650W 900W 1350W IP66 LED Industrial Floodlight Waterproof LED Flood Light for Garden Square 14



Application Area:



Used in a variety of applications, such as illuminating parking lots, building facades, sports fields, outdoor security lighting, and industrial areas. Its advanced technology and flexible photometry options make it a reliable choice for any outdoor lighting needs.

230W 450W 650W 900W 1350W IP66 LED Industrial Floodlight Waterproof LED Flood Light for Garden Square 15



FAQ:



Q1: What do you sell?
A1: We provide good quality of floodlight, high bay light, explosion proof light, tri-proof light, downlight, and other lighting products, as well as responsible services and reliable after-sales warranty.

Q2: Is it OK to print my logo on led light product?
A2: Yes. We provide ODM and OEM services. Please inform us formally before our production and confirm the design firstly based on our sample.

Q3: How to deal with the faulty?
A3: During the guarantee period, we will send new lights with new order for small quantity. For defective batch products, we will repair them and resend them to you or we can discuss the solution including re-call according to real situation.

Q4: Can I have a sample order for led light?
A4: Yes, we welcome sample order to test and check quality. One sample or mixed samples are acceptable.

Q5: How long time to ship the goods if place an order?
A5: Usually 7 days for sample or small order,15 working days for bulk order, but sometimes depend on the order quantity.
