120lm per watt Module 120W Outdoor IP67 CRI 75 High Power LED sport field Lights

Minimum Order Quantity :	100PCS	Price :	Negotiable
Packaging Details :	521388166mm/1pcs, G.W: 9.3Kg	Delivery Time :	Depends on orders
Payment Terms :	T/T, Western Union, L/C, Paypal	Supply Ability :	5,000pcs/Month

Place of Origin:	China	Brand Name:	MF
Certification:	CE, RoHS	Model Number:	MF-YFL120

Detail Information
Power:	120Watt	Input:	85-265Vac, 50/60Hz
Chip Brand:	/ Samsung	LED Driver:	Meanwell
Beam Angle:	30°, 60°, 60°135°, 85°135°	CRI:	>75
IP Grade:	IP67	House Color:	Sliver / Black
CCT:	3000-6500K	Efficiency:	120lm/Watt
Certificated:	CE, Rohs, DLC	Warranty:	5 Years
High Light:	billboard led lights , led construction lights

Product Description

120lm per watt Module 120W Outdoor IP67 CRI 75 High Power LED sport field Lights

Description:

Ming Feng Lighting Co.,Ltd come out New type of Module LED Flood Light. Unlike traditional LED Flood Light which the heat sinker in on the back of the lamp, this new item using special fin type heat sinker, making the lamp lighter and better in heat dissipation. And the place for installing the LED driver is unique and put aside from the heat sinker, not upon the heat sinker. Which makes the LED driver be in lower heat working environment, keeping the lamp with longer life span.

Our Module LED flood light has real saving and high efficiency LED design since the energy-saving can be up to 120-130lm/w and 5 years warranty. Different power available: 10W, 30W, 50W, 80W, 100W, 120W, 150W, 180W, 320W 360W etc. We provide various LED flood light with good illumination effect for your selection.

Specifications:

Item	MF-YFL120
Input voltage	85-265Vac 50Hz/60Hz
LED Power	120W
System Consumption	135W
Delivered Flux	12150lm
IP Rating	IP67
Beam Angle	30°,60°,60135,80135
Color temperature	3000K-6500K
LED Chip	Rebel Es / samsung
LED Driver	Meanwell
Color Rendering Index	Ra>75
Power Factor	>0.9
Color Of Housing	Silver / Grey / Black
Lifespan	≥50,000hrs
Operation Environment	Temperature:-40°C~50°C/Humidity:10%~95%
Material	Aluminum Alloy
Product Size(mm)	290(L)333(W)66(H)
Net Weight	10.2Kg
Certificate	CE/RoHS
Warranty Period	5 years

Competitive Advantage:

1. We are using 120-130lm/W Rebel ES. It is one of the best leds from .
2. High light transmittance plastic lens for each leds, lamp luminous flux can reach 90-95lm/w.
3. Built-in Meanwell drivers, make the flood light safer for operation.
4. Adjustable bracket equipped with three different fastening points, which enable the installation of the fitting in each position needed.
5. 12 / 30 / 60 / 60X135 / 85X135 deg beam angles optional, different applications are fulfilled in one simple design, which can direct the light to the exact area needed, no light pollution. It is espcially suitable for stadium and sports field.
6. Color of housing : Silver / Grey / Black.
7. IP rating: IP67.

Dimensions:

120lm per watt Module 120W Outdoor IP67 CRI 75 High Power LED sport field Lights 0

Product picture:

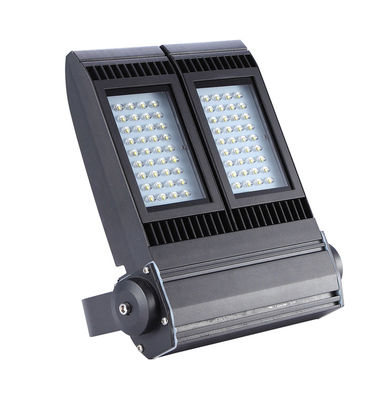

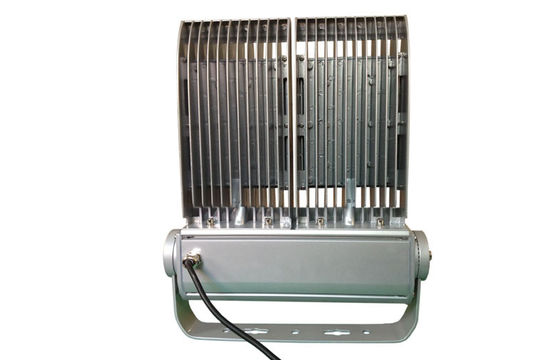

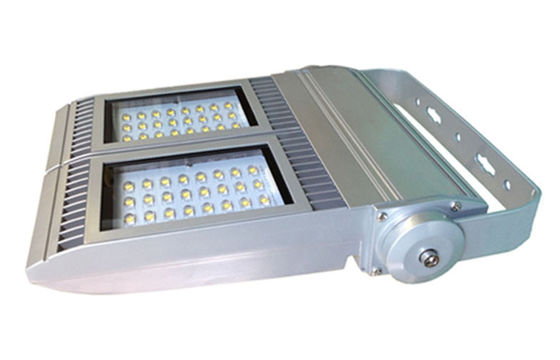

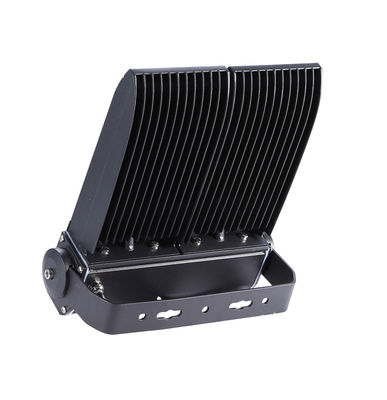

120lm per watt Module 120W Outdoor IP67 CRI 75 High Power LED sport field Lights 1

Packing Information:

Installation Instruction:

120lm per watt Module 120W Outdoor IP67 CRI 75 High Power LED sport field Lights 4

Applications:

Widely used in billboards, highways, railway tunnels, bridges, squares, stadiums, trees, parking lots, building walls, hotel, meeting room, offices , hospital , schools , factories , commercial lighting , shopping malls, supermarkets, kitchen, display, backlight and so on.
