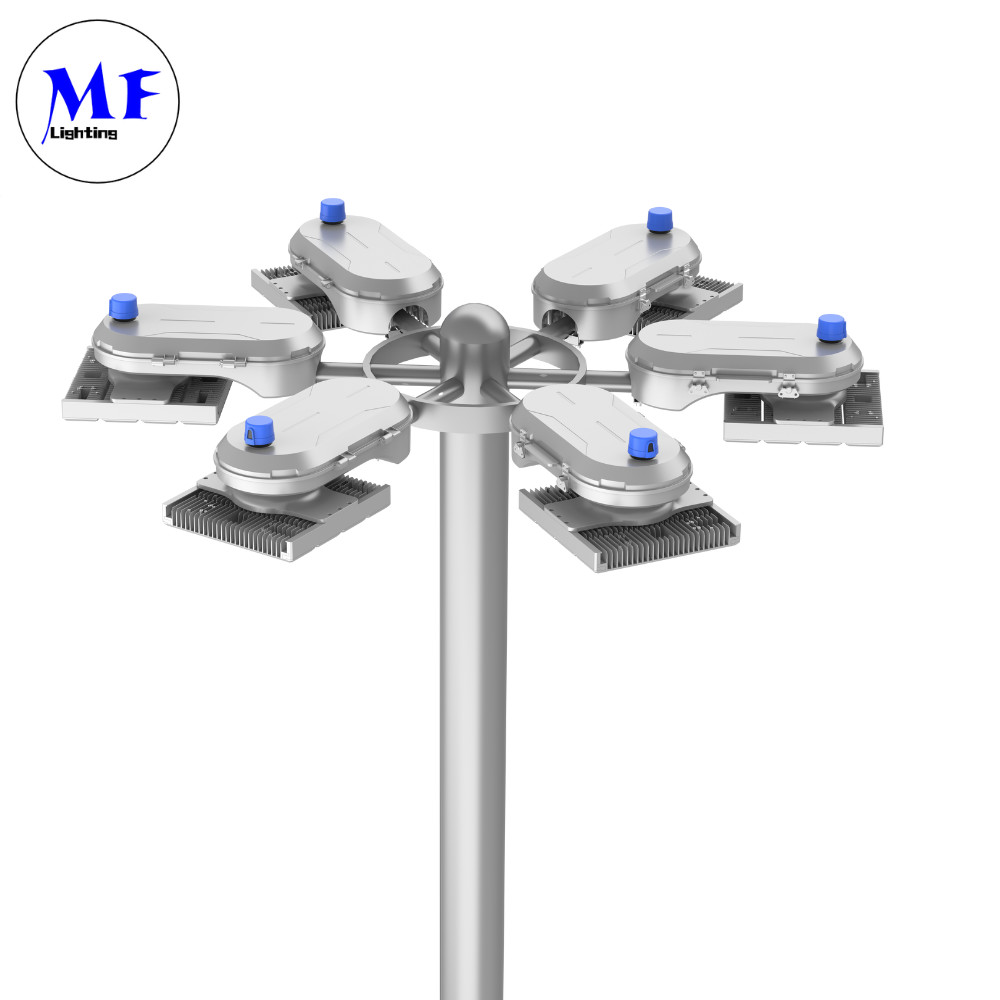

IP66 Waterproof LED Flood High Mast Light For Sport Court/Parking Lots 70FT 80FT 90F

Product Description

LED Flood Light High Mast Light IP66 Waterproof for Sport Court/Stadium/Parking Lots 70FT 80FT 90F

Key feature:

1. Die Casted Housing , Thermal Conductivity 96W/(m*k)@25℃

2. Copper Breather Valve , Balance Internal and External Humidity and Pressure

3. Double SPD , Integrated 4-10KV Surge Protection and External 10KV Lighting Protector

4. Die Casted U Bracket , Highest Corrosion Resistance with Anti-Wind Level 17 5. Anti-UV Lens, 94% Transmittance with Customized Logo

Specifications:

Feature Details:

Accessories:

Dimensions:

Light Distribution Curve:

Installation Instructions:

To install a high mast light, the following steps and precautions should be taken:

1.Choose the right installation location: The high mast light should be installed above the area that needs illumination, taking into account factors such as the light projection range and surrounding environment. Also, the foundation conditions and nearby structures should be considered for potential impact.

2.Prepare equipment and tools: Confirm the type and quantity of high mast lights needed and prepare the necessary tools and equipment, such as cranes, welding machines, bolts, and angle irons.

3.Install the foundation: Select a suitable reinforced concrete foundation based on the size and weight of the high mast light and install an iron plate "socket" on the foundation for later installation of the high mast light.

4.Install the high mast light: Connect the base of the high mast light to the socket and secure it with bolts. Then, use a crane to lift the high mast light onto the socket and secure it with bolts.

5.Connect the power supply: Connect the cable of the high mast light to the power line and ensure the wiring is correct, secure, and well-insulated.

6.Test and adjust: After installation, test and adjust the high mast light to ensure it operates normally and has even light distribution.

Becareful!
1. Please use the product in accordance to this instruction
2. Please do not replace components or modify lamps without authorization

Attention
1. For your safety, please cut off the supply before install the product
2. For the well function, please choose the voltage within the range specified on the product.
3. To avoid damage to the eyes, do not stare at a LED Light source long time.
4. Please follow the correct installation steps to install this product, for your safety, please cut off the electricity before installation.

Applications:

Roads and highways, Parking lots, Sports stadiums, Railroad yards, Shipyards, Warehouses, Truck stops and rest areas, Outdoor parks and recreation areas, Playgrounds, Storage facilities.
