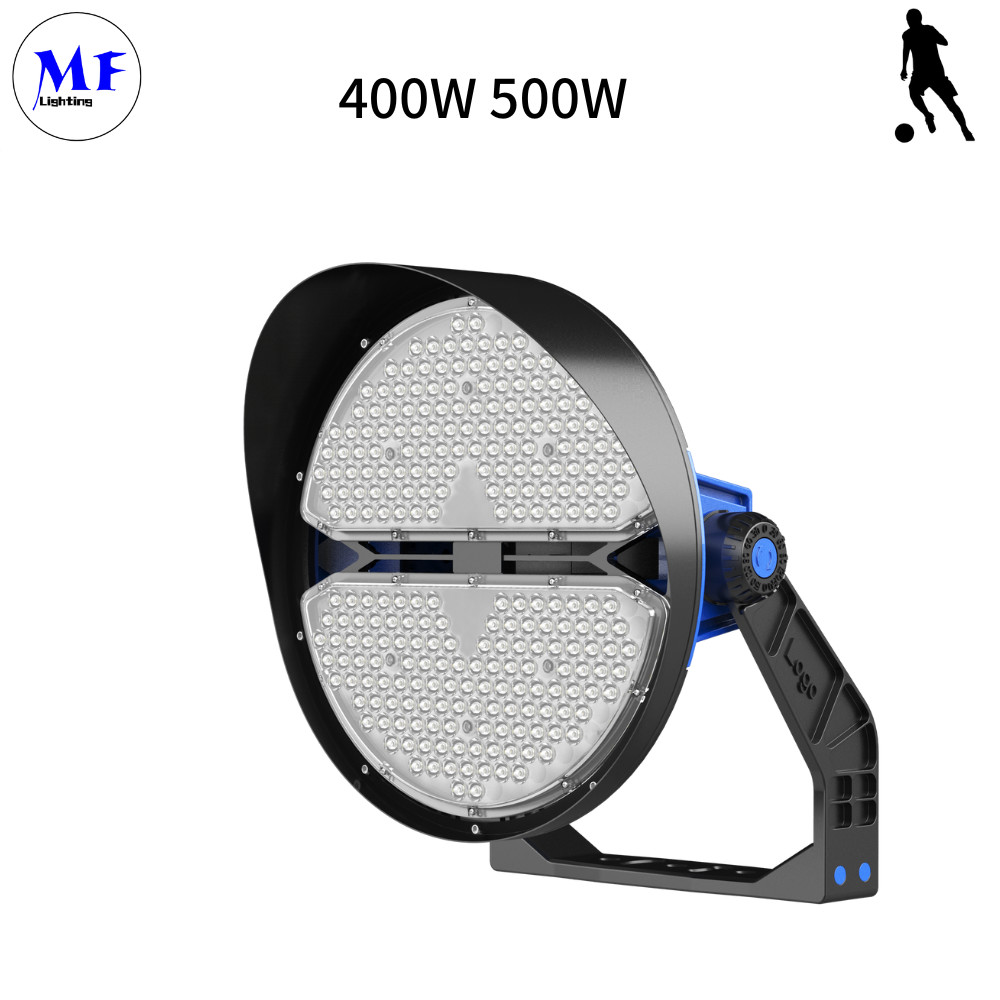

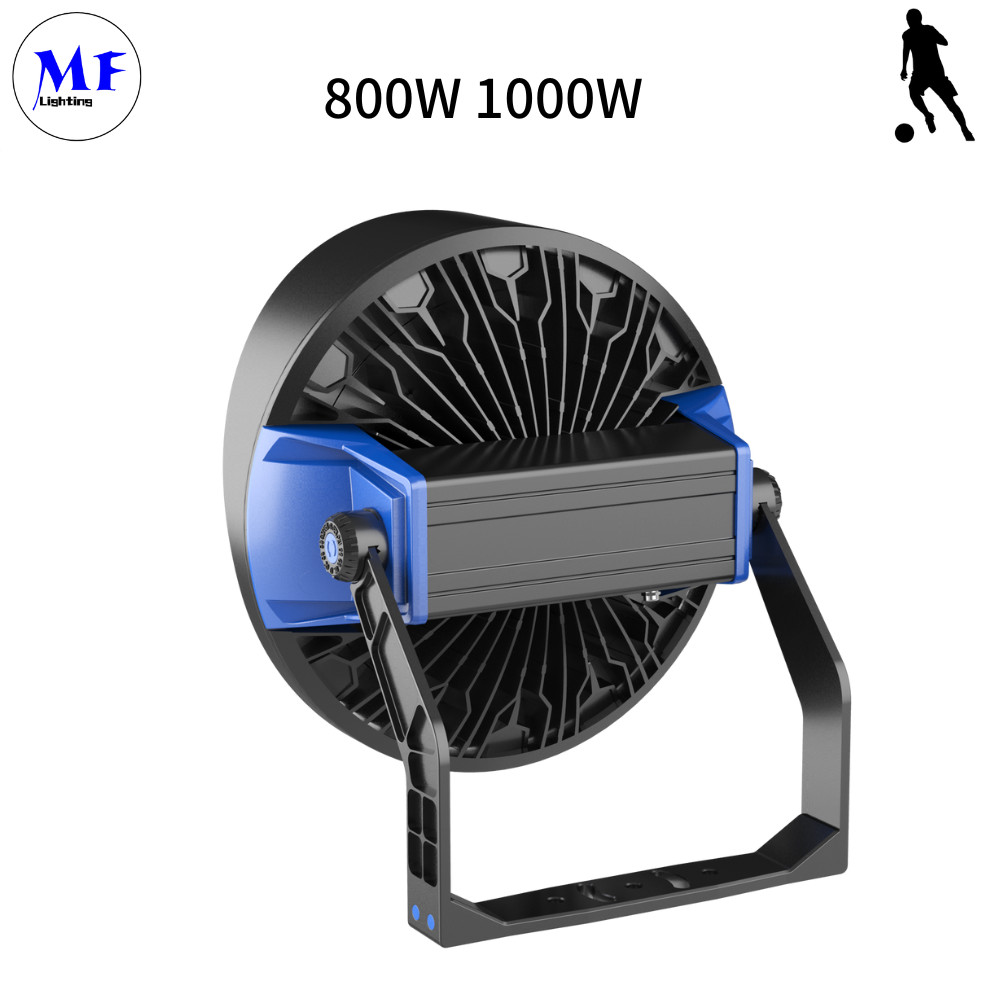

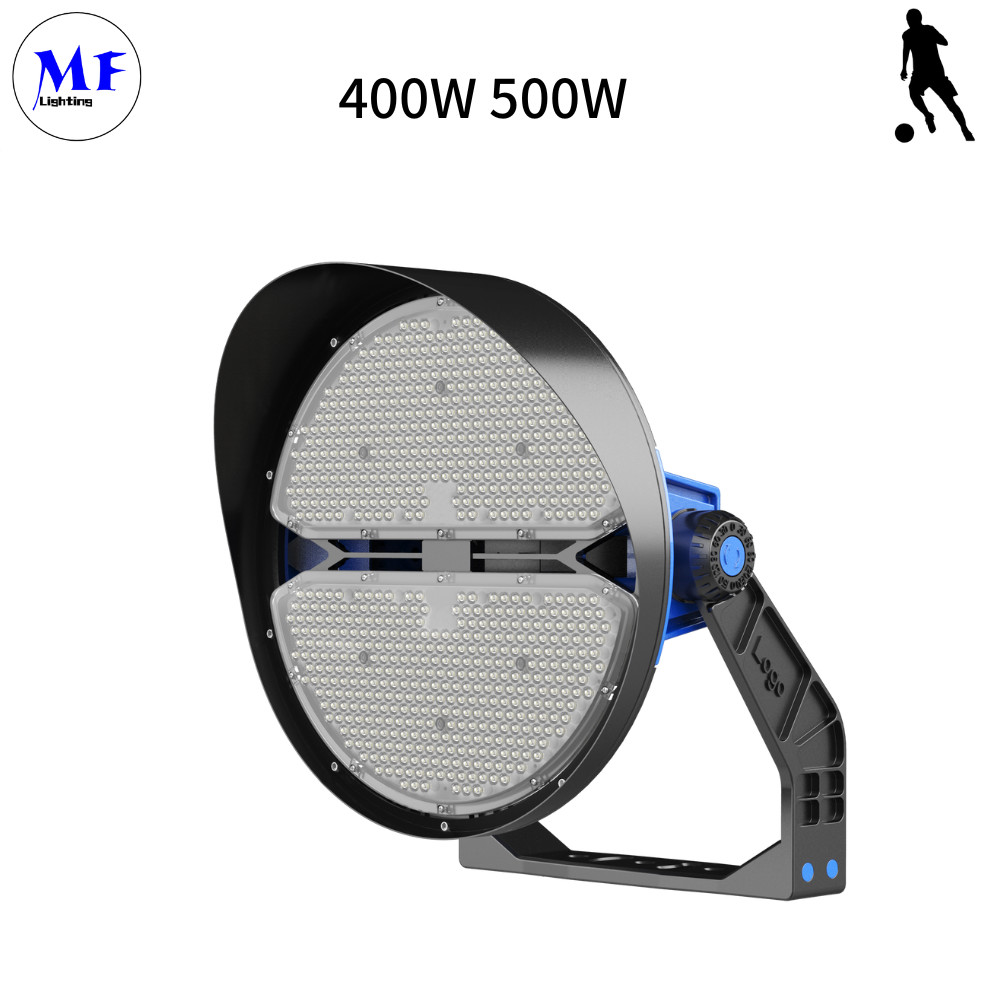

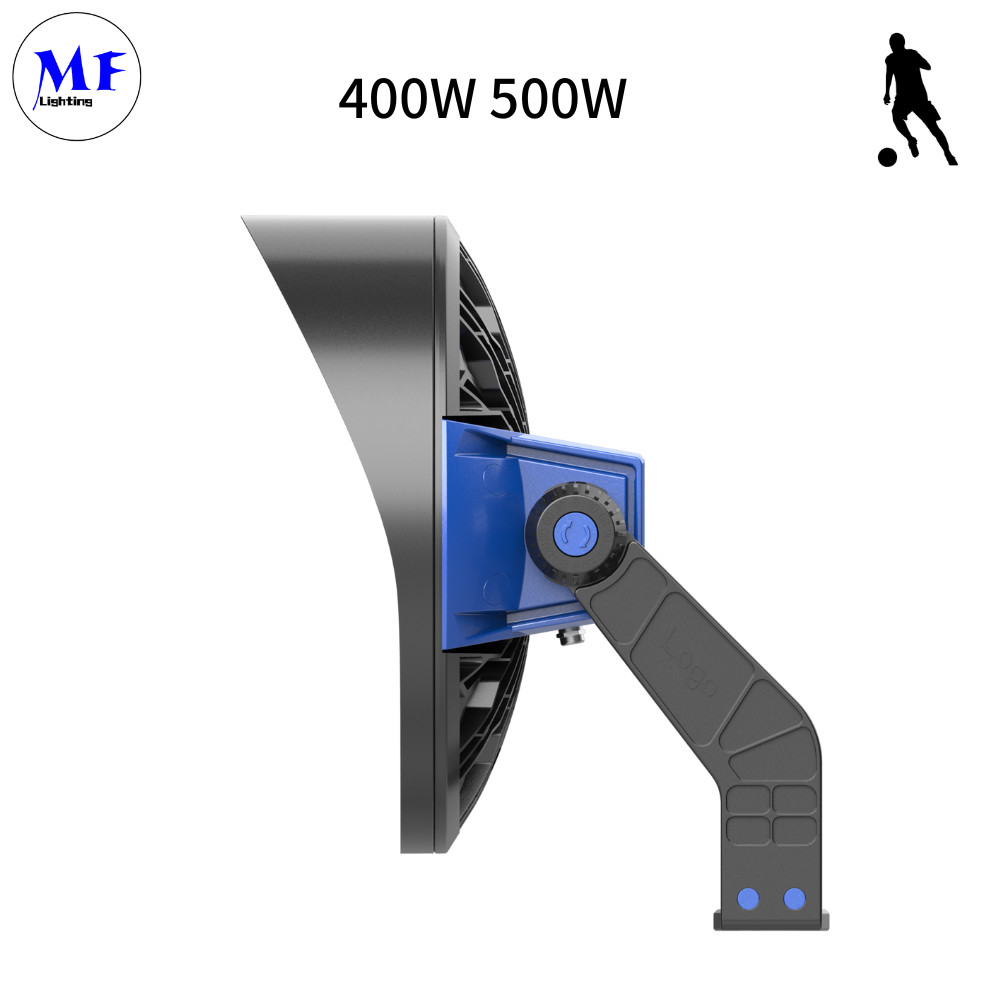

400W 500W 800W 1000W High Power High Mast Flood Light IP66 400W For Roads And Highways

Product Description


 High Power Flood High Mast Light IP66 400W Roads and Highways Parking Lots Sports Stadiums

Description: LED Sport light / LED stadium light / LED high mast light

• 150LM/W high level of lighting efficient with 3030SMD chips
• LED illumination ranging from 400W to 1000W
• The lamp with hexagon design that minimizes wind load
• Each model operate seperately, easy to maintenance
• Rugged die-cast aluminum adjustable bracket that can be horizontal or vertical mounted
• 0-180° adjustable bracket
• 10°/25°/45°/60°/90° beam angle PC lens, transmittance up to 92%

1. Long lifespan. High efficiency Tai Wan Mean Well Driver,
2. 170LM/W , High power. 3030 SMD led chip.
3. IP67 waterproof Rated, IK10, 4KV/10KV Surge protect
4. 10°/25°/45°/60°/90° Beam Angle PC lens Transmittance up to 92%
5. Good heat dissipation.Durable structure&stable performance
6. More Smart function: 0-10V Dimming, PMW signal, Timing optional, Light sensor


Polycarbonate Lens                               Racked Angle                                         Driver & Extra 10KV SPD


High mast floodlights are designed to illuminate large outdoor spaces such as parks, sports fields, airports and car parks. They are usually mounted on tall poles or structures to provide maximum coverage and visibility.

Some key features of high mast floodlights include:

1. High brightness: High pole flood lights are designed to provide high brightness to illuminate large areas. They typically have a lumen output of a few thousand to tens of thousands.

2. Wide beam angle: High mast flood lights usually have a wide beam angle to provide maximum coverage. They have a beam angle of up to 120 degrees.

3. Durability: High Mast Floodlights are durable enough to withstand harsh weather conditions and extreme temperatures. They usually have a high IP rating to keep out dust and water.

4. Energy Efficiency: High mast floodlights are usually based on LEDs and consume less energy than traditional lighting sources. This keeps your electricity bills down and reduces your carbon footprint.

5. Controllability: High mast flood lights are usually controllable, allowing the operator to adjust the brightness and direction of the light as needed. This allows for more efficient lighting and reduces energy waste.

To install a high mast light, the following steps and precautions should be taken:

1.Choose the right installation location: The high mast light should be installed above the area that needs illumination, taking into account factors such as the light projection range and surrounding environment. Also, the foundation conditions and nearby structures should be considered for potential impact.

2.Prepare equipment and tools: Confirm the type and quantity of high mast lights needed and prepare the necessary tools and equipment, such as cranes, welding machines, bolts, and angle irons.

3.Install the foundation: Select a suitable reinforced concrete foundation based on the size and weight of the high mast light and install an iron plate "socket" on the foundation for later installation of the high mast light.

4.Install the high mast light: Connect the base of the high mast light to the socket and secure it with bolts. Then, use a crane to lift the high mast light onto the socket and secure it with bolts.

5.Connect the power supply: Connect the cable of the high mast light to the power line and ensure the wiring is correct, secure, and well-insulated.

6.Test and adjust: After installation, test and adjust the high mast light to ensure it operates normally and has even light distribution.

Becareful!
1. Please use the product in accordance to this instruction
2. Please do not replace components or modify lamps without authorization

Attention
1. For your safety, please cut off the supply before install the product
2. For the well function, please choose the voltage within the range specified on the product.
3. To avoid damage to the eyes, do not stare at a LED Light source long time.
4. Please follow the correct installation steps to install this product, for your safety, please cut off the electricity before installation.
