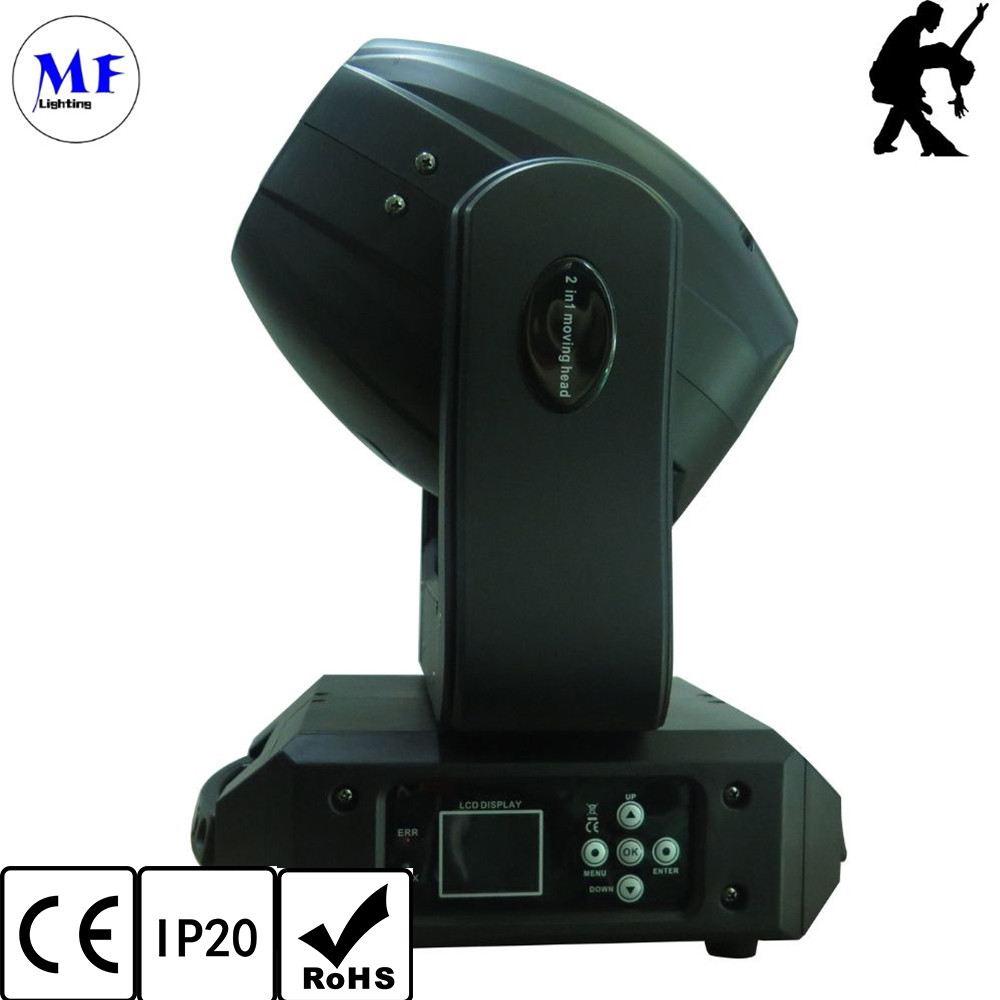

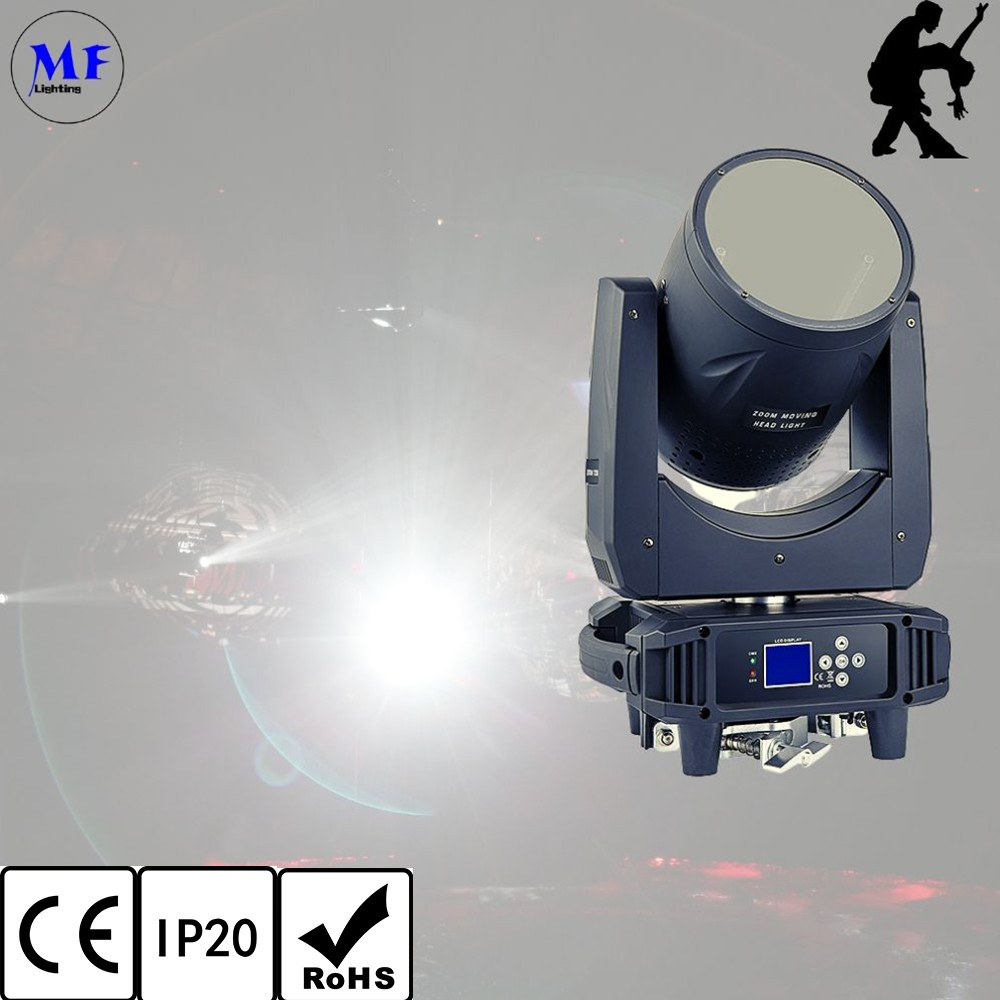

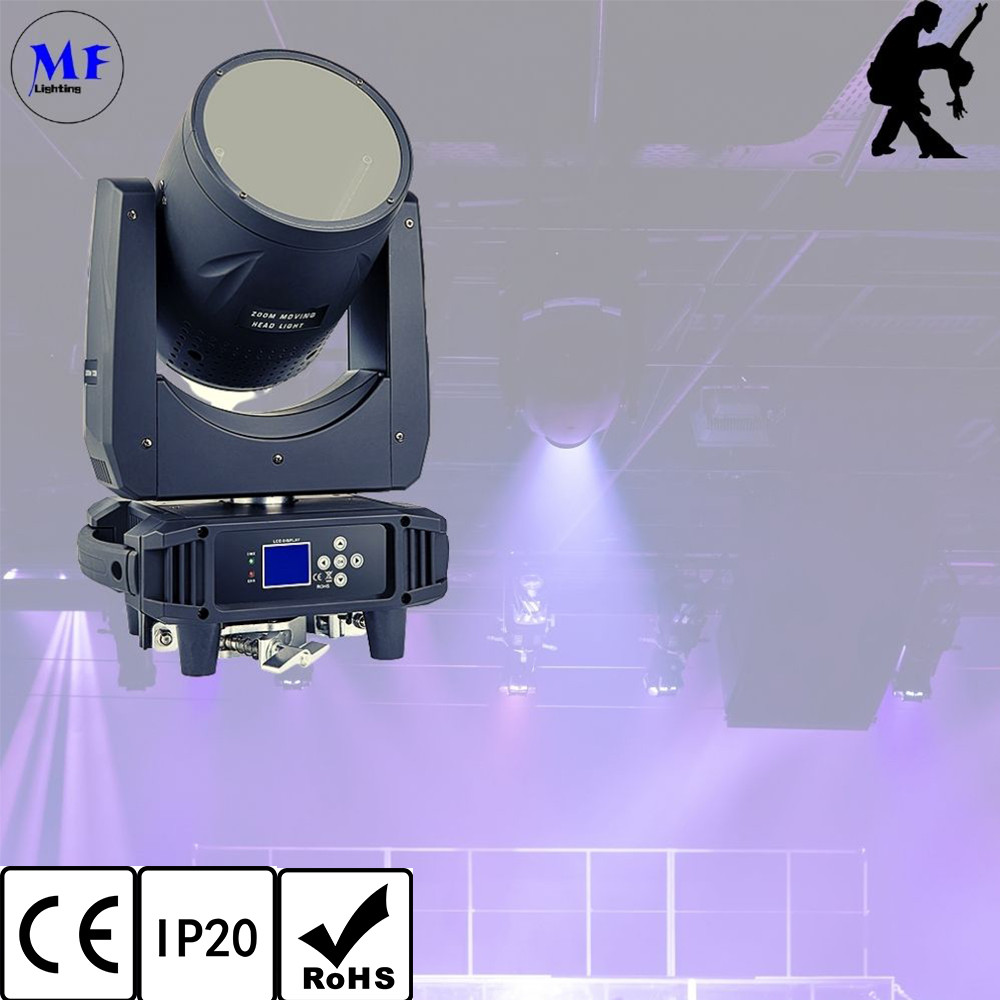

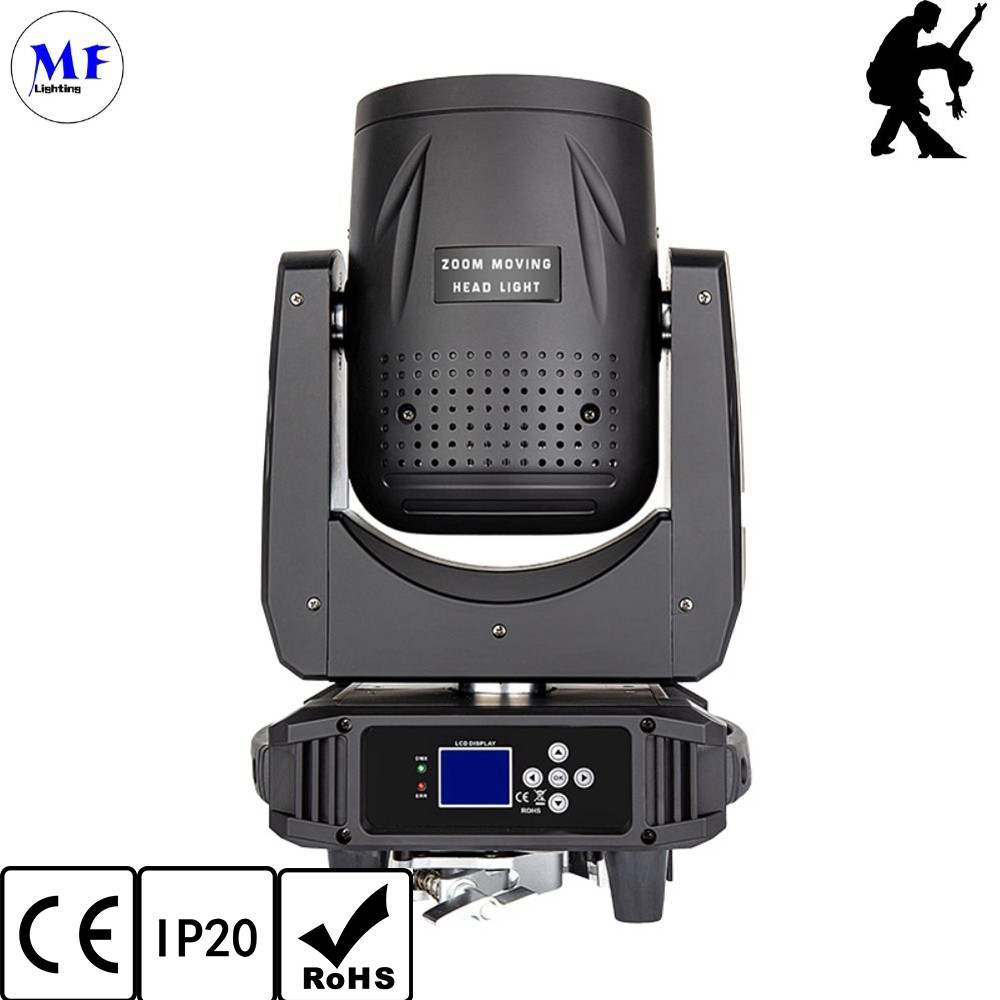

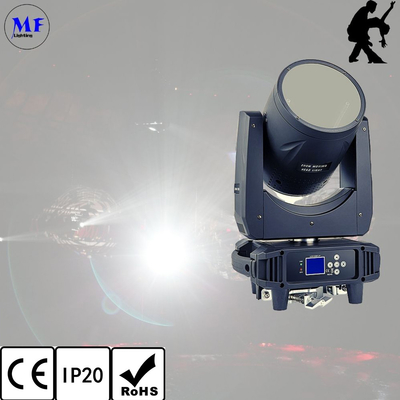

400W 9 Color Plates + White Light Channel 10 Waterproof 400W COB Pan LED Effect Laser Dancing Moving Head Lights

Product Description

Factory price CE RoHS 9 Color Plates + White Light Channel 10 Waterproof 400W COB Pan LED Effect Laser Dancing Moving Head Lights Beam Stage Light

Rated voltage :90-240V 50-60Hz
Rated power :400W
Led color temperature: 6800K (positive white)
Color Disk: 4Colour +1(white and white)

Color temperature dial color temperature
:2700K.3000K.4000K.6500K custom color support

Channel: channel 10
Focus Angle :8-55°
Effective range :50m
Magnification effective distance :5m100
Screen material :TFT LCD screen
Operation mode: press the button

Features: Built-in walk through program for sound
control DMX512 with RDM
weight :6.5kg

DMX-512 control connections

Connect the provided XLR cable to the female 3-pin XLR output of your controller and the other side to the male 3-pin XLR input of the moving
head.
You can chain multiple Moving heads be connected together through serial linking.
The cable needed should be two core, screened cable with XLR input and output connectors. Please refer to the diagram below.
DMX-512 connection with DMX terminator

Operation Instructions

-The moving head is for beam wash spot purpose.

-Don't turn on the fixture if it's been through severe temperature difference like after transportation because it might damage the light due to the environment changes. So make sure to operate the fixture until it is in normal temperature.

-This light should be keep away from strong shaking during any transportation or movement.

-Don't pull up the light by only the head, or it might cause damages to the mechanical parts.

-Don't expose the fixture in overheat, moisture or environment with too much dust when installing it. And don't lay any power cables on the floor. Or it might cause electronic shock to the people.

-Make sure the installation place is in good safety condition before installing the fixture.

If you use a controller with a 5 pin DMX output connector. You will need to use a 5pin to 3 pin as apter

Model No: DMX5M. Or DMX 5F
The chart below details a proper cable conversion:

Control panel

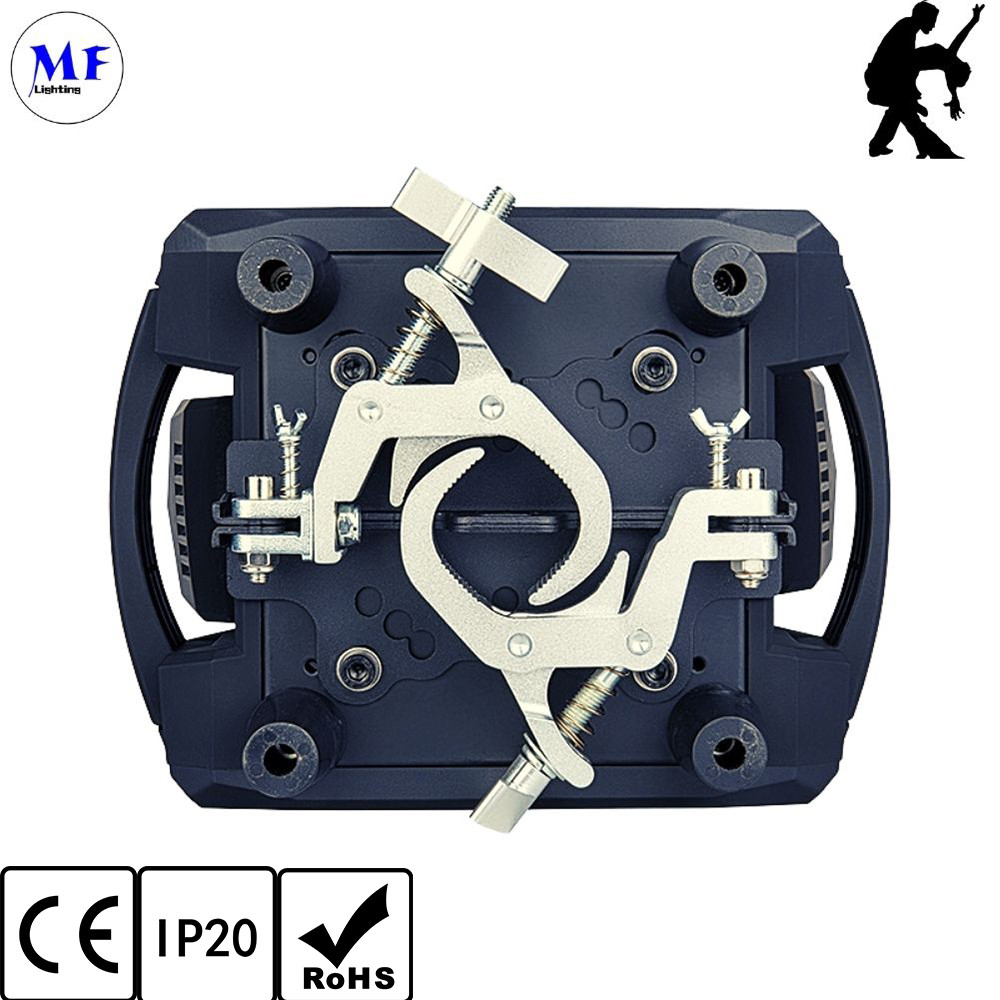

Light fixtures can be placed horizontally, slanted, and hung upside down.Be sure to pay attention to the installation method when hanging diagonally and upside down.
As shown in Figure 2, before positioning the lamp, it is necessary to ensure the stability of the installation site. When installing the reverse hanging, it is necessary to ensure that the lamp does not fall down on the support frame. It is necessary to use the safety rope through the support frame and the lamp handle for auxiliary hanging to ensure safety. Prevent the luminaire from falling and sliding.
When installing and debugging the lamps, it is forbidden for pedestrians to pass under them. Regularly check whether the safety rope is worn and whether the hook screws are loose.
Our company does not assume any responsibility for all consequences caused by the fall of the lamp due to the unstable installation of the hanging.

Schematic diagram of the lamp hanging upside down

Stage moving head lights are widely used in stage performances and performances. Here are some of their application scenarios:

Stage shows: Stage moving headlights are widely used for concerts, theatrical performances, dance performances and other stage shows. They can create a variety of lighting effects for the stage by moving, rotating and adjusting the Angle of the beam, enhancing visual impact and artistic expression.

Concerts and music festivals: In large concerts and music festivals, stage moving headlights are used to illuminate artists, bands and various parts of the stage. They can enhance the visual effects of musical performances by creating a variety of dynamics and atmospheres through color changes, beam effects and movement.

Theatre and stage plays: In theatre and stage plays, stage moving headlights are used to illuminate actors, stage sets and props. They can create different lighting scenes that highlight the emotion and drama of the performance through changes in light and projection effects.

Events and exhibitions: Stage mobile headlights are also widely used in various events and exhibitions, such as corporate events, product launches and art exhibitions. They can create memorable visuals for the scene, capture the audience's attention and enhance the atmosphere of the event.

Film and television production: In film and television production, stage moving headlights are used to illuminate sound stages, set scenes, and highlight actors. They can create lighting effects suitable for different scenes and plots through various lighting effects and dynamic changes.

Flexible, programmable and versatile, stage mobile head lamps can be precisely controlled and adjusted according to specific needs. They provide a rich variety of lighting effects for stage performances and performances, helping to create a memorable visual experience.



FAQ:

Q1: Are you a manufacturer?
MF: Yes, we are a manufacturer with our own factory. We have over 14 years of experience in research and development, as well as manufacturing, and we operate based on ISO quality management since 2009.

Q2: Can I order a sample of the LED Tri-proof Light?
MF: Yes, we welcome sample orders to test and check the quality of our products. Mixed samples are also acceptable.

Q3: What is the lead time for the LED Tri-proof Light?
MF: For sample orders, the lead time is 3-7 days, and for mass production orders, it is 15-25 days. The exact lead time depends on the order quantities.

Q4: How do you ship the finished products?
MF: We offer optional shipping methods such as by SEA, AIR, or Express (DHL, UPS, FedEx, TNT, etc.).

Q5: Can I print my logo on the LED Tri-proof Light?
MF: Yes, we provide OEM service to our customers. We can help to make the label and color box according to your requirements.

Q6: How do I proceed with an order for the LED Tri-proof Light?
MF: Firstly, please let us know your detailed requirements and application environment. Secondly, we will recommend some suitable products and solutions to you based on your request. Thirdly, after confirming all the details, customers will issue a purchase order and make the payment to confirm, and then we will start production and arrange shipment.

Q7: How do you handle defective products?
MF: All of our products are produced in strict quality control systems, and the defective rate is less than 0.2% according to our shipment records. We offer a 5-year warranty for this product. If there is any defect during the warranty period, please provide pictures or videos of the defective lights in working situations, and we will ship new lights to you within a few days or together with your next order.
