300W 33CH 62CH DMX512 Sharpy Light Party Wedding Light DJ Show Light LED Moving Head Light

Contact Now

300W 33CH 62CH DMX512 Sharpy Light Party Wedding Light DJ Show Light LED Moving Head Light

Name: 300W 33CH 62CH DMX512 Sharpy Light Party Wedding Light DJ Show Light LED Moving Head Light
Brand: MF
SKU: MF-DM300WWL
Rating: 4.5 (126 reviews)

Minimum Order Quantity :	100PCS	Price :	Negotiable
Delivery Time :	Depends on orders	Payment Terms :	T/T, Western Union, L/C, Paypal
Supply Ability :	5,000pcs/Month

Place of Origin:	China	Brand Name:	MF
Certification:	CE, RoHS	Model Number:	MF-DM300WWL

Detail Information
Input Voltage:	AC95V-245V,50/60Hz	Power:	300W
Strobe:	Adjustable Speed Strobe	Pattern Color:	Red
IP:	IP20	Light Source:	LED
Material:	Aluminum	Control Channel:	33CH/61CH
Control Mode:	DMX Signal Control	Modulation Signal:	Ttl
High Light:	DMX512 LED Stage lights , 300W Party Wedding Light , Adjustable Speed Strobe LED Downlight

Product Description

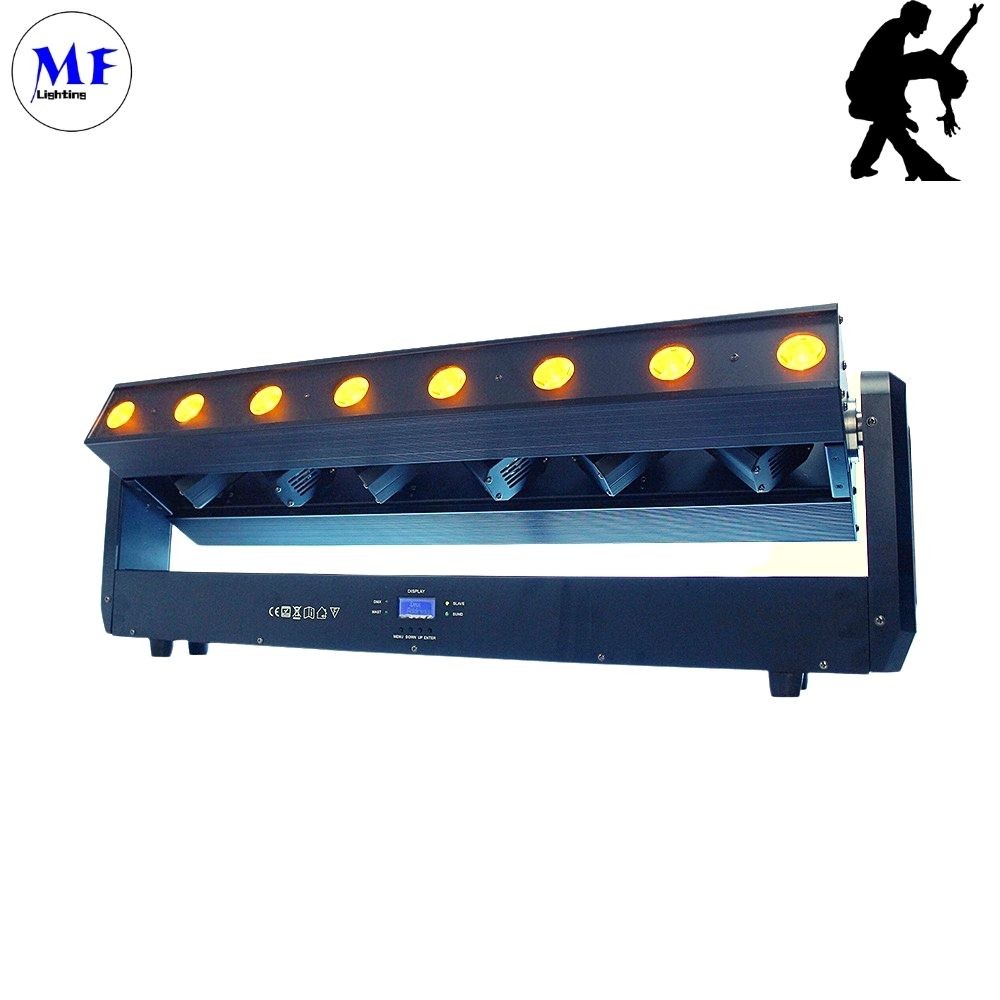

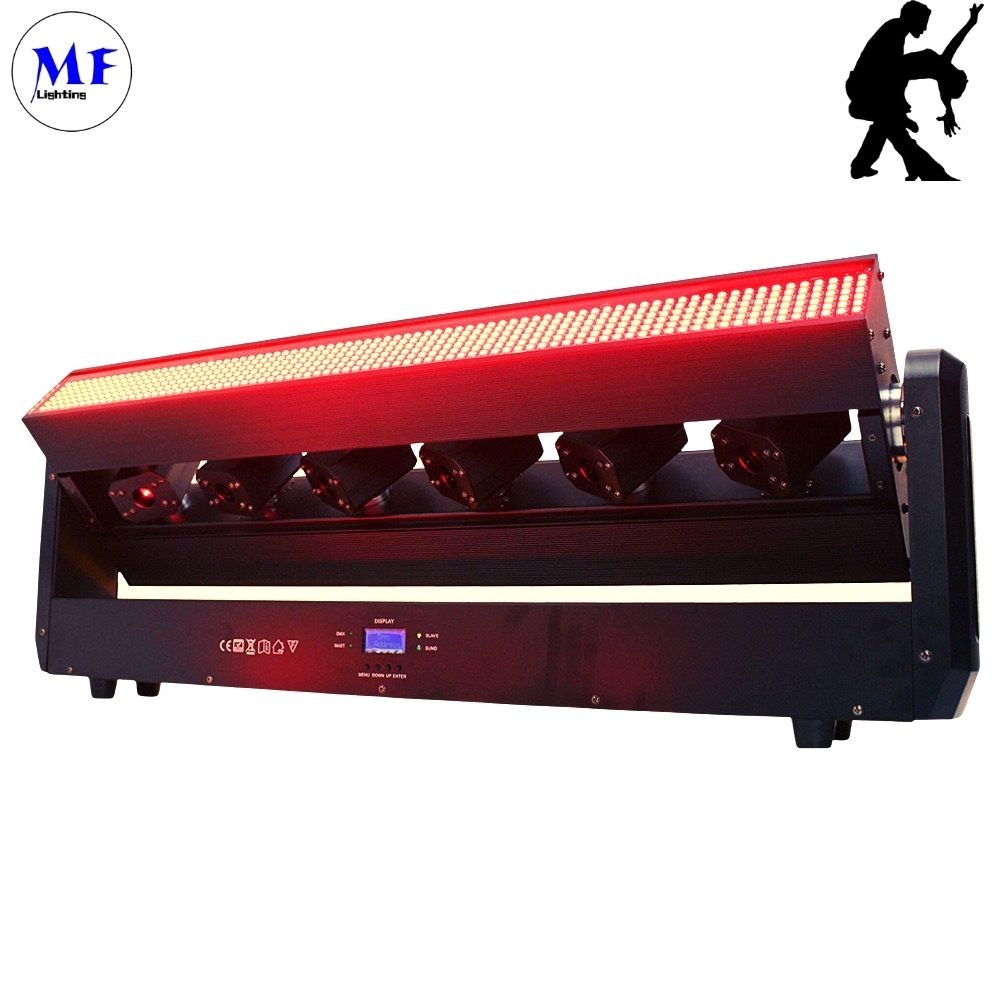

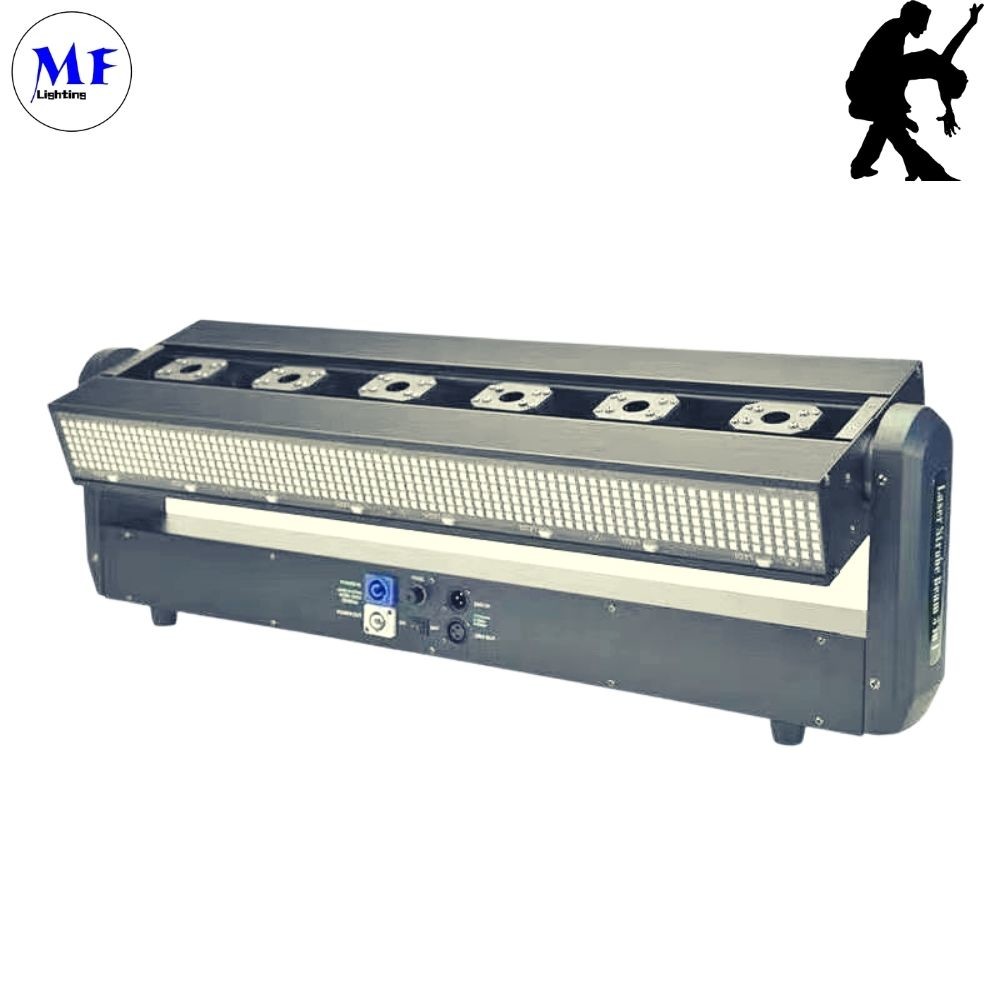

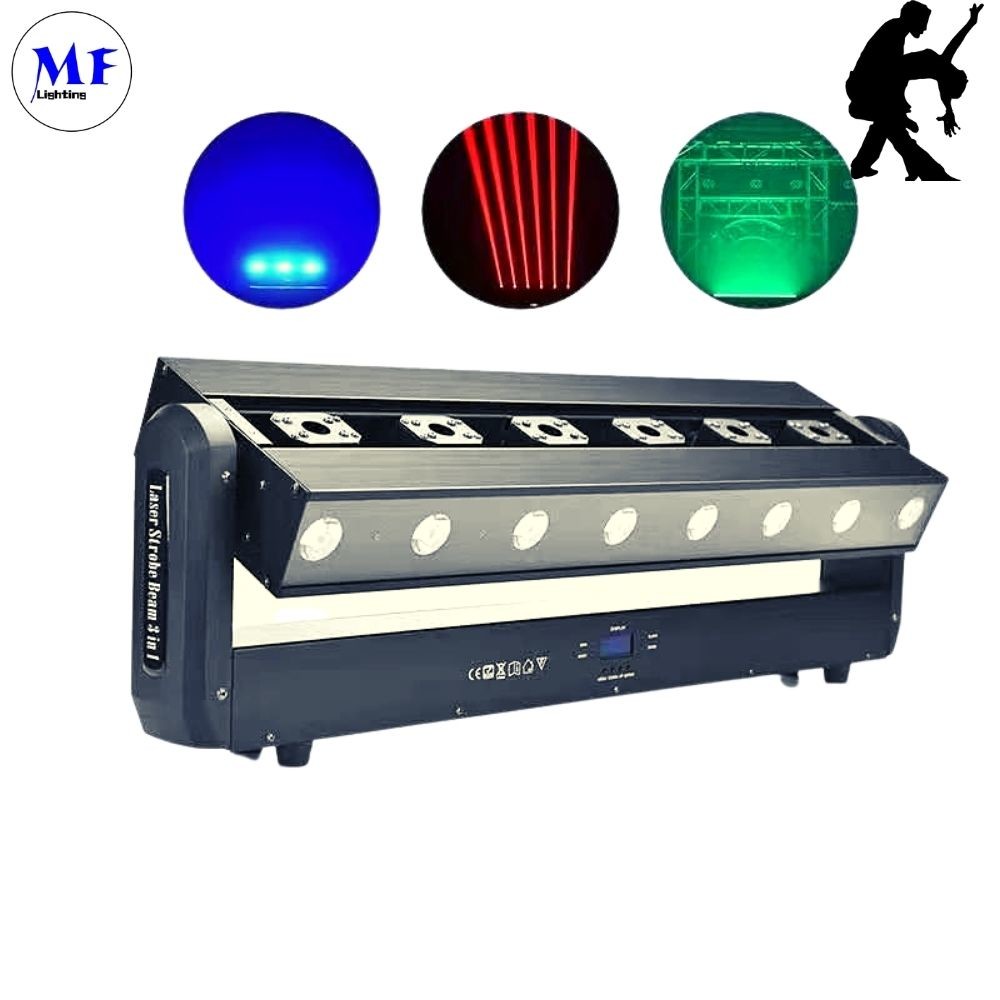

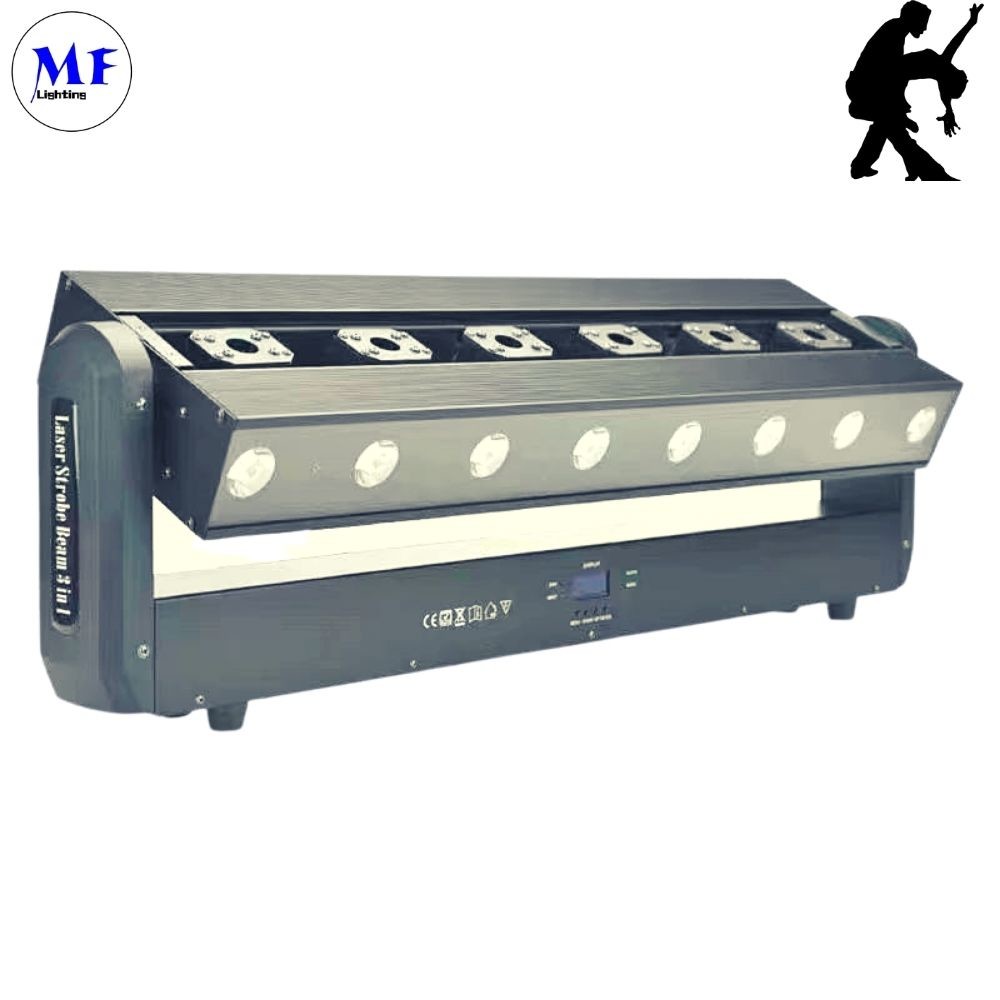

MF-DM300WWL 3 FACET MOVING HEAD LED STAGE LIGHT

Specifications:

MENU

DMX Address	1-512	Address code
Channel Set	33ch	33 channel
Channel Set	61ch	61 channel
Show Mode	Show1	Auto running effect1
Pan Inverse	OFF	Pan reverse closing
Pan Inverse	ON	Pan reverse opening
Tilt1 Inverse	OFF	Head1reverse closing
Tilt1 Inverse	ON	Head1reverse opening
Tilt2 Inverse	OFF	Head2reverse closing
Tilt2 Inverse	ON	Head2reverse opening
Tilt3 Inverse	OFF	Head3reverse closing
Tilt3 Inverse	ON	Head3reverse opening
Tilt4 Inverse	OFF	Head4reverse closing
Tilt4 Inverse	ON	Head4reverse opening
Tilt5 Inverse	OFF	Head5reverse closing
Tilt5 Inverse	ON	Head5reverse opening
Tilt6 Inverse	OFF	Head6reverse closing
Tilt6 Inverse	ON	Head6reverse opening
Fixture Reset	Reset	System reset

TECHNICAL SPECIFICATION

Voltage	AC95V-245V,50/60Hz
Power of Light Source	110W
Laser Color	Red
LED Resource	36 PCS 3W of 3535
Modulation Signal	TTL
Control Mode	DMX512/auto running /Sound control/master-slave
IP	20

Common Fault:

According to some common faults, the corresponding solutions are put forward.Any unsolvable problems should be dealt with by professionals.Disconnect the light fixture before maintaining it.

1. Light bulb is not on

Check that the voltage that matches the light fixture is installed;

Check whether the lamp supply power connection or control switch is in bad contact;

Check if the power supply is insufficient;

Check that the DMX512 controller is sending instructions.

2. Luminaire does not start

Check that the power supply parameters are consistent with the lamp;

Check the poor contact caused by extrusion deformation, vibration and moisture of internal parts in the long distance transportation process or fall off.

Please check whether the internal wire integration connector of the lamp has fallen off or loosened.

Check whether the electronic components of the lamp (such as electronic transformer, PCB board, motor control board, etc.) are loose, short circuit and burned out.

Safety Instructions:

Please read these instructions, it includes important information about the installation, usage and maintenance of this product.

Please keep this user guide for future consultation. If you sell the unit to another user, be sure that they also receive this instruction booklet.

Always make sure that you are connecting to the proper voltage, and that the line voltage you are connecting to is not higher than that stated on the decal or rear panel of the fixture.

Before the first time to use it, Please check whether the damage in transit, if happen damages in transit, please do not use this lamp, and please asap contact distributors or manufacturers.

Please don't install the lamp in the ordinary combustible material on the surface.

Lamp should be installed in the well ventilated place, and the distance of the wall to keep it over 10 cm, at the same time, please check the fan hole was clear.

Do not use lamp direct project in flammable objects, lamp and the radiation of the distance between the objects please keep it over 12 m.

Do not use direct lamp project light source , to avoid damage the eyes. Before installation, please make sure your use power supply voltage and marked voltage

Note: before any install, maintain and clean lamp, please confirm cut off the power supply

Unpacking Instructions:

On receiving a fixture, carefully unpack the carton, check the contents to ensure that all parts are presented, and have been received in a good condition. Notify the shipper immediately and retain packing material for inspection if any parts appear damaged from shipping or the carton itself shows, sign of mishandling. Save the carton and all packing materials. In the event that a fixture must be returned to the factory, it is important that the fixture should be returned in original factory box and packing.

Applications:

Moving head lights are versatile lighting fixtures used in stage productions, concerts, nightclubs, and other entertainment events. They consist of motorized heads that can move horizontally and vertically to direct light beams. They are used to illuminate performers, create dynamic lighting effects, and enhance visual displays.

300W 33CH 62CH DMX512 Sharpy Light Party Wedding Light DJ Show Light LED Moving Head Light 0

Packing:

Product Name	Quantity
Moving Head Light	1 PCS
Power-line	1 BASE
User Manual	1 PCS

FAQ:

Q1: What do you sell?
A1: We provide good quality of floodlight, high bay light, explosion proof light, tri-proof light, downlight, and other lighting products, as well as responsible services and reliable after-sales warranty.

Q2: Is it OK to print my logo on led light product?
A2: Yes. We provide ODM and OEM services. Please inform us formally before our production and confirm the design firstly based on our sample.

Q3: How to deal with the faulty?
A3: During the guarantee period, we will send new lights with new order for small quantity. For defective batch products, we will repair them and resend them to you or we can discuss the solution including re-call according to real situation.

Q4: Can I have a sample order for led light?
A4: Yes, we welcome sample order to test and check quality. One sample or mixed samples are acceptable.

Q5: How long time to ship the goods if place an order?
A5: Usually 7 days for sample or small order,15 working days for bulk order, but sometimes depend on the order quantity.
