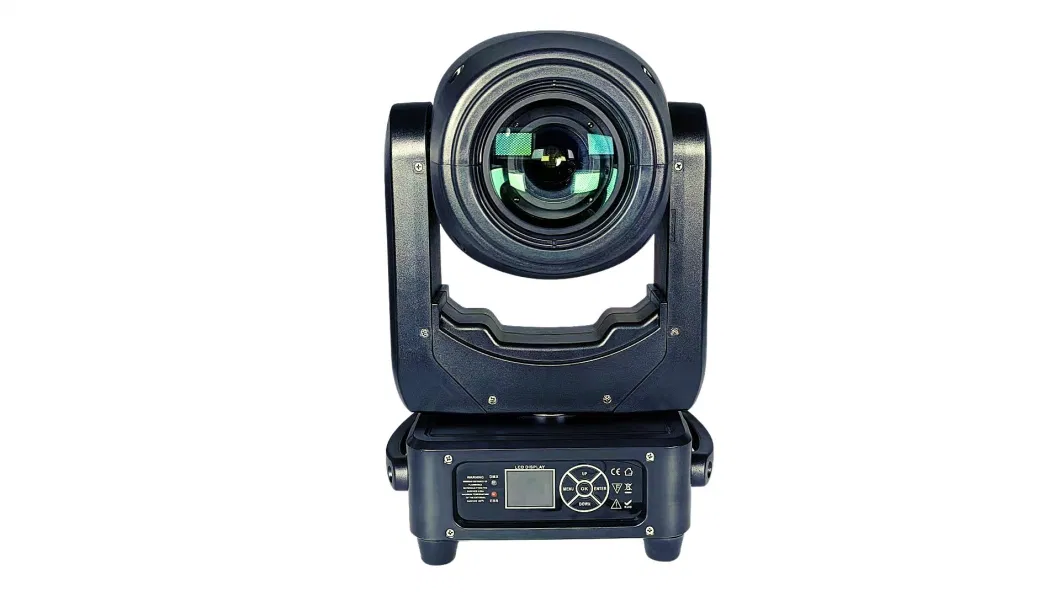

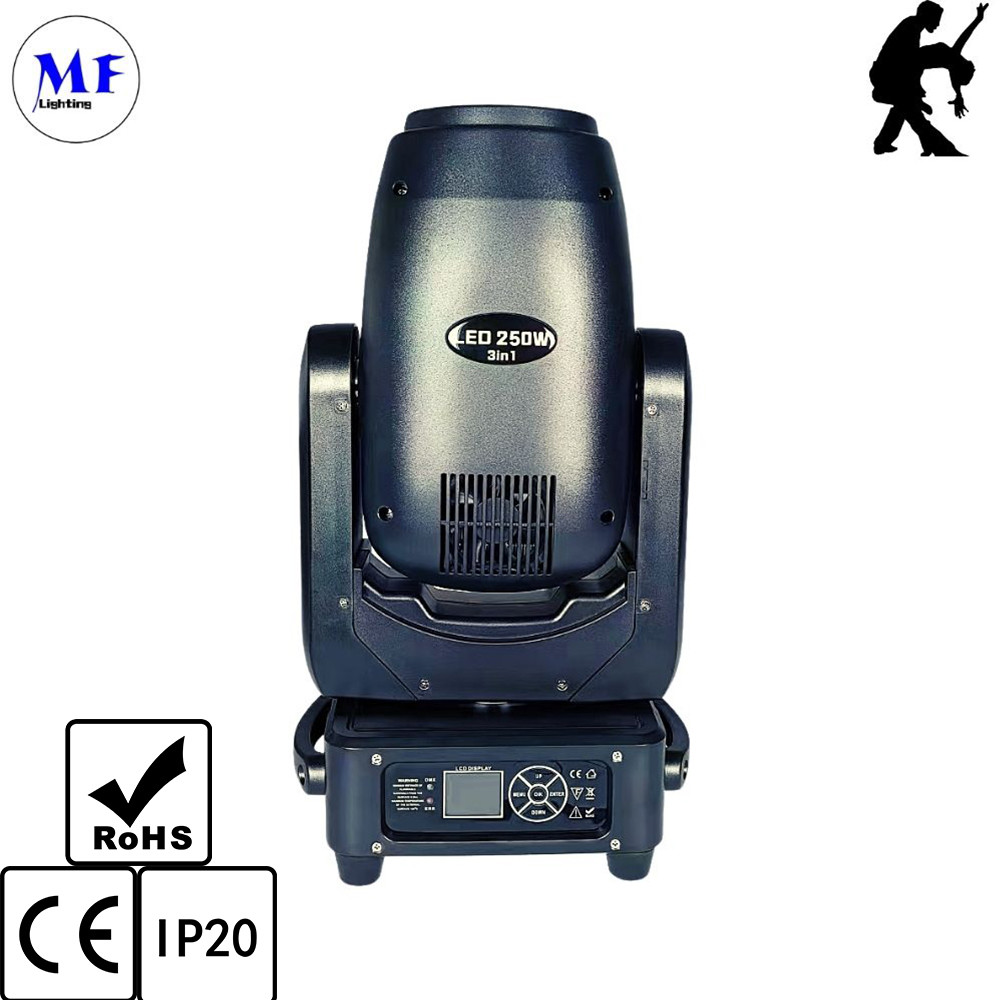

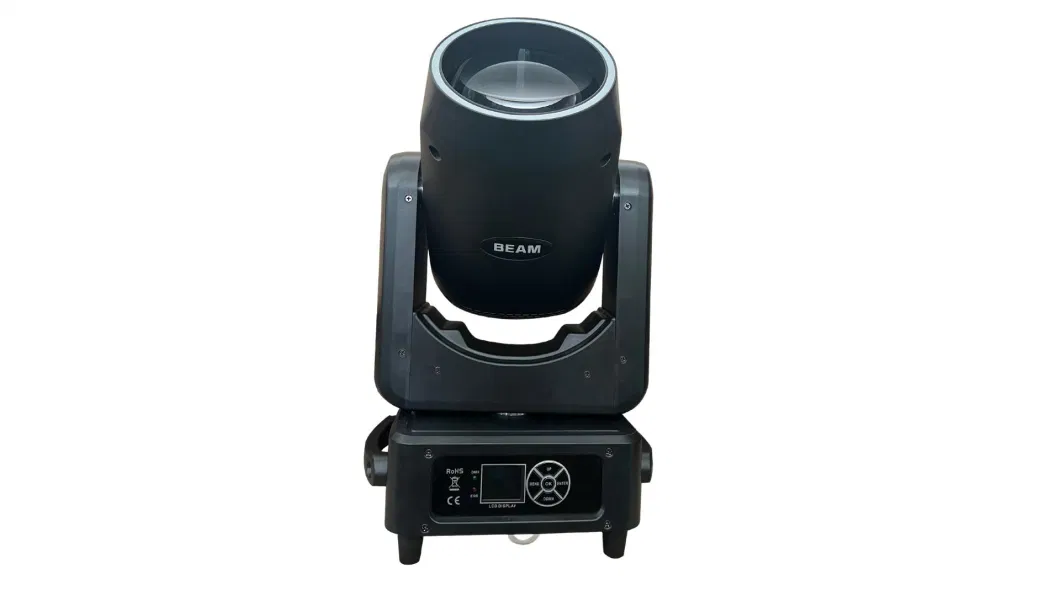

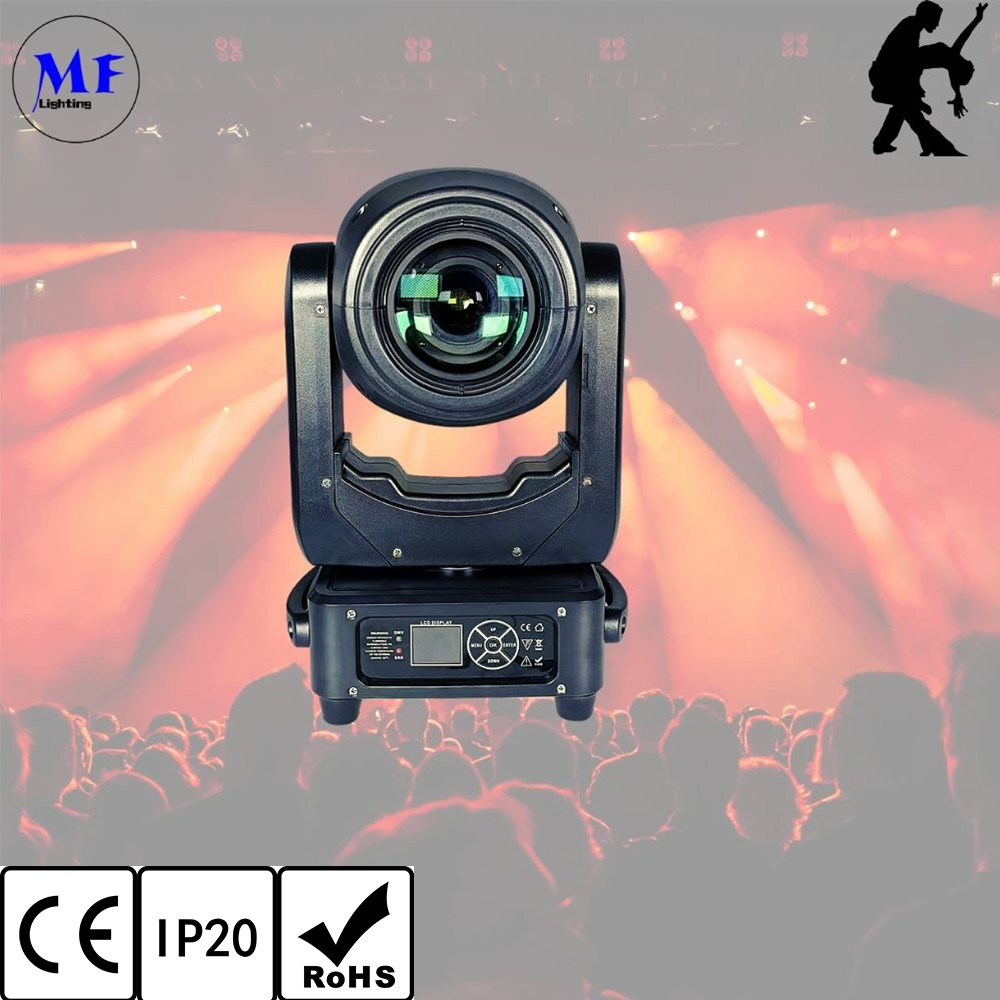

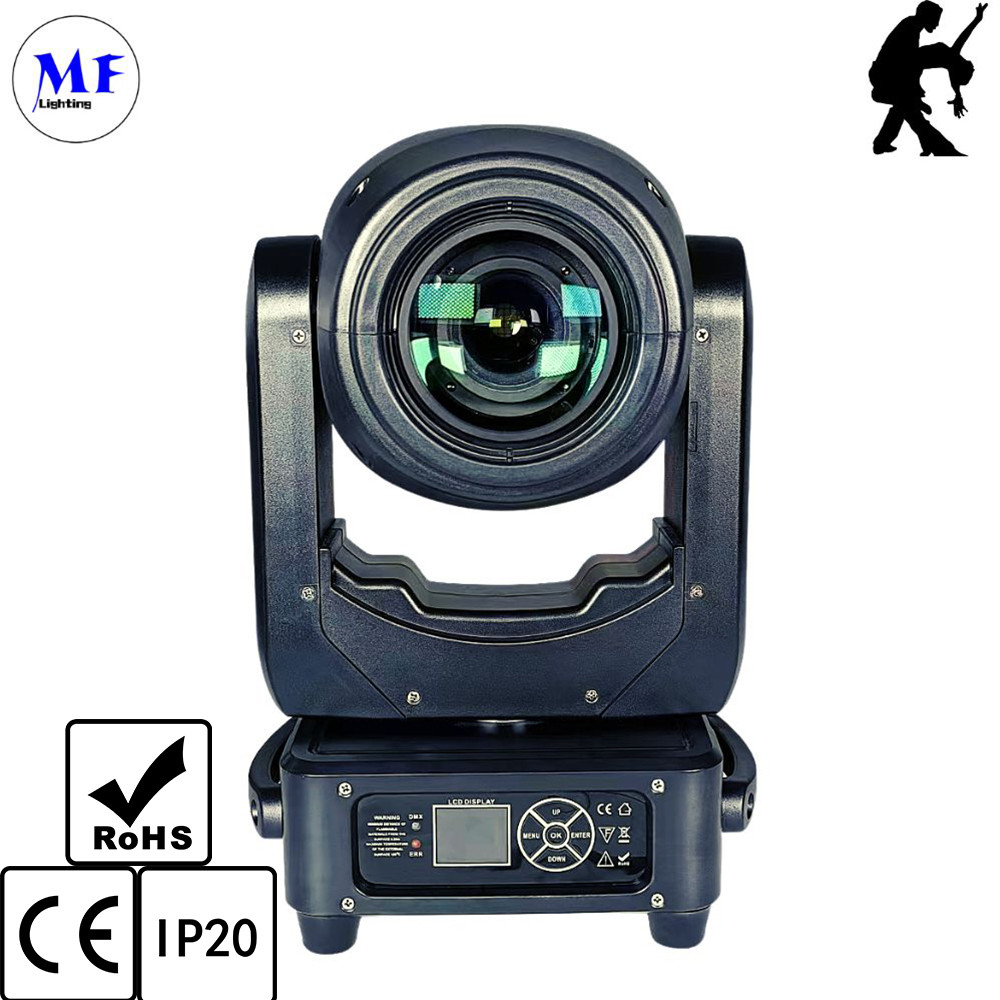

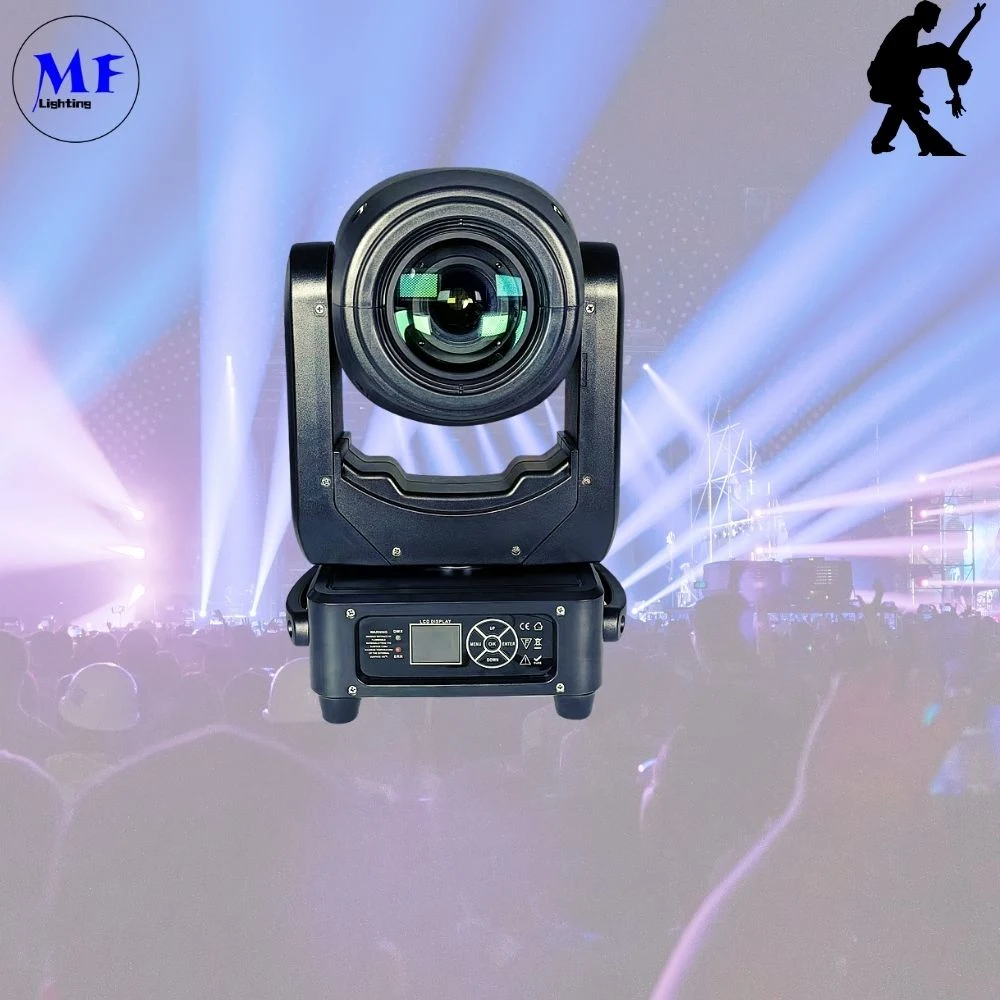

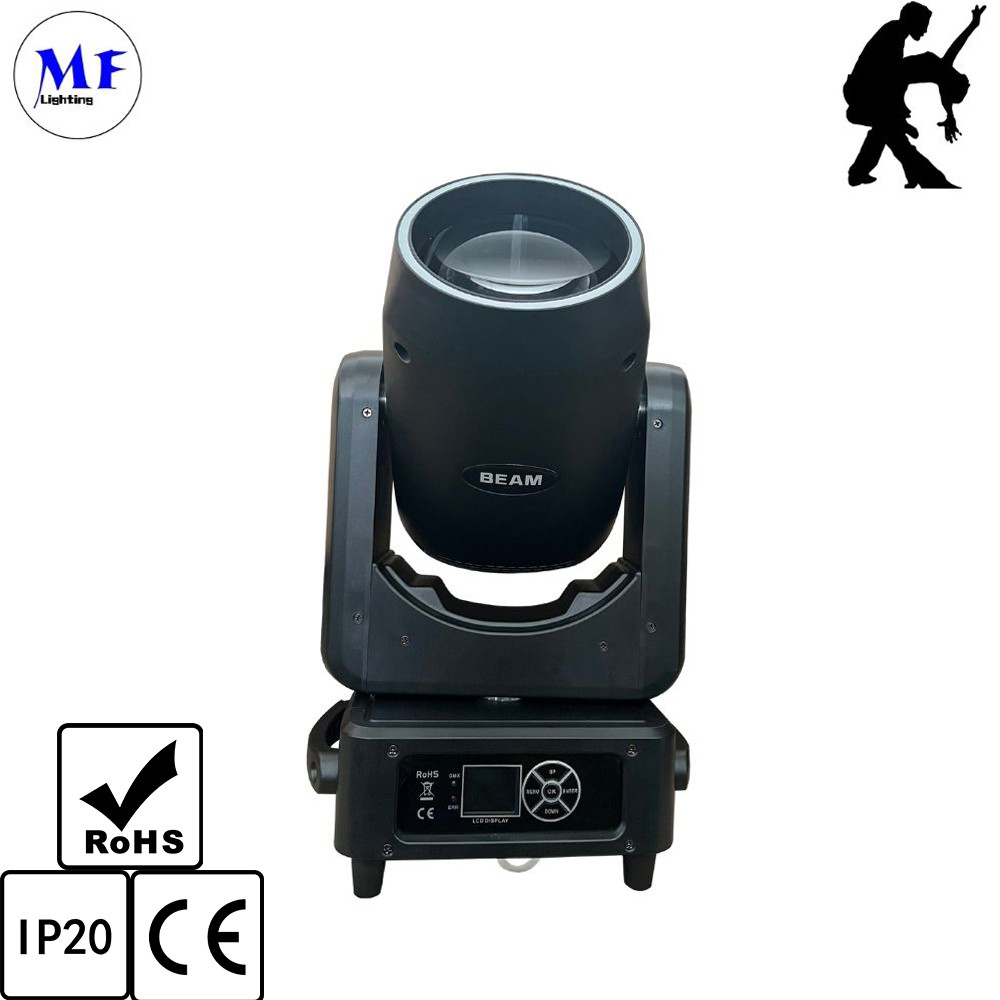

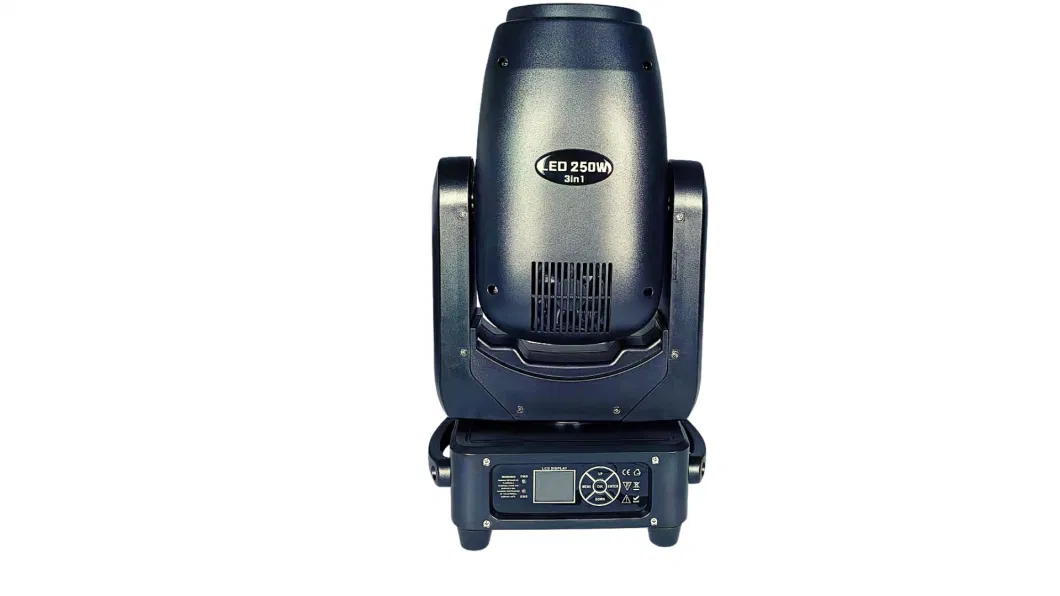

250W BSW LED Mini Wash LED Moving Head Stage Light With DMX Voice Sound Control For DJ Concert Live Music Festival Show

Product Description

250W 3-in-1 9 Color Plates + White Light DMX-512 540° Pan LED Effect Laser Dancing Moving Head Lights Beam Stage Light LED Mini Wash moving spot light

Light source power: 250W

Voltage: AC 200V~240V/50~60Hz;

Color disk: Each color disk consists of 9 color plates + white light;

Pattern plate: 9 gobos+white effects;

Glass pattern: 7 gobos+white effects;

540° translation, 270° tilt.

Overheat protection;

Control mode: DMX512/ master-slave/Automatic;

IP20 protection level

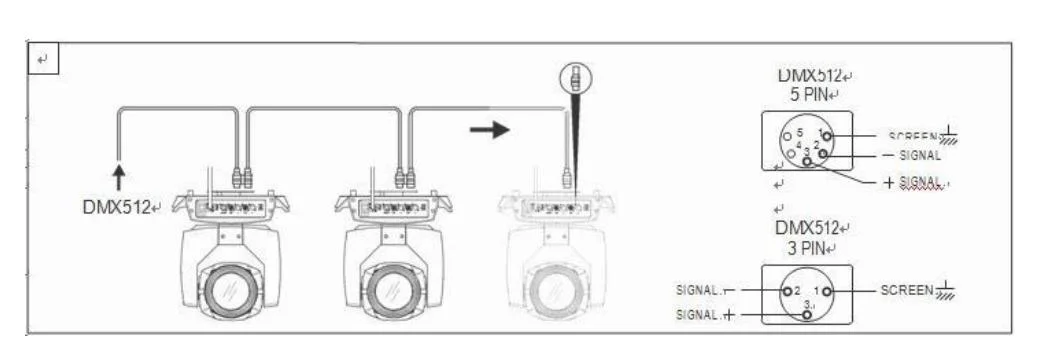

Signal cable connection

Light fixtures feature standard DMX input and output 3-core or 5-core XLR sockets.Use a
shielded twisted-pair signal cable designed for DMX 512;The signal line is generally
connected at 150 meters, and the DMX512 signal amplifier must be added for long distance signal transmission.

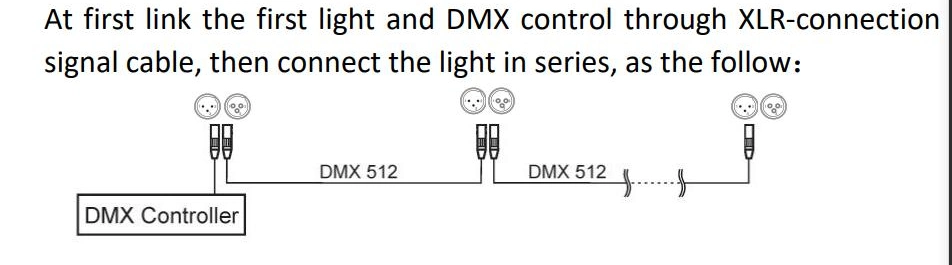

Connect a shielded twisted-pair signal line from the DMX outlet of the controller to the DMX input of the first device, and from the DMX outlet of the first device to the DMX input of the second device, and so on, until all lights have been connected. Then install a terminal plug on the last connected light outlet 3-core jack on each circuit.(Weld a 4/1W, 120Ω resistor between the 2 and 3 pins of the 3-core pin cannon plug).

If you use a controller with a 5 pin DMX output connector. You will need to use a 5pin to 3 pin as apter

Model No: DMX5M. Or DMX 5F

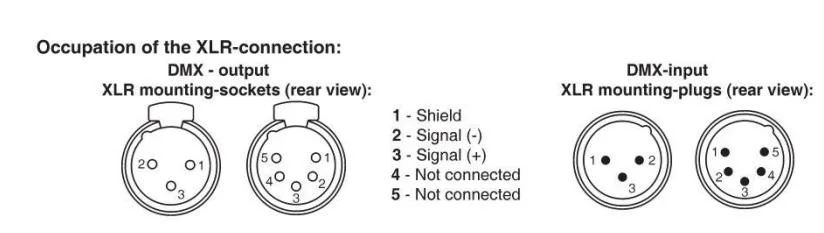

The chart below details a proper cable conversion:

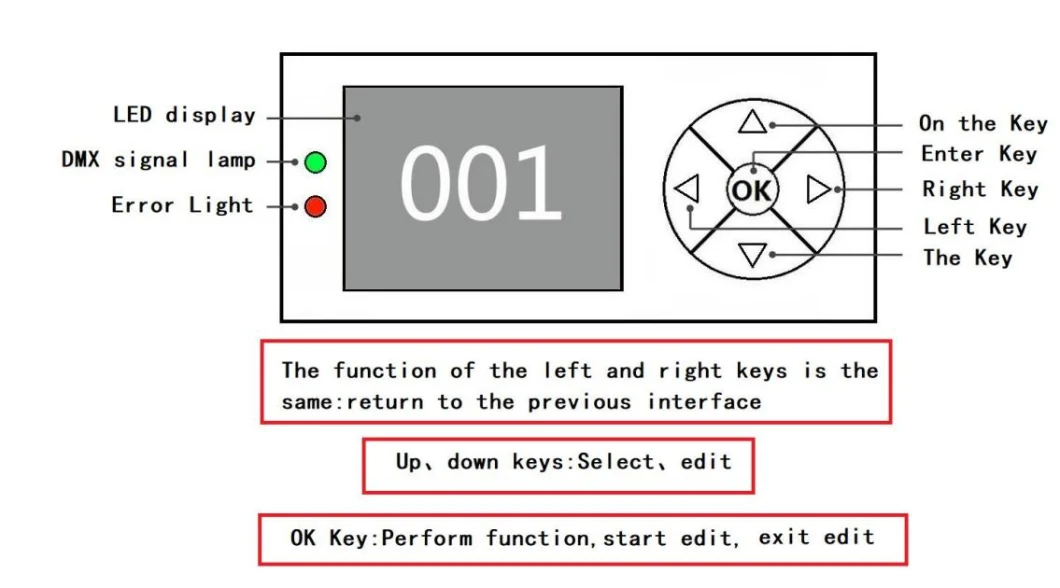

Control panel

Light fixtures can be placed horizontally, slanted, and hung upside down.Be sure to pay attention to the installation method when hanging diagonally and upside down.
As shown in Figure 2, before positioning the lamp, it is necessary to ensure the stability of the installation site. When installing the reverse hanging, it is necessary to ensure that the lamp does not fall down on the support frame. It is necessary to use the safety rope through the support frame and the lamp handle for auxiliary hanging to ensure safety. Prevent the luminaire from falling and sliding.
When installing and debugging the lamps, it is forbidden for pedestrians to pass under them. Regularly check whether the safety rope is worn and whether the hook screws are loose.
Our company does not assume any responsibility for all consequences caused by the fall of the lamp due to the unstable installation of the hanging.

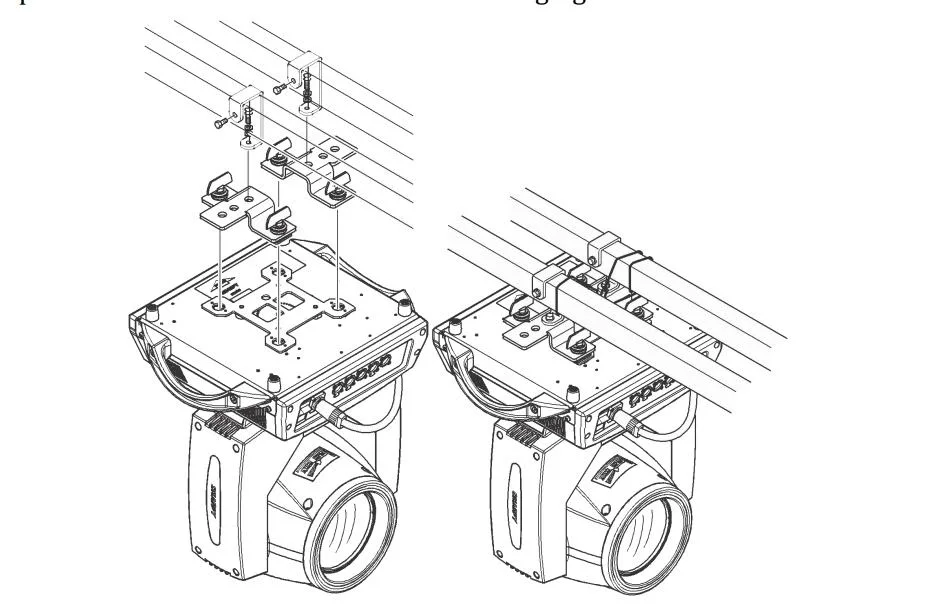

Schematic diagram of the lamp hanging upside down

Stage moving head lights are widely used in stage performances and performances. Here are some of their application scenarios:

Stage shows: Stage moving headlights are widely used for concerts, theatrical performances, dance performances and other stage shows. They can create a variety of lighting effects for the stage by moving, rotating and adjusting the Angle of the beam, enhancing visual impact and artistic expression.

Concerts and music festivals: In large concerts and music festivals, stage moving headlights are used to illuminate artists, bands and various parts of the stage. They can enhance the visual effects of musical performances by creating a variety of dynamics and atmospheres through color changes, beam effects and movement.

Theatre and stage plays: In theatre and stage plays, stage moving headlights are used to illuminate actors, stage sets and props. They can create different lighting scenes that highlight the emotion and drama of the performance through changes in light and projection effects.

Events and exhibitions: Stage mobile headlights are also widely used in various events and exhibitions, such as corporate events, product launches and art exhibitions. They can create memorable visuals for the scene, capture the audience's attention and enhance the atmosphere of the event.

Film and television production: In film and television production, stage moving headlights are used to illuminate sound stages, set scenes, and highlight actors. They can create lighting effects suitable for different scenes and plots through various lighting effects and dynamic changes.

Flexible, programmable and versatile, stage mobile head lamps can be precisely controlled and adjusted according to specific needs. They provide a rich variety of lighting effects for stage performances and performances, helping to create a memorable visual experience.
