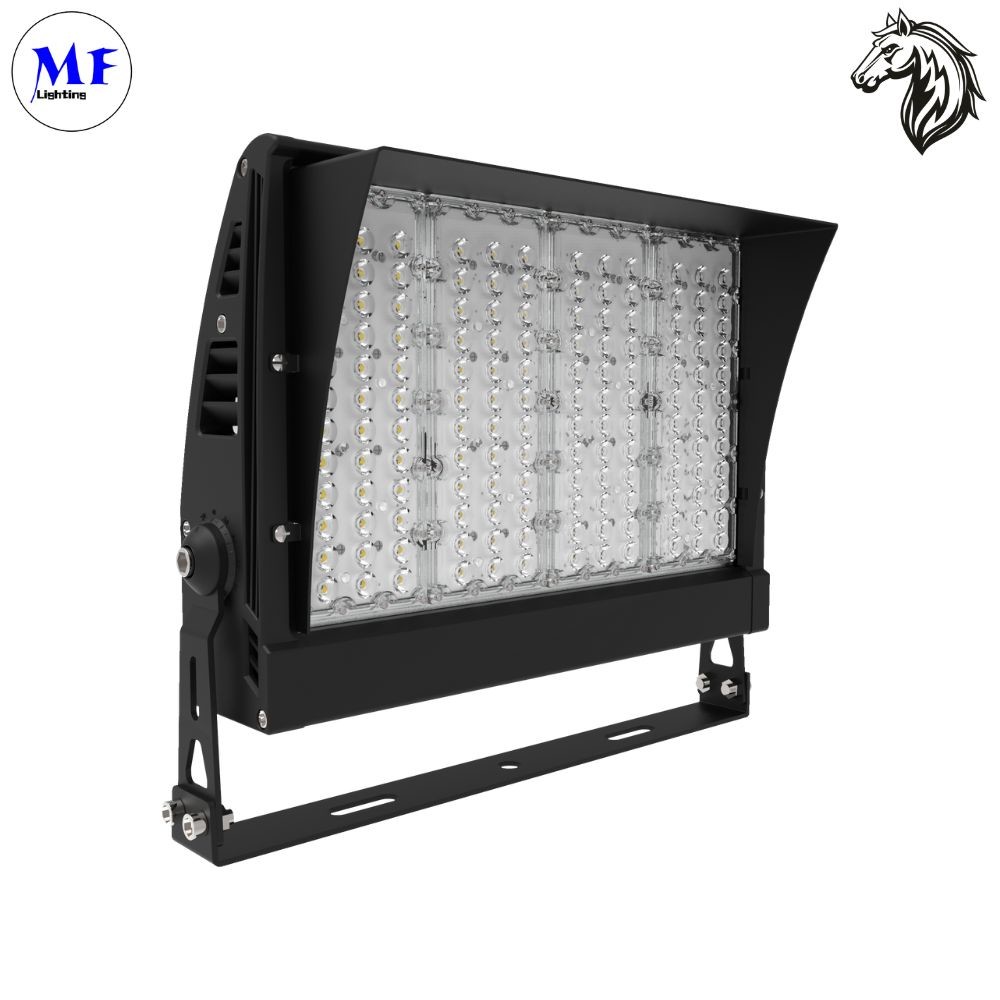

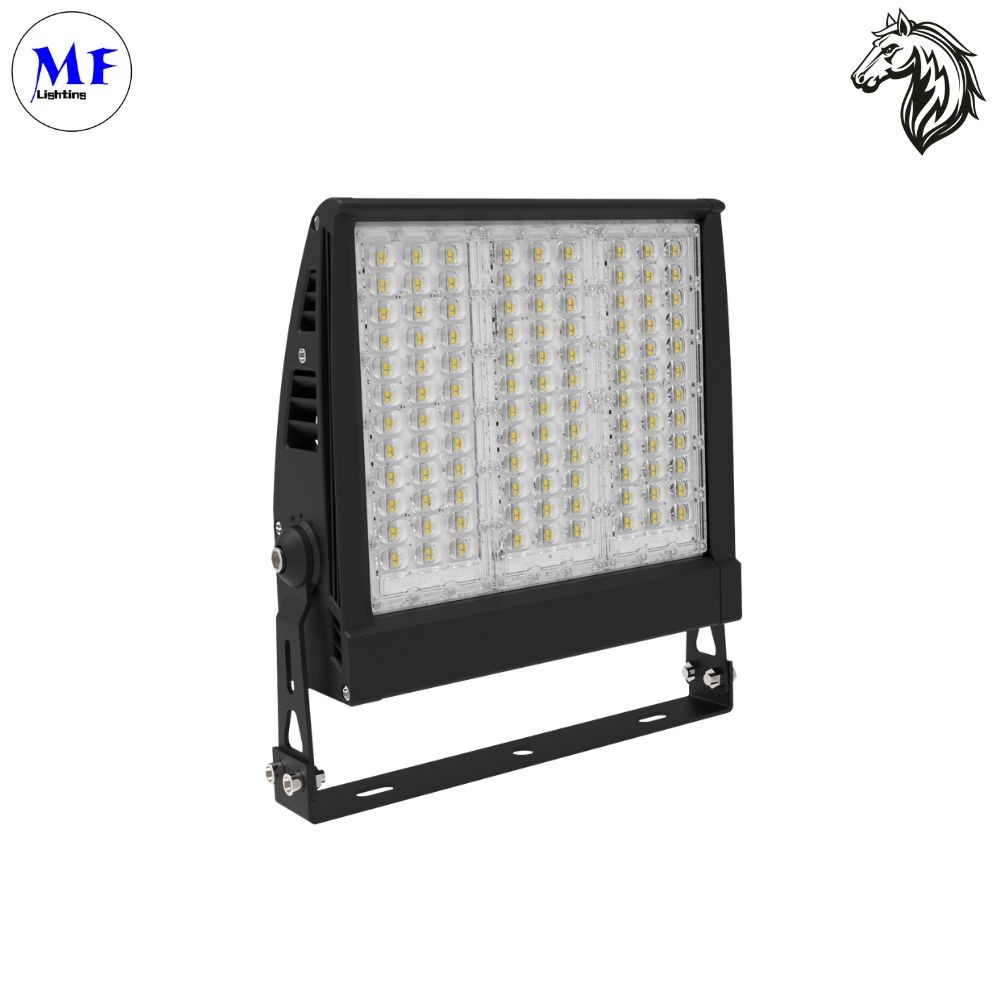

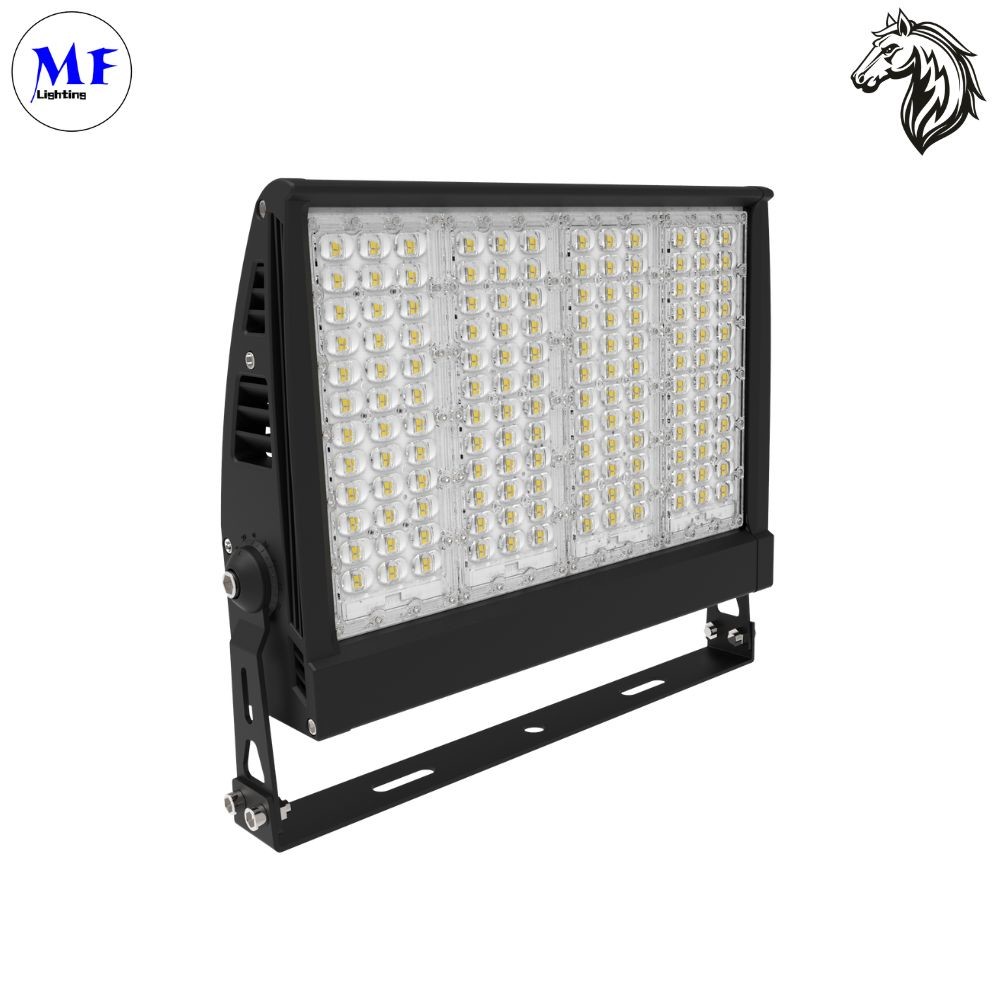

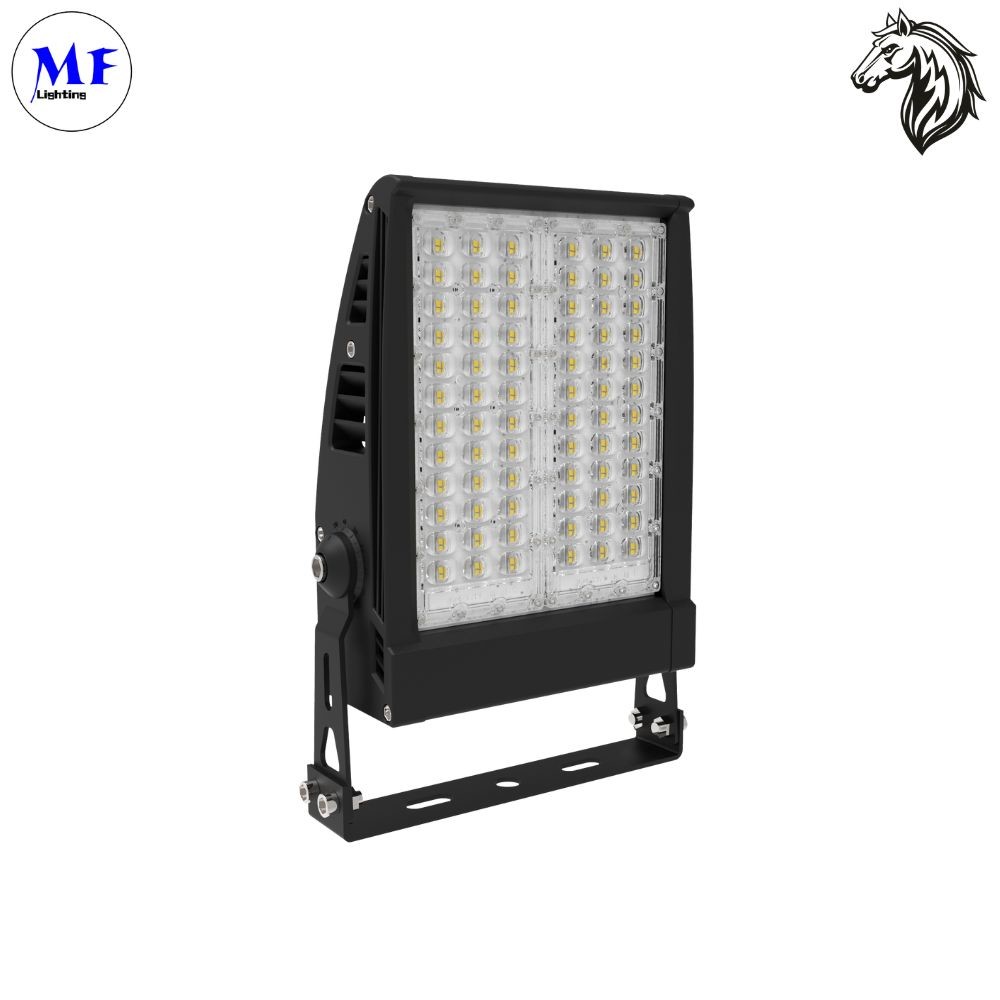

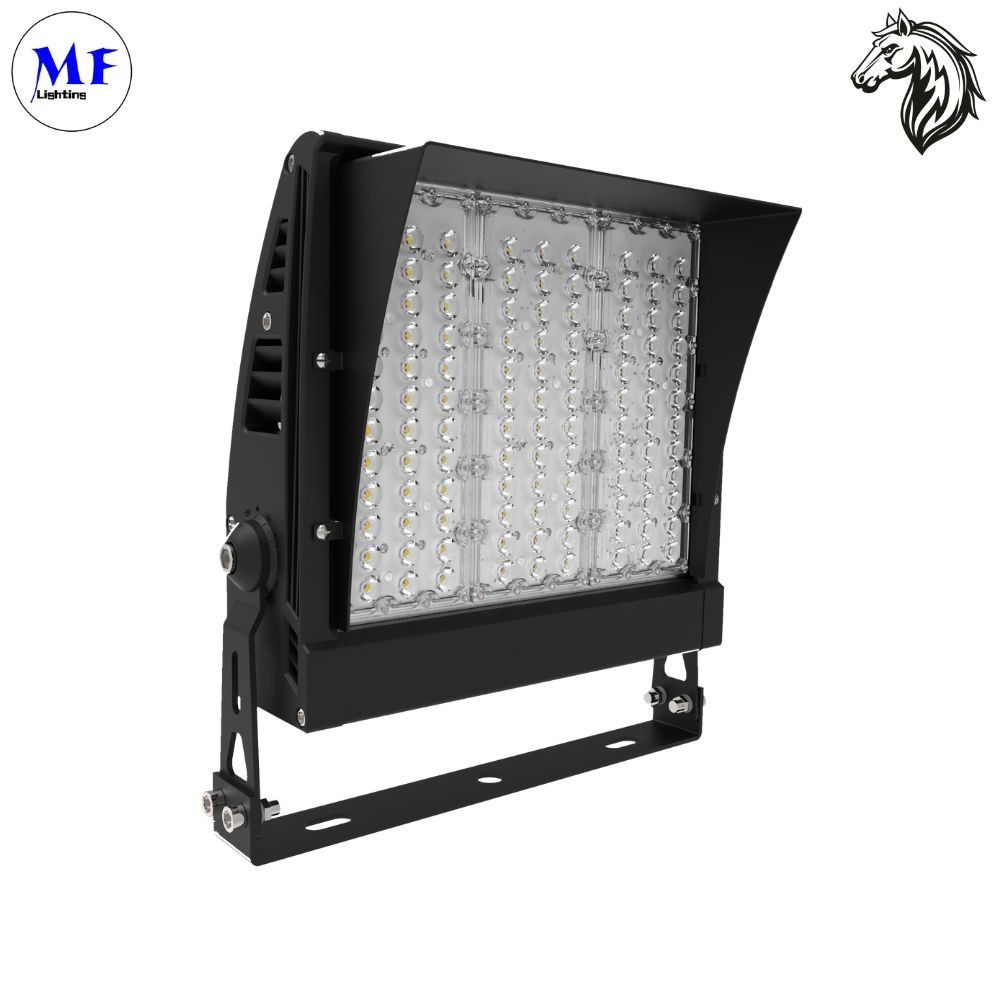

Aluminum Multiple Beam Angle 600W 800W 1000W High Power Flood Light For Tennis Court Stadium Lighting

Minimum Order Quantity : 10pcs Price : negotiable
Delivery Time : 1 week for sample order; 2 weeks for bulk order. Payment Terms : L/C, T/T, Western Union, Paypal
Supply Ability : 10, 000PCS/Months
Place of Origin: China Brand Name: MF
Certification: CE, ETL, FCC, RoHS, Dlc Model Number: MF-S03A400BT-H8G2/N4

Detail Information

Input Voltage: AC100-277V 50/60Hz Warranty: 5 Years
Lumen: 140lm/W LED Chips Brand: Lumiled
Driver: Meanwell Sosen Inventronics CRI: 70/80
Lifetime: >50, 000hrs
High Light:

1000W High Power Flood Light

,

Multiple Beam Angle Aluminum Flood Light

,

140lm/W LED Flood Light

Product Description



Technical Specification



Item
MF-S03A
200BT
MF-S03A
300BT
MF-S03A
400BT
MF-S03A
500BT
MF-S03A
600BT
MF-S03A
800BT
MF-S03A
1000BT
Watt 200W 300W 400W 500W 600W 800W 1000W
Lumen
28000LM
42000LM
56000LM
70000LM
84000LM
112000LM
140000LM
LED Brand Lu-miled
Driver Meanwell Sosen INVENTRONICS
Luminous Efficacy
140LM/W
Beam Angle
TYPE II TYPE III TYPE IV TYPE V NEMA4 NEMA6
CCT
3000K/4000K/5000K/6000K/CCT etc
Input Voltage 100-277V
CRI 70/80
Lifespan 50,000hours
Surge Voltage
10KV
Operation Temperature
Ta=40
IP Rating IP66
Warranty 5 years



Options



Dimming 0-10V, DMX, DALI modes optional

Aluminum Multiple Beam Angle 600W 800W 1000W High Power Flood Light For Tennis Court Stadium Lighting 0

Dimensions



Aluminum Multiple Beam Angle 600W 800W 1000W High Power Flood Light For Tennis Court Stadium Lighting 1

Aluminum Multiple Beam Angle 600W 800W 1000W High Power Flood Light For Tennis Court Stadium Lighting 2







Light Distribution Curve





Aluminum Multiple Beam Angle 600W 800W 1000W High Power Flood Light For Tennis Court Stadium Lighting 3



Packing



Item 3A200BT 3A300BT 3A400BT 3A500BT 3A600BB 3A800BB 3A1000BB
Watt 200W 300W 400W 500W 600W 800W 1000W
QTY 1 1 1 1 1 1 1
N.W
6.85kg
15.1lb
9.42kg
20.8lb
12.3kg
27.1lb
14.8kg
32.6lb
19.2kg
42.3lb
24.7kg
54.4lb
30kg
66.1lb
G.W
7.53kg
16.6lb
10.5kg
23.1lb
13.5kg
29.8lb
16.2kg
35.7lb
21kg
46.3lb
27kg
59.5lb
32.5kg
71.6lb
Carton
360*475*160mm
14.1*18.7*6.3inch
470*475*160mm
18.5*18.7*6.3inch
580*475*160mm
22.8*18.7*6.3inch
690*475*160mm
27.1*18.7*6.3inch
510*795*160mm
20.1*31.3*6.3inch
620*795*160mm
24.4*31.3*6.3inch
730*795*160mm
28.7*31.3*6.3inch



Aluminum Multiple Beam Angle 600W 800W 1000W High Power Flood Light For Tennis Court Stadium Lighting 4



Applications



Used in a range of applications, including factories, warehouses, construction sites, outdoor mining operations, and sports fields. Its superior thermal management, impact resistance, and instant light-up make it a convenient and effective lighting solution.



Aluminum Multiple Beam Angle 600W 800W 1000W High Power Flood Light For Tennis Court Stadium Lighting 5





Why Choose Us

Aluminum Multiple Beam Angle 600W 800W 1000W High Power Flood Light For Tennis Court Stadium Lighting 6

Aluminum Multiple Beam Angle 600W 800W 1000W High Power Flood Light For Tennis Court Stadium Lighting 7





FAQ



Q1: What do you sell?
A1: We provide good quality of floodlight, high bay light, explosion proof light, tri-proof light, downlight, and other lighting products, as well as responsible services and reliable after-sales warranty.

Q2: Is it OK to print my logo on led light product?
A2: Yes. We provide ODM and OEM services. Please inform us formally before our production and confirm the design firstly based on our sample.

Q3: How to deal with the faulty?
A3: During the guarantee period, we will send new lights with new order for small quantity. For defective batch products, we will repair them and resend them to you or we can discuss the solution including re-call according to real situation.

Q4: Can I have a sample order for led light?
A4: Yes, we welcome sample order to test and check quality. One sample or mixed samples are acceptable.

Q5: How long time to ship the goods if place an order?
A5: Usually 7 days for sample or small order,15 working days for bulk order, but sometimes depend on the order quantity.
