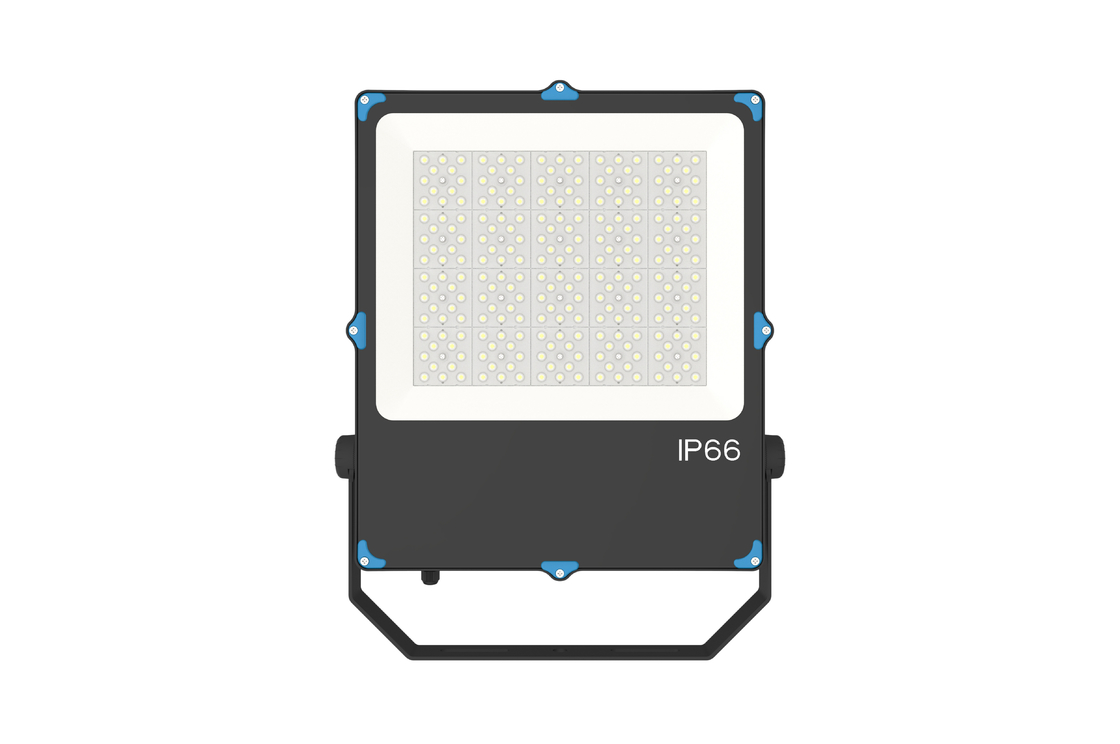

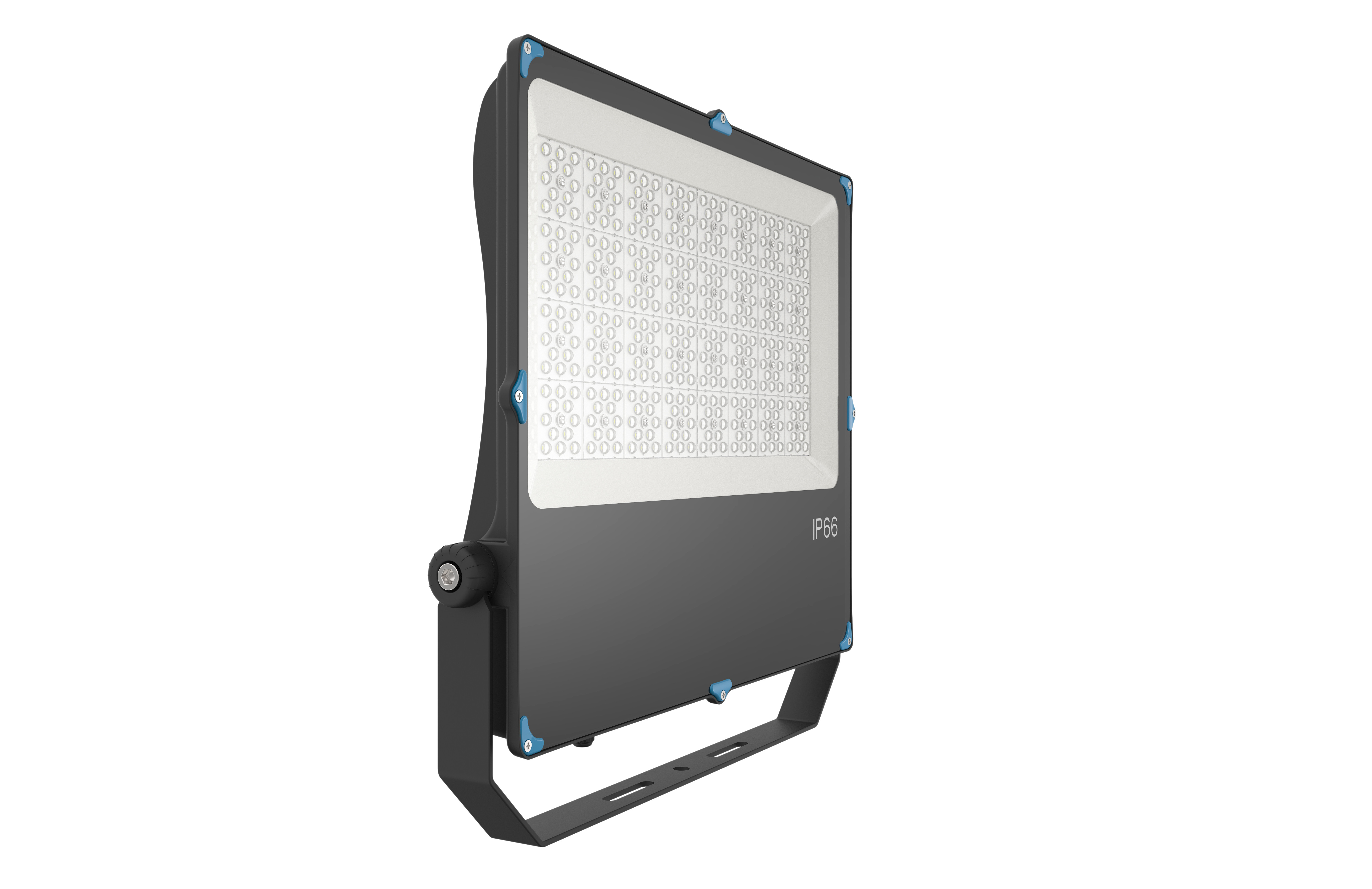

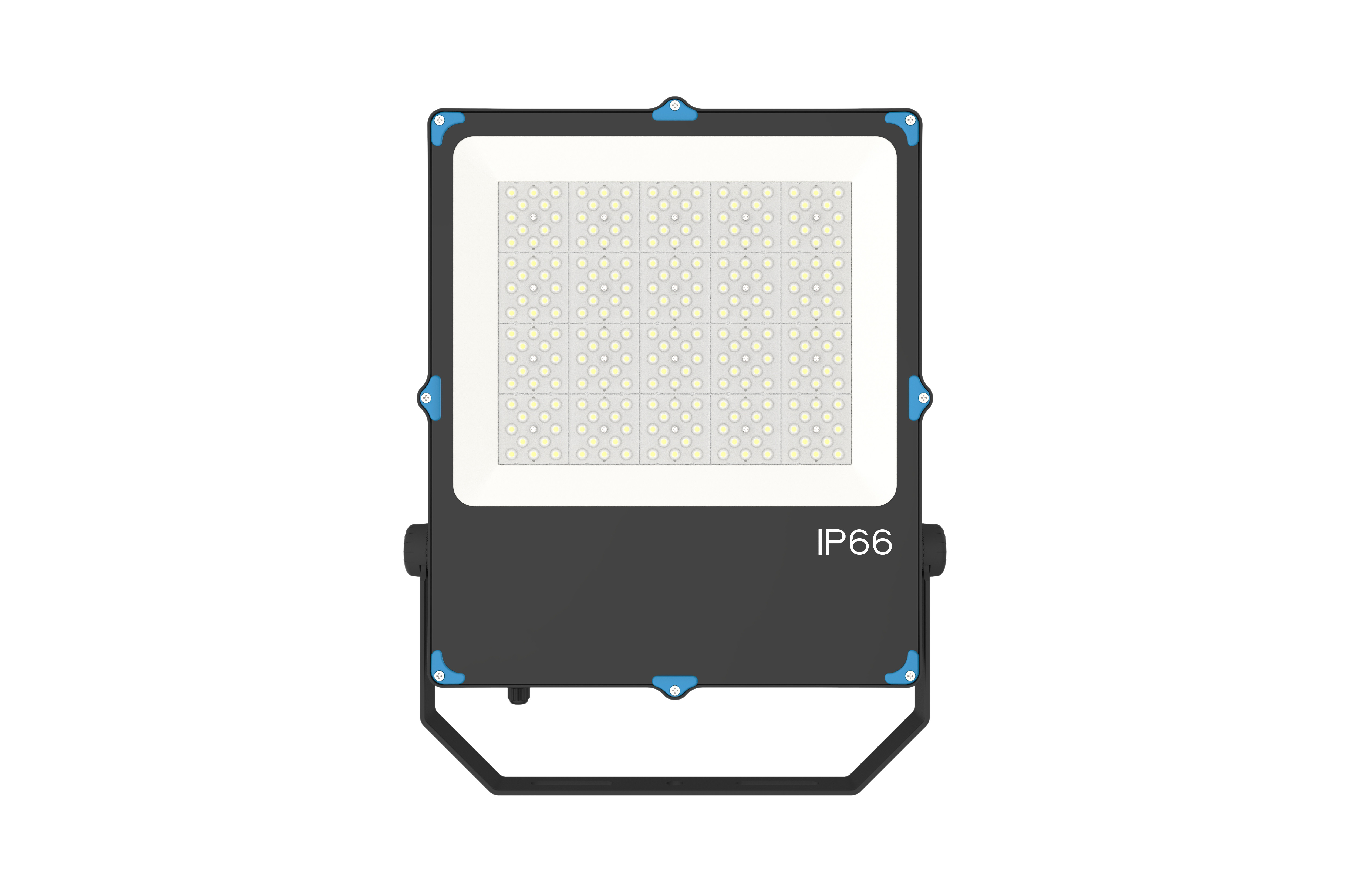

150W IP66 LED Flood Light Waterproof 3000K-6500K 130LM/W PF>0.95 Outdoor For Bus Stations

Product Description

150W IP66 LED Flood Light Waterproof 3000K-6500K 130LM/W PF>0.95 Outdoor for Bus Stations



Features:



• IP66 Waterproof/ dustproof/ explosion proof/ IK08

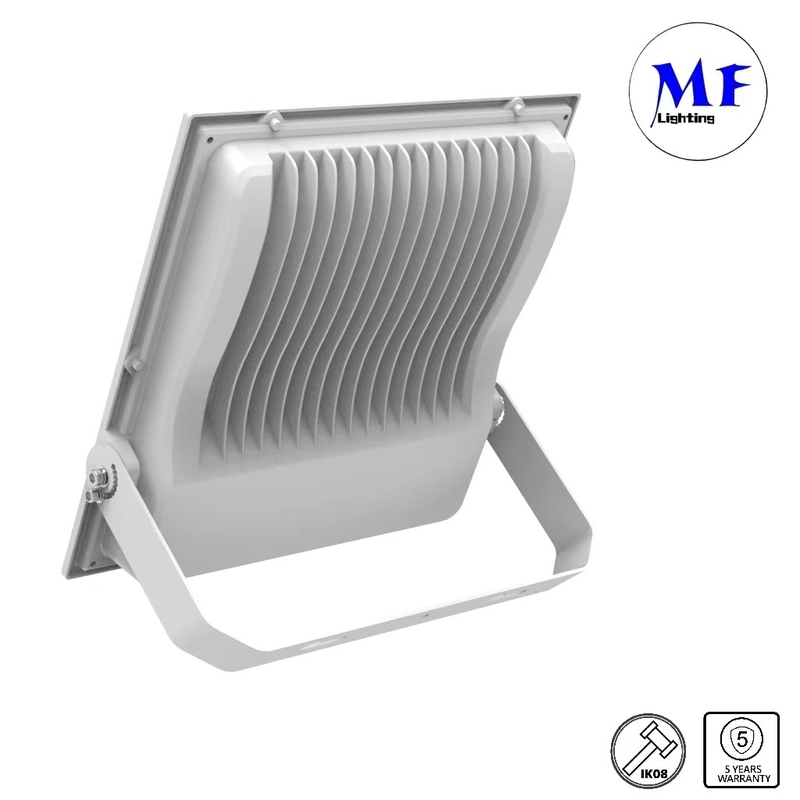

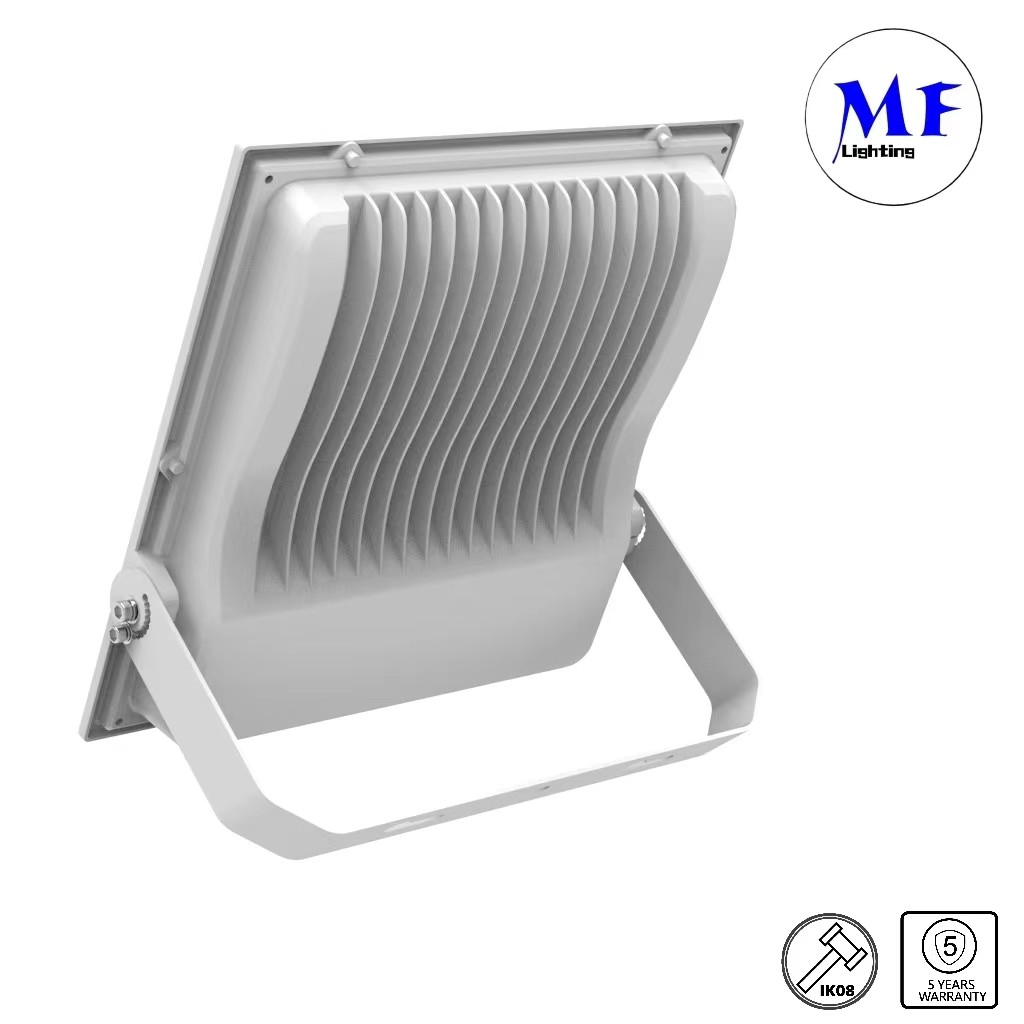

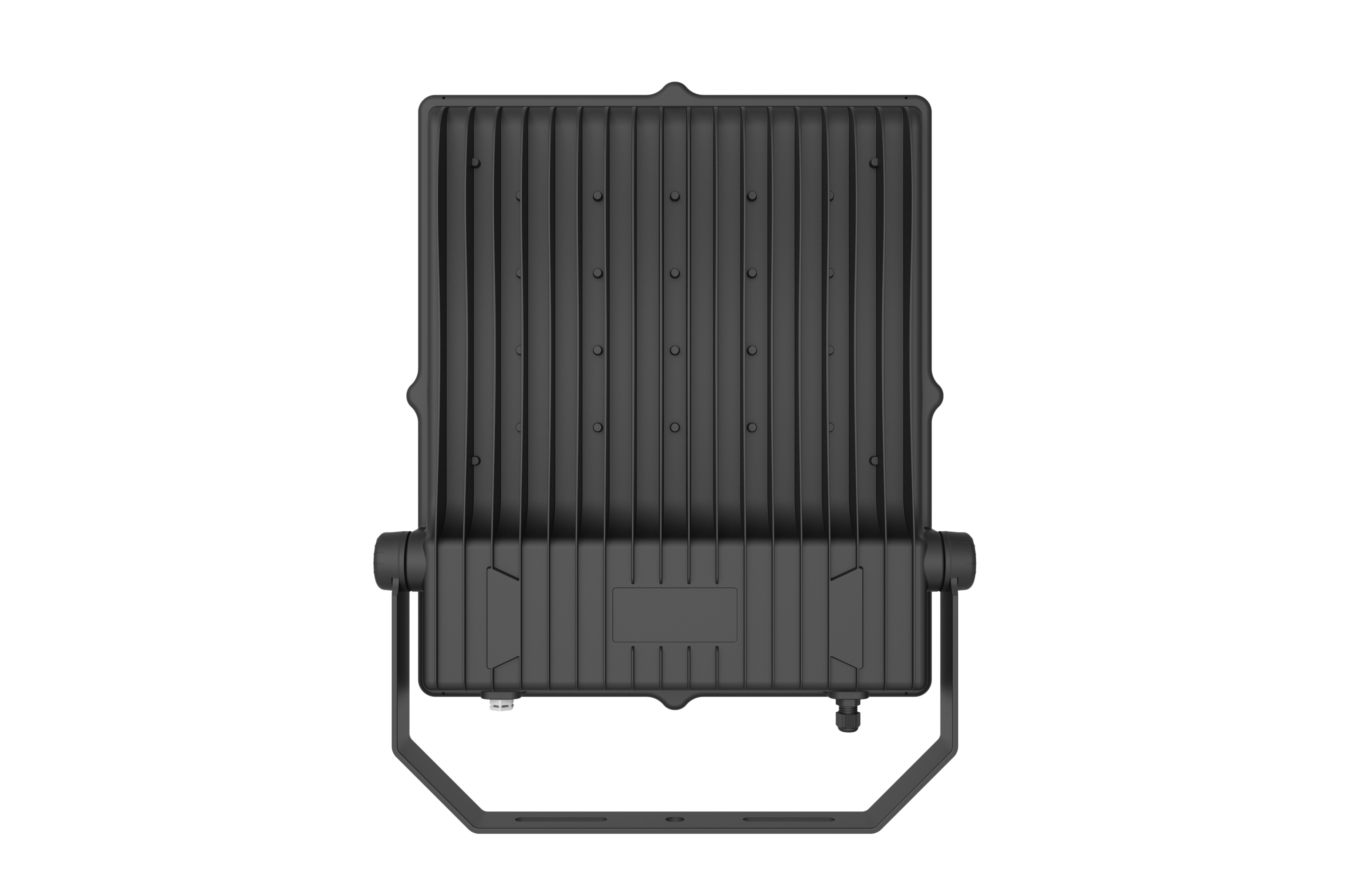

• Pure Aluminum shape good at heat dissipation.

• Angle Bracket, easy to install by drill.

• Easy replacement and installation.



• 100,000 times switching cycle before failure.

• SMD 3030 Ra>80/R9>0/SDCM<6



• Total harmonic distortion < 15%





Matters Needing Attention:



1. Before installing the lighting fixtures, please read this instruction manual careful.



2. The lighting fixtures should be installed, connected and tested by a certified electrician based on the local regulations.



3. Lamps should always be installed or replaced carefully.



4. Please check the local voltage in accordance with the product requirements before installation.



5. Revamping only can be done when the power is off and the lamp is completely cooled down.



6. When clean the lamp, make the power off and let it cool down completely, clean the fixture with a soft cloth and a standard PH neutral detergent, stainless steel should be maintained regularly.



7. Don't cover the fixtures with flammable materials.



8. Replace should be made by the manufactor of his service agent or certified electrician in order to avoid a hazard.





Applications:



Commercial Lighting                                                                       Public Lighting                                                               Industrial Lighting

---

Tunnel                                                                                                 Tunnel                                                                          Manufacture

Supermarkets                                                                                      Airports                                                                        Warehouses

Large retailers                                                                                     Stadium                                                                       Parking Lots

School                                                                                                 Train Stations                                                              Exhibition Centers

Billboard                                                                                              Bus Stations                                                                Gas Stations

Building                                                                                                                                                                                   Toll Stations





Dimension:





Model NO.	Size A (mm)	Size B (mm)	Size C (mm)	Size D (mm)
20W	122	182	150	47
30W	169	248	200	51
50W	228	288	230	52
100W	278	364	300	52
150W	394	394	325	56
200W	394	445	376	56
250W	394	497	427	58
400W	545	523	447	65







Model NO.	Size A (mm)	Size B (mm)	Size C (mm)
20W	84	44	6.5
30W	112	72	8
50W	140	100	10.5
100W	200	100	10.5
150W	200	100	10.5
200W	200	100	10.5
250W	200	100	10.5
400W	200	100	10.5





Parameter:



Model NO.	Power (W)	Light Source	LED QTY	CCT (K)	Lumen lm/w	CRI	Beam Angle
20W	20	3030	16	4000K	130	>70/80	120°
30W	30	3030	32	4000K	130	>70/80	120°
50W	50	3030	48	4000K	130	>70/80	120°
100W	100	3030	96	4000K	130	>70/80	120°
150W	150	3030	160	4000K	130	>70/80	120°
200W	200	3030	240	4000K	130	>70/80	120°
250W	250	3030	240	4000K	130	>70/80	120°
300W	300	3030	320	4000K	130	>70/80	120°
400W	400	3030	510	4000K	130	>70/80	120°



CCT Range WW (3000K), NW(4000K), DW(5000K), CW(6500K)

Beam Angle: 30°, 30°*90°, 60°, 90°, 120°



Item	Symbol	Specification/Data
Color Index	CRI	Ra>80, R9>0
Luminous Efficacy	lm/w	130lm/w
Energy Efficiency Class	/	A++
Color consistency in level	/	Max.6SDCM
THD	%	<15%
Starting time	S	<0.5S
Switching cycle before failure	/	>100,000 times
Premature failure rate @1000h	/	0
Lifespan	/	>50000hrs





Installation:





Packaging:



Model No	Single Box	Pcs/CTN	N.W./pcs(kg)	G.W./CTN (kg)	Meas (mm)
20W	1	20	0.8	16	405*275*290
30W	1	10	1.2	12	365*270*315
50W	1	10	1.8	18	475*310*315
100W	1	5	2.6	13	390*305*315
150W	1	1	5.1	5.6	440*420*115
200W	1	1	5.8	6.6	490*420*115
250W	1	1	7.1	8.1	540*420*115
300W	1	1	7.6	8.6	540*420*115
400W	1	1	10.8	12.3	580*550*115





Q1: What do you sell?
A1: We provide good quality of floodlight, high bay light, explosion proof light, tri-proof light, downlight, and other lighting products, as well as responsible services and reliable after-sales warranty.

Q2: Is it OK to print my logo on led light product?
A2: Yes. We provide ODM and OEM services. Please inform us formally before our production and confirm the design firstly based on our sample.

Q3: How to deal with the faulty?
A3: During the guarantee period, we will send new lights with new order for small quantity. For defective batch products, we will repair them and resend them to you or we can discuss the solution including re-call according to real situation.

Q4: Can I have a sample order for led light?
A4: Yes, we welcome sample order to test and check quality. One sample or mixed samples are acceptable.

Q5: How long time to ship the goods if place an order?
A5: Usually 7 days for sample or small order, 15 working days for bulk order, but sometimes depend on the order quantity.
