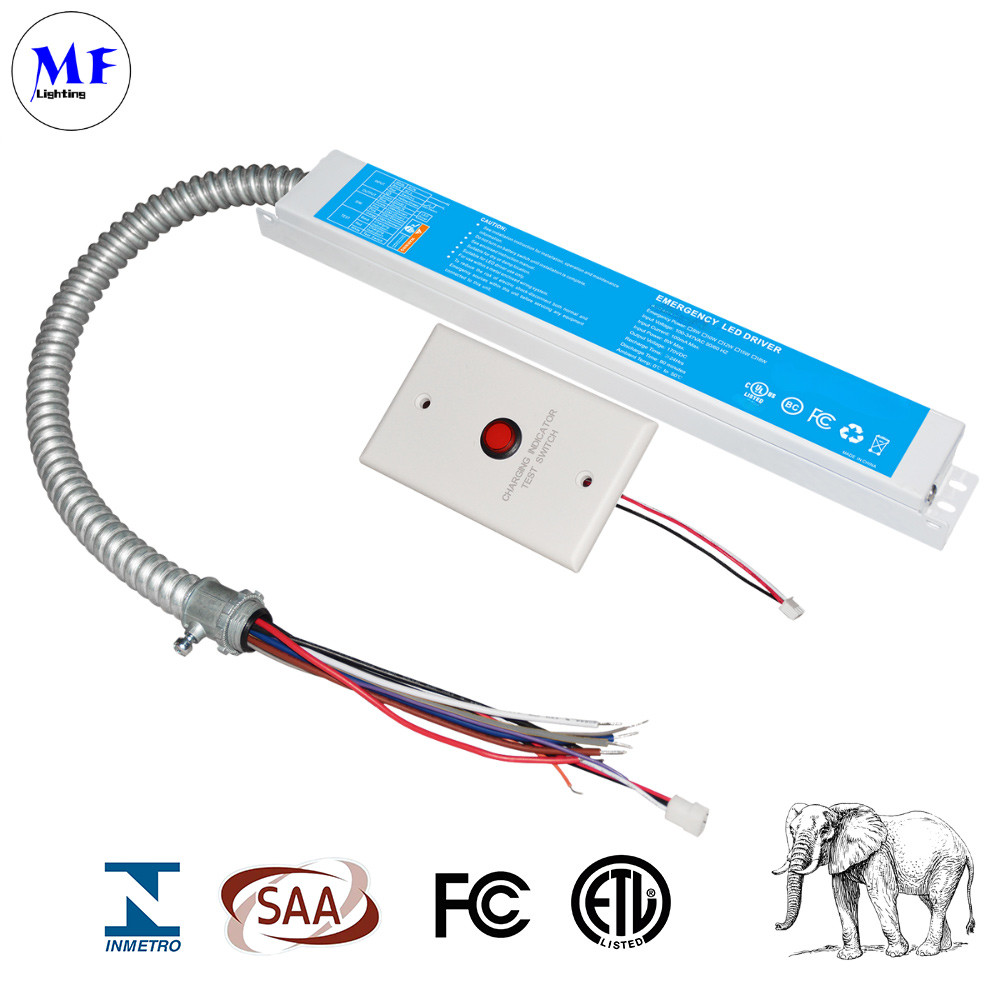

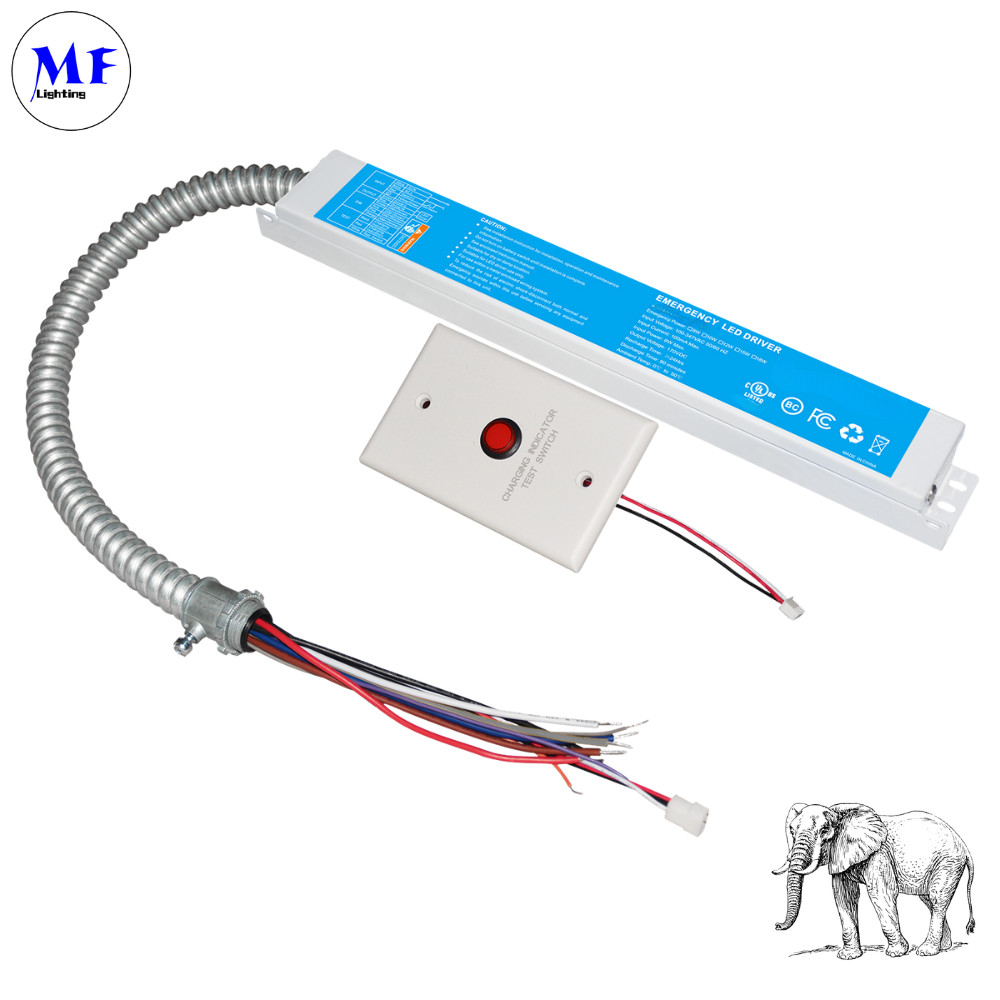

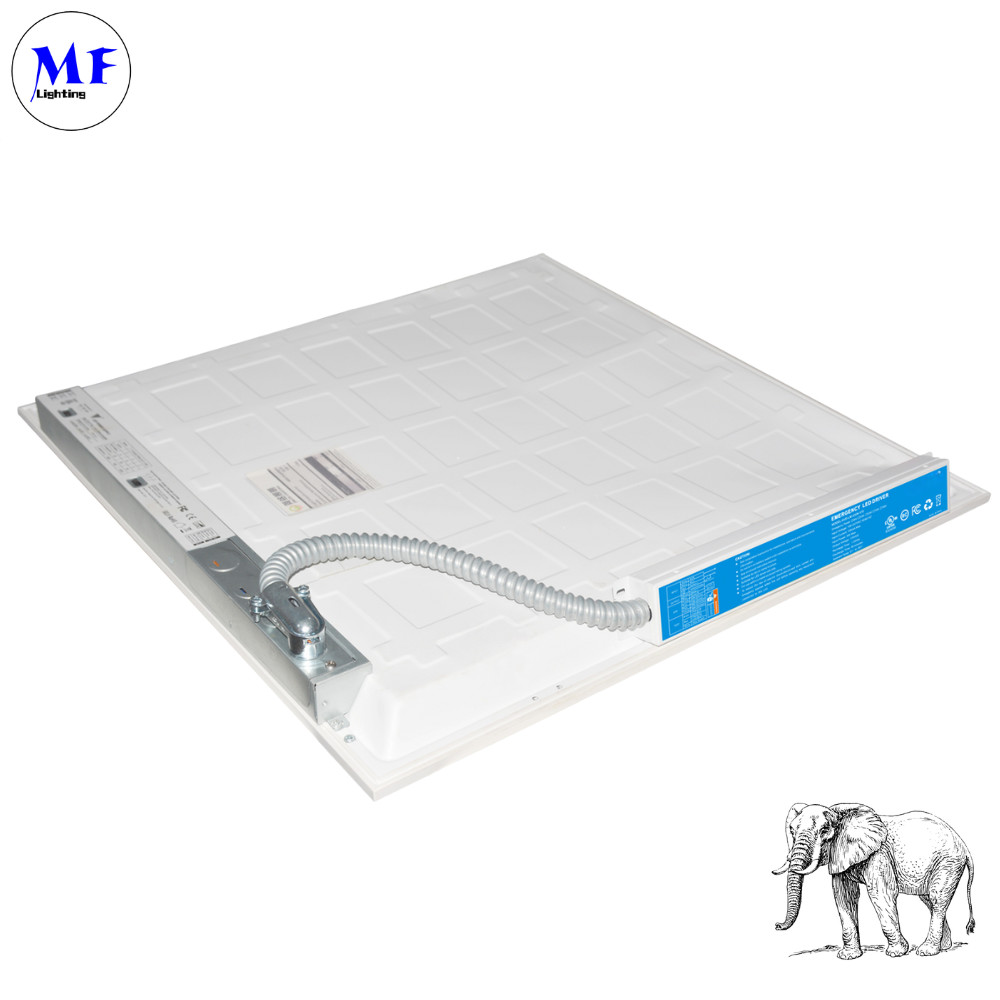

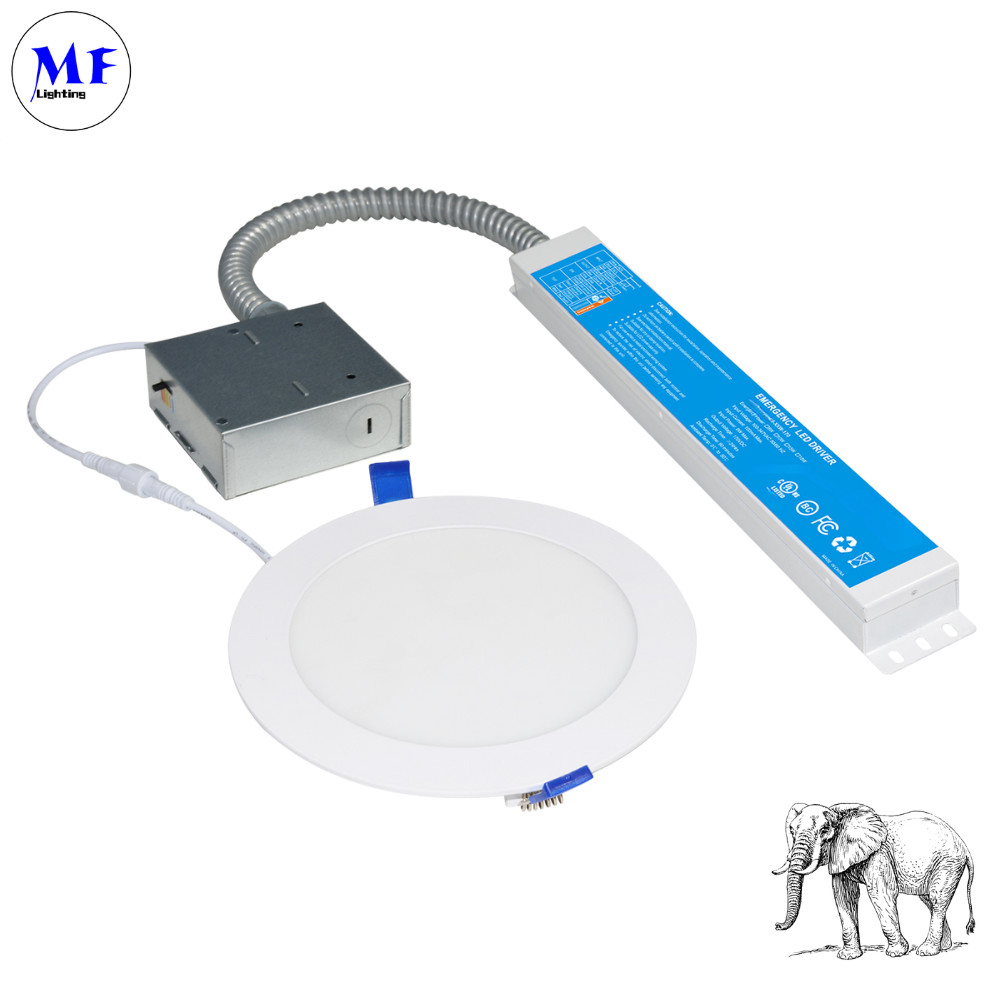

IP40 15W Panic Light Ballast UL Listed LED Emergency Driver for Ceiling Light
product description
Description
The MF-EM-xxW-170 LED Emergency Driver is a reliable and versatile backup power solution designed to maintain lighting during AC power outages. Compliant with UL924 and CSA C22.2 NO.141 standards, it delivers emergency power ranging from 15W to 40W with a stable 170V DC output, powered by long-lasting Li-ion batteries that provide 90 minutes of runtime. The driver features a self-testing function, performing automatic 30-second monthly tests and full annual discharge tests to ensure system reliability. It supports multiple control options, including 0-10V dimming, TRIAC dimmers, and sensor-based (DC12V/AC120V) operation, making it adaptable for various lighting setups. With a wide input voltage range (100-347V AC), over-temperature protection, and a 5-year warranty, it is built for durability and safety. Compact in design (12.01" × 2.36" × 1.57"), it is ideal for commercial, industrial, and residential applications where emergency lighting is essential.
Advantage:
Regulatory Compliance
UL924 & CSA C22.2 NO.141 certified for US/Canada, ensuring safety and reliability in emergency lighting applications.
Wide Power Range
Offers 15W-40W emergency output with 170V DC, supporting diverse lighting loads for commercial/residential use.
Smart Self-Testing
Auto-performs 30-sec monthly and full annual discharge tests, proactively detecting system or battery issues.
Multi-Control Compatibility
Works with 0-10V dimmers, TRIAC dimmers, and DC12V/AC120V sensors for flexible lighting integration.
Robust Battery Backup
Li-ion batteries provide 90-minute runtime with 24-hour recharge, plus over-temperature protection for safety.
Compact & Durable
Space-saving design (12.01"×2.36"×1.57") with 5-year warranty, built for long-term performance in harsh conditions.
Features
UL Listed for us and canada
Listed to UL924 and tested to CSA C22.2 NO.141 Field or factory installation
High voltage output
Low energy consumption CEC compliance
Constant output power
Self-testing
Battery:over temperature protection
specifications
| Input Voltage |
100~347Vac,50/60Hz |
| Input Current |
200mAmax. |
| Input Power Rating |
12W max. |
| Output Voltage |
170Vdc |
| Emergency Power |
15W |
| Recharge Time |
24Hrs |
| Discharge Time |
90 minute |
| Battery |
Li-ion 2500mAh-14.8V |
| Warranty |
5 Years |
| Ambient Temp |
32~122 F(0....+50 ºC) |
| Weight |
3.66 lbs(1.4kg) |
| IP grade |
IP40 |
| OPERATION(INDICATOR STATUS) |
Remarks |
| Solid Red ON |
System OK/AC OK |
| Flashing Red (1s on, 1s off, cycling) |
The backup micro inverter working in Emergency mode |
| Flashing Red (0.5s on, 0.5s off, cycling) |
Battery not detected, check battery connection |
| Test button |
| 0S<Key≤2S,Enter a simulated state of emergency,the Red indicator blinks once every second ,keep emergency status for 20±1second and back to normal status |
| 0S<Key≤1S,In the emergency state, the emergency state is turned off |
different size
|
Model No.
|
Output
Voltage
|
Emergency
Power
|
Battery
Type
|
|
MF-EM-15W-170
|
170Vdc
|
15W
|
Li-ion 2500mAh-14.8V
|
|
MF-EM-25W-170
|
25W
|
Li-ion 4400mAh-14.8V
|
|
MF-EM-30W-170
|
30W
|
Li-ion 5200mAh-14.8V
|
|
MF-EM-40W-170
|
40W
|
Li-ion 5000mAh-18.5V
|
Self Test
The contains a control/monitor circuit which will perform a 30-second discharge test once a month and a discharge test once a year. At this time, the unit simulate an AC power failure and automatically switch to emergency mode. During routine testing, the unit will monitor the operation of the LED load, battery voltage, and emergency duration, if the unit detect any problems, the indicator will flash quickly
Wiring diagram
Basic AC Connection
Shows fundamental wiring for direct AC power input (100-347V) to the emergency driver
Includes neutral (AC-N) and line (AC-L) connections with proper grounding
0-10V Dimmer System Integration
Illustrates connection with 0-10V dimmable LED drivers
Details wiring for dim+ (purple) and dim- (pink) control lines
Maintains emergency functionality while enabling dimming control
TRIAC Dimmer Compatibility
Demonstrates wiring for phase-cut (TRIAC) dimming systems
Shows proper connection of dimmer hot (black), load (red), and neutral (white) wires
Includes grounding requirements for noise reduction
Wall Switch Control Setup
Provides simple on/off control wiring configuration
Maintains emergency operation capability
Shows proper switch leg wiring for reliable operation
DC12V Sensor Integration
Details low-voltage sensor connection (12V DC)
Illustrates sensor power wiring and dimming control interface
Shows maintenance of emergency lighting function
AC120V Sensor Application
Covers line-voltage sensor installation
Demonstrates proper sensor load wiring
Includes emergency operation circuit protection
Measure
Application

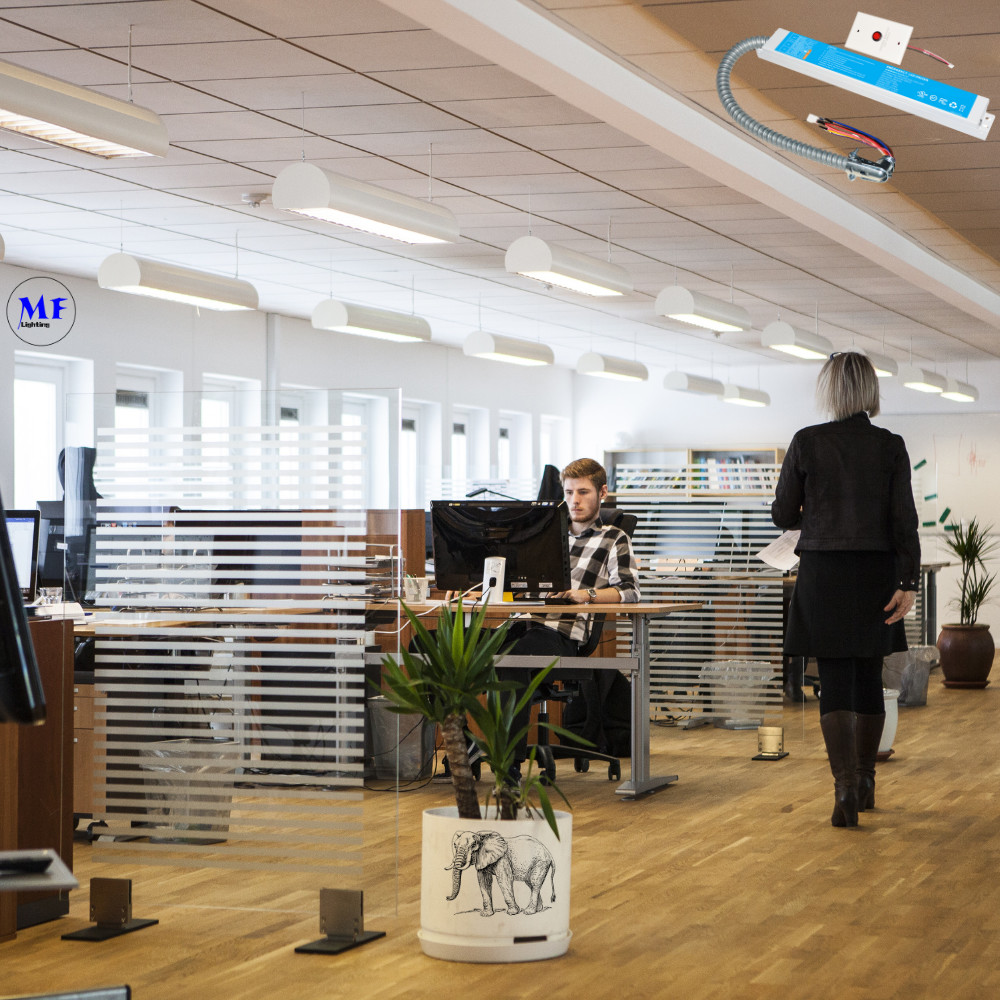

1.Commercial & Office Buildings
Scenario: Emergency lighting in corridors, stairwells, and exit signs.
Configuration: Typically uses Diagram 2 (Wall Switch) or Diagram 4 (Non-Dimmable Wall Switch) for simple on/off control.
Why? Ensures compliance with safety regulations (UL924) while maintaining illumination during power outages.
2. Retail Stores & Showrooms
Scenario: Dimmable LED lighting for adjustable ambiance.
Configuration: Uses Diagram 1 (0-10V Dimmer) or Diagram 5 (DC12V Sensor) for smooth dimming control.
Why? Allows brightness adjustment while ensuring emergency lighting functionality.
3. Theaters, Hotels & Restaurants
Scenario: Mood lighting with emergency backup.
Configuration: Uses Diagram 3 (TRIAC Dimmer) for phase-cut dimming compatibility.
Why? Supports traditional wall dimmers while providing emergency power backup.
4. Industrial & Warehouse Facilities
Scenario: High-bay lighting with emergency operation.
Configuration: Uses Diagram 6 (AC120V Sensor) for motion-activated lighting.
Why? Enhances energy efficiency with sensor control while meeting safety requirements.
5. Residential & Smart Homes
Scenario: Emergency lighting in hallways or critical areas.
Configuration: Uses Diagram 2 (Wall Switch) or Diagram 5 (DC12V Sensor) for automation.
Why? Provides seamless integration with home lighting systems while ensuring safety.
