Product Description

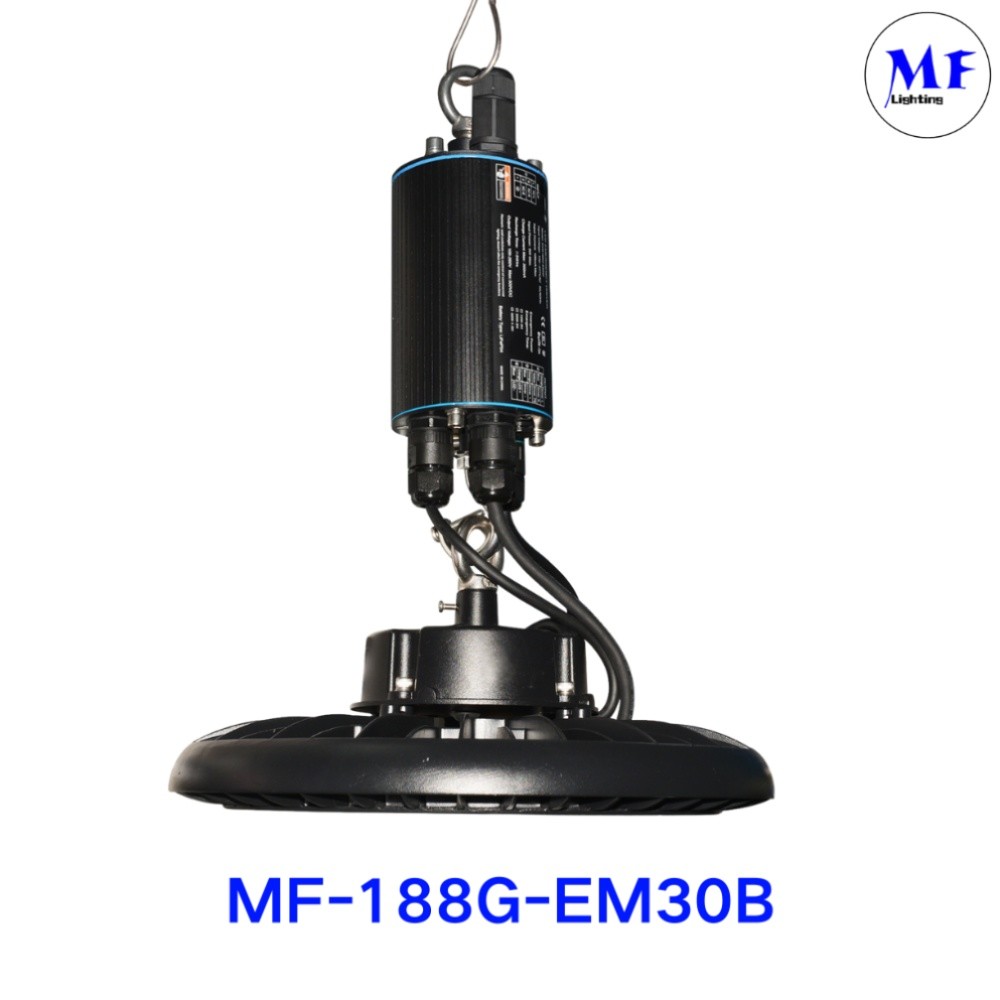

3 Years Warranty IP65 24Hours Charging Time Battery For LED Light Waterproof LiFeP04 DC Ceiling Hanging Constant Power Emergency Output Back Up Driver
self-detect
constant power emergency output
apply to constant current driver external lighting products
LiFePO4 using together
battery: over-charge/discharge
protection and short circuit protection
working environment: temp.: 0 to 60ºC
IP65 standard
not suitable for high risk lighting environment

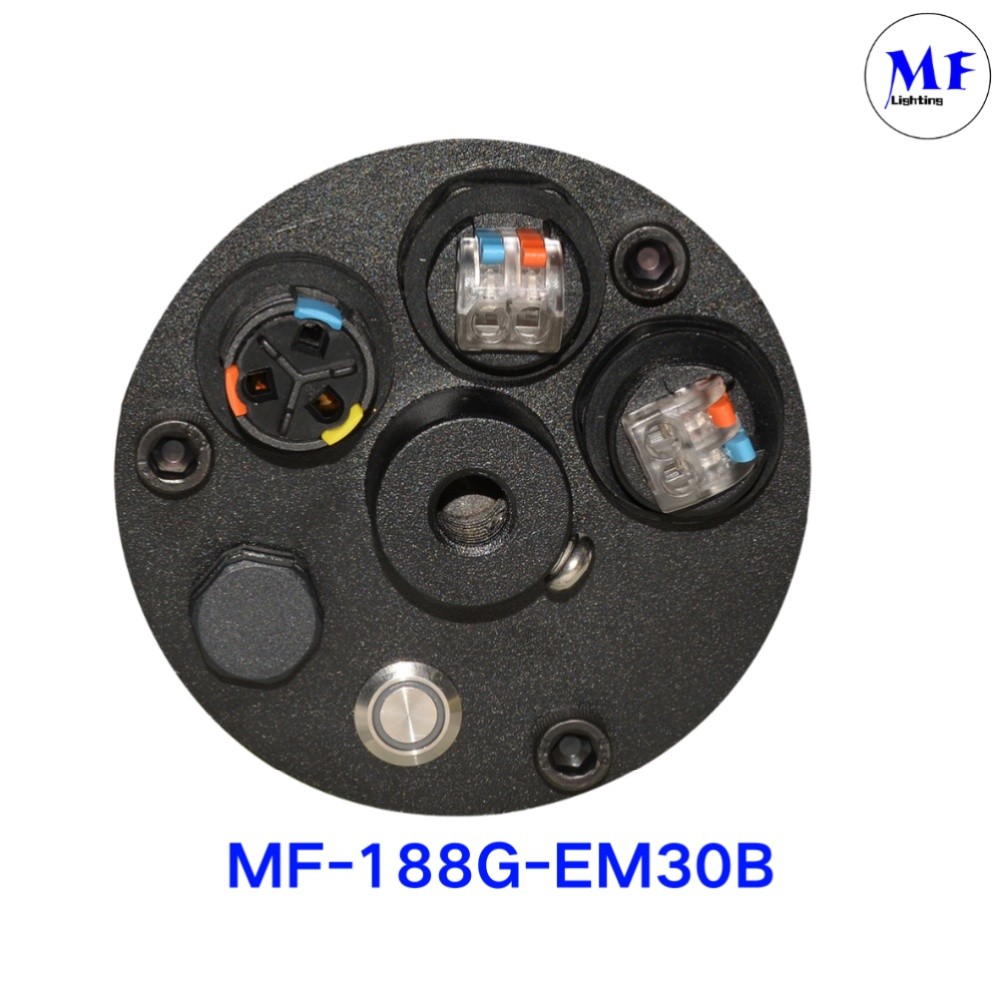

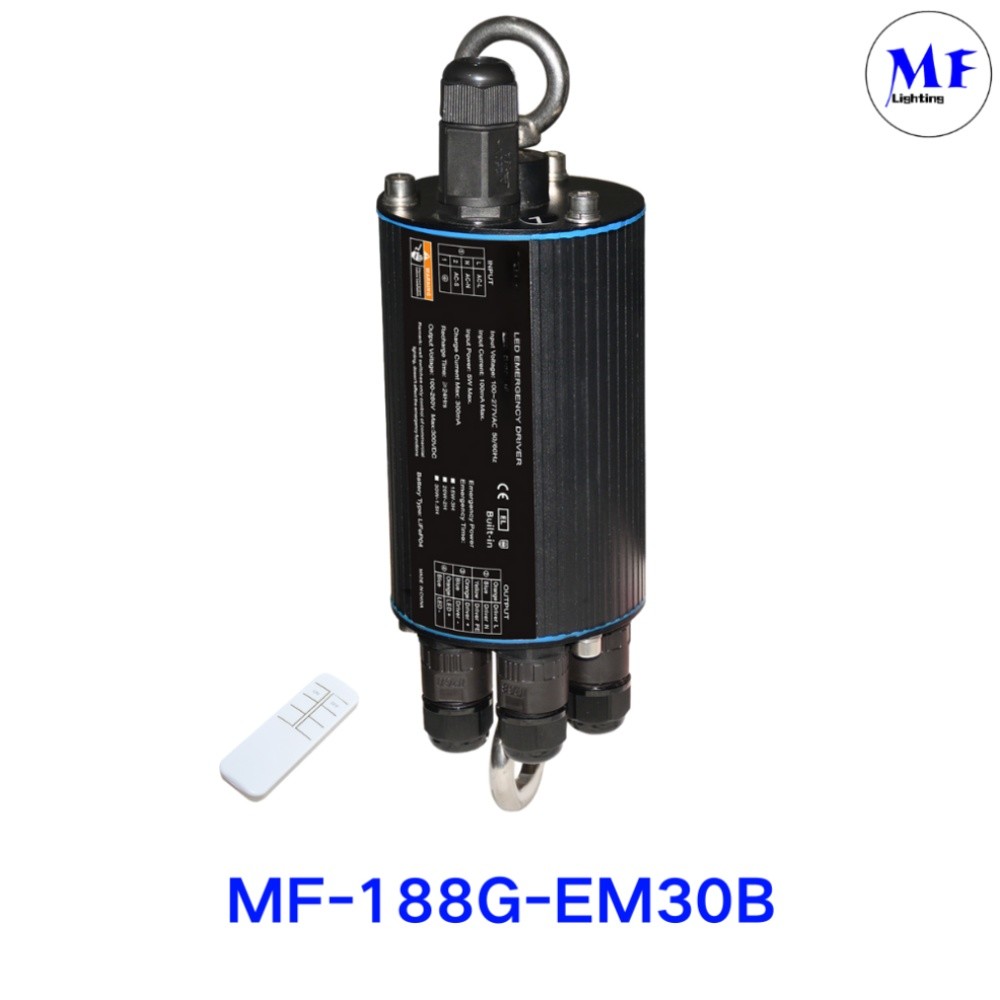

Accessories: integrated waterproof button and indicator light, remote control
3years warranty
| Input voltage |
100-277 Vac 50/60Hz |
| Input current |
100mA max |
| Charging power |
5.0W Max |
| Power factor |
>0.5 |
| Charging current |
0-350mA Max. |
| Charging time |
≥24Hours |
| Emergency output Voltage |
DC100-260V,DC300V Max |
| Emergency output Current |
58-150mA/ 75-200mA/115-300mA |
| Emergency power |
15W-3H/20W-2H/30W-1.5H |
| Battery capacity |
LiFeP04/32700/6000mAh-9.6V |
| Case temperature |
tc 60ºC Max |
Dimension:
LED INDICATOR
Green breathing pattern:charging mode
Green stable: battery fully charged
Red flashing: failure as below
Red flashing Once per second: Battery is not connected
Battery is defective
Red flashing four times a second :Load failure during emergency mode,
open circuit/short circuit
Green flashing: Emergency status one per second
Remote contorl:
1:0S<Key ON ≤1S,Enter a simulated state of emergency,the green indicator blinks
once every second
2:0S<Key OFF ≤1S,In simulated emergency situations, return to the normal charging state
3:0S<Key OFF ≤1S,In the emergency state, the emergency state is turned off
Sele-test:
when emergency driver is on power,every 180 days± 1 day
automatically enter the emergency state,emergency duration
until the battery is discharged,then return to power-on status.
Installation and Notifications:
1:If it is used for the first time or it does not enter the normal working
state after being over-discharged, it is necessary to connect the main power
to activate the emergency power supply and charge it for 24 hours.
Please use the original emergency battery provided
2:When installing and using it, please keep it away from heat sources and only use
it within a certain working temperature range.
3:Should be stored in a cool, dry environment.
4:After prolonged storage, recharge at least once every 6 months as needed.
5:Emergency driver testing must be longer than 1min, don't press the testing button frequently
-
Commercial Buildings: Used in offices, malls, and retail spaces to provide illumination during power outages or emergencies.
-
Educational Institutions: Installed in schools, colleges, and universities for emergency lighting and evacuation guidance.
-
Healthcare Facilities: Utilized in hospitals, clinics, and medical centers to ensure continuous lighting in critical areas during emergencies.
-
Hospitality Industry: Found in hotels, resorts, and lodges to guide guests to safety exits in case of emergencies.
-
Public Transportation: Employed in buses, trains, subways, and airports for emergency lighting and passenger guidance.
-
Industrial Settings: Used in warehouses, factories, and manufacturing plants to facilitate safe evacuation during power failures or emergencies.
-
Entertainment Venues: Found in theaters, concert halls, and stadiums to provide emergency lighting for crowd management and evacuation.
-
Residential Buildings: Installed in apartments, condominiums, and homes for backup lighting during power outages or emergencies.
-
Outdoor Spaces: Utilized in parks, parking lots, and walkways for safety lighting and visibility during nighttime emergencies.
-
Emergency Vehicles: Equipped in ambulances, fire trucks, and vehicles for signaling and emergency response operations.
-
Construction Sites: Used for temporary lighting during nighttime work and as emergency lighting in case of accidents
-
Marine Applications: Found on boats, yachts, and ships as emergency lighting tools for navigation and safety at sea.
-
Remote Locations: Deployed in remote areas, campsites, and hiking trails for emergency lighting and visibility in isolated settings.
-
Traffic Control: Installed in traffic signals, signs, and road construction areas to ensure visibility during power outages or emergencies.
-
Sports Facilities: Utilized in sports complexes, stadiums, and arenas for emergency lighting during events or unexpected power failures.
-
Street Light High Bay Light Panel Light Downlight Tri-proof Light (Waterproof/Dustproof/Corrosion-proof Light) Magnetic Light Exit Sign Light Flood Light Explosion-proof Light General-purpose LED Fixtures Troffer Light Bulkhead Light Bathtub (Recessed) Light Track Light Recessed Spot Light Wall Pack Light Canopy Light Tunnel Light Batten Light Cove Light Linear Light Architectural Light Surface-mounted Ceiling Light Ceiling Panel Light Parking Garage Light
Common Use Scenarios for Emergency Lighting
Emergency drivers are used to maintain lighting during power outages, ensuring safety and visibility. Here are typical scenarios:
Commercial & Office Buildings
Emergency exit pathways Hallways and stairwells Lobbies and elevators Conference rooms
Industrial Facilities & Warehouses
High bay lighting for production lines Emergency lighting in hazardous zones Loading docks and storage areas
-
Hospitals and Healthcare Facilities
Operating rooms and patient areas Emergency exits Hallways and emergency departments
Educational Institutions
Classrooms and laboratories Evacuation routes Libraries and dormitories
Hospitality & Retail
Hotels, malls, supermarkets Emergency exits and corridors
-
Transportation Hubs
Airport terminals Metro and railway stations Parking garages
Public Infrastructure
Tunnels and underpasses Government buildings Utility plants
Outdoor & Urban Areas
Street lighting for emergency evacuation Parks and pedestrian zones Emergency lighting in flood-prone areas
Packing:
