15W 3h 20W 2h 30W 1.5h Emergency Powerpack Ballast Kit Driver For Warehouse LiFePO4 LED High Bay Explosion Proof Light 3years

Minimum Order Quantity : 100PCS Price : Negotiable
Packaging Details : 16.5*15*22cm/1pcs, G.W: 1.2Kg Delivery Time : Depends on orders
Payment Terms : T/T, Western Union, L/C, Paypal Supply Ability : 5,000pcs/Month
Place of Origin: China Brand Name: MF
Certification: CE, RoHS,SAA Model Number: MF-188G-A

Detail Information

Input Voltage: 100-277VAC 50/60Hz Input Current: 100mA Max
Charging Power: 5.0W Max Power Factor: >0.5 230 VAC
Charging Current: 0-350mA Charging Time: ≥24hours
Emergency Output Voltage: DC100-260V,DC300V Max Emergency Output Current: 58-150mA/ 75-200mA/115-300mA
Emergency Power: 15W-3h/20W-2h/30W-1.5h Battery Capacity: Lifep04/32700/6000mAh-9.6V
Case Temperature: Tc 60ºC Max
Highlight:

15W 3h Emergency Powerpack

,

20W 2h Emergency Powerpack

,

Explosion Proof Emergency Powerpack

Product Description

3years Warranty LiFePO4 LED High Bay Lgiht Explosion Proof Light 15W 3h 20W 2h 30W 1.5h Emergency Powerpack Ballast Kit Driver for Factory Warehouse
15W 3h 20W 2h 30W 1.5h Emergency Powerpack Ballast Kit Driver For Warehouse LiFePO4 LED High Bay Explosion Proof Light 3years 0

self-detect
constant power emergency output
apply to constant current driver external lighting products
LiFePO4 using together

battery: over-charge/discharge
protection and short circuit protection
working environment: temp.: 0 to 60ºC
IP65 standard
not suitable for high risk lighting environment

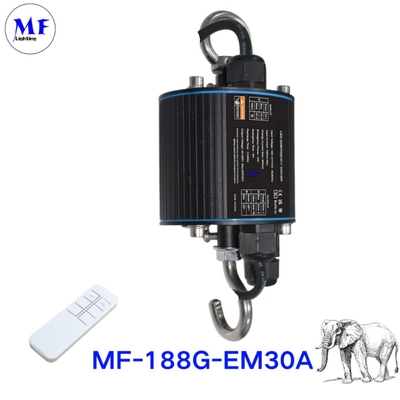

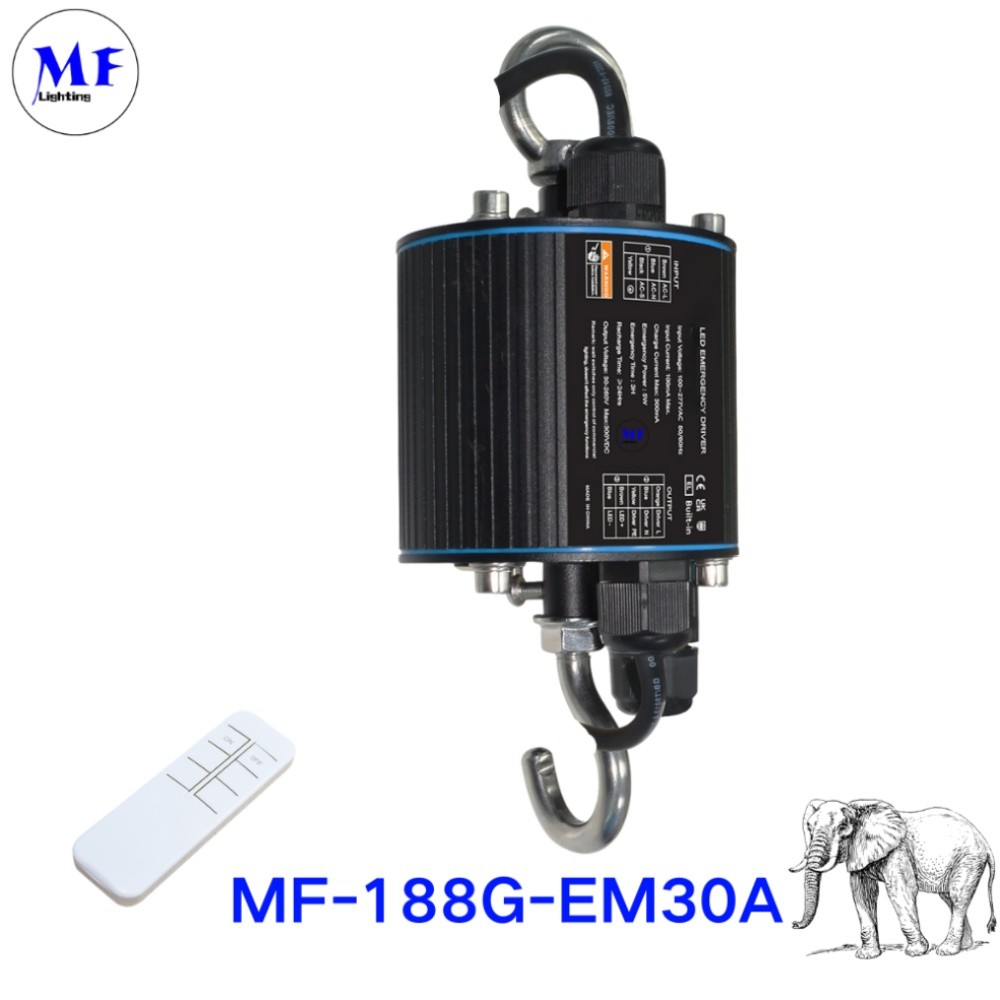

Accessories: integrated waterproof button and indicator light, remote control
3years warranty

15W 3h 20W 2h 30W 1.5h Emergency Powerpack Ballast Kit Driver For Warehouse LiFePO4 LED High Bay Explosion Proof Light 3years 1





15W 3h 20W 2h 30W 1.5h Emergency Powerpack Ballast Kit Driver For Warehouse LiFePO4 LED High Bay Explosion Proof Light 3years 2



Input voltage 100-277 Vac 50/60Hz
Input current 100mA max
Charging power 5.0W Max
Power factor >0.5
Charging current 0-350mA Max.
Charging time ≥24Hours
Emergency output Voltage DC100-260V,DC300V Max
Emergency output Current 58-150mA/ 75-200mA/115-300mA
Emergency power 15W-3H/20W-2H/30W-1.5H
Battery capacity LiFeP04/32700/6000mAh-9.6V
Case temperature tc 60ºC Max

15W 3h 20W 2h 30W 1.5h Emergency Powerpack Ballast Kit Driver For Warehouse LiFePO4 LED High Bay Explosion Proof Light 3years 3




Installation:
15W 3h 20W 2h 30W 1.5h Emergency Powerpack Ballast Kit Driver For Warehouse LiFePO4 LED High Bay Explosion Proof Light 3years 4


Dimension:

15W 3h 20W 2h 30W 1.5h Emergency Powerpack Ballast Kit Driver For Warehouse LiFePO4 LED High Bay Explosion Proof Light 3years 5





LED INDICATOR

Green breathing pattern:charging mode
Green stable: battery fully charged
Red flashing: failure as below
Red flashing Once per second: Battery is not connected
Battery is defective
Red flashing four times a second :Load failure during emergency mode,
open circuit/short circuit
Green flashing: Emergency status one per second

Remote contorl:
1:0S<Key ON ≤1S,Enter a simulated state of emergency,the green indicator blinks
once every second
2
:0S<Key OFF ≤1S,In simulated emergency situations, return to the normal charging state
3:
0S<Key OFF ≤1S,In the emergency state, the emergency state is turned off

Sele-test:
when emergency driver is on power,every 180 days± 1 day
automatically enter the emergency state,emergency duration
until the battery is discharged,then return to power-on status.

Installation and Notifications:
1:If it is used for the first time or it does not enter the normal working
state after being over-discharged, it is necessary to connect the main power
to activate the emergency power supply and charge it for 24 hours.
Please use the original emergency battery provided
2:When installing and using it, please keep it away from heat sources and only use
it within a certain working temperature range.
3
:Should be stored in a cool, dry environment.
4
:After prolonged storage, recharge at least once every 6 months as needed.
5
:Emergency driver testing must be longer than 1min, don't press the testing button frequently

15W 3h 20W 2h 30W 1.5h Emergency Powerpack Ballast Kit Driver For Warehouse LiFePO4 LED High Bay Explosion Proof Light 3years 6
