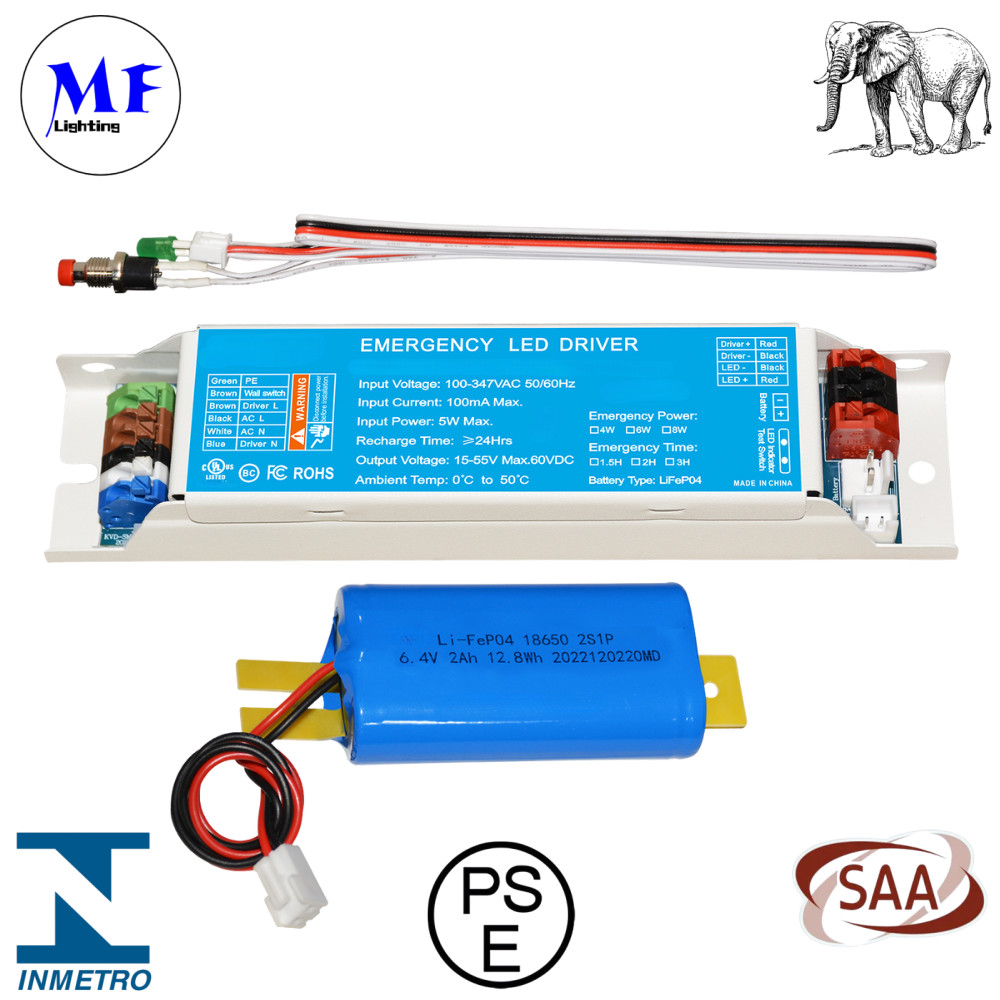

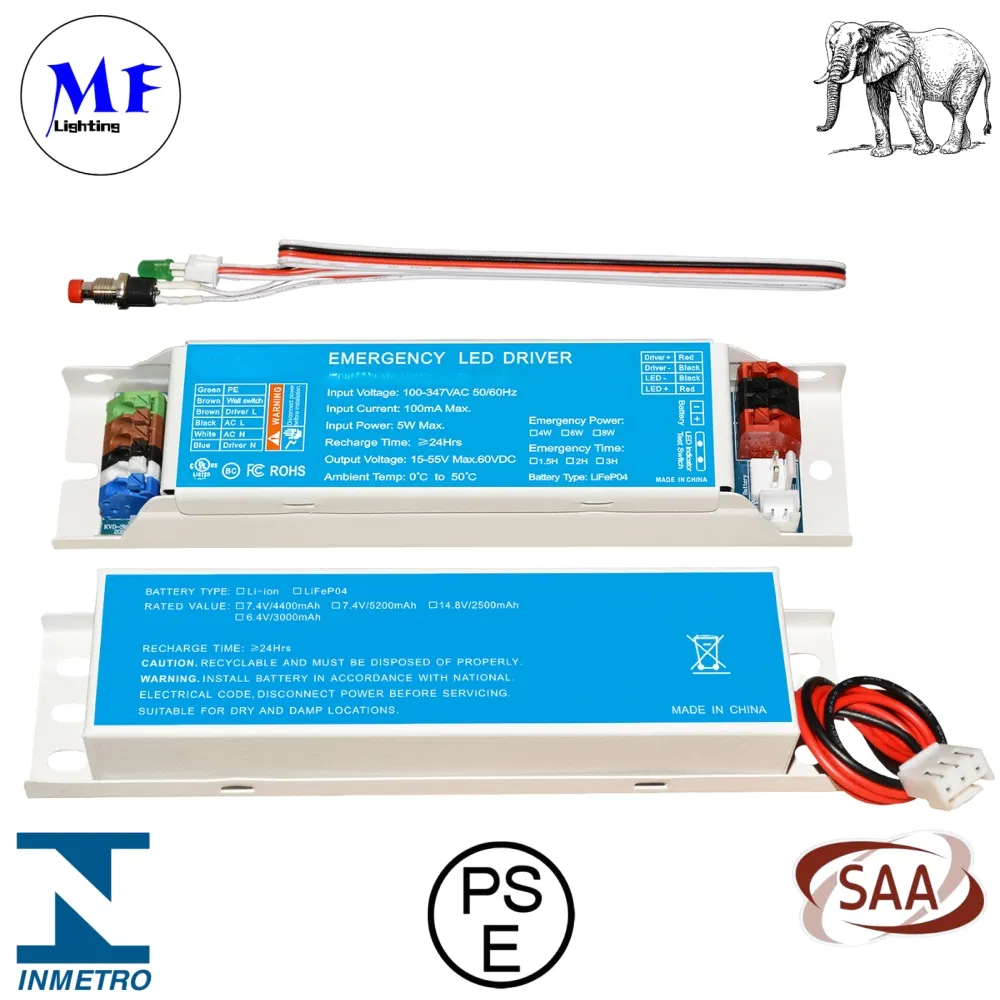

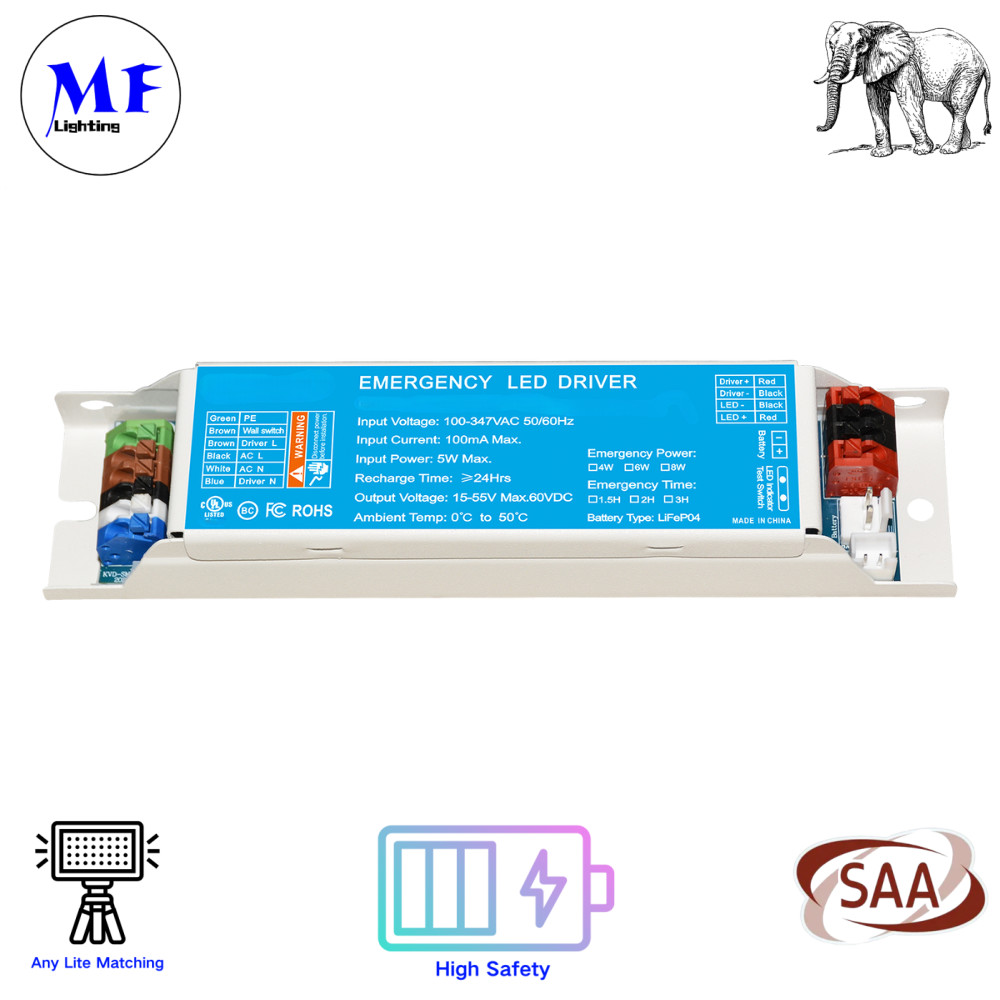

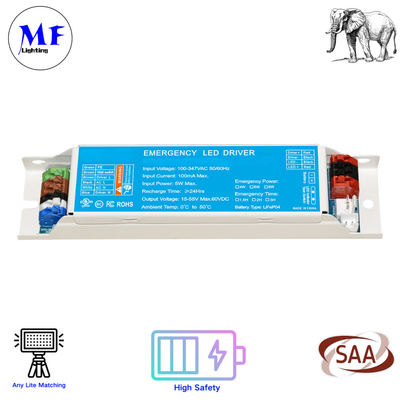

10W 100-277VAC UL924 CSA Li-ion Auto Test 5 Year Warranty Down Light Ceiling Light Panel Light Panic Light Ballast Powerpack for Emergency Case

Factory Price 10W 100-277VAC UL924 CSA Li-ion Auto Test 5 Year Warranty Down Light Ceiling Light Panel Light High Bay Light Emergency LED Driver Panic Light Ballast Powerpack for Emergency Case

Input voltage	100-277 Vac 50/60Hz
AC Input current	100mA Max
AC Input Power Rating	7.0W max
Battery charging current	250mA
Output Current and Voltage	20-55VDC/60-260VDC
Battery charging time	≥24h Hours
Emergency Time	≥1.5H
Storage Temperature	-20-40ºC
Battery capacity:	Li-ion 3350mAh-7.4V
Output Power:	10W
Full Warranty:	5 Years
Temperature Rating Ambient:	Li-ion 0°C to 50°C (32°F to 104°F)

1. Meet most of safety standards for lighting
2. Standard CSA C22.2 NO.141 UL924
3. External lithium iron phosphate battery
4. Battery protections: over charge protection over discharge protection short circuit protection
5. Indicator shows a variety working modes
6. The batteries Meet 2000 cycles of standard CH and standard DCH
7. RoHS compliant
LED Emergency driver, Panic light ballast,panic emergency powerpack,emergency backup ballast,emergency ballast interter,emergency light kit,Led Emergency Battery Pack,Emergency Converter for triproof light down light ceiling light highbay light panel light

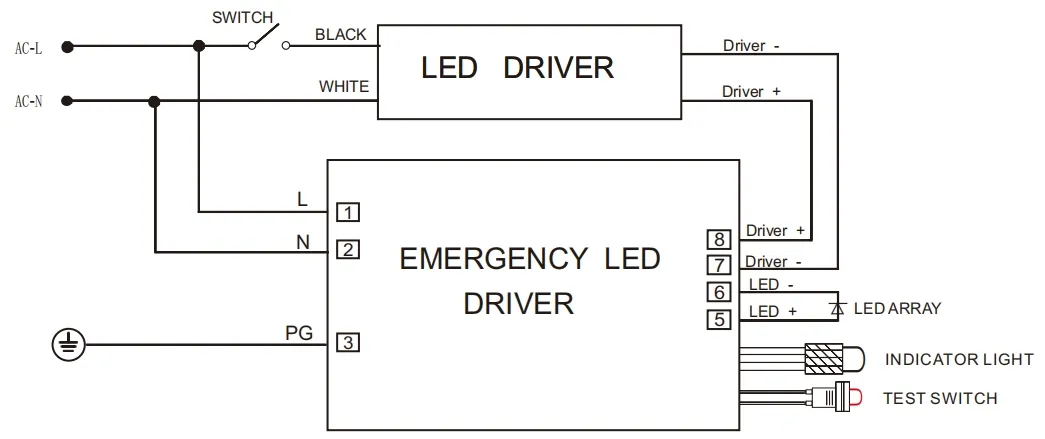

Wiring Diagram

Operation:
1. AC Operation: AC power is present,The LED load from the LED driver is normal power supply, AC LED driver output current can not exceed150W or 4A,the emergencydriver is charging in a standby mode,The green LED light on to indicate that it is charging.
Indicator Light
1. AC Operation, indicator light will keep on
2. Emergency Operation, indicator light flash slowly (light on for 1 seconds, light off for 1 seconds)
3. In a failure, indicator light flash quickly (light on for 0.02 seconds, light off for 0.02 seconds
Emergency Operation
1. When the AC power goes out,The emergency driver detects the AC power outage and automatically
switch to the working emergency mode.The green LED off.When the AC power is restored,the emergency driver backs to AC power working and starts re-charging, the green LED light on.
Test Switch
1. In AC Operation, press test switch once, emergency for 20 seconds
2. In AC Operation, press test switch twice in asuccession within two seconds, emergency until battery is full discharged
3. In the emergency operation, press test switch will turn off emergency status, and led lamp & indicator light of EM driver will go out at the same time

1. If it is used for the first time or it does not enter the normal working state after being over-discharged, it is necessary to connect the main power to activate the emergency power supply and charge it for 24 hours. Please use the original emergency battery provided.
2. When installing and using it, please keep it away from heat sources and only use it within a certain working temperature range.
3. It should be stored in a cool, dry environment.
4. After prolonged storage, recharge at least once every 6 months as needed.
5. Emergency driver testing must be longer than 1 minute, and don't press the testing button frequently.

1. Offices: Ensures emergency lighting activation during power outages to maintain illumination in workspaces, corridors, and exits while complying with safety standards.
2. Exhibition Halls & Museums: Powers emergency lighting with <1-second switchover to backup power for critical areas, protecting exhibits and preventing risks from darkness.

3. Hotels & Hospitality: Integrates with fire systems to activate evacuation lighting in public areas and maintain safety lighting in guest rooms during outages.
4. Villas & Residences: Supports smart home emergency lighting by maintaining illumination in key areas (stairs, entrances) during outages and monitoring battery status via apps.
5. Clubs & Entertainment Venues: Enables quick emergency lighting activation in high-energy spaces, prioritizing safe evacuation routes and working with dynamic lighting systems for event safety.

6. Retail & Commercial Spaces: Maintains basic lighting for product displays during outages and links with fire sensors to activate full emergency mode for safe customer evacuation.
7. Transportation & Public Hubs: Meets strict fire safety standards (CE, UL) with 72+ hours backup power for exits and corridors in airports, subways, and other critical infrastructure.

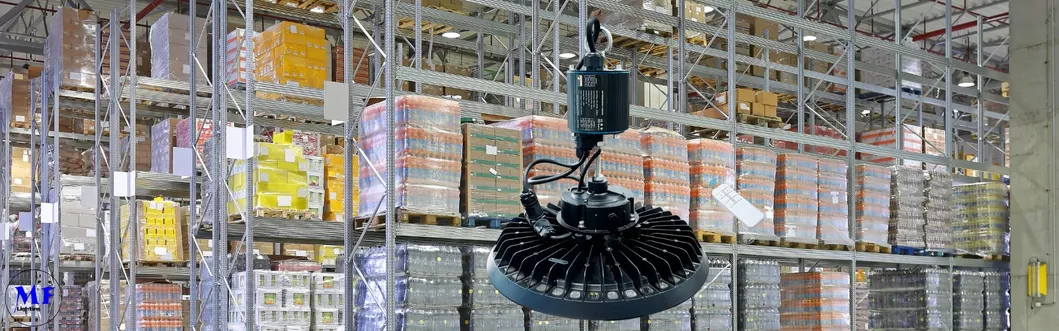

8. Industrial & Warehouses: Provides stable emergency power for high-power LED fixtures with wide voltage input (90-264V), ensuring reliable activation in harsh industrial environments.
