80Watt recessed mounted LED Explosion proof Lights Meanwell Ra80 For Gas Station

Minimum Order Quantity : 100PCS Price : Negotiable
Packaging Details : 47*47*15cm/1pcs, G.W: 7.0Kg Delivery Time : Depends on orders
Payment Terms : T/T, Western Union, Paypal Supply Ability : 5,000pcs/Month
Place of Origin: China Brand Name: MF
Certification: CE,RoHS Model Number: MF-C080W

Detail Information

Lamp Power: 80W Lamp Luminous Flux: 7600LM
Lamp Luminous Efficiency: >100LM/W Lamp Body Material: Aluminum
Wattages: 80W/100W/120W/150W Warranty: 5 Years
High Light:

LED Canopy Light

,

petrol station lighting

Product Description

80Watt recessed mounted LED Explosion proof Lights Meanwell Ra80 For Gas Station




 Quick Detail:


  1. 80W LED Canopy lights For Gas Station lighting
  2. Input: AC 85V-277V, 50/60Hz
  3. Luminous Flux:≧7600Lm
  4. CRI: >80
  5. Brand chip: CREE/SAMSUNG
  6. LED Driver: Meanwell
  7. IP:67
  8. Power Factor:>0.95
  9. Lifetime: ≧35,000 hrs



Description:

Ming Feng Lighting Co., Ltd modular lens desing LED canopy lights is an industry and commerical leading, innovative, energy saving fixture led canopy lights for explosion lighting. This designed to replace traditional HID, fluorescent light source, water-proof, Dust-proof, and corrosion-proof, IP rating is up to IP67, can be suspended and recessed ceiling lighting distribution. High performance aluminum hollow out heat sink design specially for LED, ensure best heat dissipation.



This LED canopy light could available with 120LM/W CREE/SAMSUNG LEDS, can reach 100lm/w. Photocell sensor, montion sensor, and dimmalbe for optional.




Specifications:


Item

MF-C080W

Input voltage

85-277Vac  50Hz/60Hz

LED Power

80W

Luminaire Efficiency

100lm/W

Delivered Flux(Tj80°c)

7600lm

IP Rating

IP67

LED QTY

36 pcs

Color temperature

3000K/4000K/5000K

LED Chip

CREE/SAMSUNG

LED Driver

Meanwell(HLG series)

Color Rendering Index

Ra80

Power Factor

>0.95

Lifespan

≥50,000hrs

Operation Environment

Temperature:-40°C~50°C/Humidity:10%~95%

Material

Aluminum Alloy

Product Size(mm)

400(L)*400(W)*68(H)

Net Weight

6.5Kg

Certificate

CE/RoHS

Warranty Period

5 years




Competitive Advantage:



1. 120-130lm/w CREE/SAMSUNG LEDS, lamp luminous efficiency can reach 100lm/w

2. Meanwell HLG series power supply

3. Protection Grade: IP67

4. Power Factory:> 0.95, Power efficiency:>9%

5. Unique hollow out heat sink structure brings the lamp good heat dissipation performance than normal ones

6.  Beam angle :90°/ 120°/ 90°*120°/85°*135°

7.  Explosion approved

8.  Photocell sensor, motion sensor, and dimmable for optional




Product Dimensions of led canopy lights(mm):


80Watt recessed mounted LED Explosion proof Lights Meanwell Ra80 For Gas Station 0

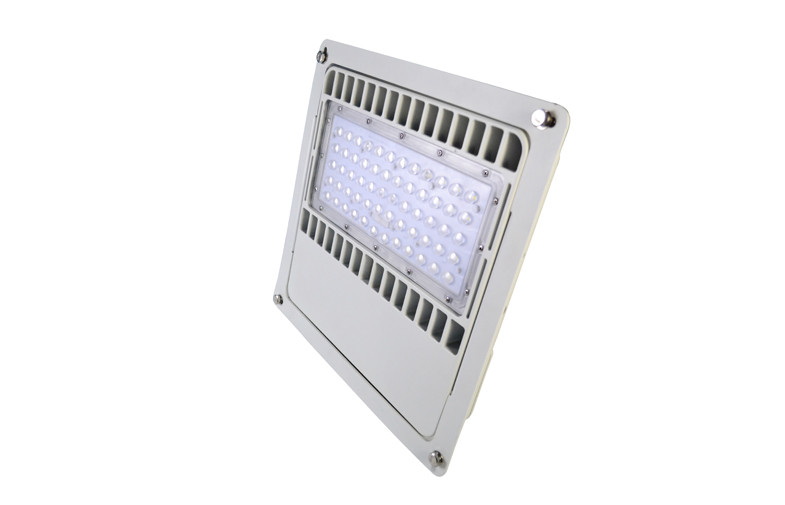

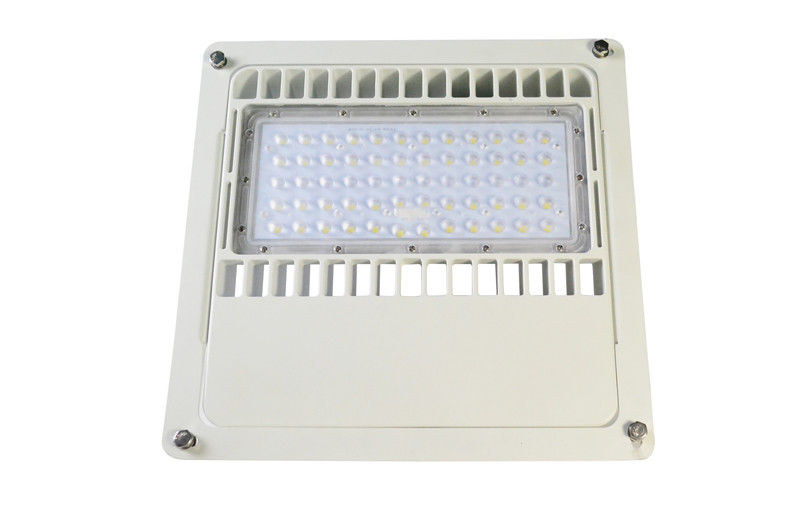

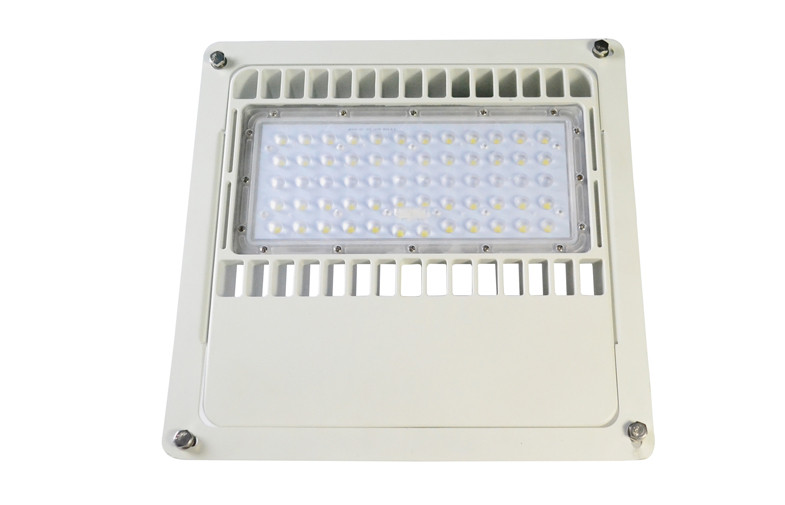

Photos show of led canopy lights:



80Watt recessed mounted LED Explosion proof Lights Meanwell Ra80 For Gas Station 1







Light distribution Curve:  90 Degree



80Watt recessed mounted LED Explosion proof Lights Meanwell Ra80 For Gas Station 2







Installation:



80Watt recessed mounted LED Explosion proof Lights Meanwell Ra80 For Gas Station 3


Applications:

Wildly applied in petrol station, outdoor canopy, factory, retail stores or other places which need anti-corrosion, anti-explosion, dust-proof and water-proof luminaires.
