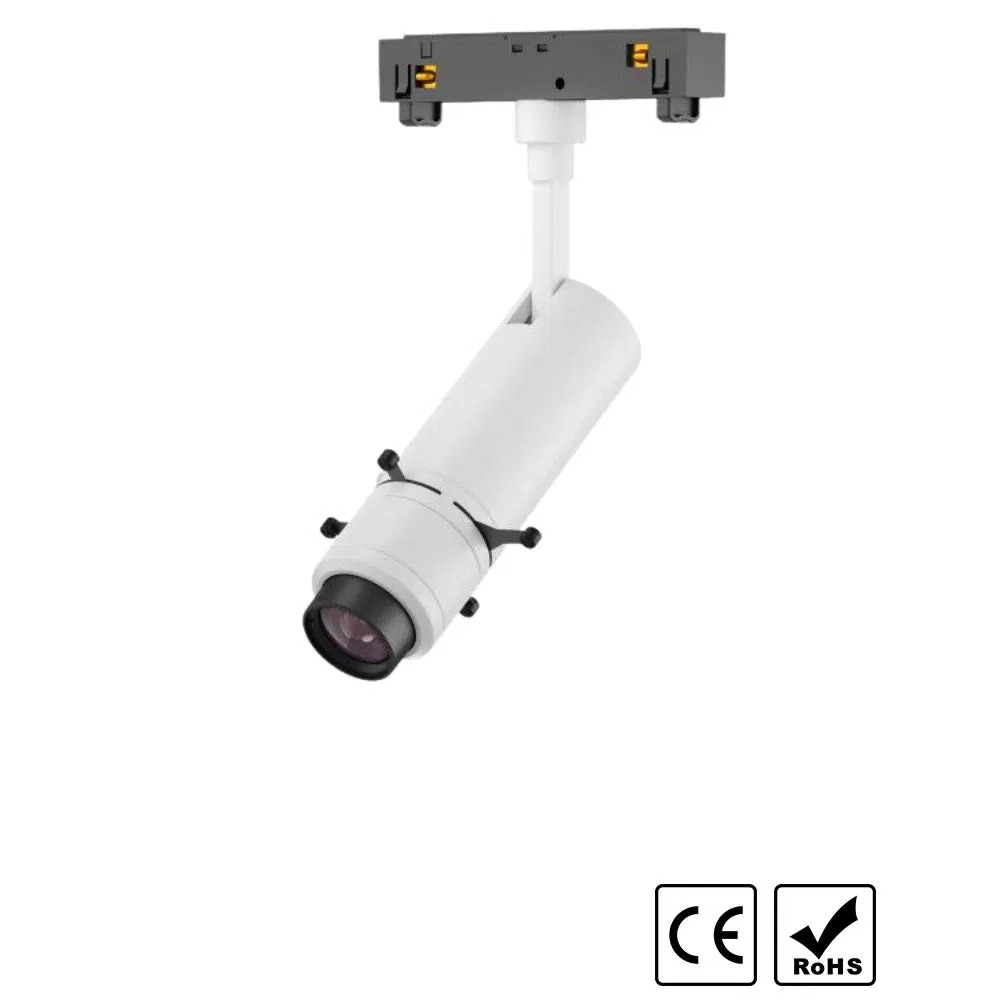

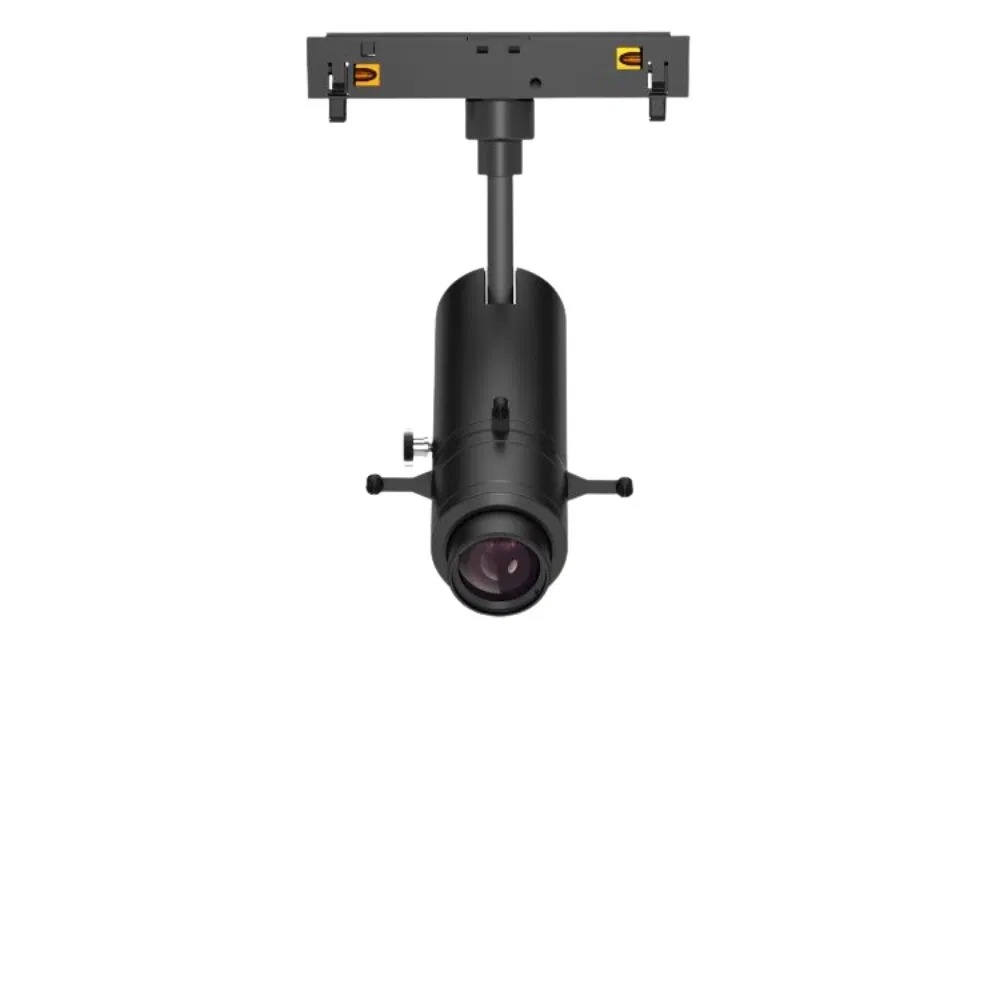

Factory Price 3W 2700K-4000K Adjustable LED Shapeable Contour Track Light
The Kingfisher 2 Series T0303K-1855 is a compact 3W LED shapeable track light delivering 70-75 lumens with high color accuracy (Ra≥97) and adjustable 2700K-4000K CCT. Featuring a fixed 55° wide-angle lens, it provides uniform illumination with ≤0.4% TV distortion and 0.01/1 projection sharpness for crisp visuals. Its ultra-lightweight design (0.12kg) and Ø18mm mini radiator enable discreet installations in museums, retail, or hospitality spaces. The light supports smart controls (DALI, Zigbee, Bluetooth) for dimming and tunable white, while the 9-piece optical lens ensures millimeter-precise spot shaping. With a 55° circular/square spot projection and UGR<19 for glare-free lighting, it's ideal for accent lighting, art displays, and commercial environments requiring compact, high-definition illumination.
Key Features
- Ultra-Compact Design: At just 0.12kg with a Ø18mm radiator, this mini spotlight fits discreetly in tight spaces while delivering professional-grade lighting performance.
- Crisp Projection Quality: Features 9 high-definition optical lenses for ≤0.4% TV distortion and 0.01/1 sharpness, ensuring clear, distortion-free visuals.
- Smart Control Ready: Supports DALI, Zigbee, and Bluetooth for seamless dimming and tunable white (2700K-4000K) integration into automated lighting systems.
- Glare-Free Illumination: UGR<19 rating minimizes glare, making it ideal for museums, galleries, and retail displays requiring comfortable viewing.
- Precise Beam Shaping: Fixed 55° wide-angle lens with uniform light distribution enables accurate spotlighting or wide coverage for diverse applications.
- Energy-Efficient Performance: 3W power consumption with 70-75LM output balances brightness and sustainability, perfect for long-term commercial use.
Technical Specifications
| Item No. | T0303K - 1855 |
| Power | 3W |
| Luminous Flux (3000K) | 70-75LM |
| Beam Angle (Lens Model) | Fixed 55° (1855) |
| Ra | 97 |
| Input Voltage (AC/DC) | 48VDC |
| Color of Housing | Black |
| Dimension (mm) | ¢18*H50 |
| Track Type | 2/3/4/6 wires/surface mount |
Design Advantages
Cold Forging Integrated Radiator Design
A radiator made of 1070# pure aluminum and molded by molding pressure. It has high thermal conductivity, low-temperature differences, low light failure, and long service life. Thermal conductivity 226W/m.K
360° Manual Rotation Design
Loosen the manual screw and turn the lens to achieve the 360° spot rotation adjustment function. Device to solve the 360° rotation of the projection and light spot.
High-Definition Optical Lens Design
It is formed by a plurality of high-definition coated optical lenses. The whole lamp has the characteristics of high luminous efficiency, high spot uniformity, minor distortion, extensive linear zoom range, good spot cut-off line, etc. A new optical path specially designed for COB light sources.
Optical-Grade Variable Aperture Design
An optical diaphragm made of high-precision special material with no blurring and freezing. Manual insertion and removal of the light cutting device can freely change the shape of the spot.
Multi-Layer Dry Damping Design
The invention is a focusing device not requiring the application of lubricating oil and has a silky feel. It is stable, reliable, wear-resistant, resistant to high temperatures, and does not wear off after extended use. Rotating the device can change the sharpness of the spot.
Linear Zoom Enhancement
Short stroke, considerable focal length, high short-focus and long-focus recognition, visible to the naked eye, linear zoom is enhanced and more convenient. Rotate the device to adjust the spot size.
Product Parameters
Application Scenarios
Museum & Gallery Lighting: The T0303K-1855's high CRI (Ra≥97) and precise 55° beam perfectly illuminate delicate artifacts and paintings without harmful UV/IR radiation, ensuring color accuracy and preservation.
Boutique Retail Displays: Ideal for jewelry and luxury goods with its crisp 0.01/1 sharpness and glare-free UGR<19 output, creating dramatic product highlights in compact display cases.
Hospitality Ambient Lighting: Compact size and tunable white (2700K-4000K) allow discreet installation in hotel lobbies, restaurants, and bars for creating warm, inviting atmospheres.
Architectural Detailing: The ultra-slim profile enables hidden accent lighting of architectural features, alcoves, or artwork in high-end residential/commercial spaces.
Smart Home Integration: Bluetooth/Zigbee compatibility makes it perfect for smart homes, allowing app-controlled lighting scenes in living rooms, kitchens, or home galleries.
Compact Commercial Spaces: Fits perfectly in small cafes, beauty salons, or reception areas where space is limited but premium lighting quality is essential.
Packaging & Shipping
Certifications
Frequently Asked Questions
Q1: What do you sell?
A1: We provide good quality of floodlight, high bay light, explosion proof light, tri-proof light, downlight, and other lighting products, as well as responsible services and reliable after-sales warranty.
Q2: Is it OK to print my logo on LED light product?
A2: Yes. We provide ODM and OEM services. Please inform us formally before our production and confirm the design firstly based on our sample.
Q3: How to deal with the faulty?
A3: During the guarantee period, we will send new lights with new order for small quantity. For defective batch products, we will repair them and resend them to you or we can discuss the solution including re-call according to real situation.
Q4: Can I have a sample order for LED light?
A4: Yes, we welcome sample order to test and check quality. One sample or mixed samples are acceptable.
Q5: How long time to ship the goods if place an order?
A5: Usually 7 days for sample or small order, 15 working days for bulk order, but sometimes depend on the order quantity.
