Factory Price 10W Zoomable LED Shapeable Commercial Track Lighting Contour Spotlight Track Light

Contact Now

Detail Information
Power:	10W	Luminous Flux:	300-350LM
Beam Angle:	15°-36°	Color Rendering:	Ra≥97
Color Temperature:	2700K/3000K/4000K	Projection Distortion:	≤0.6%
Weight:	0.67Kg	Dimensions:	¢65*H178.5mm
Lens Diameter:	¢38	Rotation Range:	355°
Track Compatibility:	2/3/4/6 Wires/surface Mount	Thermal Conductivity:	226W/m.K
Control Compatibility:	DALI/Zigbee/Bluetooth	Optical System:	11-lens
Material:	1070# Pure Aluminum
Highlight:	10W zoomable track light , shapeable commercial spotlight , LED contour track lighting

Product Description

Factory Price 10W Zoomable LED Shapeable Commercial Track Lighting Contour Spotlight Track Light

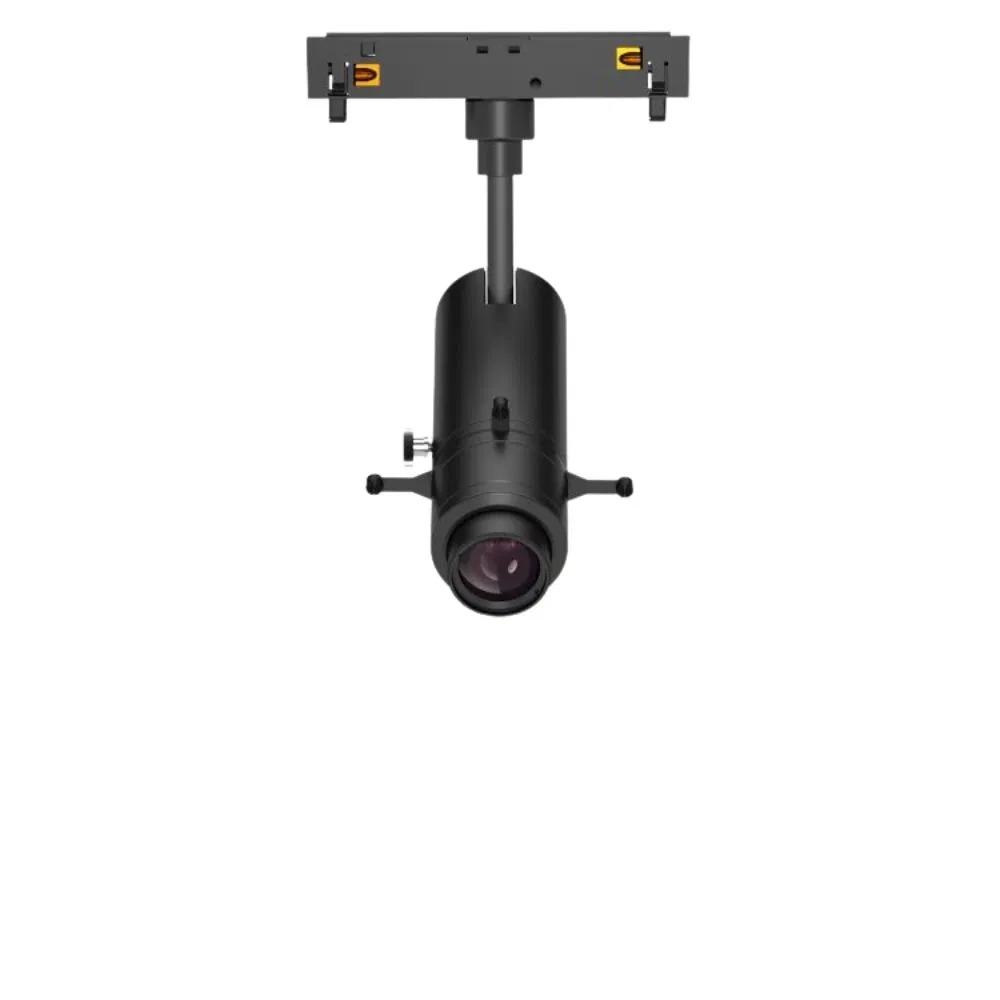

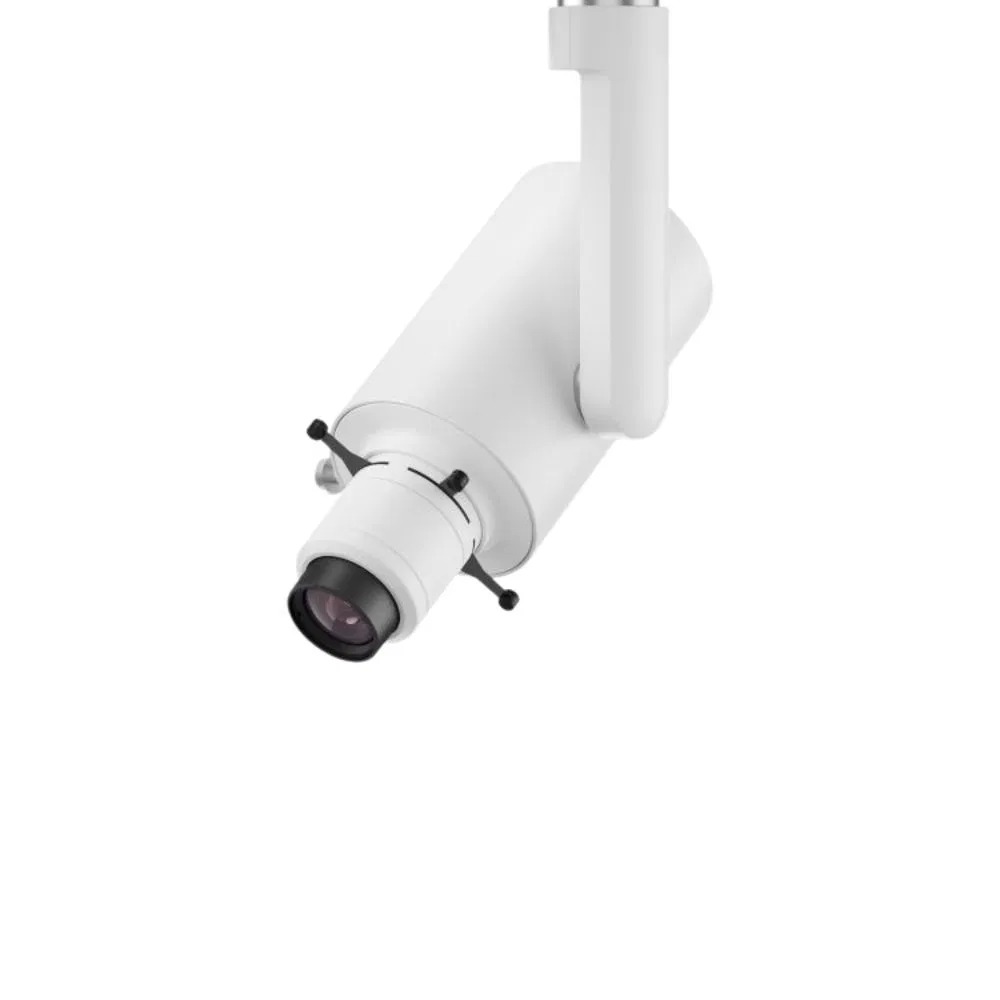

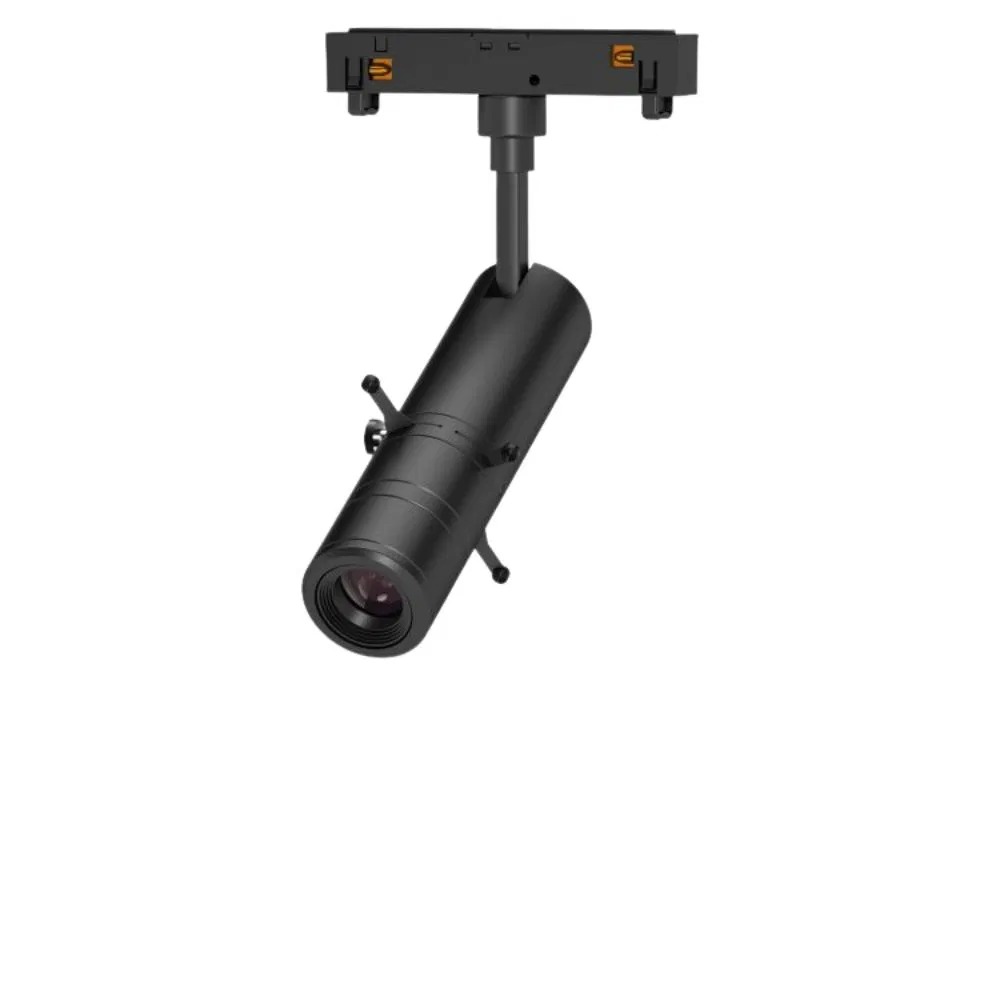

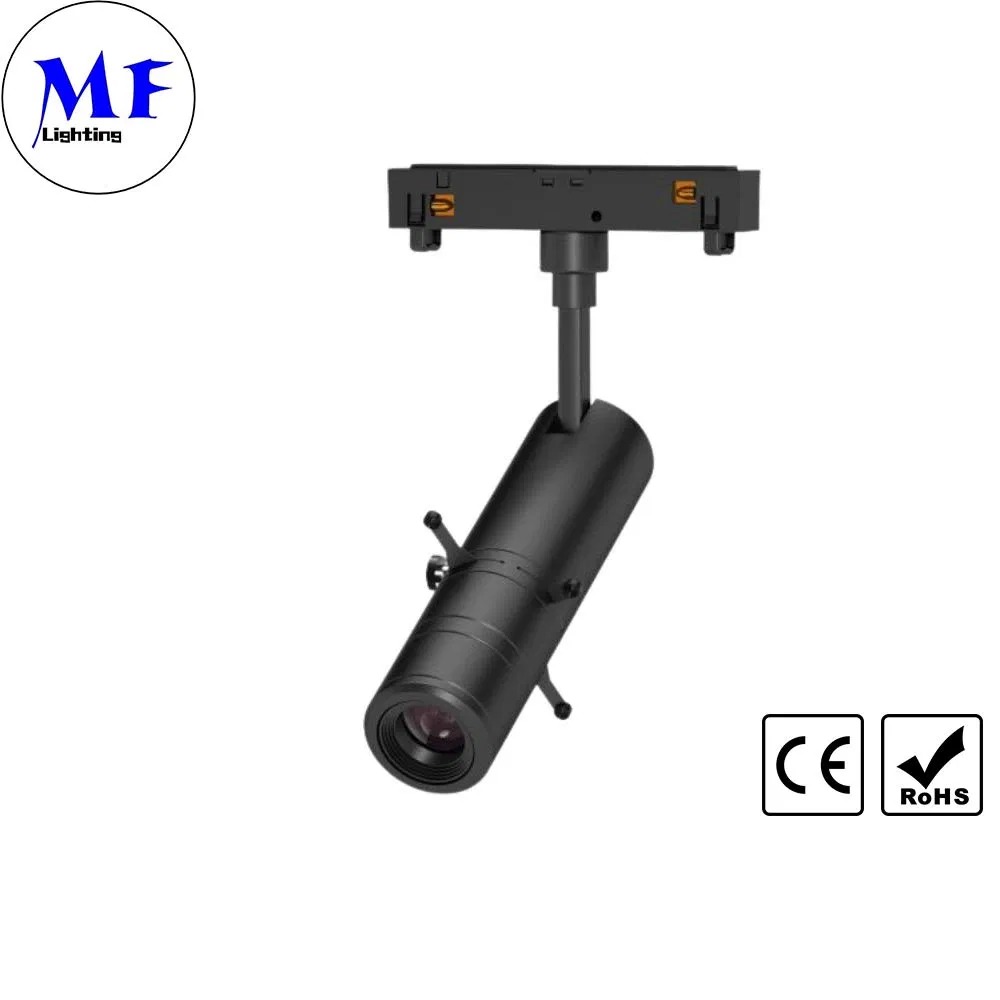

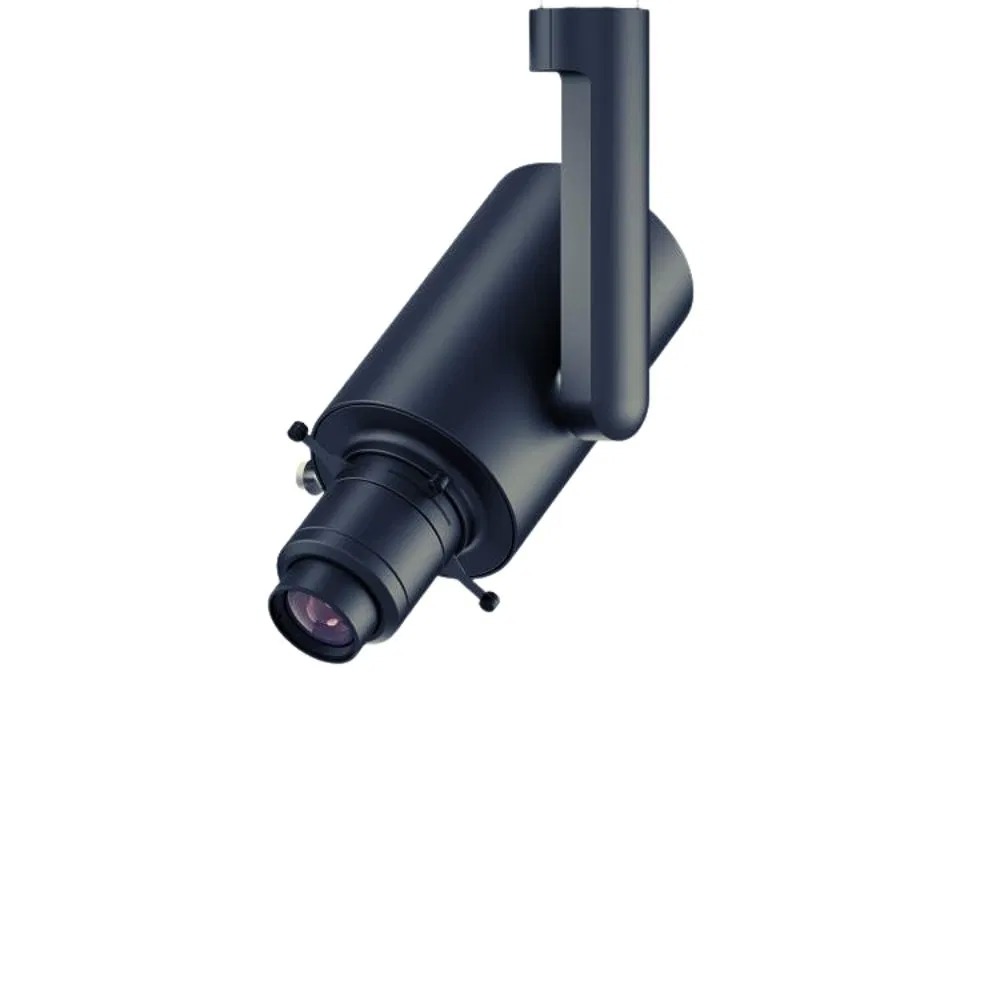

The T1008K-3836B is a 10W zoomable LED contour spotlight from Kingfisher 2 series featuring 15°-36° adjustable beam angle with ultra-sharp projection (≤0.6% distortion) and 300-350LM output. It offers Ra≥97 color rendering, 2700K/3000K/4000K CCT options, and smart control compatibility (DALI/Zigbee/Bluetooth). The compact track-mounted design (0.67Kg) features tool-free 355° rotation and 11-lens optical system for museum-quality lighting, ideal for retail displays, architectural accents, and premium commercial applications.

Technical Specifications

Item No.	T1008K-3836B
Power	10W
Luminous Flux (3000K)	300-350LM
Beam Angle (Lens Model)	Zoom 15-36° (3836B)
Ra	97
Color of Housing	Black, White
Dimension (mm)	¢65*H178.5(¢38 lens)
Track Type	2/3/4/6 wires / Surface mount

Key Features

Adjustable Zoom Lens (15°-36°) - Offers versatile beam control from spot to flood lighting, adapting to various space requirements with precision.
Ultra-Sharp Projection (≤0.6% Distortion) - Delivers crisp, high-definition lighting perfect for detailed gobo projections and architectural features.
True Color Rendering (Ra≥97) - Ensures vibrant, natural color accuracy for art galleries, retail displays, and premium environments.
Smart Lighting Integration - Compatible with DALI, Zigbee, and Bluetooth for seamless dimming, scheduling, and tunable white control.
Tool-Free 355° Rotation - Enables flexible positioning and easy adjustment without special tools for quick installation.
Compact & Lightweight (0.67Kg) - Sleek track-mounted design blends effortlessly into modern commercial spaces while maintaining high performance.

Technical Advantages

Cold Forging Integrated Radiator Design

A radiator made of 1070# pure aluminum and molded by molding pressure. It has high thermal conductivity, low-temperature differences, low light failure, and long service life. Thermal conductivity: 226W/m.K

360° Manual Rotation Design

Loosen the manual screw and turn the lens to achieve the 360° spot rotation adjustment function. Device to solve the 360° rotation of the projection and light spot.

High-Definition Optical Lens Design

Formed by a plurality of high-definition coated optical lenses. The whole lamp has high luminous efficiency, high spot uniformity, minor distortion, extensive linear zoom range, and good spot cut-off line. A new optical path specially designed for COB light sources.

Optical-Grade Variable Aperture Design

An optical diaphragm made of high-precision special material with no blurring and freezing. Manual insertion and removal of the light cutting device can freely change the shape of the spot.

Multi-Layer Dry Damping Design

A focusing device not requiring lubricating oil with silky feel. It is stable, reliable, wear-resistant, resistant to high temperatures, and does not wear off after extended use. Rotating the device can change the sharpness of the spot.

Linear Zoom Enhancement

Short stroke, considerable focal length, high short-focus and long-focus recognition, visible to the naked eye, linear zoom is enhanced and more convenient. Rotate the device to adjust the spot size.

Product Parameters

Application Scenarios

Museum & Art Gallery Lighting - The T1008K-3836B's high CRI and adjustable beam perfectly highlight artworks with precise, distortion-free illumination, enhancing every detail without glare.
Retail Visual Merchandising - Its zoom capability and uniform light distribution create ideal product presentation lighting for boutique displays and luxury retail environments.
Hospitality Lighting - With tunable white options, it provides warm-to-neutral lighting for hotel lobbies, restaurants, and bars to create inviting atmospheres.
Architectural Accentuation - The sharp projection and adjustable beam angle make it perfect for highlighting building features, columns, and interior design elements.
Event & Stage Lighting - Capable of crisp gobo projections and pattern creation for weddings, exhibitions, and performances with professional-grade quality.
High-End Residential Use - Offers premium lighting solutions for homes, including artwork illumination, statement ceiling lights, and modern interior lighting installations.

Packaging & Shipping

Certifications

Company Profile

Frequently Asked Questions

Q1: What do you sell?

A1: We provide good quality of floodlight, high bay light, explosion proof light, tri-proof light, downlight, and other lighting products, as well as responsible services and reliable after-sales warranty.

Q2: Is it OK to print my logo on led light product?

A2: Yes. We provide ODM and OEM services. Please inform us formally before our production and confirm the design firstly based on our sample.

Q3: How to deal with the faulty?

A3: During the guarantee period, we will send new lights with new order for small quantity. For defective batch products, we will repair them and resend them to you or we can discuss the solution including re-call according to real situation.

Q4: Can I have a sample order for led light?

A4: Yes, we welcome sample order to test and check quality. One sample or mixed samples are acceptable.

Q5: How long time to ship the goods if place an order?

A5: Usually 7 days for sample or small order, 15 working days for bulk order, but sometimes depend on the order quantity.
