800 Watt 90000LM Led Outdoor Flood Lighting With Meanwell Driver

Minimum Order Quantity : 100PCS Price : Negotiable
Packaging Details : 889*744*162mm/1pcs, G.W: 32.0Kg Delivery Time : Depends on orders
Payment Terms : T/T, Western Union,L/C, Paypal Supply Ability : 5,000pcs/Month
Place of Origin: China Brand Name: MF
Certification: CE, RoHS Model Number: MF-YFL900

Detail Information

Model No:: MF-YFL900 Input Voltage:: AC 85 -265V, 50/60Hz
Power:: 900W LED Chip:: SAMSUNG
LED Driver:: Meanwell CCT:: 3000K -6500K
IP Rating:: IP65 Beam Angle: 15°, 30°, 60° , 85*135°
House Color: Black Warranty: 5 Years
High Light:

led flood lights industrial

,

billboard led lights

Product Description

800 Watt 90000LM Led Outdoor Flood Lighting With Meanwell Driver





Description:



Ming Feng Lighting Co.,Ltd module design two sides led flood light suitable for led stadium lighting road lighting, parking lot lighting, village road ligting.The hollow out style heat sink bring lighter lamp body and better heat dissipation; Separable optic lens design, unipue multi-surface optic lens design, whick makes more uniform light distribution; Special bracket accord with mechanics structure design, safety and firm, beam angle adjustable, easy installation.



Our module design LED flood light has real saving and high efficiency LED design since the energy-saving can be up to 100~110lm/w and 5 years warranty. Different power as 400W , 600W , 800W , 900W etc for your projects application.





Specifications:



Item

MF-YFL900

Input voltage

85-265Vac  50Hz/60Hz

LED Power

800W

System Consumption

800W

Delivered Flux

90000lm

IP Rating

IP65

Beam Angle

15°, 30°, 60° , 85*135°

Color temperature

3000K-6500K

LED Chip

SAMSUNG

LED Driver

Meanwell

Color Rendering Index

Ra>70

Power Factor

>0.9

Lifespan

≥50,000hrs

Operation Environment

Temperature:-40°C~50°C/Humidity:10%~95%

Material

Aluminum Alloy

Product Size(mm)

840(L)*712(W)*100(H)

Carton Size(mm) 889(L)*744(W)*162(H)/PCS

Gross Weight

32.0Kg

Certificate

CE/RoHS

Warranty Period

5 years







Competitive Advantage:



1. Meanwell HLG power supply, PF>0.9.

2. Power from 400W to 900W for choice.

3. 120-130lm/w SAMSUNG, lamp luminous efficiency can reach 100lm/w.

4. Hollow out style heat sink bring lighter lamp body and better heat dissipation.

5. Separable optic lens design, unipue multi-surface optic lens design, whick makes more uniform light distribution.

6.  Special bracket accord with mechanics structure design, safety and firm, beam angle adjustable, easy installation.

7.  Beam angle: 15°, 30°, 60° , 85*135° for option.

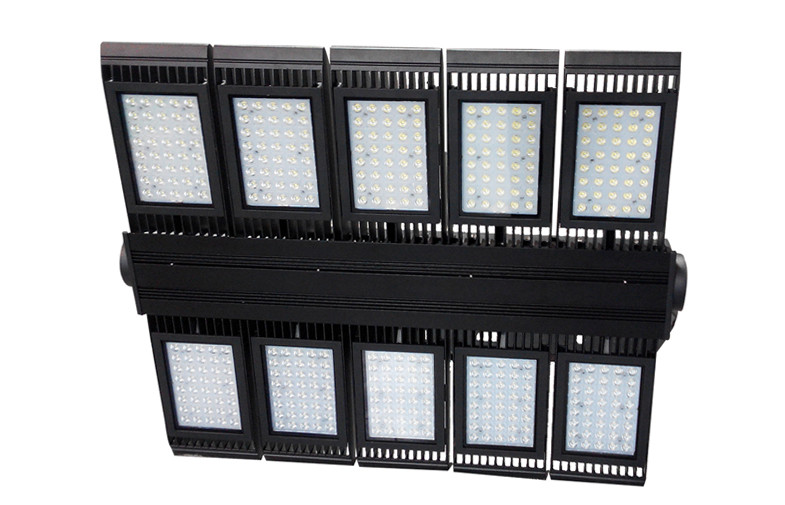

LED Stadium Light Photos:



800 Watt 90000LM Led Outdoor Flood Lighting With Meanwell Driver 0



800 Watt 90000LM Led Outdoor Flood Lighting With Meanwell Driver 1

800 Watt 90000LM Led Outdoor Flood Lighting With Meanwell Driver 2



800 Watt 90000LM Led Outdoor Flood Lighting With Meanwell Driver 3





Installation Instruction:



800 Watt 90000LM Led Outdoor Flood Lighting With Meanwell Driver 4











Applications:

Led stadium lighting, road lighting, parking lot lighting, village road ligting and gymnasiums.
