Pendant mounted High Power LED Flood Light cool white 19800 Lumen Sport Field Lighting

Minimum Order Quantity : 100PCS Price : Negotiable
Packaging Details : 537*477*200mm/1pcs, G.W: 15.0Kg Delivery Time : Depends on orders
Payment Terms : T/T, Western Union, L/C, Paypal Supply Ability : 5,000pcs/Month
Place of Origin: China Brand Name: MF
Certification: CE, RoHS,DLC Model Number: MF-YTL180

Detail Information

Power: 180W Input Voltage: AC 85 -265V, 50/60Hz
LED Chip: Samsung / LED Driver: Meanwell
CCT: 3000-6500K IP Grade: 67
Beam Angle: 30°, 60°, 60°*135°, 85°*135° House Color: Sliver / Black
Warranty: 5 Years Certificated: CE, Rohs, DLC
High Light:

led flood lights industrial

,

led construction lights

Product Description



Pendant mounted High Power LED Flood Light cool white 19800 Lumen Sport Field Lighting



Description:

Ming Feng Lighting Co.,Ltd come out New type of Module LED Flood Light,2015. Unlike traditional LED Flood Light which the heat sinker in on the back of the lamp, this new item using special fin type heat sinker, making the lamp lighter and better in heat dissipation. And the place for installing the LED driver is unique and put aside from the heat sinker, not upon the heat sinker. Which makes the LED driver be in lower heat working environment, keeping the lamp with longer life span.

Our Module LED flood light has real saving and high efficiency LED design since the energy-saving can be up to 120-130lm/w and 5 years warranty. Different power available: 10W, 30W, 50W, 80W, 100W, 120W, 150W, 180W, 320W 360W etc. We provide various LED flood light with good illumination effect for your selection.


Specifications:



Item

MF-YTL180

Input voltage

85-265Vac  50Hz/60Hz

LED Power

180W

System Consumption

180±5W

Delivered Flux

19800lm

IP Rating

IP67

Beam Angle

30°,60°,60*135,80*135

Color temperature

3000K-6500K

LED Chip

Rebel Es

LED Driver

Meanwell

Color Rendering Index

Ra>75

Power Factor

>0.9

Color Of Housing Silver / Grey / Black

Lifespan

≥50,000hrs

Operation Environment

Temperature:-40°C~50°C/Humidity:10%~95%

Material

Aluminum Alloy

Product Size(mm)

450(L)*390(W)*89(H)

Net Weight

17.2Kg

Certificate

CE/RoHS

Warranty Period

5 years



Competitive Advantage:

1. We are using 120-130lm/W Rebel ES. It is one of the best leds from .
2. High light transmittance plastic lens for each leds, lamp luminous flux can reach 90-95lm/w.
3. Built-in Meanwell drivers, make the flood light safer for operation.
4. Adjustable bracket equipped with three different fastening points, which enable the installation of the fitting in each position needed.
5. 12 / 30 / 60 / 60X135 / 85X135 deg beam angles optional, different applications are fulfilled in one simple design, which can direct the light to the exact area needed, no light pollution. It is espcially suitable for stadium and sports field.
6. Color of housing :  Silver /  Grey / Black.
7. IP rating: IP67.


180W led flood light dimension:

Pendant mounted High Power LED Flood Light cool white 19800 Lumen Sport Field Lighting 0

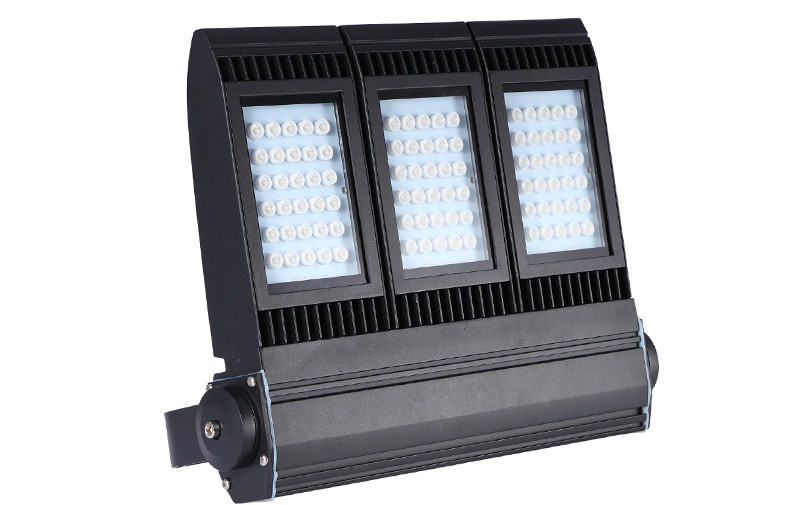

180W led flood light shows:

Pendant mounted High Power LED Flood Light cool white 19800 Lumen Sport Field Lighting 1




Light Distribution Curve:

Pendant mounted High Power LED Flood Light cool white 19800 Lumen Sport Field Lighting 2

Applications:

Widely used in billboards, highways, railway tunnels, bridges, squares, stadiums, trees, parking lots, building walls, hotel, meeting room, offices , hospital , schools , factories , commercial lighting , shopping malls, supermarkets, kitchen, display, backlight and so on.
