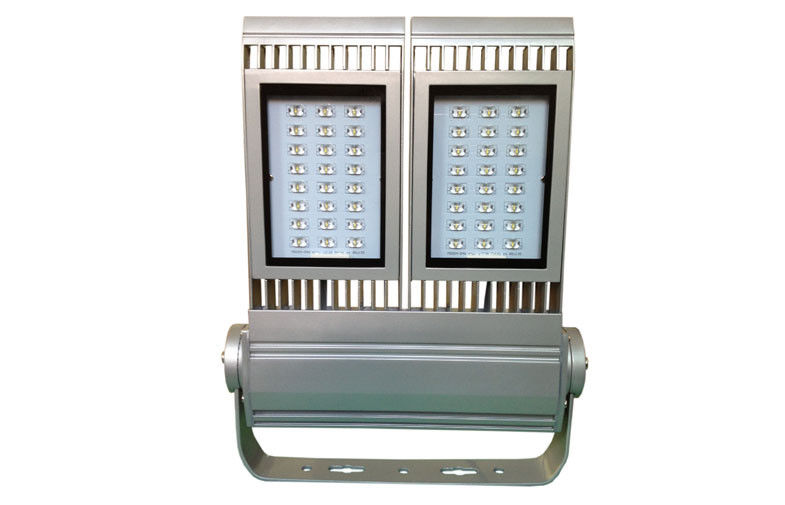

140W IP67 CE, DLC High Power LED Flood Light 14560 Lumen Silver Grey / Black color

Minimum Order Quantity : 100PCS Price : Negotiable
Packaging Details : 521*388*166mm/1pcs, G.W: 9.3Kg Delivery Time : Depends on orders
Payment Terms : T/T, Western Union, L/C, Paypal Supply Ability : 5,000pcs/Month
Place of Origin: China Brand Name: MF
Certification: CE, RoHS,DLC Model Number: MF-YFL140

Detail Information

Power: 140W Input: 85-265Vac, 50/60Hz
Chip Brand: / Samsung LED Driver: Meanwell
Beam Angle: 30°, 60°, 60°*135°, 85°*135° CRI: >75
IP Grade: IP67 House Color: Sliver / Black
CCT: 3000-6500K Warranty: 5 Years
Certificated: CE, Rohs, DLC Efficiency: 110lm/Watt
High Light:

led flood lights industrial

,

led construction lights

Product Description


140W IP67 CE, DLC High Power LED Flood Light 14560 Lumen Silver Grey / Black color


Description:

Ming Feng Lighting Co.,Ltd come out New type of Module LED Flood Light. Unlike traditional LED Flood Light which the heat sinker in on the back of the lamp, this new item using special fin type heat sinker, making the lamp lighter and better in heat dissipation. And the place for installing the LED driver is unique and put aside from the heat sinker, not upon the heat sinker. Which makes the LED driver be in lower heat working environment, keeping the lamp with longer life span.

Our Module LED flood light has real saving and high efficiency LED design since the energy-saving can be up to 120-130lm/w and 5 years warranty. Different power available: 10W, 30W, 50W, 80W, 100W, 120W, 150W, 180W, 320W 360W etc. We provide various LED flood light with good illumination effect for your selection.


Specifications:


Item

MF-YFL140

Input voltage

85-265Vac  50Hz/60Hz

LED Power

140W

System Consumption

140±3W

Delivered Flux

14560lm

IP Rating

IP67

Beam Angle

30°,60°,60*135,80*135

Color temperature

3000K-6500K

LED Chip

Rebel Es

LED Driver

Meanwell

Color Rendering Index

Ra>75

Power Factor

>0.9

Color Of HousingSilver / Grey / Black

Lifespan

≥50,000hrs

Operation Environment

Temperature:-40°C~50°C/Humidity:10%~95%

Material

Aluminum Alloy

Product Size(mm)

521(L)*388(W)*166(H)

Net Weight

10.2Kg

Certificate

CE/RoHS

Warranty Period

5 years



Competitive Advantage:

1. We are using 120-130lm/W Rebel ES. It is one of the best leds from .
2. High light transmittance plastic lens for each leds, lamp luminous flux can reach 90-95lm/w.
3. Built-in Meanwell drivers, make the flood light safer for operation.
4. Adjustable bracket equipped with three different fastening points, which enable the installation of the fitting in each position needed.
5. 12 / 30 / 60 / 60X135 / 85X135 deg beam angles optional, different applications are fulfilled in one simple design, which can direct the light to the exact area needed, no light pollution. It is espcially suitable for stadium and sports field.
6. Color of housing :  Silver /  Grey / Black.
7. IP rating: IP67.

 Dimensions:

140W IP67 CE, DLC High Power LED Flood Light 14560 Lumen Silver Grey / Black color 0


 150W Flood light show:

140W IP67 CE, DLC High Power LED Flood Light 14560 Lumen Silver Grey / Black color 1

140W IP67 CE, DLC High Power LED Flood Light 14560 Lumen Silver Grey / Black color 2


Light Distribution Curve:

140W IP67 CE, DLC High Power LED Flood Light 14560 Lumen Silver Grey / Black color 3


Applications:

Widely used in billboards, highways, railway tunnels, bridges, squares, stadiums, trees, parking lots, building walls, hotel, meeting room, offices , hospital , schools , factories , commercial lighting , shopping malls, supermarkets, kitchen, display, backlight and so on.
 140W IP67 CE, DLC High Power LED Flood Light 14560 Lumen Silver Grey / Black color 4
