100W IP65 Led Flood Light 0-10V,1-10V, DALI Dimmable For Sports Field Lighting

Minimum Order Quantity : 100PCS Price : Negotiable
Packaging Details : 377(L)X 277(W)X 215(H)/PCS, N.W: 2.9Kg G.W: 3.8kg Delivery Time : Depends on orders
Payment Terms : T/T, Western Union, L/C, Paypal Supply Ability : 1,000pcs/Month
Place of Origin: China Brand Name: MF
Certification: CE, RoHS, FCC,SAA CB,DLC, TUV Model Number: MF-EFL-100W

Detail Information

Power: 100Watt Input: 90-305Vac, 50/60Hz
Chip Brand: PHILILPS LED Driver: Meanwell
Beam Angle: 60°, 90° , 60°*135° CRI: 80+
IP Grade: IP65 House Color: Black/Red
Efficiency: 120lm/Watt CCT: 3000K / 4000K / 5000K / 6500K
Dimmable: 0-10V, 1-10V, Triac, Dali Warranty: 3 Years
Lifespan: 80,000H Operating Temp: -40℃~+65℃
High Light:

led flood lights

,

sport field lights

Product Description

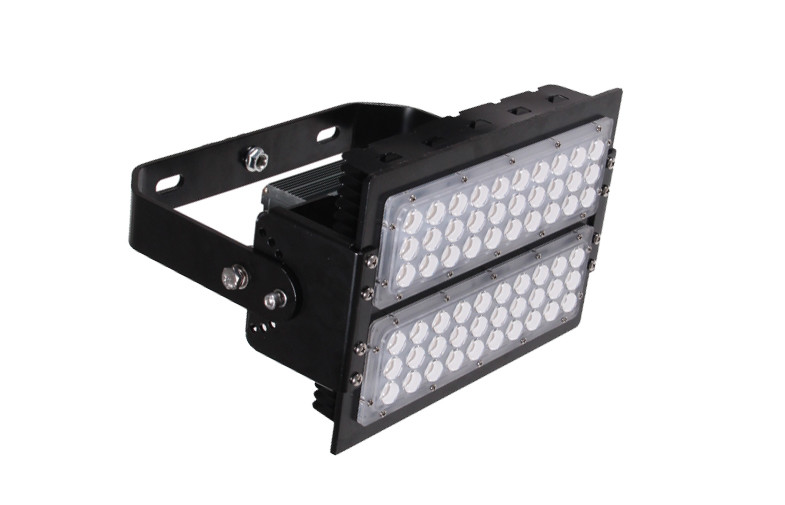

100W IP65 Led Flood Light 0-10V,1-10V, DALI dimmable for sports field lighting


Description:

Ming Feng Lighting Co.,Ltd IP65 Waterproof led flood light use USA PHILILPS LED, Customized higher
efficiency 120lm/w are available. Module angle adjustable to project aimed lighting area accurately.
And adustable bracket equips with three different fixing points, which enable the installation of the fitting become very flexiable.


Ming feng LED Flood Light applied in large sports field ligting,football, basketball, golf and tennis court, racetrack, badminton, roads, high-rise buildings, tower lights, etc. Can also be applied in large square, airport, commercial building, construction engineering, farm, amusement parks, parking lots, harbor, industrial buildings, and other special lighting environment.

Specifications:  MF-EFL-100W Spec.pdf


Item

MF-EFL-100W

Input voltage

90-305Vac  50Hz/60Hz

LED Power

100W

System Consumption

100±5W

Delivered Flux

12000lm

IP Rating

IP65

Beam Angle

60°, 90°, 60*135°

Color temperature

3000K / 4000K / 5000K / 6500K

LED Chip

LED Driver

Meanwell

Color Rendering Index

Ra>80

Power Factor

0.98

Color of HousingBlack/Red

Lifespan

80,000hrs

Operation Environment

Temperature:-40°C~65°C/Humidity:10%~90%

Storge Temperature-40°C~50°C(Best 25°C)

Material

Anti-corrosion Die Cast Aluminum Alloy

Product Size(mm)

298(L)x192(W)x205(H)mm

Net Weight

2.9Kg

Certificate

CE/RoHS/TUV/GS/SAA/FCC/DLC

Warranty Period

3 years




Competitive Advantage:

1.Customized USA Packaged  LED, 130lm/w, CRI up to Ra80. Junction temperature <70°C. More stable than other LEDs.
2.TaiWan MeanWell LED Drivers, wide AC90V~305V, PF>0.98, low THD<9%.
3.L70>80,000hrs. Design lifespan 100,000hrs.
4.Module angle adjustable to project aimed lighting area accurately.
5. Constant current and constant voltage design, much more reliable than other LED floodlights.
6. Japan secondary optical DIWL lens, light transmittance of PMMA up to 98%. 60°,90°, 60*135° beam angles are available.
7. High strength structure with 6063-T5 aluminum alloy. Coated with corrosion resistant polyester powder, real anti-corrosion.
8. Intelligent dimming system, 0-10V, 1-10V, Dali, Triac dimming models are available


100W IP65 Led Flood Light 0-10V,1-10V, DALI Dimmable For Sports Field Lighting 0


Product show:

100W IP65 Led Flood Light 0-10V,1-10V, DALI Dimmable For Sports Field Lighting 1



100W IP65 Led Flood Light 0-10V,1-10V, DALI Dimmable For Sports Field Lighting 2100W IP65 Led Flood Light 0-10V,1-10V, DALI Dimmable For Sports Field Lighting 3
