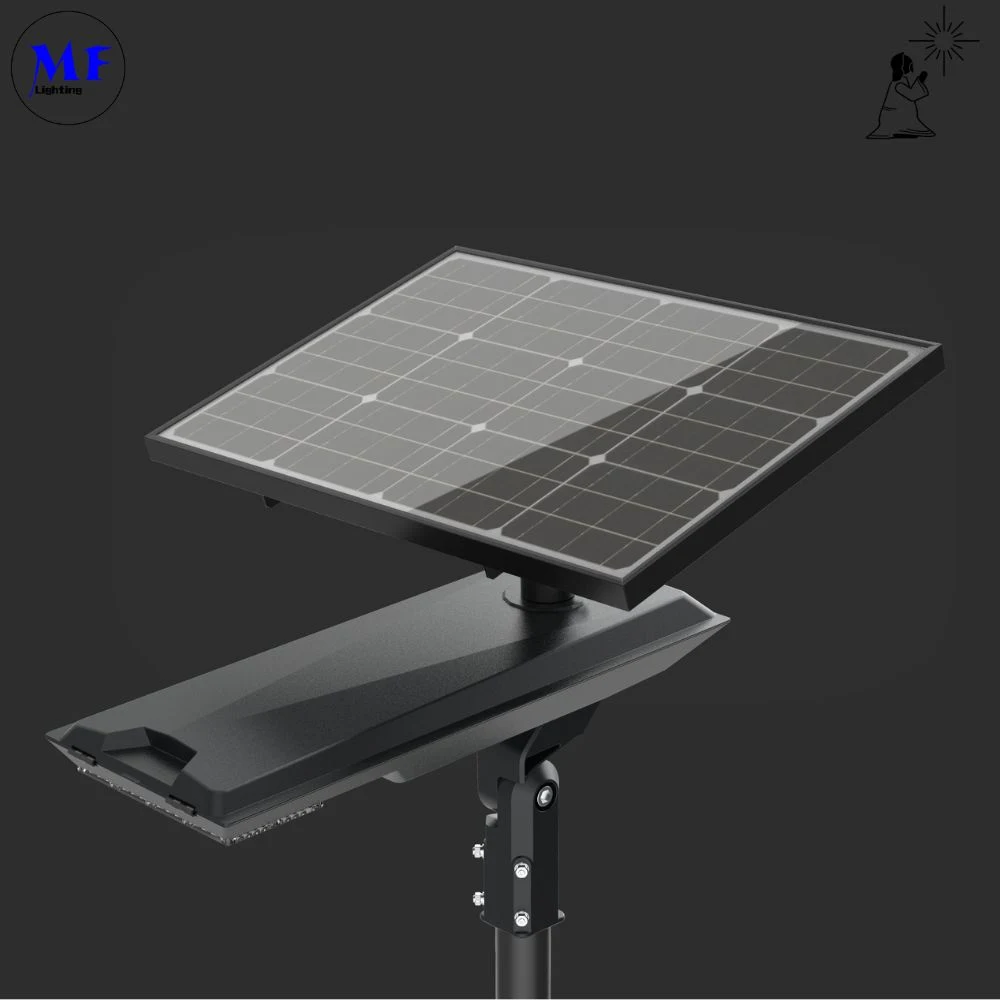

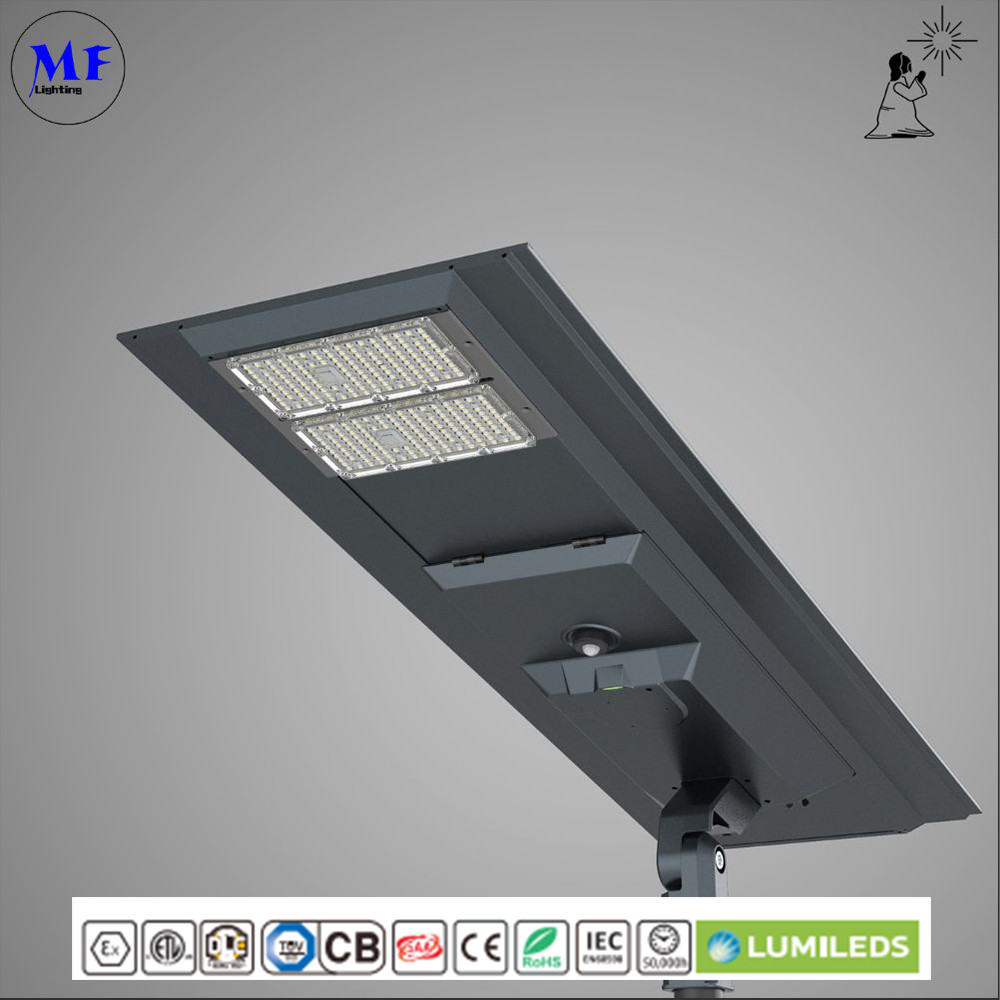

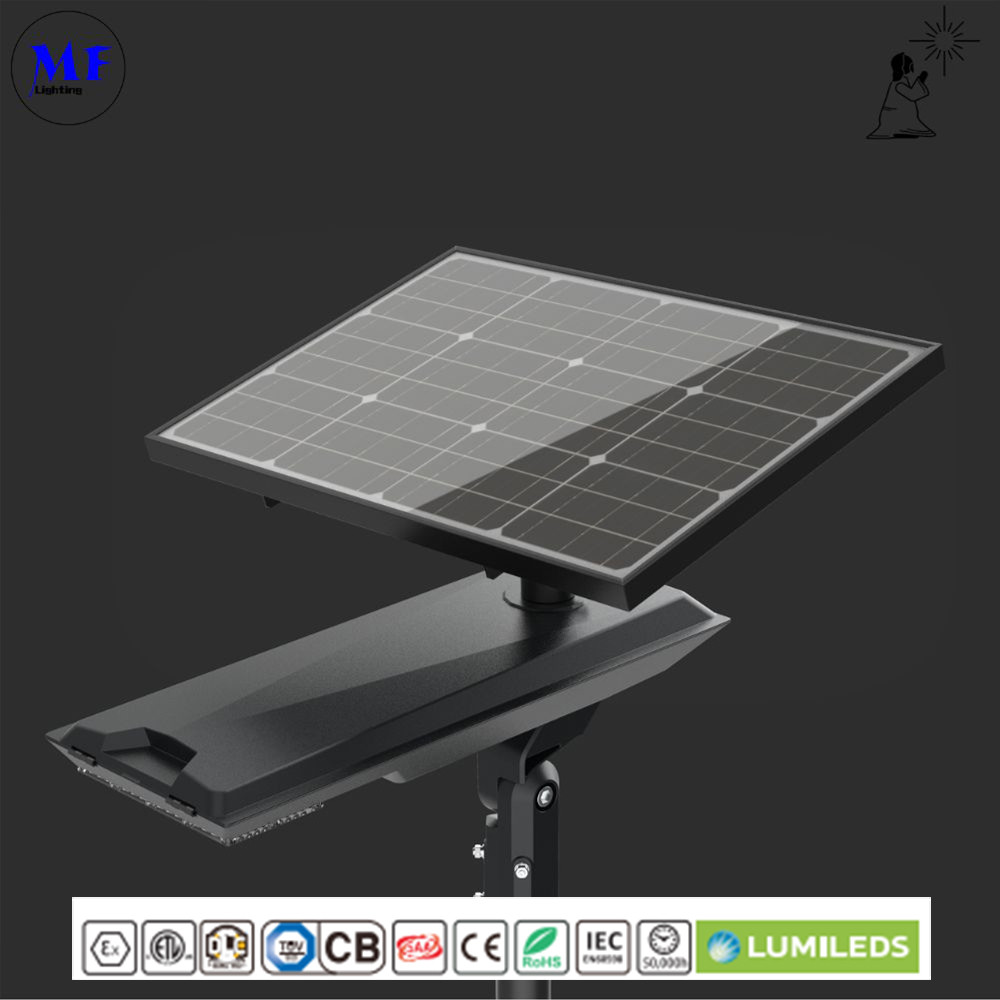

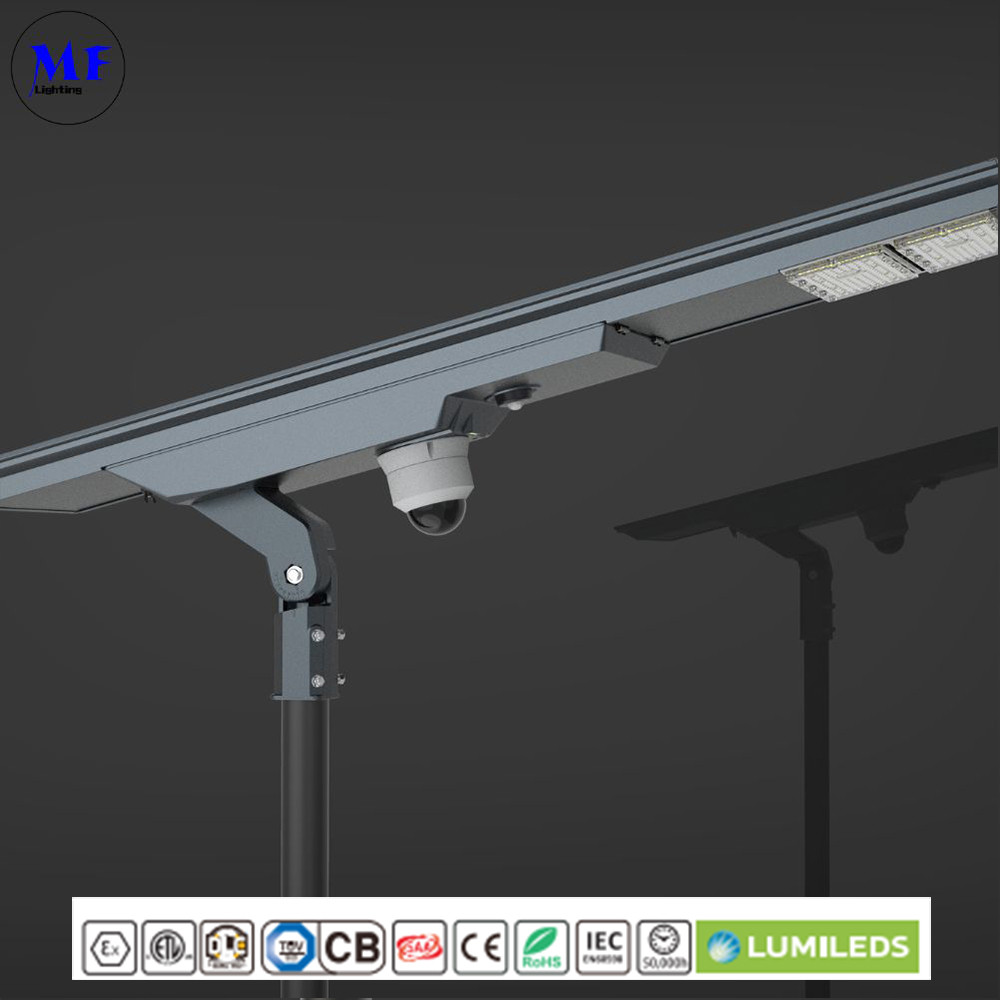

IP66 Outdoor LED Solar Street Light With IR/Motion Sensor Security CCTV Camera

Minimum Order Quantity : 100PCS Price : Negotiable
Packaging Details : 16.5*15*22cm/1pcs, G.W: 1.2Kg Delivery Time : Depends on orders
Payment Terms : T/T, Western Union, L/C, Paypal Supply Ability : 5,000pcs/Month
Place of Origin: China Brand Name: MF
Certification: CE, RoHS,SAA Model Number: MF-Heliso-3

Detail Information

Power Supply: Solar CCT: 4000K-5700K
Material: ADC12 Aluminum+Al6063+PC Power: 20W/30W/40W/50W/60W/70W/80W/90W/100W/110W/120W

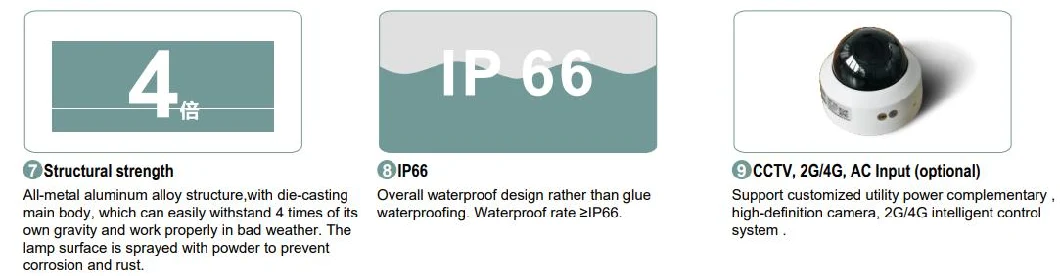

IP Rate: IP66 Warranty: 3years
Control System: PWM/MPPT/AC Input Beam Angle: 160°/85°, 160°/95°
Storage Temperature: -20°C~+40ºC Working Temperature: -10°C~+50ºC
Lumen Efficiency: 100 Lm/W ( Bespoke≥175lm/W) Battery: Li(Nicomn)O2 /LiFePO4 Battery
Certification: CE/CB/ROHS/TUV Recommended Installing Height: 4~8m
Control Ways: PIR / Microwave / Time / Remote
High Light:

IP66 Outdoor LED Solar Street Light

,

IR Sensor LED Solar Street Light

,

5700K Solar LED Street Light

Product Description

Product Description

Factory Price Solar Light IR/Motion Sensor Security CCTV Camera IP66 COB SMD Integrated Outdoor Parking Light solar Light
Factory Price Solar Light IR/Motion Sensor Security CCTV Camera IP66 COB SMD Integrated Outdoor Parking Light solar LightFactory price Solar Light IR/Motion Sensor Security CCTV Camera IP66 COB SMD Integrated Outdoor Parking light Sloar Light

Product Description


Factory Price Solar Light IR/Motion Sensor Security CCTV Camera IP66 COB SMD Integrated Outdoor Parking Light solar Light

Factory Price Solar Light IR/Motion Sensor Security CCTV Camera IP66 COB SMD Integrated Outdoor Parking Light solar LightFactory Price Solar Light IR/Motion Sensor Security CCTV Camera IP66 COB SMD Integrated Outdoor Parking Light solar Light
Factory Price Solar Light IR/Motion Sensor Security CCTV Camera IP66 COB SMD Integrated Outdoor Parking Light solar Light
Factory Price Solar Light IR/Motion Sensor Security CCTV Camera IP66 COB SMD Integrated Outdoor Parking Light solar Light
Factory Price Solar Light IR/Motion Sensor Security CCTV Camera IP66 COB SMD Integrated Outdoor Parking Light solar Light

Factory Price Solar Light IR/Motion Sensor Security CCTV Camera IP66 COB SMD Integrated Outdoor Parking Light solar Light

Color Warm white(WW) Nature white(NW) Cool white (CW)
Color temperature 4000±300K 5000±300K 5700±300K
CRI ≥70
Beam Angle 155°/70°(20-120W,TM3),155°/75°(60-120W,TM2)
Material ADC12 , AL6063,PC
Discharge time 12 hours /day, 3 days +4 days low brightness

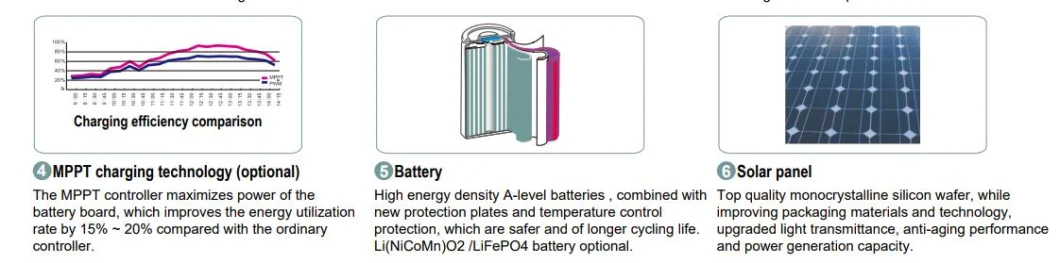

Control system PWM/MPPT/ AC input
Storage temperature -20°C~40°C
Working temperature -10°C~20°C
Battery type 32-LiFePO4
Power 20~120W
Luminous flux 2000~12000 lm
Luminous efficiency 100 lm/W ( Bespoke≥175lm/W)
Recommended installing height 4~8m
Control ways PIR / Microwave / Time / Remote
LED brand Lu-mileds/CREE Power 0.3 W
LED size 3.0X3.0X0.52 mm CRI ≥70
Beam Angle 120° LED efficiency 180-190 lm/W

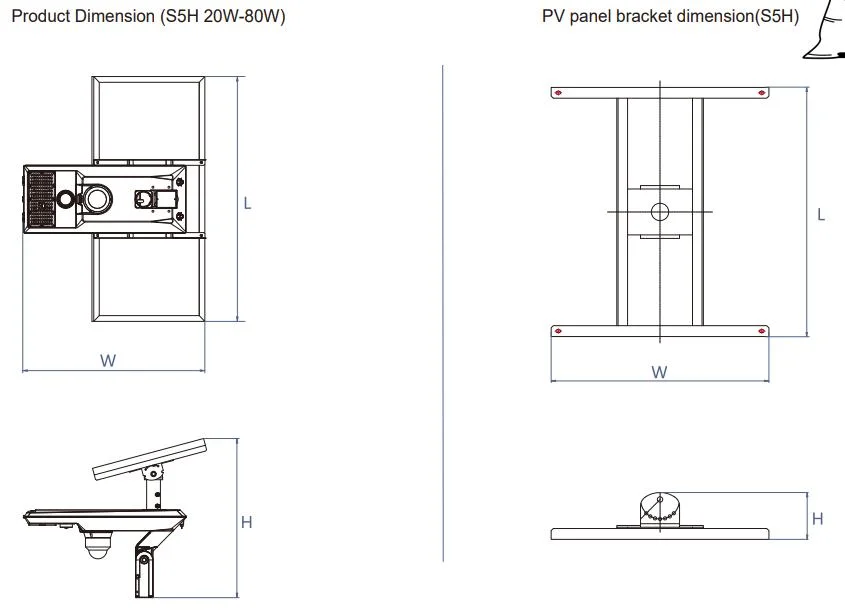

Product dimension:

Factory Price Solar Light IR/Motion Sensor Security CCTV Camera IP66 COB SMD Integrated Outdoor Parking Light solar Light
Photometry

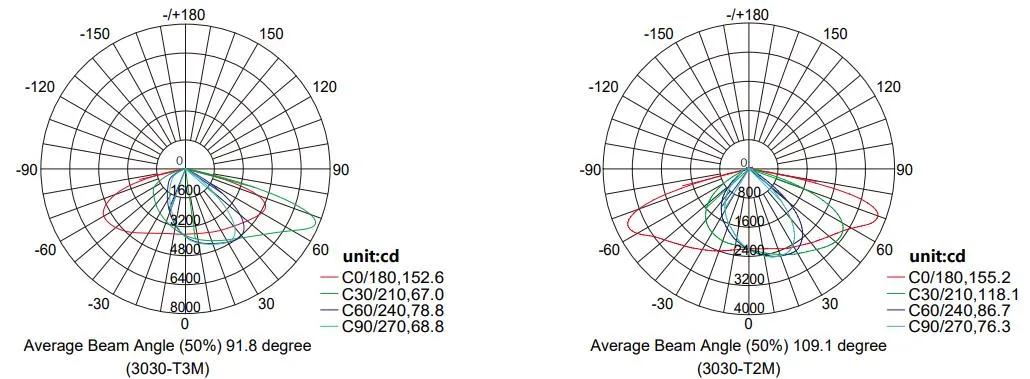

LIGHT DISTRIBUTION CURVE

Factory Price Solar Light IR/Motion Sensor Security CCTV Camera IP66 COB SMD Integrated Outdoor Parking Light solar Light


Factory Price Solar Light IR/Motion Sensor Security CCTV Camera IP66 COB SMD Integrated Outdoor Parking Light solar Light

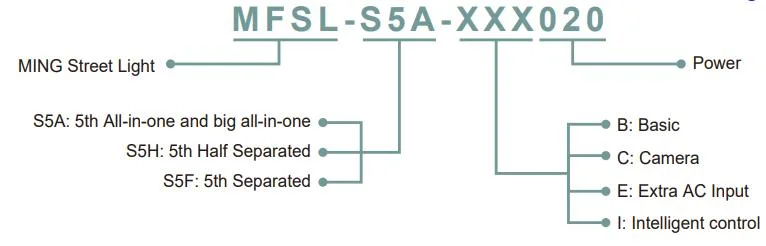

ALL-IN -TWO TYPE Model No. Power Lumen output PV panel Battery(32-LIFePO4) LED qty
MFSL-S5H-XXX020 20W 2000 Im 35W 154 Wh 60 pcs
MFSL-S5H-XXX030 30W 3000 Im 35W 230 Wh 60 pcs
MFSL-S5H-XXX040 40W 4000 Im 43W 230 Wh 60 pcs
MFSL-S5H-XXX050 50W 5000 Im 58W 307 Wh 60 pcs
MFSL-S5H-XXX060 60W 6000 lm 62W 384 Wh 144 pcs
MFSL-S5H-XXX070 70W 7000 lm 86W 461 Wh 144 pcs
MFSL-S5H-XXX080 80W 8000 Im 94W 538 Wh 144 pcs

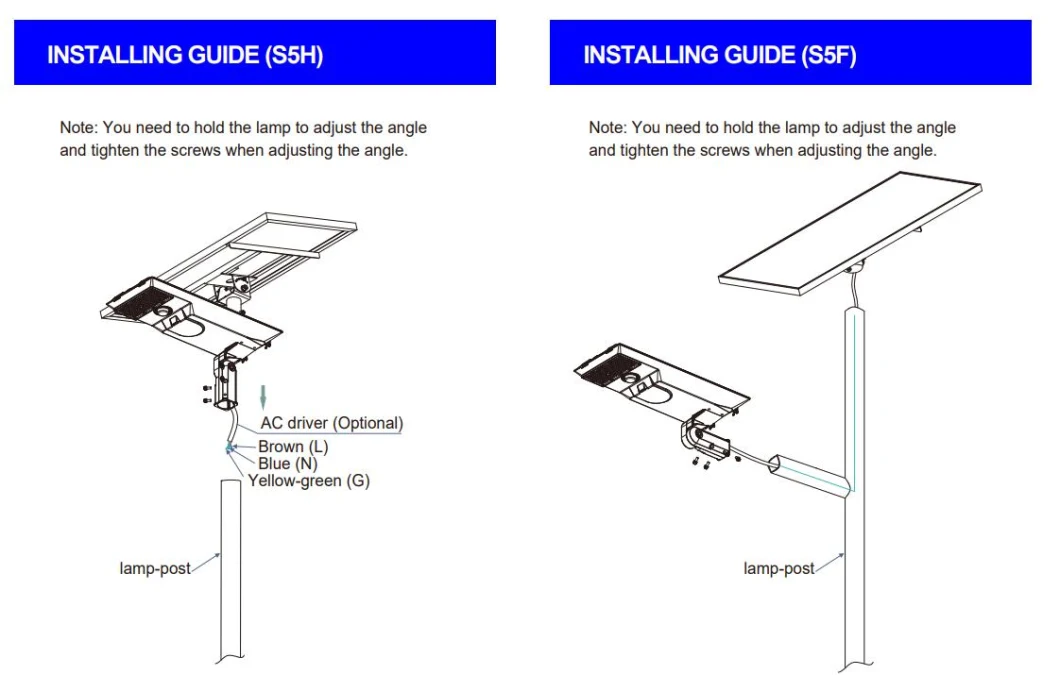

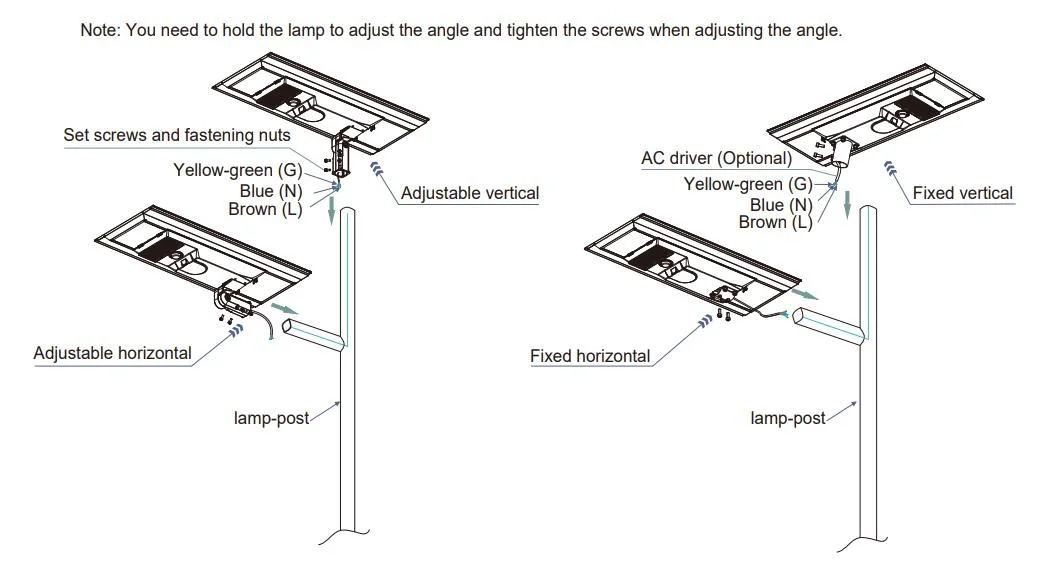

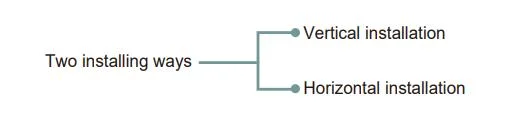

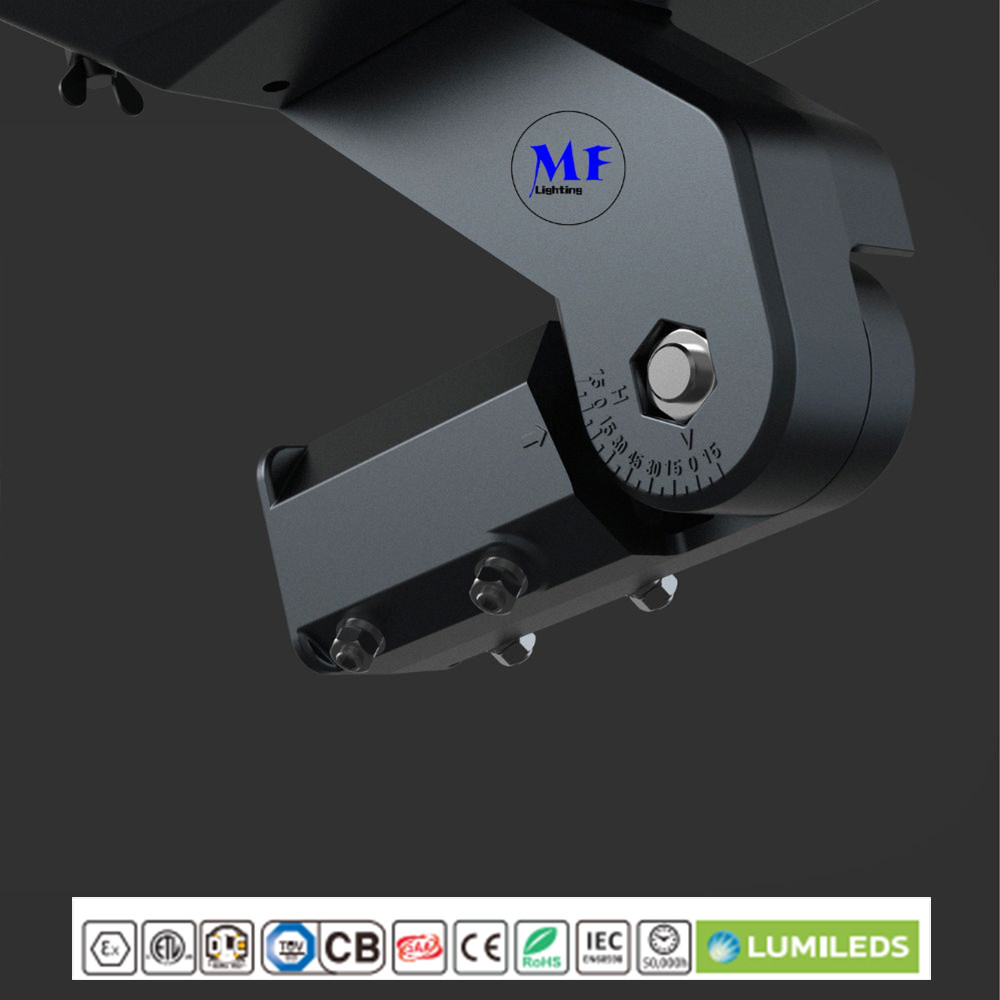

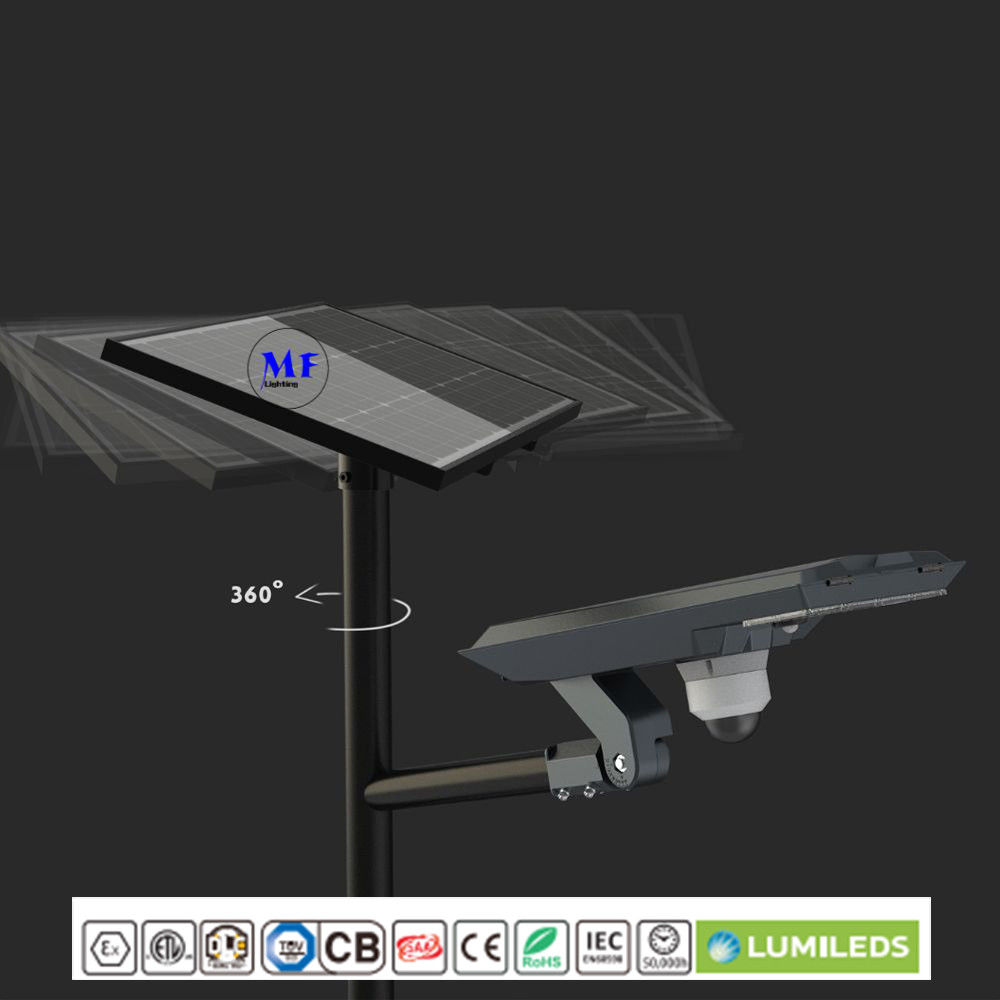

Installation Instructions

Factory Price Solar Light IR/Motion Sensor Security CCTV Camera IP66 COB SMD Integrated Outdoor Parking Light solar LightFactory Price Solar Light IR/Motion Sensor Security CCTV Camera IP66 COB SMD Integrated Outdoor Parking Light solar Light
Factory Price Solar Light IR/Motion Sensor Security CCTV Camera IP66 COB SMD Integrated Outdoor Parking Light solar Light

Packaging & Shipping

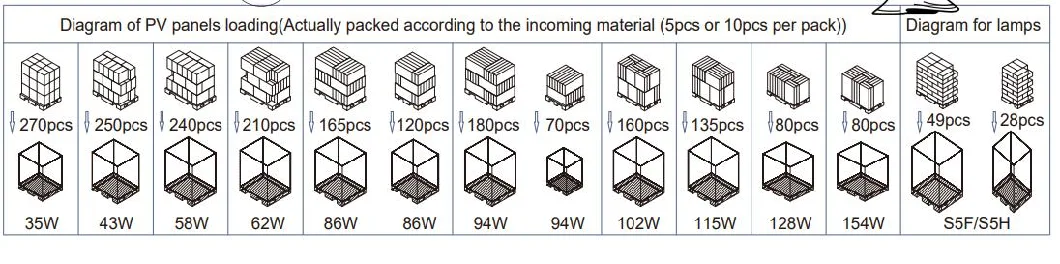

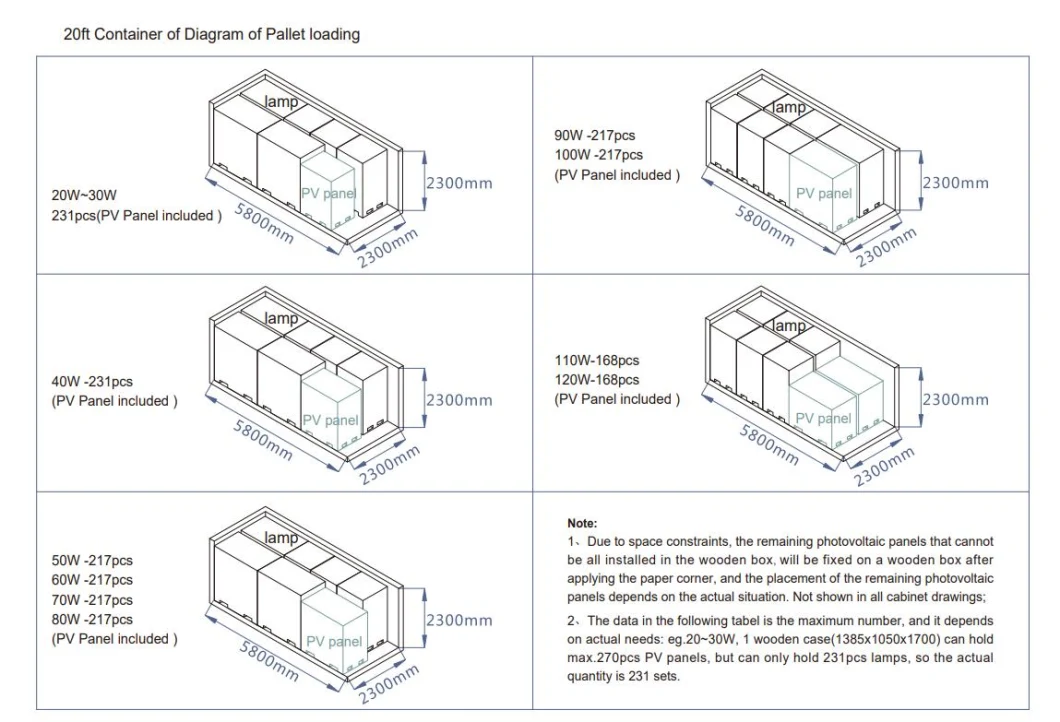

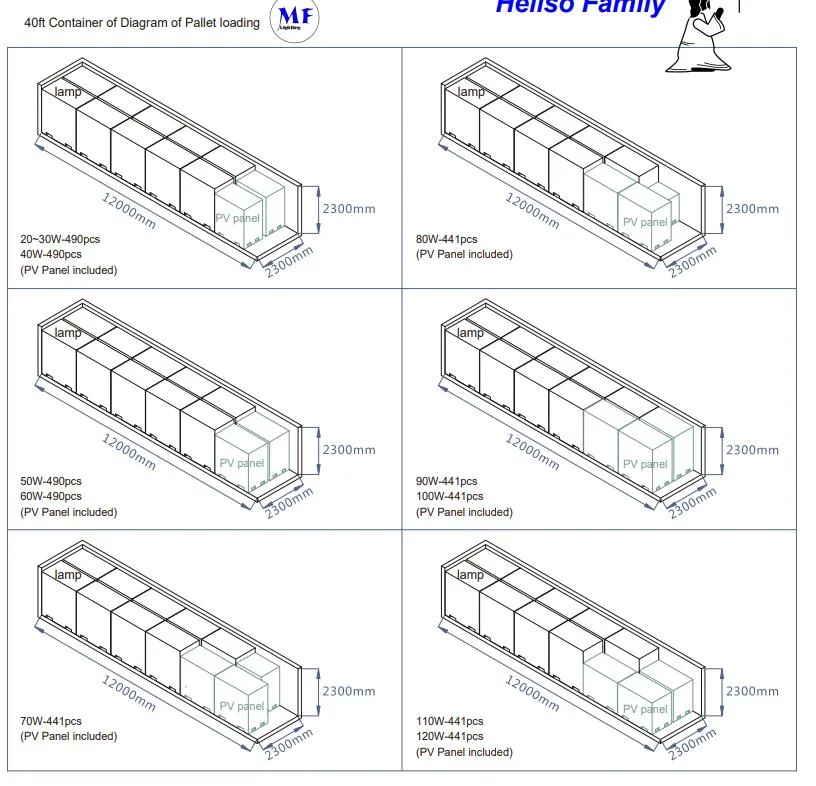

Diagram of Pallet loadingFactory Price Solar Light IR/Motion Sensor Security CCTV Camera IP66 COB SMD Integrated Outdoor Parking Light solar LightFactory Price Solar Light IR/Motion Sensor Security CCTV Camera IP66 COB SMD Integrated Outdoor Parking Light solar Light

Factory Price Solar Light IR/Motion Sensor Security CCTV Camera IP66 COB SMD Integrated Outdoor Parking Light solar Light




Factory Price Solar Light IR/Motion Sensor Security CCTV Camera IP66 COB SMD Integrated Outdoor Parking Light solar Light

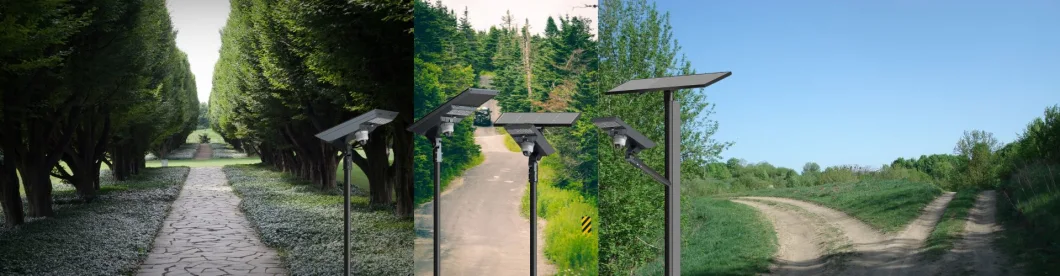

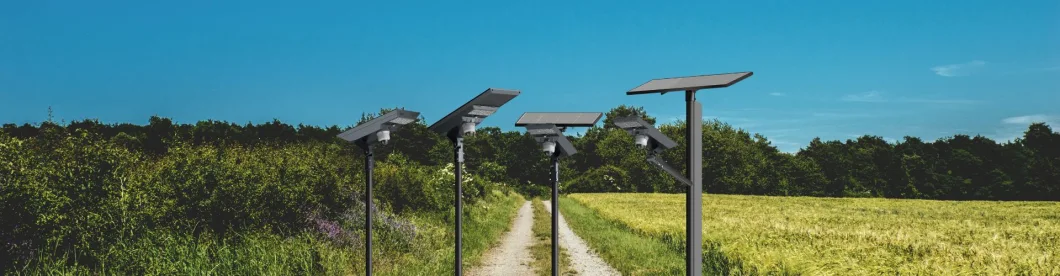

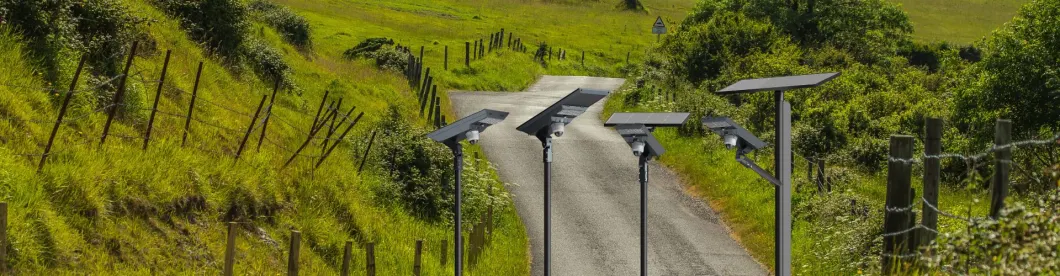

Application

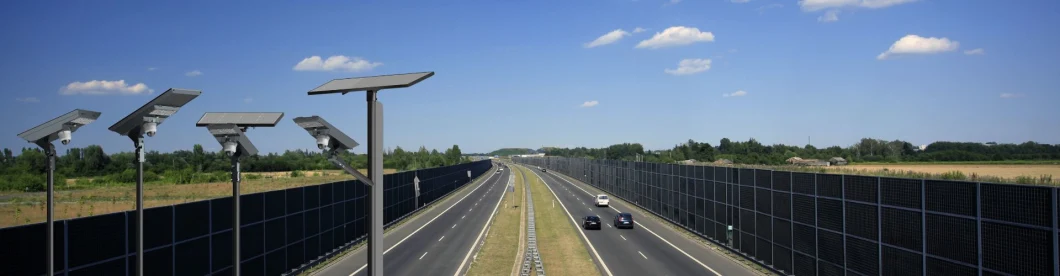

Street lights are commonly used to illuminate roads, streets, highways, parks, squares, parking lots and other public places. They can provide nighttime lighting, improve visibility for pedestrians and vehicles, reduce the risk of traffic accidents, and increase public safety. In addition, street lights can also be used for:
Factory Price Solar Light IR/Motion Sensor Security CCTV Camera IP66 COB SMD Integrated Outdoor Parking Light solar Light


Enhance the urban landscape: The use of street lights in cities and communities can improve the beauty of the urban landscape and night environment, and promote urban tourism and economic development.
Factory Price Solar Light IR/Motion Sensor Security CCTV Camera IP66 COB SMD Integrated Outdoor Parking Light solar Light


Wildlife protection: The use of street lights in protected areas and nature reserves can improve the safety of visitors at night and reduce disturbance to wildlife.

Factory Price Solar Light IR/Motion Sensor Security CCTV Camera IP66 COB SMD Integrated Outdoor Parking Light solar Light

Increase the sense of security of residents: The use of street lights in the community can increase the sense of security of residents, improve the environmental quality of the community, and reduce the crime rate.

Factory Price Solar Light IR/Motion Sensor Security CCTV Camera IP66 COB SMD Integrated Outdoor Parking Light solar Light

In conclusion, street lights can be used in many different venues and applications to increase public safety and visibility, improve urban environments and landscapes, and protect wildlife and the natural environment.



FAQ:

Q1: Are you a manufacturer?
MF: Yes, we are a manufacturer with our own factory. We have over 14 years of experience in research and development, as well as manufacturing, and we operate based on ISO quality management since 2009.

Q2: Can I order a sample of the LED High Mast Light?
MF: Yes, we welcome sample orders to test and check the quality of our products. Mixed samples are also acceptable.

Q3: What is the lead time for the LED High Mast Light?
MF: For sample orders, the lead time is 3-7 days, and for mass production orders, it is 15-25 days. The exact lead time depends on the order quantities.

Q4: How do you ship the finished products?
MF: We offer optional shipping methods such as by SEA, AIR, or Express (DHL, UPS, FedEx, TNT, etc.).

Q5: Can I print my logo on the LED High Mast Light?
MF: Yes, we provide OEM service to our customers. We can help to make the label and color box according to your requirements.

Q6: How do I proceed with an order for the LED High Mast Light?
MF: Firstly, please let us know your detailed requirements and application environment. Secondly, we will recommend some suitable products and solutions to you based on your request. Thirdly, after confirming all the details, customers will issue a purchase order and make the payment to confirm, and then we will start production and arrange shipment.

Q7: How do you handle defective products?
MF: All of our products are produced in strict quality control systems, and the defective rate is less than 0.2% according to our shipment records. We offer a 5-year warranty for this product. If there is any defect during the warranty period, please provide pictures or videos of the defective lights in working situations, and we will ship new lights to you within a few days or together with your next order.
