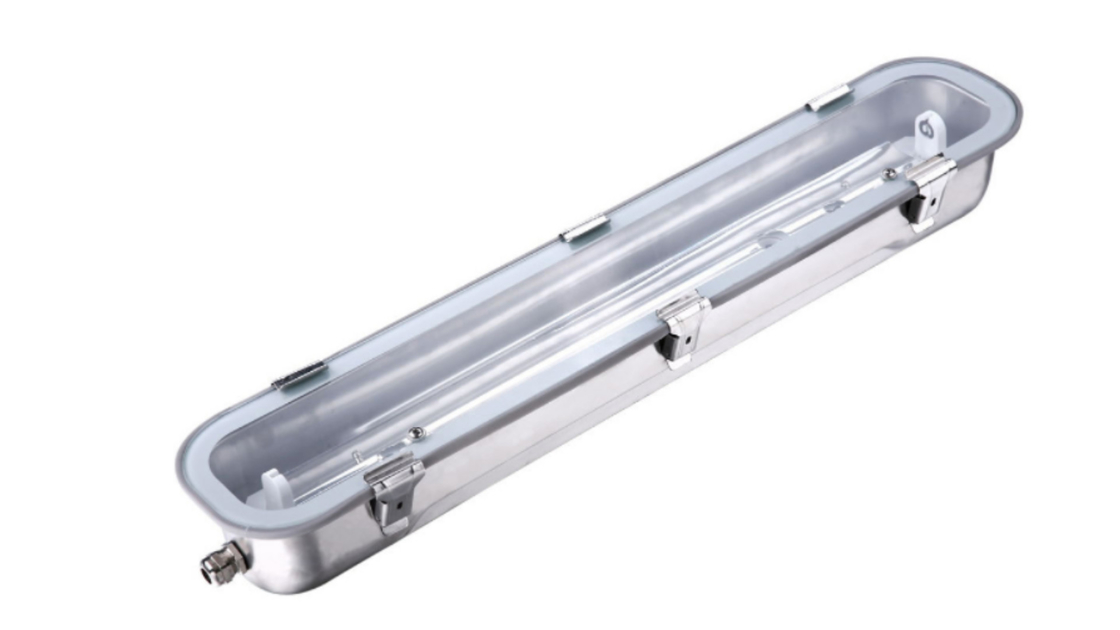

IP65 SS304 Shell Glass Cover Explosion Proof LED Tunnel Light

IP65 SS304 Shell Glass Cover Explosion Proof LED Tunnel Light
IP65 SS304 Shell Glass Cover Explosion Proof LED Tunnel Light
IP65 SS304 Shell Glass Cover Explosion Proof LED Tunnel Light IP65 SS304 Shell Glass Cover Explosion Proof LED Tunnel Light IP65 SS304 Shell Glass Cover Explosion Proof LED Tunnel Light IP65 SS304 Shell Glass Cover Explosion Proof LED Tunnel Light

Large Image :  IP65 SS304 Shell Glass Cover Explosion Proof LED Tunnel Light

Product Details:
Place of Origin: China
Brand Name: MF
Certification: CE,CB, SAA,RCM,ETL
Model Number: MF-SS-XXW-XXXX
Payment & Shipping Terms:
Minimum Order Quantity: 10PCS
Price: Ex-work/FOB price
Packaging Details: According to the model
Delivery Time: 7-10 days delivery time
Payment Terms: T/T, Western Union, Paypal
Supply Ability: 20,000pcs/Month

IP65 SS304 Shell Glass Cover Explosion Proof LED Tunnel Light

Description
Power: 25W/ 35W/ 50W/ 45W/ 65W Material: 304 Stainless Steel Housing,Tempered Glass Diffuser.
Length: 600mm/1300mm/1600mm IP Rating: IP65
Input Voltage: AC 220V-240V / AC 100-277V/DC12/24V IK Rate: IK10
Lumen Efficiency (Lm/w): 150lm/at At 5000K CRI: >80
Beam Angle: 60°,90°,120° Led Chip: SMD2835 / SMD3030
High Light:

IP65 LED Tunnel Light

,

SS304 Shell LED Tunnel Light

,

SS304 Shell LED Tunnel Lamp

IP65 Stainless Steel Sheel Glass Cover Explosion Proof Luminaire LED Tunnel Light



Description of Stainless Steel Explosion Proof Lights:


Housing: Stainless steel
Diffuser: Tempered glass(clear or frosted) 60 90 120 Beam Angle
Other characteristics:  pollution free,low power consumption, high luminous efficiency & IP65;
High-low impact, high humidity environmental tests



Features:


* Suitable for extreme temperatures & high humidity outdoor environments;
* Resistance to impact, seismic activities,and strong ultraviolet & infrared radiation;
* Over 70% energy savings compared to conventional lights with similar lumen output;
* Provides 50,000 hours lifetime & 5 years warranty



Stainless Steel Explosion Proof Luminaire Lights data sheet :



                            Technical Paramenters (Test Conditions:25℃/55-%60%Humidity)
Item Code MF-SS-25W-600 MF-SS-35W-1300 MF-SS-50W-130 MF-SS-45W-1600 MF-SS-65W-1600
Power(W)+/-10% 25W 35W 50W 45W 65W
Input Voltage/Frequency AC 220-240V 50/60Hz
Installation Easy and quick to install under celling or on surface
Housing/Diffuser 304 stainless steel housing,Tempered glass diffuser.
Driver Osram / Philips / Tridonic / Chinese local brand
LED Brand SMD2835 / SMD3030
CCT 2700-6500K (ANSI C78.377)
CRI > 80
5000K/Opal Diffuser Light Output(+/- 3%) 3,500 lm 4,900 lm 7,000 lm 6,300 lm 8,680 lm
Power factor PF>0.9
Beam Angel 90° / 120°
IP Rating IP65
Warranty 5 Year
Operating temp range -20°~40°
Clips Qty (pcs) 6 10 10

12

12
Product Size (mm) 670*110*65 1280*110*65 1590*110*65

130lm/w are workable and 6000K. Clear and frosted Cover are available.



IP65 SS304 Shell Glass Cover Explosion Proof LED Tunnel Light 0  IP65 SS304 Shell Glass Cover Explosion Proof LED Tunnel Light 1 IP65 SS304 Shell Glass Cover Explosion Proof LED Tunnel Light 2



Zone I &II 2G Ex eb mb op is q IIC T4 Gb
Zone I &II 2D Ex tb op is IIIC T80oC Db



Compared with others Tube Lights, our LED Tri-proof light has great advantages as below :



Ming Feng Lighting Produce a superb triproof light which is made of stainless steel sheel and glass cover, this special material and design is frozen room,steel plant and all kinds of warehouse. This triproof LED light can work at temperature of -40°C to +50°, it's an ideal lamp for harsh working conditions.



Ming feng lighting secures a life-span of 50000 hours with the help of world class chip and driver, the triproof light pay all necessary attentions to the detail onto the lamp, stainless steel PG connector, rubber cable,tool free hanging installation system and so on. this family is not only brings an illumination purpose, but also, a great importance onto the safty consideration.



This triproof light has a power range of 25W to 65W, and sizing is from 3 ft, 4 ft to 5 ft for client options, ming feng lighting factory provides customized service according to client needs by configurating all possible chip and driver to reach target budget and performance in terms of lumen efficiency, power and corlor rendering index.



Product Details:



IP65 SS304 Shell Glass Cover Explosion Proof LED Tunnel Light 3 IP65 SS304 Shell Glass Cover Explosion Proof LED Tunnel Light 4



Size details:



A: 680mm

IP65 SS304 Shell Glass Cover Explosion Proof LED Tunnel Light 5

B: 1300mm

IP65 SS304 Shell Glass Cover Explosion Proof LED Tunnel Light 6

C: 1600mm

IP65 SS304 Shell Glass Cover Explosion Proof LED Tunnel Light 7



Lighting details:



IP65 SS304 Shell Glass Cover Explosion Proof LED Tunnel Light 8
IP65 SS304 Shell Glass Cover Explosion Proof LED Tunnel Light 9







Packing Information :



Using the strong boxes for the package, there is a inner box with a set of lamp. 6 sets of lamp for outer box.

IP65 SS304 Shell Glass Cover Explosion Proof LED Tunnel Light 10

Applications:



Car washing yard,Parking Lot ,Meat processing ,Farm, Food processing yard,Low temperature storage room , Department store ,

Railway stations, Bus stations, Tunnels .......

IP65 SS304 Shell Glass Cover Explosion Proof LED Tunnel Light 11

IP65 SS304 Shell Glass Cover Explosion Proof LED Tunnel Light 12
