40W-450W 140-150lm/W IP67 Waterproof Dustproof LED Subway Light LED Underground Passage Light
Contact Person : Claire Li
Phone Number : 86-15999718117
WhatsApp : +8615999718117
Minimum Order Quantity : | 1pcs | Price : | Ex-work/FOB price |
---|---|---|---|
Packaging Details : | Depends on each model | Delivery Time : | 2 weeks |
Payment Terms : | T/T, Western Union, Paypal | Supply Ability : | 1000pcs/Month |
Place of Origin: | China | Brand Name: | MF |
---|---|---|---|
Certification: | CE,RoHS | Model Number: | MFTL-T9-180 |
Detail Information |
|||
Input Voltage: | 100-277VAC, 50-60Hz | Power: | 100W 150W 180W 240W 450W |
---|---|---|---|
Luminous Efficiency: | 140~150lm/W | IP Rating: | IP67 |
CCT: | 3000K/4000K/5000K/5700K | Beam Angel: | 85*155°/102*155°/125*148°/23*105° |
Driver: | International Driver Brand | Body Color: | Black/White |
Housing: | Powder Coated Aluminium Alloy | Chips: | Lumileds |
Dimming: | 1-10V, Dali2.0 | Precision Aiming Device: | MF |
Product Description

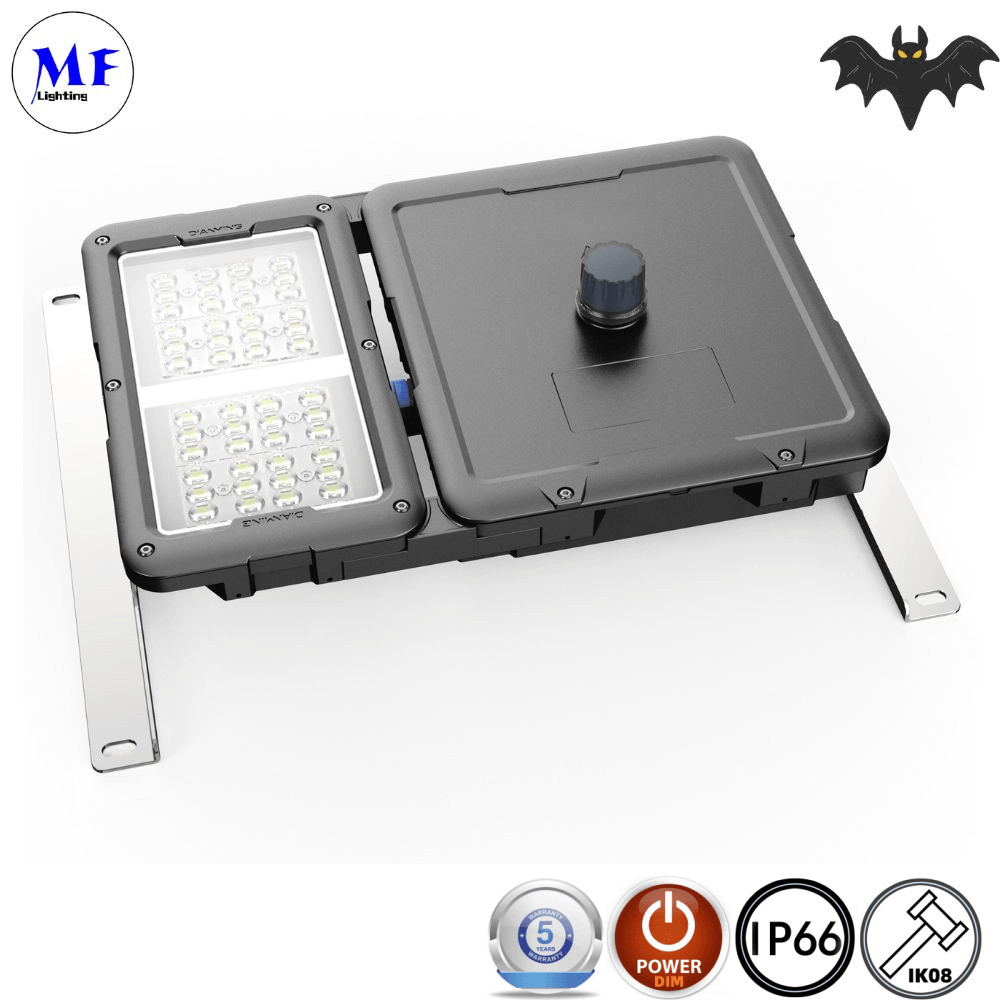

100W 150W 180W 240W 450W LED Tunnel Light 5 Years Warranty Module Light LED Module Floodlight Flood Light
Power | 40W | 50W | 60W | 80W | 100W |
Luminous Flux | 5600±5% lm | 7000±5% lm | 8400±5% lm | 11200±5% lm | 14000±5% lm |
LED Quantity | 48 pcs | 48 pcs | 48 pcs | 48 pcs | 48 pcs |
Luminous Efficacy | 150 Im/W | 140 Im/W | |||
LED | 5050 | ||||
Module Quantity | 1 module |
Power | 120W | 150W | 180W | 200W | 240W |
Luminous flux | 16800±5% lm | 21000±5% lm | 25200±5% lm | 28000±5% lm | 33600±5% lm |
LED quantity | 48 pcs | 96 pcs | 96 pcs | 96 pcs | 96 pcs |
Luminous Efficacy | 140 lm/W | 140 lm/W | |||
LED | 5050 | 5050 | |||
Module Quantity | 1 module | 2 modules |
Power | 120W | 150W | 180W | 200W | 240W |
Luminous flux | 16800±5% lm | 21000±5% lm | 25200±5% lm | 28000±5% lm | 33600±5% lm |
LED quantity | 48 pcs | 96 pcs | 96 pcs | 96 pcs | 96 pcs |
Luminous Efficacy | 140 lm/W | 140 lm/W | |||
LED | 5050 | 5050 | |||
Module Quantity | 1 module | 2 modules |
color | Warm White | Natural White | Cold white | Cold white |
color temperature | 3000±300K | 4000±300K | 5000±300K | 5700±300K |
color rendering i ndex | y70 | |||
Beam angle | 85x155°;102x155°;125x148°;23°x105° | |||
Main material | Alloy aluminum, optical PC, stainless steel | |||
Service life | >80000h | |||
Storage temperature | -30ºC~+60ºC | |||
Operating temperature | -30°ºC~+50°ºC | |||
input frequency | 47~63HZ | |||
Input voltage | -100~240V AC |
LED brand | Lumi-leds | Driving power | 2W |
LED package size | 5.0x5.0x0.70 mm | Color rendering index | >70 |
Lamp bead light angle | 120° | Lamp bead light effect | 180-190lm/W |

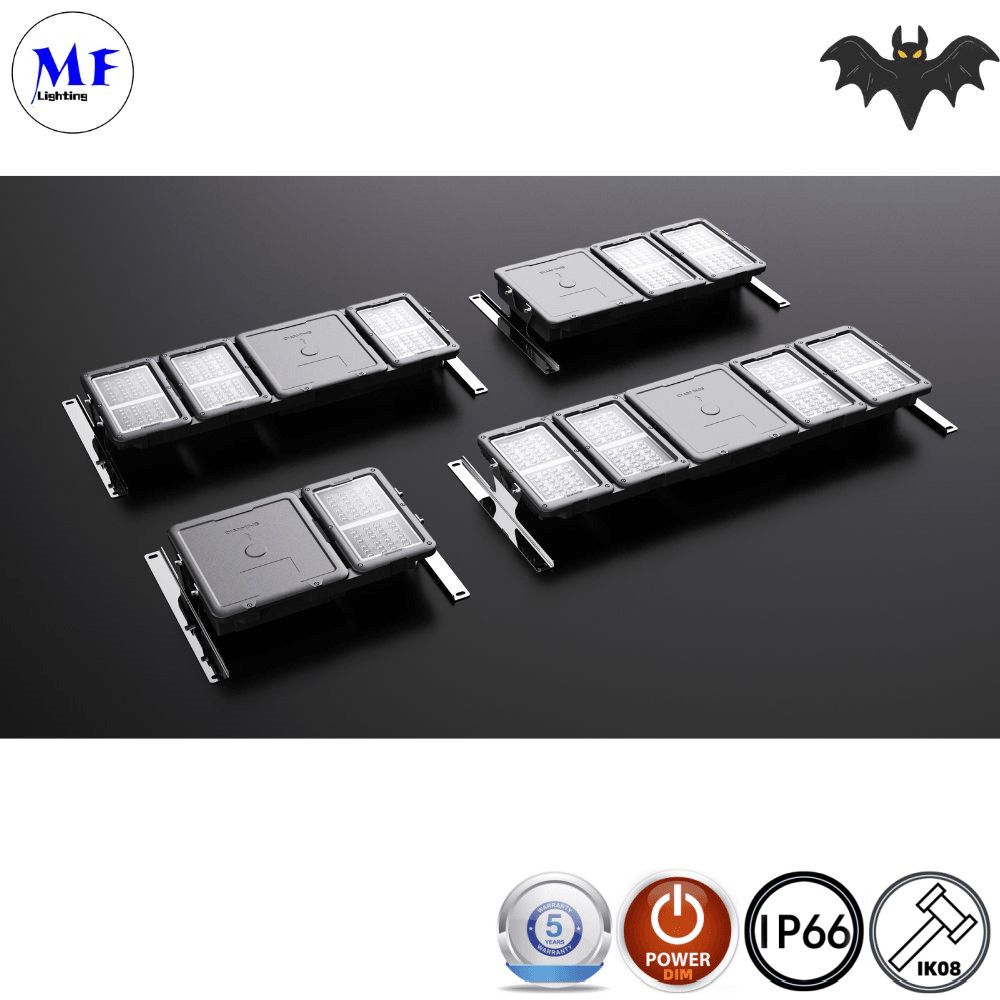

1. Perfect module design, using 5mm tempered glass, waterproof level meets IP67, allows to combine 1~4 modules according to actual needs of projects
2. Professional secondary optical design, specially designed for solar street light, maximizing the balance of individual parameters, while minimizing the color reproduction caused by secondary optics.
3.Stainless steel shell is optional to prevent galvanic corrosion in extreme environments

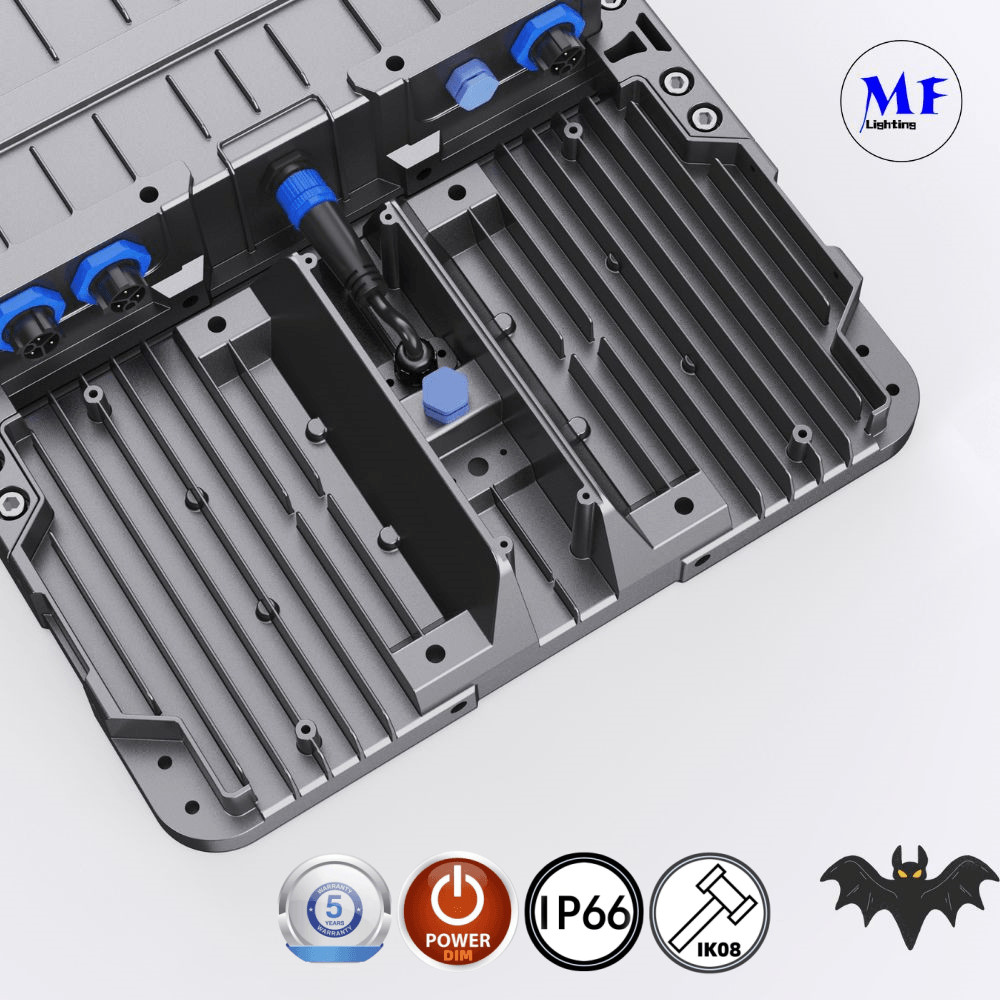

4. All connectors are tool-free waterproof plug-in design.

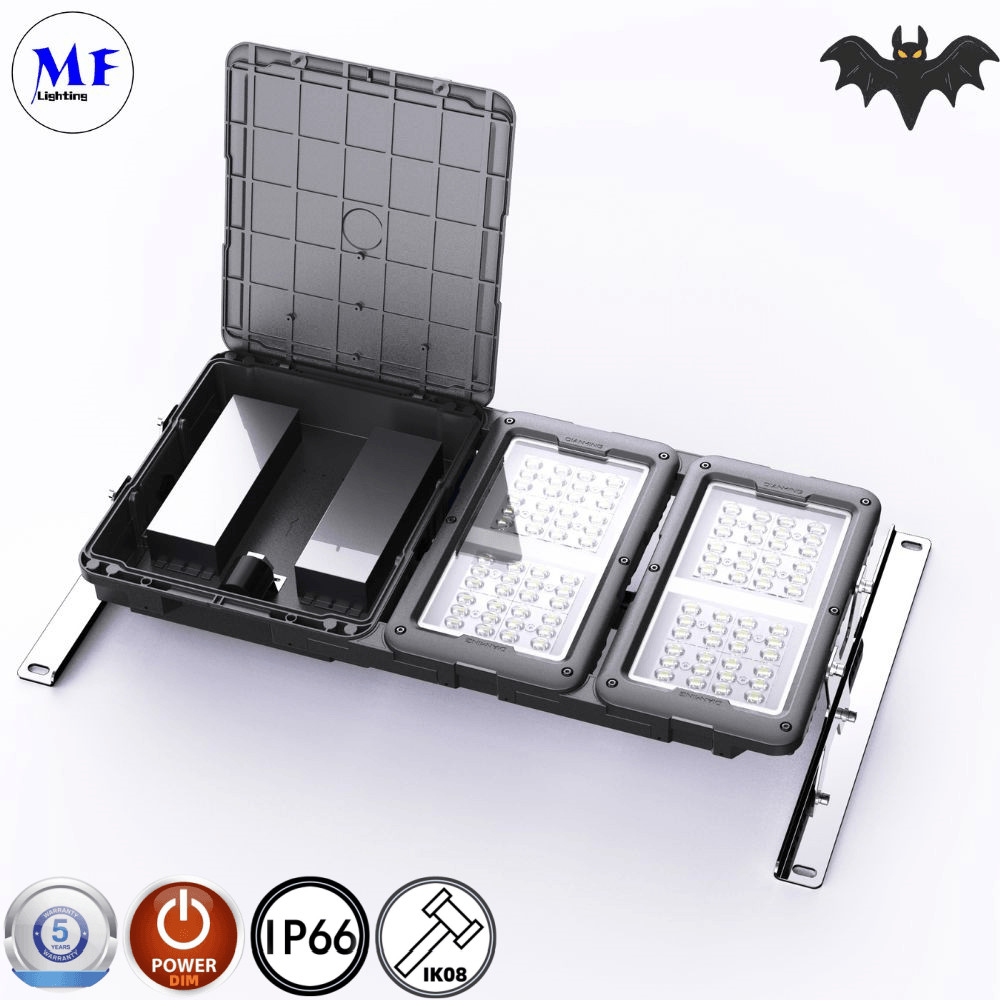

5.Reinforced insulation design, supporting CLASS I, CLASS II. Equipped with an independent power supply chamber, supports independent lightning protection requirements;
6. High grade compatibility zhaga interface.

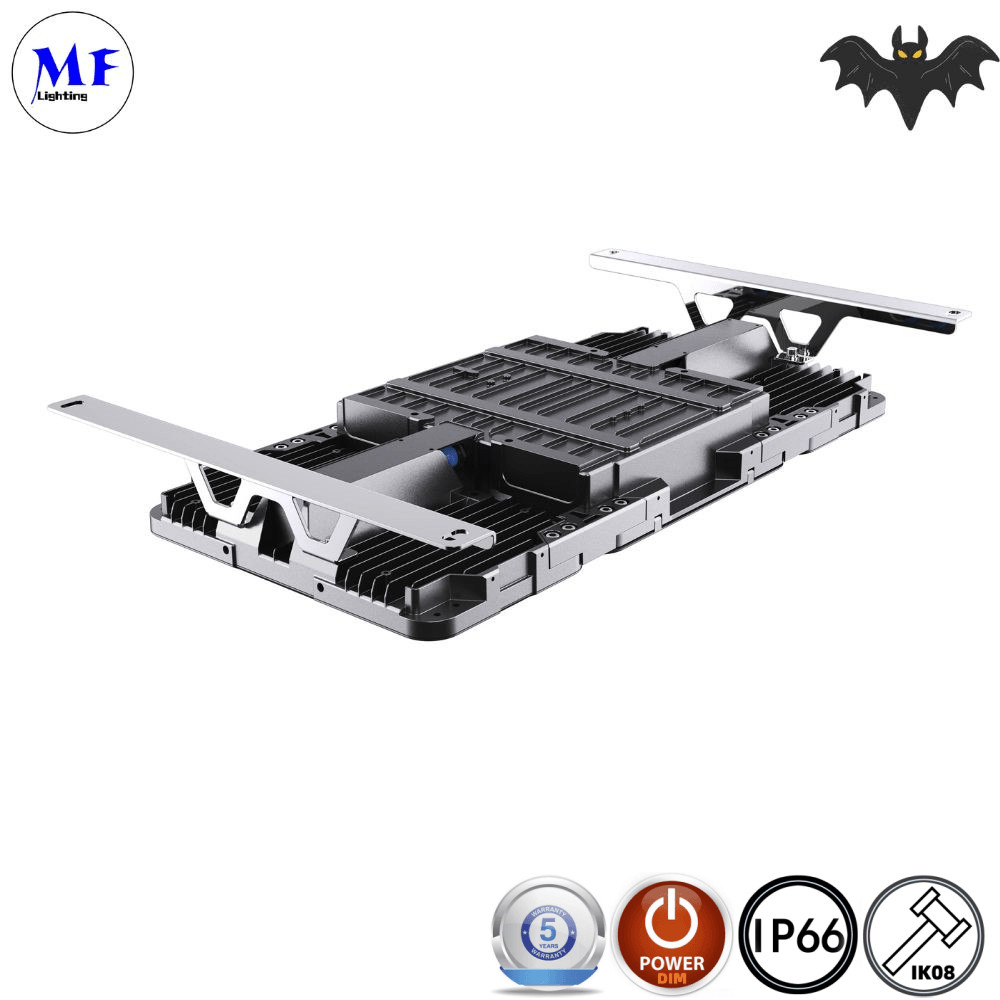

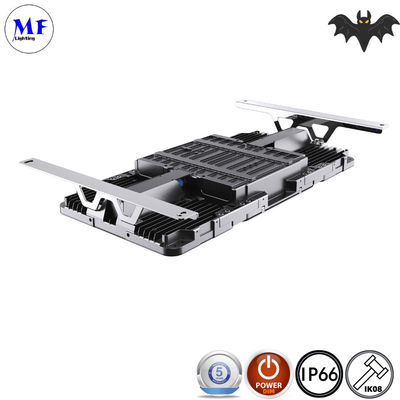

7. Installation is simple and convenient. Two mounting brackets are available. The ceiling bracket and the sidemounted bracket can be selected according to project requirements;
Model | Power | Module Qty |
PACKING(LxWxH) | A | B | EPA | Weight | Packaging size (lx w x h) |
MFTL-T9-040 | 40W | 1pc | 558*430*104.5 | 402.5mm | 524mm | 0.2399m² | 8.92kg | 540*395*120(mm) |
MFTL-T9-050 | 50W | 8.92kg | ||||||
MFTL-T9-060 | 60W | 9.03kg | ||||||
MFTL-T9-080 | 80W | 9.03kg | ||||||
MFTL-T9-100 | 100W | 9.03kg | ||||||
MFTL-T9-120 | 120W | 9.16kg | ||||||
MFTL-T9-150 | 150W | 2pcs | 748*430*104.5 | 402.5mm | 714mm | 0.3216m² | 11.30kg | 730*395*120(mm) |
MFTL-T9-180 | 180W | 11.34kg | ||||||
MFTL-T9-200 | 200W | 11.34kg | ||||||
MFTL-T9-240 | 240W | 11.51kg |
Intallation

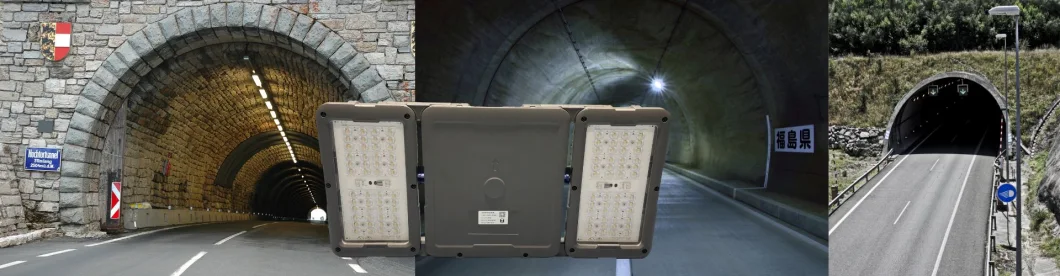

Applications
LED Tunnel Light finds wide application in various tunnel environments. Its advanced features and benefits make it a preferred choice for tunnel lighting solutions.
One primary application is in road tunnels. LED Tunnel Light provides bright and uniform illumination, ensuring clear visibility for drivers. This enhances safety by minimizing the risk of accidents and improving overall traffic flow. The long lifespan of LEDs reduces maintenance requirements, making it suitable for tunnels with high traffic volumes.
Another application is in pedestrian tunnels. LED Tunnel Light creates a well-lit environment, offering a sense of security and comfort to pedestrians. The high brightness ensures clear visibility, reducing the chances of slips, trips, and falls. Additionally, the energy efficiency of LED technology contributes to sustainable lighting solutions for pedestrian tunnels.

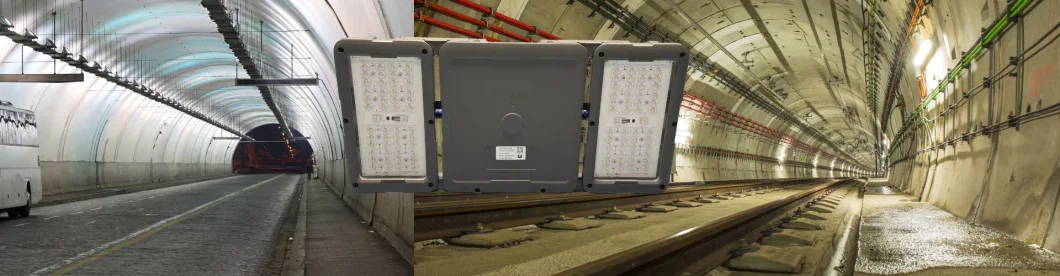

Furthermore, LED Tunnel Light is utilized in railway and metro tunnels. It provides consistent and reliable lighting for train operators, enabling them to navigate through the tunnels safely. The durability of LED fixtures ensures continuous operation, even in demanding railway environments.
LED Tunnel Light also finds application in underground mining tunnels. It offers high visibility in these challenging environments, enhancing safety for miners. The resistance to water, dust, and vibrations makes it suitable for the rugged conditions typically encountered in mining operations.
