100W 150W 180W 240W 450W LED Tunnel Light 5 Years Warranty Module Light LED Module Floodlight Flood Light
Contact Person : Claire Li
Phone Number : 86-15999718117
WhatsApp : +8615999718117
Minimum Order Quantity : | 100PCS | Price : | Negotiable |
---|---|---|---|
Packaging Details : | 16.5*15*22cm/1pcs, G.W: 1.2Kg | Delivery Time : | Depends on orders |
Payment Terms : | T/T, Western Union, L/C, Paypal | Supply Ability : | 5,000pcs/Month |
Place of Origin: | China | Brand Name: | MF |
---|---|---|---|
Certification: | CE, RoHS,SAA | Model Number: | LED TUNNEL LIGHT Bat Family |
Detail Information |
|||
CCT: | 3000K/4000K/5000K/5700K | Material: | Alloy Aluminum/Optical PC/Tempered Glass/Stainless |
---|---|---|---|
Power: | 40W/50W/60W/80W/100W/120W/150W/180W/200W/240W/270W/300W/350W/400W/480W | IP Rate: | IP67 |
Ik Rate: | IK 10 | Warranty: | 5years |
Luminous Efficiency: | 140-150lm/W | LED: | Luxeon 5050 |
Chip Brand: | Lumileds | Colour: | Black |
Modular Quantity: | 1-4 Modules | Storage Temperature: | -30°C~+60°C |
Operating Temperature: | -30°C~+50°C | Lamp Bead Light Angle: | 120° |
Color Rendering Index: | ÿ70 | ||
High Light: | IK10 Tunnel LED Flood Light,Waterproof LED Flood Tunnel LightWaterproof LED Flood Tunnel Light,IP67 LED Flood Tunnel Light |
Product Description

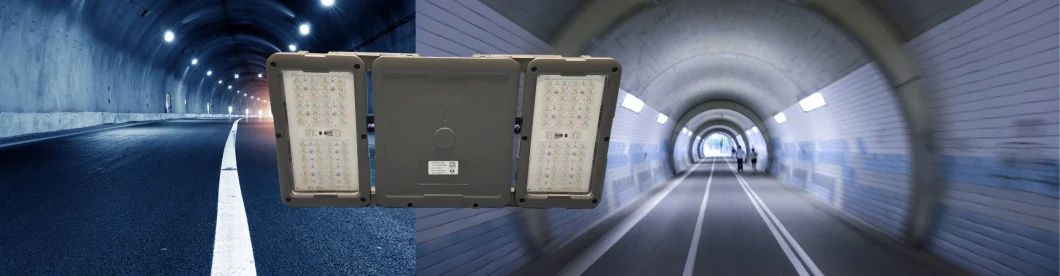

Factory price 300W/350W/400W/480W IP67 Waterproof IK10 Road Pedestrian Railway Mining Industrial tunnel Underground parking lot Light LED Flood Light Tunnel Light

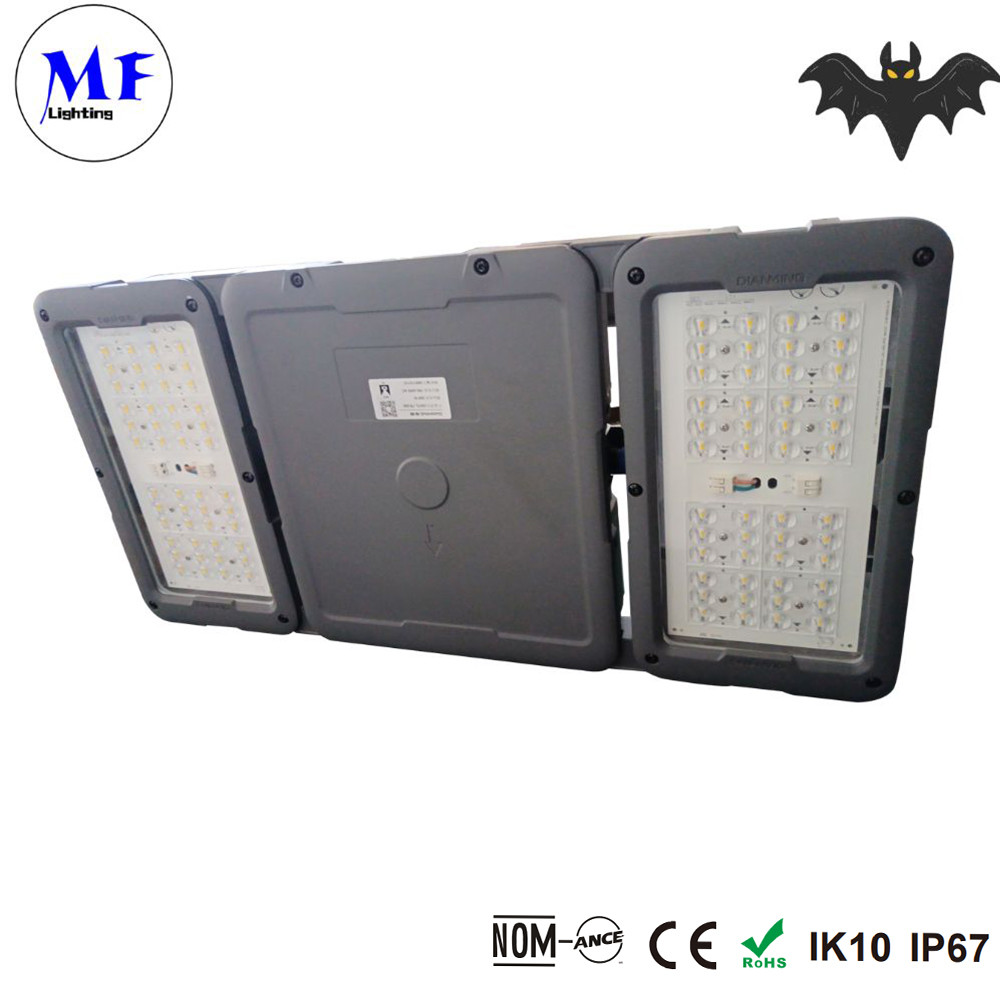

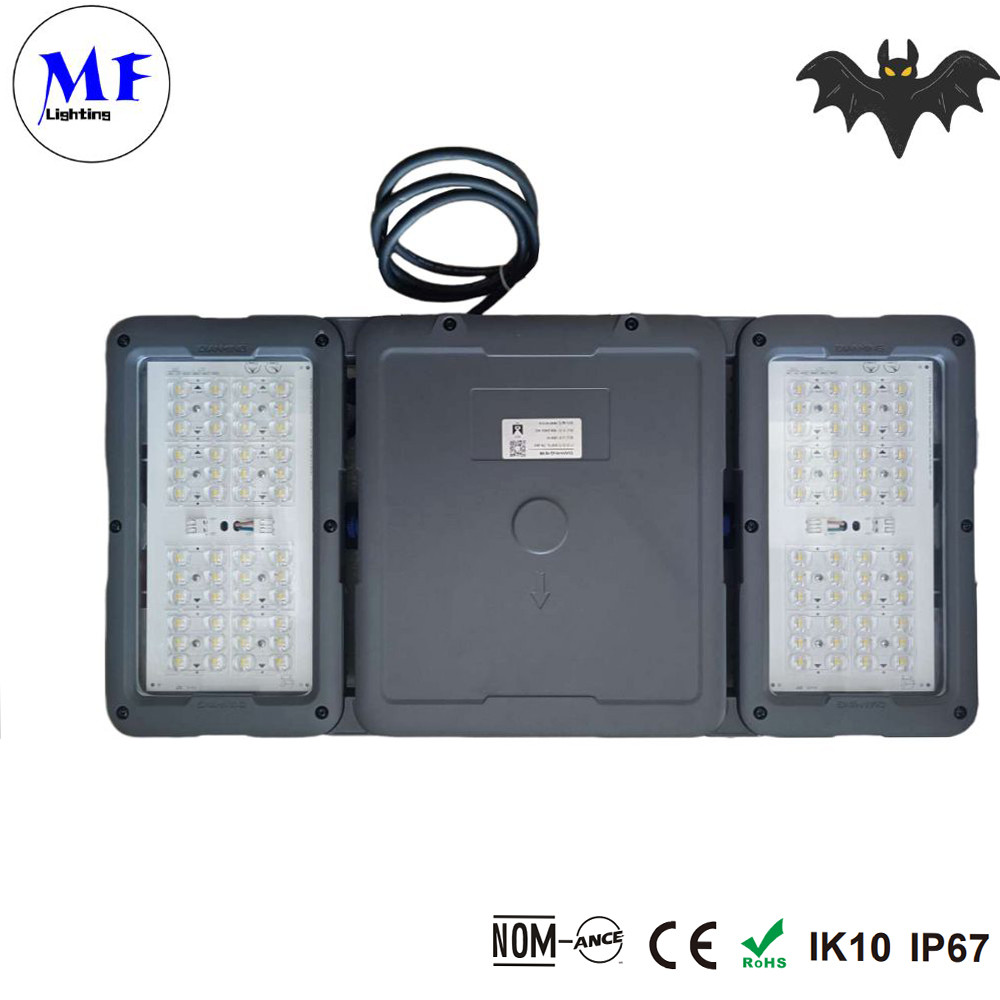

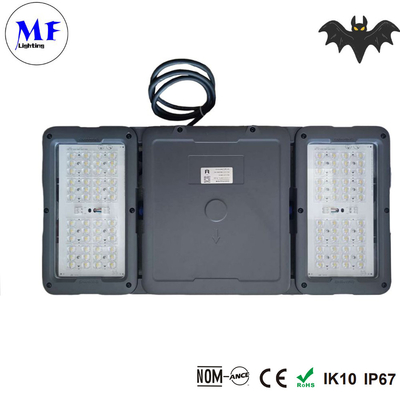

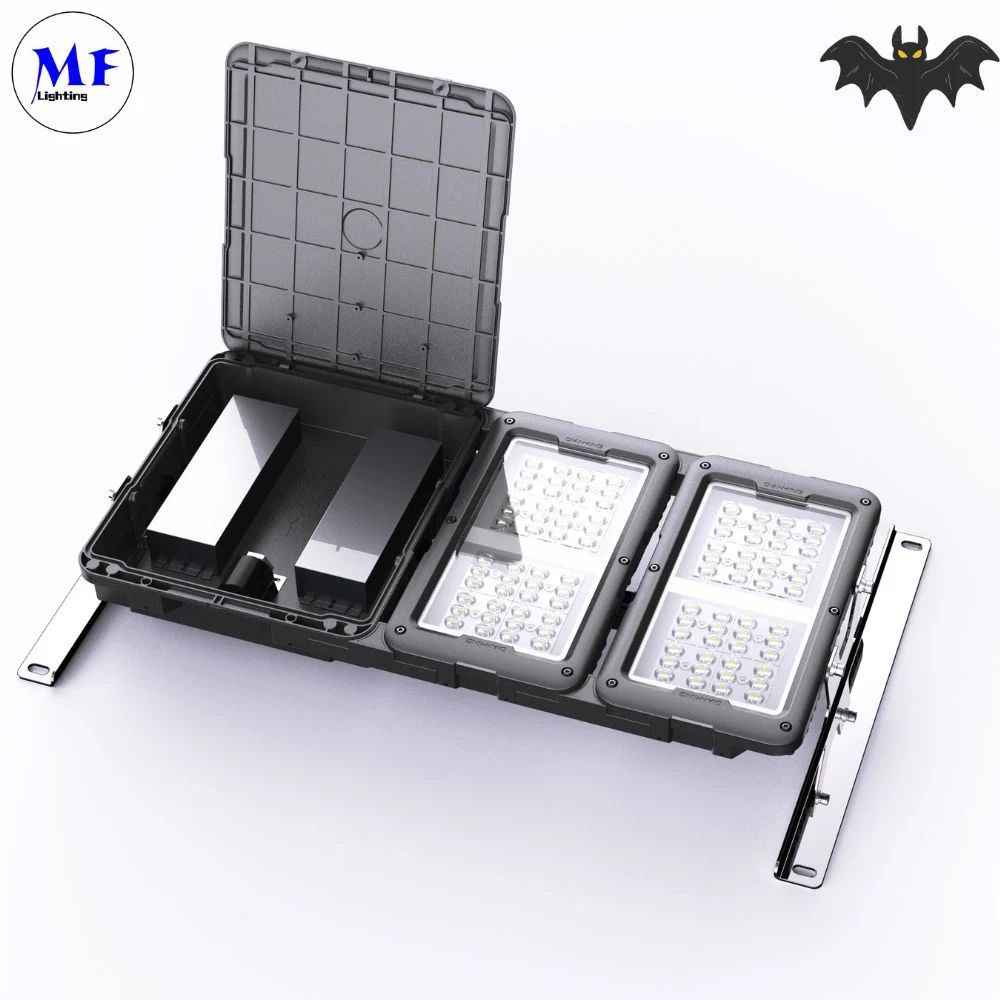

1.Perfect module design, using 5mm tempered glass, waterproof level meets IP67, allows to combine 1~4 modules according to actual needs of projects;
2.Professional secondary optical design, specially designed for solar street light, maximizing the balance of individual parameters, while minimizing the color reproduction caused by secondary optics.
3.A new generation high brightness outdoor led, lower current drive. The whole lighting efficiency increased by about 10%, and lower light decay.

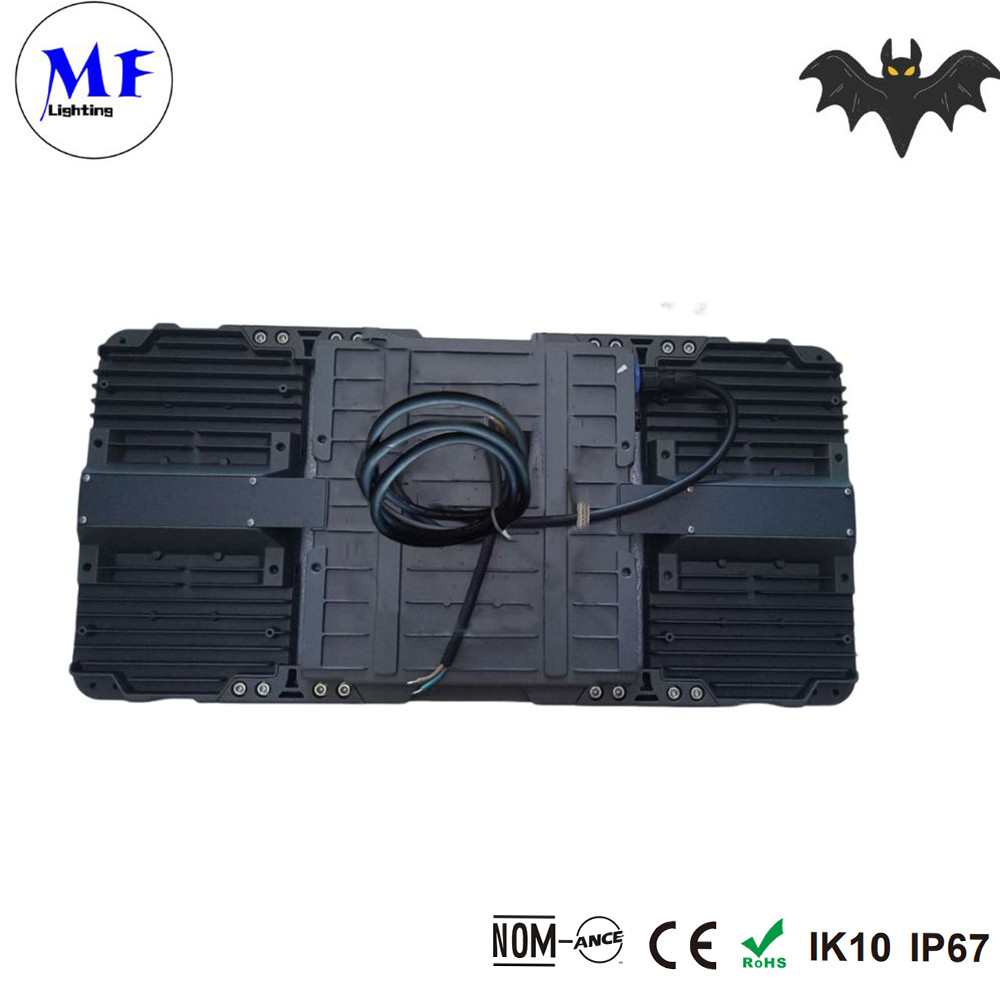

4.Equipped with an independent power supply chamber, supports independent lightning protection requirements;
5.Stainless steel shell is optional to prevent galvanic corrosion in extreme environments
6.All connectors are tool-free waterproof plug-in design.
7.Installation is simple and convenient. Two mounting brackets are available. The ceiling bracket and the side-mounted bracket can be selected according to project requirements;
8.Reinforced insulation design, supporting CLASS I , CLASS II
9.Compatible with tunnel-specific zhaga interface design, high compatibility.
Power | 40w | 50w | 60w | 80w | 100w | |||
Luminous Flux | 5600±5%lm | 7000±5%lm | 8400±5% lm | 11200±5% Im | 14000±5%lm | |||
LED Quantity | 48 pcs | 48 pcs | 48 pcs | 48 pcs | 48 pcs | |||
Luminous Efficacy | 150 lmw | 140 lmw | ||||||
LED | 5050 | |||||||
Module Quantity | 1module | |||||||
Power | 120w | 150w | 180w | 200w | 240w | |||
LumInous flux | 16800±5%lm | 21000±5% lm | 25200±5% lm | 28000±5%lm | 33600±5%Im | |||
LEDquantity | 48 pcs | 96 pcs | 96 pcs | 96 pcs | 96 pcs | |||
Luminous EffIcacy | 140 lmw | 140lmw | ||||||
LED | 5050 | 5050 | ||||||
Module Quantity | 1 module | 2 modules | ||||||
Power | 270w | 300w | 350w | 400w | 450w | |||
Luminous flux | 37800±5% lm | 42000±5%lm | 48000±5% lm | 56000±5% Im | 63000±5% lm | |||
LEDquantity | 144pes | 144 pCs | 192 pcs | 192 pG | 192 pcs | |||
Luminous Efflcacy | 140 lmw | 140lmw | ||||||
LED | 5050 | 5050 | ||||||
Modulo Quantity | 3 modules | 4 modules | ||||||
color | Warm White | Natural White | Cold white | Cold white | ||||
color temperature | 3000±300K | 4000±300K | 5000±300K | 5700±300K | ||||
color rendering index | ÿ70 | |||||||
Beam angle | 85°x155°; 102°x155°; 125°x148°; 23°x105° | |||||||
Main material | Alloy aluminum, optical PC, stainless steel | |||||||
Service life | >80000h | |||||||
Storage temperature | -30°C~+60°C | |||||||
Operating temperature | -30°C~+50°C | |||||||
input frequency | 47~63HZ | |||||||
Input voltage | 100~240V AC |
Model | Power | Module ty |
PACKING(LxWxH) | A | B | EPA | Weight | Packaging size (x w x h) |
MFTL-T9-040 | 40W | 1pc | 558*430*104.5 | 402.5mm | 524mm | 0.2399m' | 8.92kg | 540*395*120(mm) |
8.92kg | ||||||||
MFTL-T9-050 | 50W | |||||||
MFTL-T9-060 | 60W | 9.03kg | ||||||
MFTL-T9-080 | 80W | 9.03kg | ||||||
9.03kg | ||||||||
MFTL-T9-100 | 100W | |||||||
MFTL-T9-120 | 120W | 9.16kg | ||||||
MFTL-T9-150 | 150W | 2pcs | 748*430*104.5 | 402.5mm | 714mm | 0.3216m3 | 11.30kg | 730*395*120(mm) |
MFTL-T9-180 | 180W | 11.34kg | ||||||
MFTL-T9-200 | 200W | 11.34kg | ||||||
MFTL-T9-240 | 240W | 11.51kg | ||||||
MFTLT9-270 | 270w | 3 pcs | 938*430*104.5 | 402.5mm | 904mm | 0.4033m' | 14.30kg | 920*395*120(mm) |
MFTL-T9-300 | 300w | 14.30kg | ||||||
MFTL-T9-350 | 35ow | 4pcs | 1128*430*104.5 | 402.5mm | 1094mm | 0.4850m3 | 16.28kg | 1110*395*120(mm) |
MFTL-T9-400 | 4oow | 16.32kg | ||||||
MFTL-T9-450 | 450w | 16.49kg |
If the product does not contain dimming cable: Please adapt the cable outer diameter φ7-9mm by yourself, strip the wire 15mm, and expose 5mm copper;
