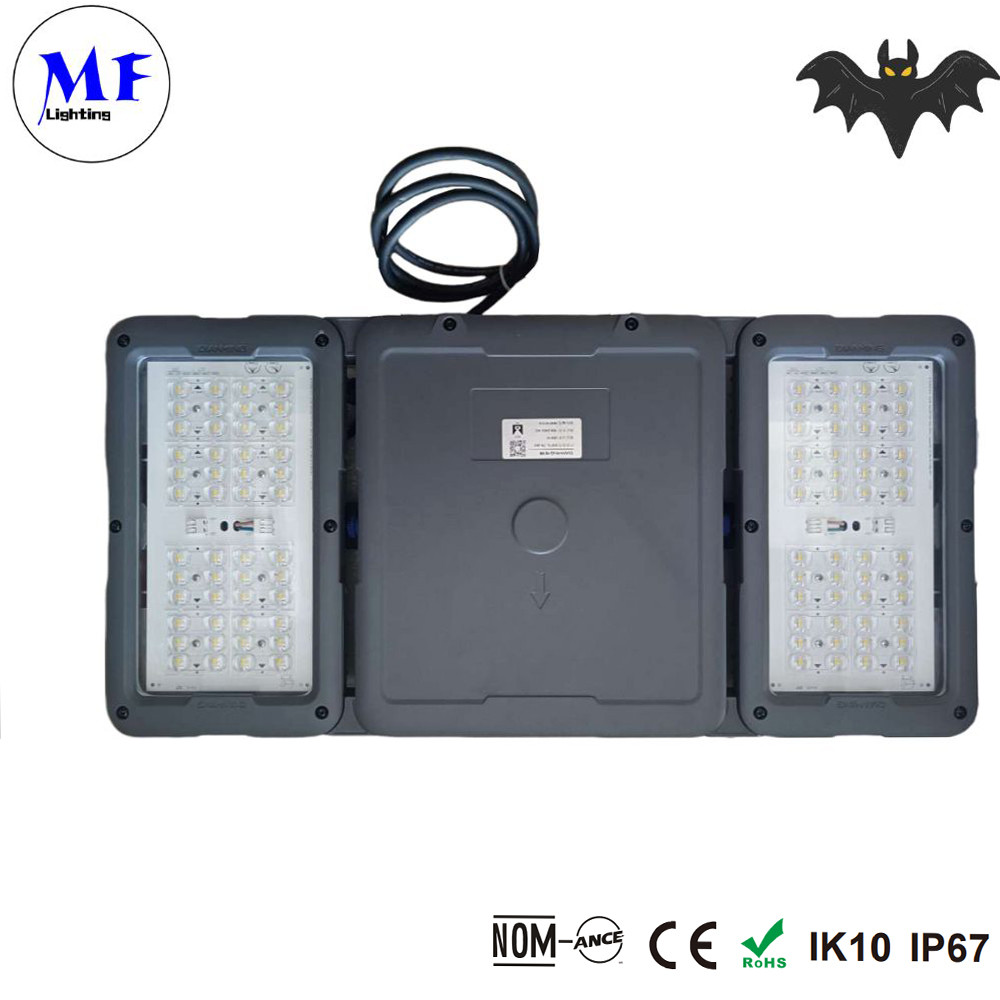

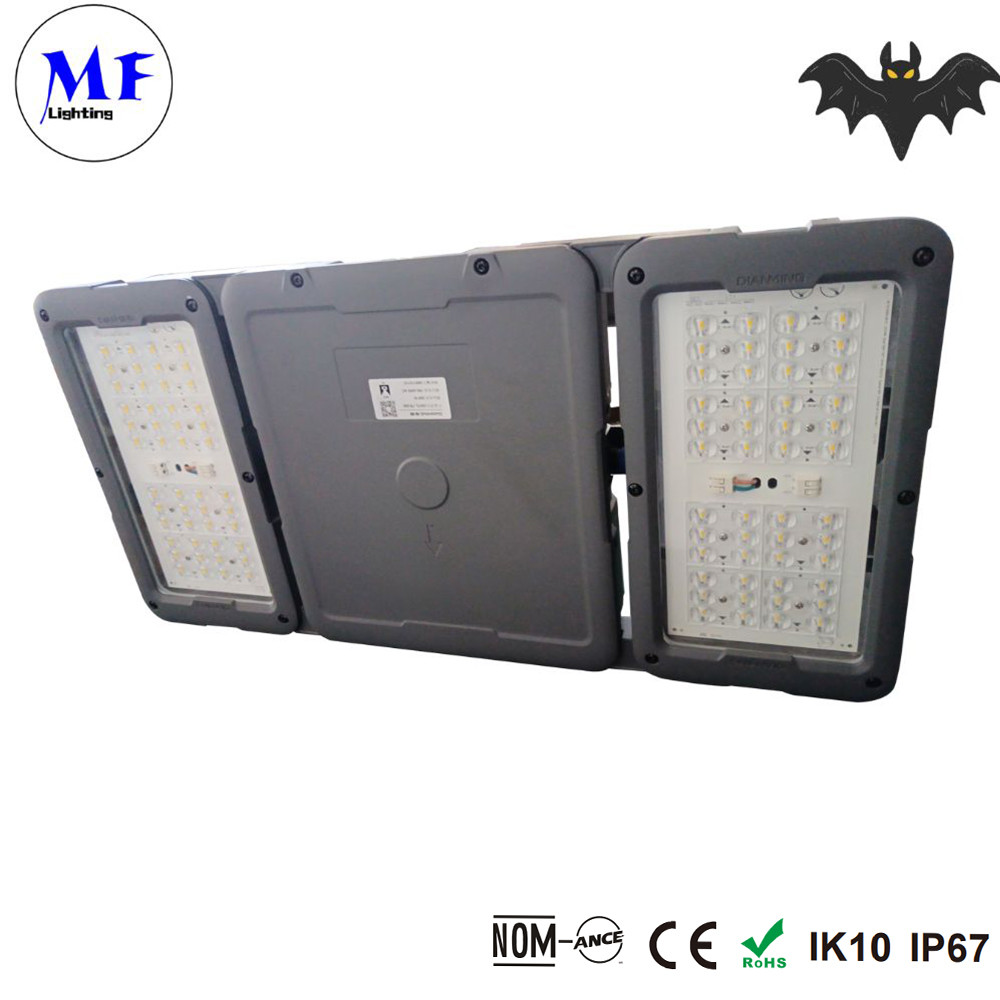

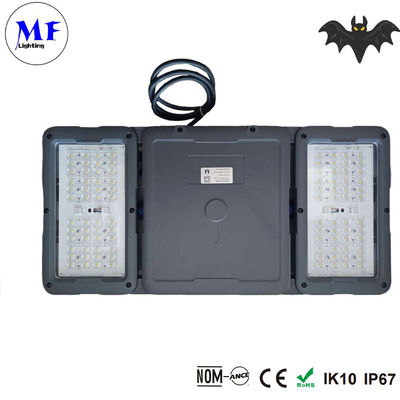

LED Flood Light Tunnel Light IP67 Waterproof IK10 300W/350W/400W/480W for Tunnel Underground Parking Lot

Minimum Order Quantity :	100PCS	Price :	Negotiable
Packaging Details :	16.51522cm/1pcs, G.W: 1.2Kg	Delivery Time :	Depends on orders
Payment Terms :	T/T, Western Union, L/C, Paypal	Supply Ability :	5,000pcs/Month

Place of Origin:	China	Brand Name:	MF
Certification:	CE, RoHS,SAA	Model Number:	LED TUNNEL LIGHT Bat Family

Detail Information
CCT:	3000K/4000K/5000K/5700K	Material:	Alloy Aluminum/Optical PC/Tempered Glass/Stainless
Power:	40W/50W/60W/80W/100W/120W/150W/180W/200W/240W/270W/300W/350W/400W/480W	IP Rate:	IP67
Ik Rate:	IK 10	Warranty:	5years
Luminous Efficiency:	140-150lm/W	LED:	Luxeon 5050
Chip Brand:	Lumileds	Colour:	Black
Modular Quantity:	1-4 Modules	Storage Temperature:	-30°C~+60°C
Operating Temperature:	-30°C~+50°C	Lamp Bead Light Angle:	120°
Color Rendering Index:	ÿ70

Product Description

LED Flood Light Tunnel Light IP67 Waterproof IK10 300W/350W/400W/480W for Tunnel Underground Parking Lot

300W/350W/400W/480W IP67 Waterproof Ik10 Road Pedestrian Railway Mining Industrial Tunnel Underground Parking Lot LED Flood Light Tunnel Light

The module design is perfectly engineered, incorporating 5mm tempered glass for enhanced durability. It has an IP67 waterproof rating and allows for flexible combination of 1 to 4 modules based on the specific project requirements.

Our solar street lights feature a professionally designed secondary optical system, optimized to achieve a balance between various parameters while minimizing color distortion caused by secondary optics.

Utilizing the latest generation of high-brightness outdoor LEDs, our lights operate at lower current drive, resulting in approximately 10% higher overall lighting efficiency and reduced light decay.

Each light is equipped with an independent power supply chamber, ensuring compliance with independent lightning protection requirements.

For extreme environments, we offer the option of a stainless steel shell to prevent galvanic corrosion.

All connectors feature a tool-free waterproof plug-in design, ensuring easy and reliable installation.

Installation is simple and convenient, with two mounting bracket options available: ceiling bracket and side-mounted bracket, allowing for flexibility based on project requirements.

The lights are designed with reinforced insulation, supporting both CLASS I and CLASS II specifications.

Our lights are compatible with the tunnel-specific Zhaga interface design, providing high compatibility with other lighting components.

Power	40w	50w		60w		80w		100w
Luminous Flux	5600±5%lm	7000±5%lm		8400±5% lm		11200±5% Im		14000±5%lm
LED Quantity	48 pcs	48 pcs		48 pcs		48 pcs		48 pcs
Luminous Efficacy	150 lmw			140 lmw
LED	5050
Module Quantity	1module
Power	120w	150w		180w		200w		240w
LumInous flux	16800±5%lm	21000±5% lm		25200±5% lm		28000±5%lm		33600±5%Im
LEDquantity	48 pcs	96 pcs		96 pcs		96 pcs		96 pcs
Luminous EffIcacy	140 lmw	140lmw
LED	5050	5050
Module Quantity	1 module	2 modules
Power	270w	300w		350w		400w		450w
Luminous flux	37800±5% lm	42000±5%lm		48000±5% lm		56000±5% Im		63000±5% lm
LEDquantity	144pes	144 pCs		192 pcs		192 pG		192 pcs
Luminous Efflcacy	140 lmw			140lmw
LED	5050			5050
Modulo Quantity	3 modules			4 modules
color	Warm White		Natural White		Cold white		Cold white
color temperature	3000±300K		4000±300K		5000±300K		5700±300K
color rendering index	ÿ70
Beam angle	85°x155°; 102°x155°; 125°x148°; 23°x105°
Main material	Alloy aluminum, optical PC, stainless steel
Service life	>80000h
Storage temperature	-30°C~+60°C
Operating temperature	-30°C~+50°C
input frequency	47~63HZ
Input voltage	100~240V AC

Model	Power	Module ty	PACKING(LxWxH)	A	B	EPA	Weight	Packaging size (x w x h)
MFTL-T9-040	40W	1pc	558430104.5	402.5mm	524mm	0.2399m'	8.92kg	540395120(mm)
							8.92kg
MFTL-T9-050	50W
MFTL-T9-060	60W						9.03kg
MFTL-T9-080	80W						9.03kg
							9.03kg
MFTL-T9-100	100W
MFTL-T9-120	120W						9.16kg
MFTL-T9-150	150W	2pcs	748430104.5	402.5mm	714mm	0.3216m3	11.30kg	730395120(mm)
MFTL-T9-180	180W						11.34kg
MFTL-T9-200	200W						11.34kg
MFTL-T9-240	240W						11.51kg
MFTLT9-270	270w	3 pcs	938430104.5	402.5mm	904mm	0.4033m'	14.30kg	920395120(mm)
MFTL-T9-300	300w						14.30kg
MFTL-T9-350	35ow	4pcs	1128430104.5	402.5mm	1094mm	0.4850m3	16.28kg	1110395120(mm)
MFTL-T9-400	4oow						16.32kg
MFTL-T9-450	450w						16.49kg

Installation Steps:

1. Use 4 M10 bolts to install the lamp on the bridge as shown in the picture;

2. Connect the waterproof connectors of the lamps, correctly connect the power cord to the puncture clamp, and then connect it to the AC power supply cord (see wiring steps for details);

3. Adjust the lamp to the position according to the actual lighting needs of the site, and then tighten the bolts;

4. Adjust the dimming line settings according to on-site needs (not required for non-dimming);

Note: The power supply cable must ensure even distribution of the three-phase load.

If the product does not contain dimming cable: Please adapt the cable outer diameter φ7-9mm by yourself, strip the wire 15mm, and expose 5mm copper;
