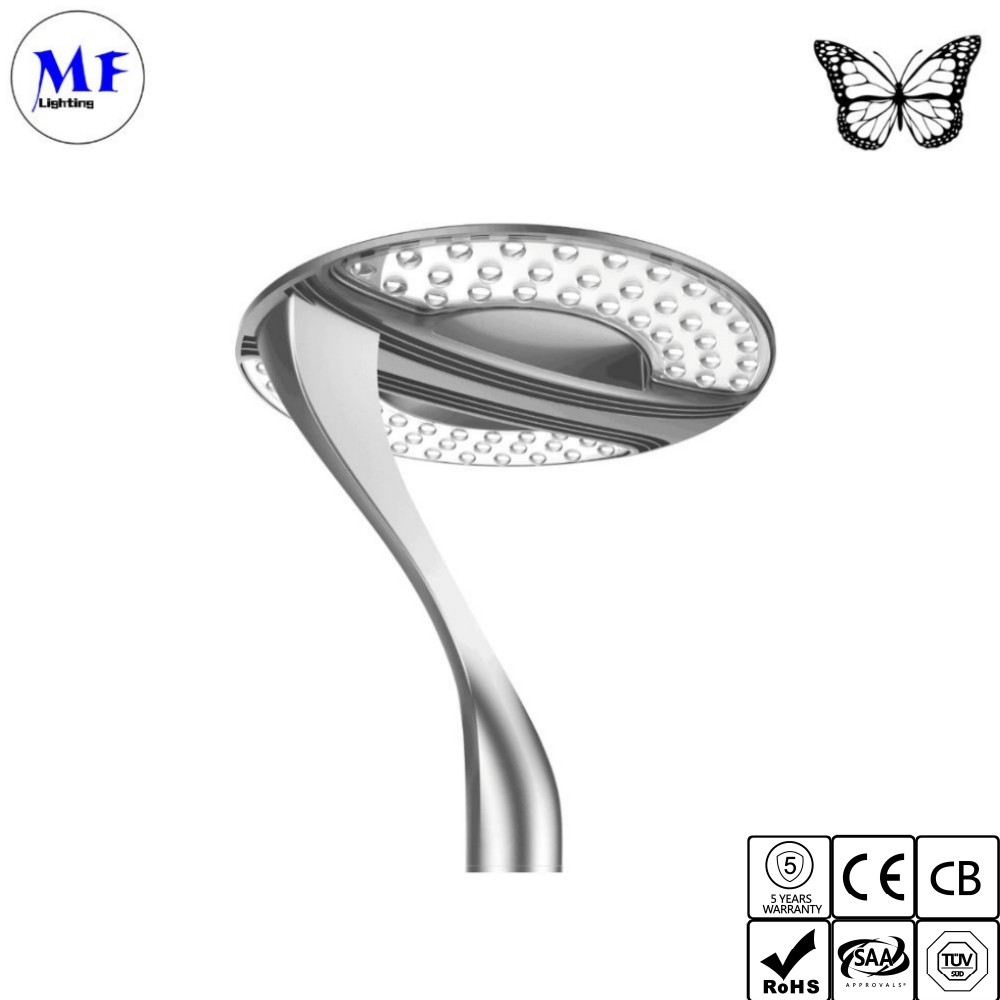

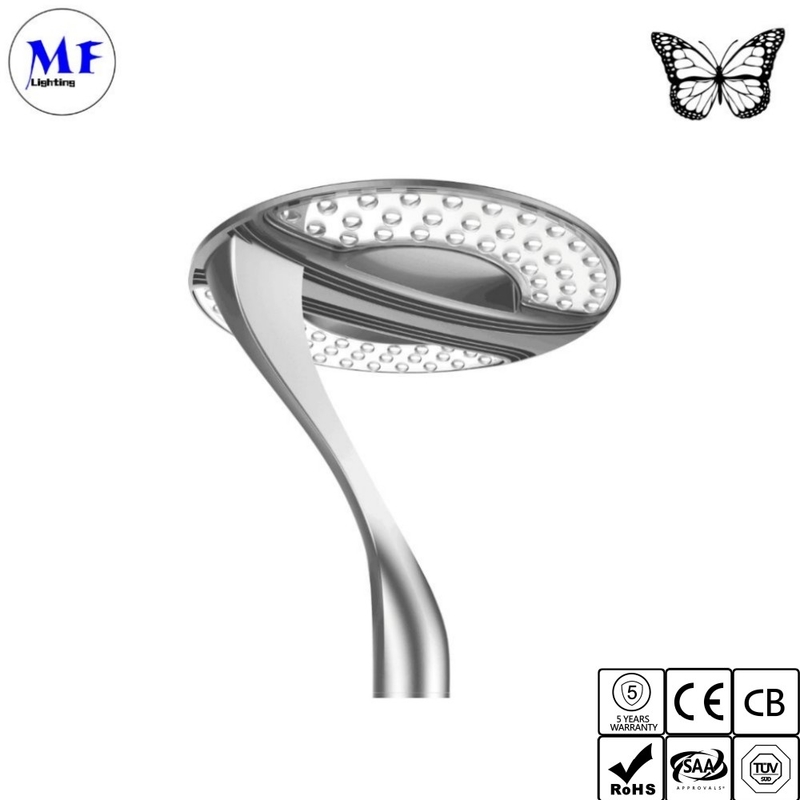

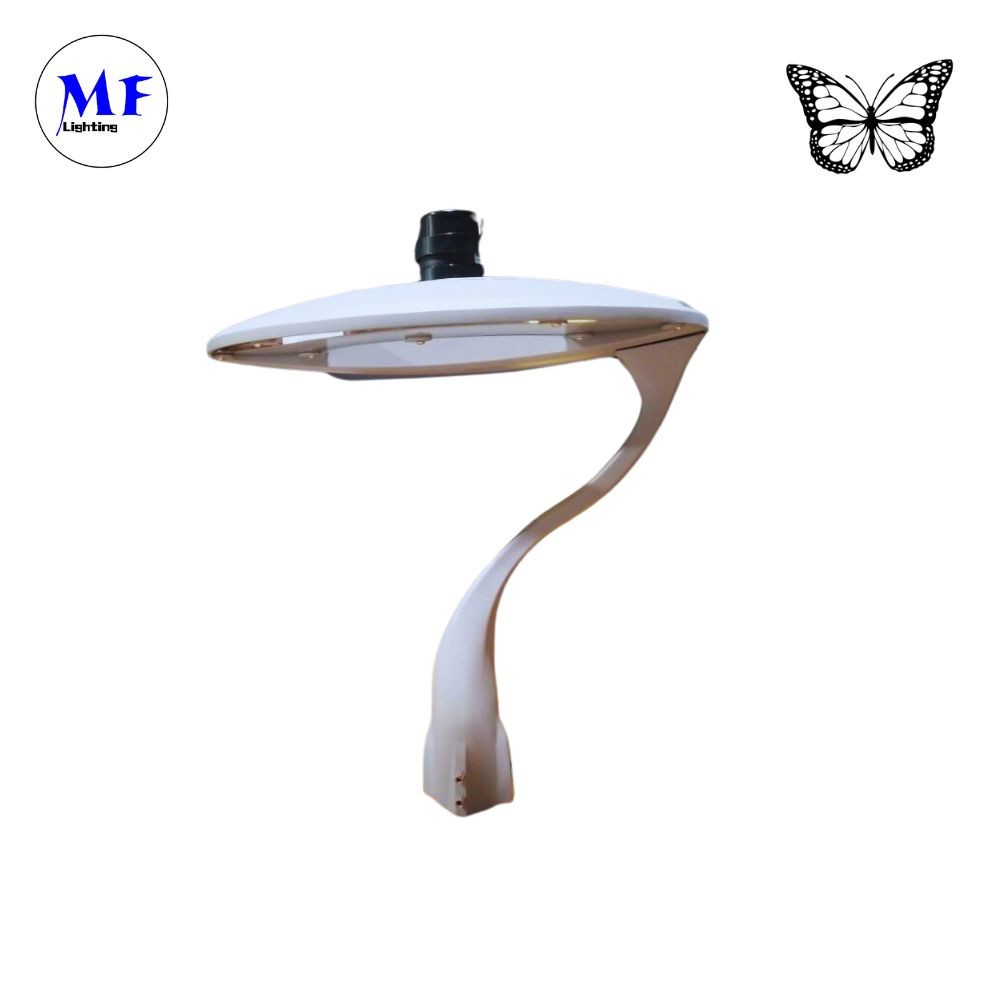

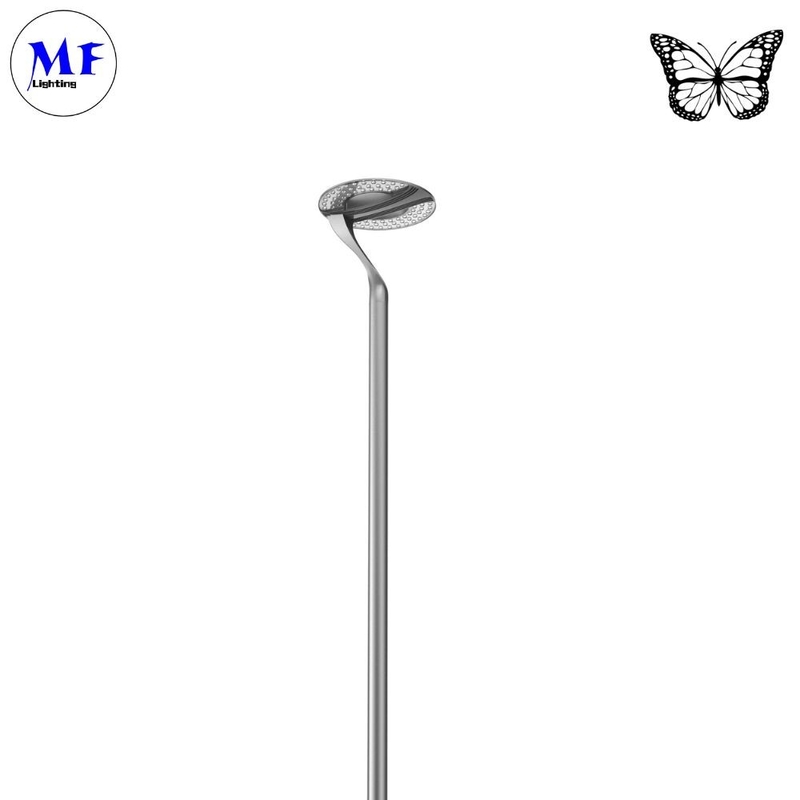

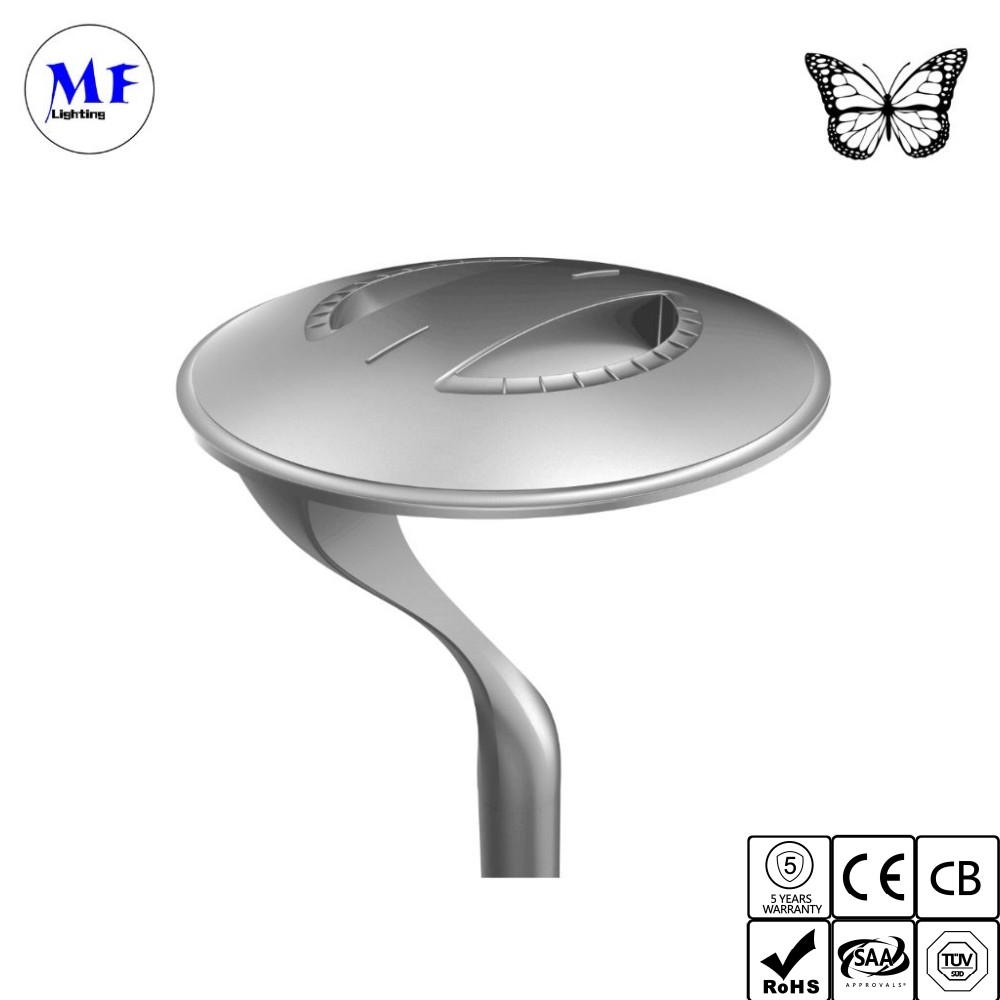

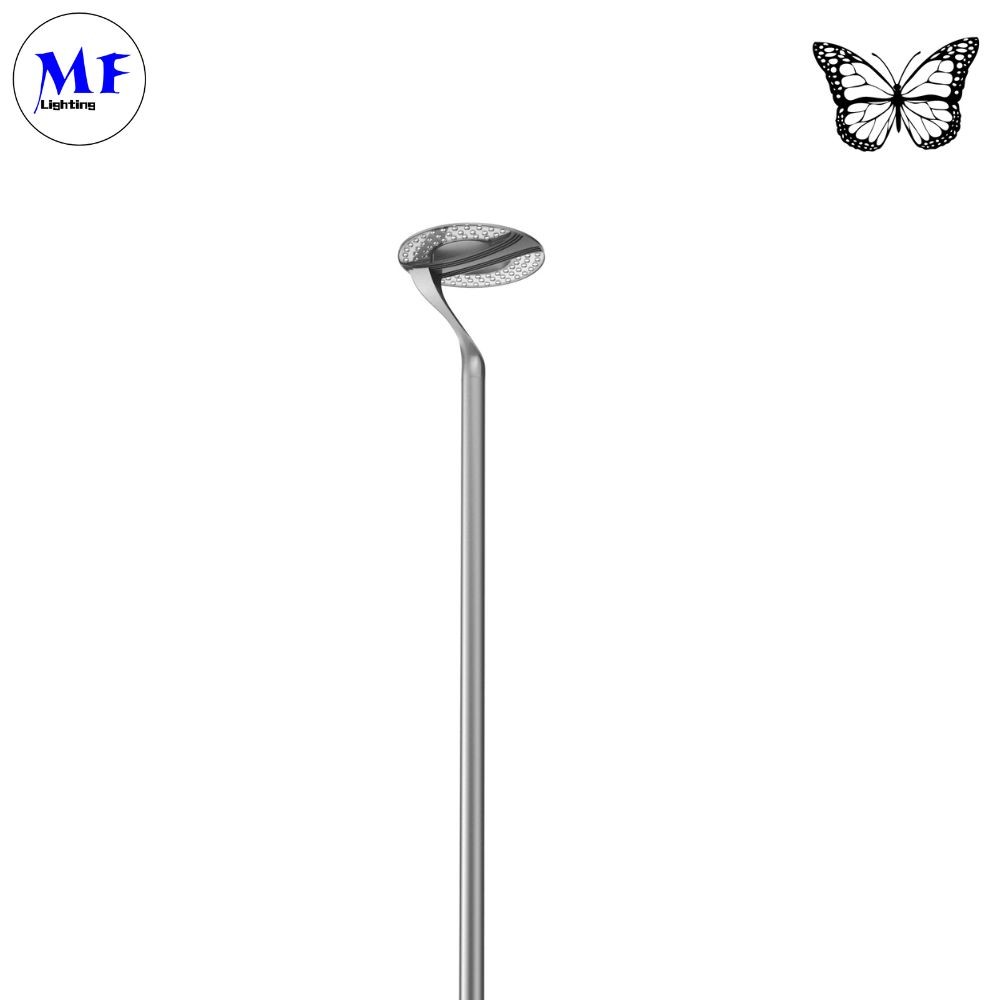

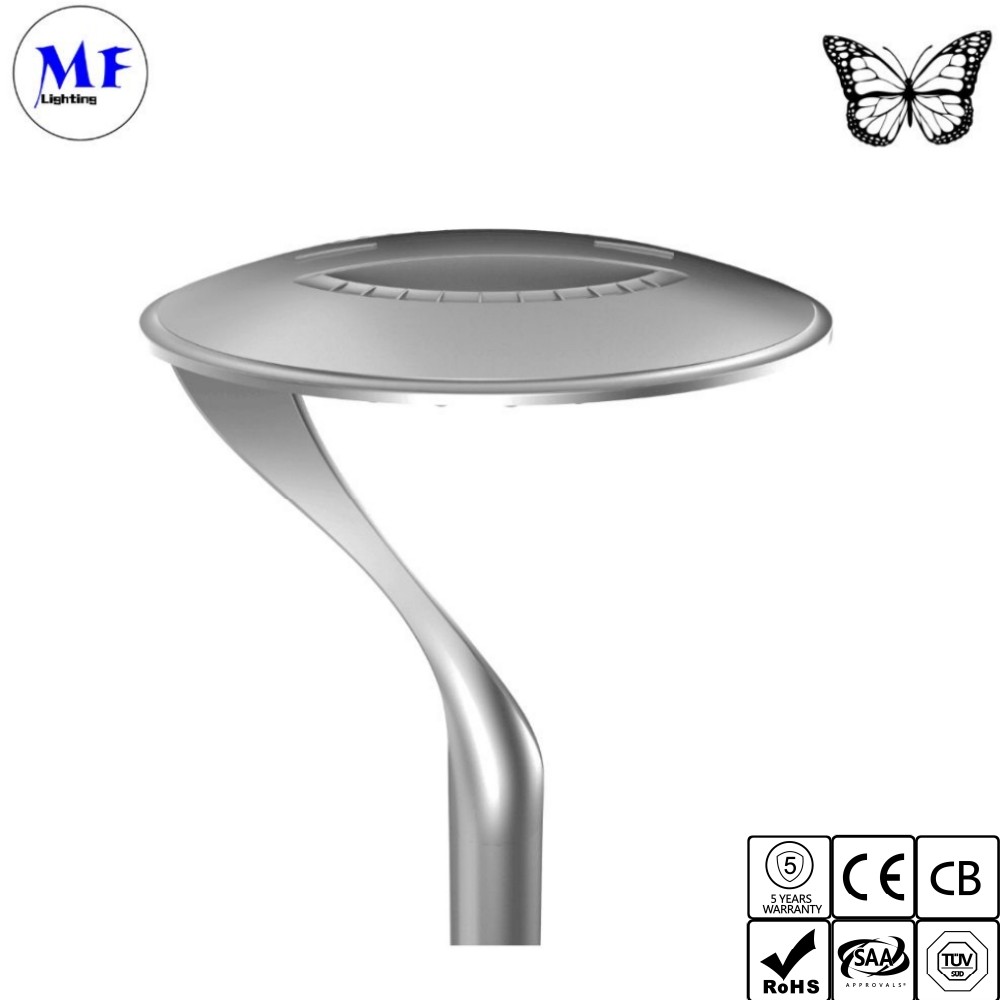

25W-120W IP65 LED Garden Light With SPD Sensor Photocell For Backyard Pathway Walkway Park

Minimum Order Quantity : 100PCS Price : Negotiable
Packaging Details : 16.5*15*22cm/1pcs, G.W: 1.2Kg Delivery Time : Depends on orders
Payment Terms : T/T, Western Union, L/C, Paypal Supply Ability : 5,000pcs/Month
Place of Origin: China Brand Name: MF
Certification: CE, RoHS,SAA Model Number: MF Butterfly garden light

Detail Information

Power Supply: Solar CCT: 3000K/4000K/5000K/5700K
Material: Alloy Aluminum+Optical PC+Tempered Glass+Stainless Power: 25W/50W/75W/120W
IP Rate: IP65 Ik Rate: IK 08
Warranty: 5years/10years Control System: PWM/MPPT/AC Input
Beam Angle: Type III/Type IV/Type V Lumen Efficiency: 135lm/W
Certification: CE/CB/ROHS/TUV Minimum CRI: 70/80/90 Ra
Accessory: 10kv SPD/20kv SPD/3 Pin Receptacle/7 Pin Receptacl Accessory Sensor: Sensor/Photocell/Dimmable
Driver: Inventronics/MeanWell
High Light:

25W IP65 LED Garden Light

,

SPD Sensor Photocell LED Garden Light

,

LED Roadway Lights 5700K

Product Description

25W-120W IP65 LED Garden Light With SPD Sensor Photocell For Backyard Pathway Walkway Park
25W-120W IP65 LED Garden Light With SPD Sensor Photocell For Backyard Pathway Walkway Park 0



1.Heavy-duty die-cast aluminum housing
2.Clean, smooth design blending harmoniously into outdoor envi-ronments.
3.UV stabilized polyester powder paint finish for durability and cor-rosion resistance
4.Multiple Mounting options: Posttop, side entry and cable sus-pending installation available.
5.Precision engineered individual lenses made of optical grade Mitsubishi polycarbonate for maximum light intensity, with Tempered Glass Cover to protect theoptics.
6.Micro-lens systems produce IESNA Type V distributions
7.Delivers improved visual com-fort by lower glare and providinga wider smoother and more uniform light output
8.Optical systems maintain IP65 rating
9.Available in 3000K/4000K/5000K/5700K/6500K CCT
10.Cut off classification: Cutoff, nouplight pollution.
11.Minimum CRlof70,80, and 90 optional.
12.1-10V/ PMW/Timer dimming,3Timer Modes,Dim-to-Off withStandby Power ≤ 0.5W
13.Constant current Inventronics driver (ForNorth America) or Mean-well driver(For Europe)100-277Vac50-60Hz
14.High efficiency driver:up to 93.5%, minimum efficiency 87.5%
15.Rugged, weather-tight designand 3G Vibration ratings ensure durability even in harsh environ-ments.

25W-120W IP65 LED Garden Light With SPD Sensor Photocell For Backyard Pathway Walkway Park 1



25W-120W IP65 LED Garden Light With SPD Sensor Photocell For Backyard Pathway Walkway Park 2

25W-120W IP65 LED Garden Light With SPD Sensor Photocell For Backyard Pathway Walkway Park 3



Installation:

25W-120W IP65 LED Garden Light With SPD Sensor Photocell For Backyard Pathway Walkway Park 4


25W-120W IP65 LED Garden Light With SPD Sensor Photocell For Backyard Pathway Walkway Park 5

FOR NORTH AMERICAN MARKET :

Replace MHL Up To WATTS INITIAL DELIVERED LUMENS DISTRIBUTION TYPE IP&IK NW Certificates & Listing
150W 50W 6750LM Type V IP65&lK08 19.6lbs(8.9kg) U-L
CUL
DLC premium
200W 75W 9750LM Type V IP65&lK08 21.8lbs(9.9kg)
350W 120W 15000LM Type V IP65&lK08 22.5lbs(10.2kg)


FOR EUROPEAN MARKET :





Replace MHL Up To WATTS INITIAL DELIVERED LUMENS DISTRIBUTION TYPE IP&IK NW Certificates & Listing
75W 25W 3625LM Type V IP65&lK08 19.6lbs(8.9kg) ENEC
CE
CB
ROHS
150W 50W 6750LM Type V IP65&lK08 19.6lbs(8.9kg)
200W 75W 9750LM Type V IP65&lK08 21.8lbs(9.9kg)
350W 120W 15000LM Type V IP65&lK08 22.5lbs(10.2kg)





25W-120W IP65 LED Garden Light With SPD Sensor Photocell For Backyard Pathway Walkway Park 6

A B C D
θ460mm/18.11" 80mm/3.15" 468mm/18.44" 530mm/20.86"
E F G H
78mm/3.08" 76mm/2.99" θ66mm/2.6" θ76mm/2.99"



25W-120W IP65 LED Garden Light With SPD Sensor Photocell For Backyard Pathway Walkway Park 7


25W-120W IP65 LED Garden Light With SPD Sensor Photocell For Backyard Pathway Walkway Park 8

  1. Parking lot light
  2. Urban/Village Street
  3. Country Road
  4. Highways
  5. Garden/Park
  6. School/Square/Hospital
  7. Avenues
  8. Square and residential area.
  9. Any Large Outdoor Are,et

25W-120W IP65 LED Garden Light With SPD Sensor Photocell For Backyard Pathway Walkway Park 9

1.Roadways and Highways: LED street lights are widely used for illuminating roadways, highways, and expressways. Their bright and uniform illumination improves visibility for drivers, reducing accidents and enhancing overall road safety.
2.Urban and Residential Areas: LED street lights are commonly installed in urban and residential areas to provide adequate lighting for streets, sidewalks, and public spaces. They enhance security, increase pedestrian safety, and create a welcoming environment for residents and visitors. 3.Parking Lots: LED street lights are suitable for lighting large parking lots, ensuring clear visibility and improved safety for vehicles and pedestrians. Their energy efficiency and long lifespan make them a cost-effective solution for lighting extensive parking areas.
4.Parks and Recreational Areas: LED street lights are utilized in parks, playgrounds, and recreational areas to provide illumination for night-time activities. They create a safe and inviting environment for people to enjoy outdoor spaces after dark.
5.Industrial Zones and Warehouses: LED street lights are employed in industrial zones and warehouses to ensure sufficient lighting for operational activities, promoting productivity, and safety in these working environments.
6.Campus Lighting: LED street lights are used to illuminate university and school campuses, providing well-lit pathways for students, staff, and visitors. They enhance security and create a comfortable environment for nighttime activities.
7.Public Spaces and Landmarks: LED street lights can be found in public spaces such as plazas, squares, and tourist attractions. They highlight architectural features, monuments, and landmarks, enhancing their beauty and visibility during the night.
8.Smart City Initiatives: LED street lights are an integral part of smart city initiatives. They can be integrated with smart lighting systems, allowing remote control and monitoring, dimming capabilities, and energy optimization, contributing to overall energy efficiency and sustainability.

25W-120W IP65 LED Garden Light With SPD Sensor Photocell For Backyard Pathway Walkway Park 10





Packing:







25W-120W IP65 LED Garden Light With SPD Sensor Photocell For Backyard Pathway Walkway Park 11
