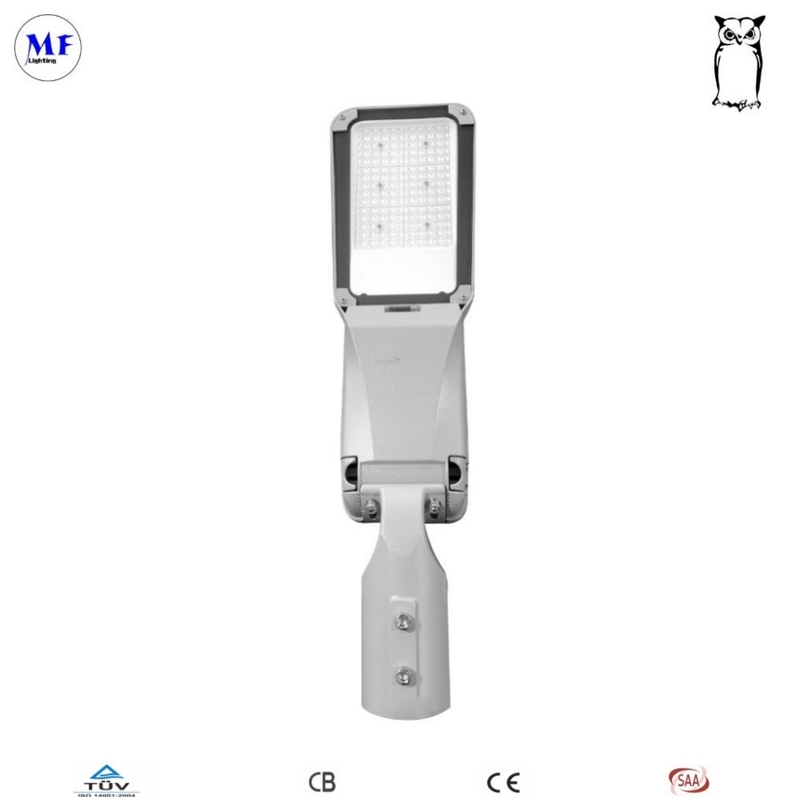

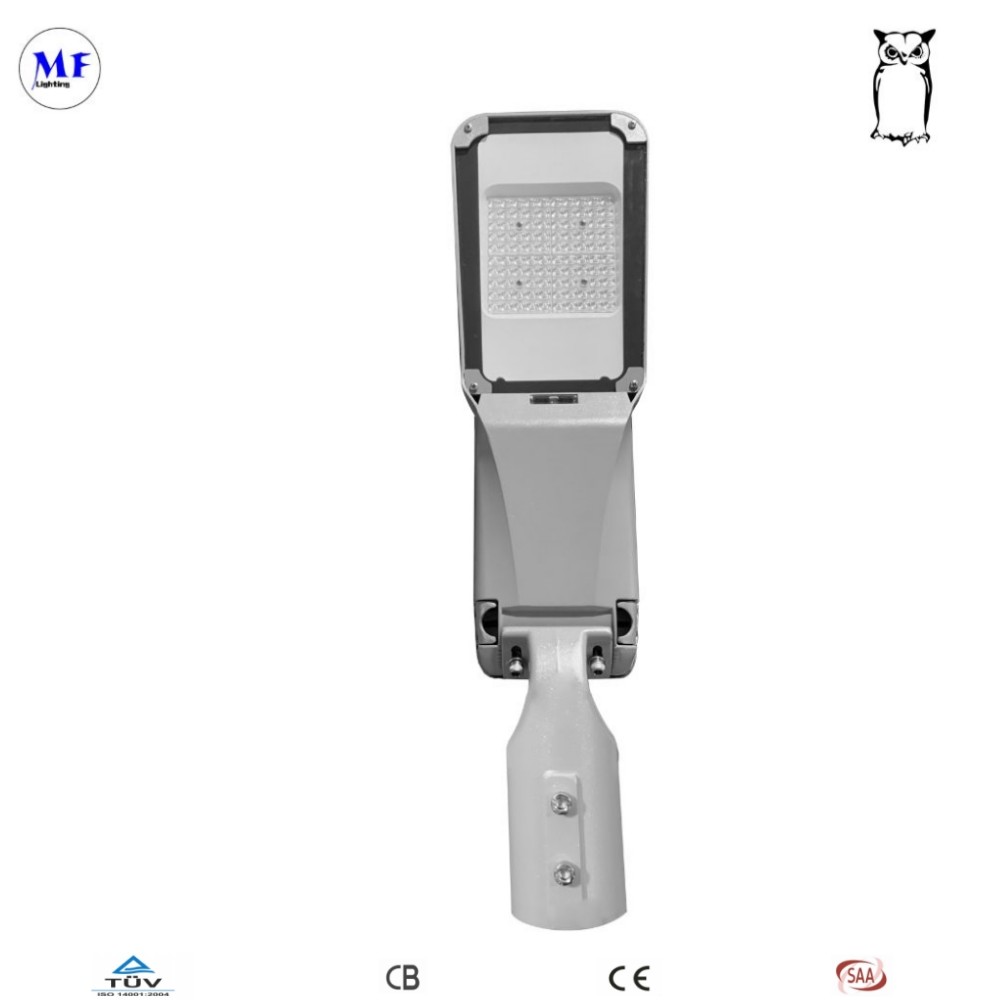

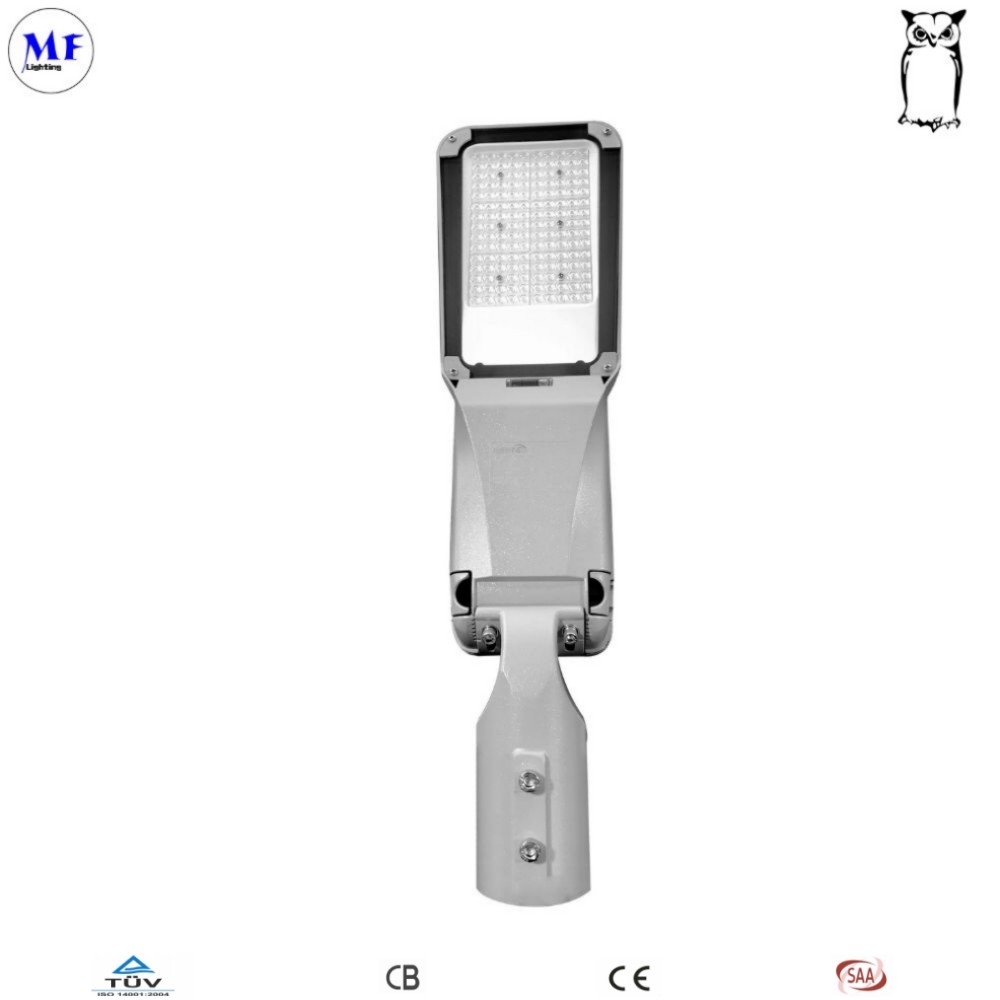

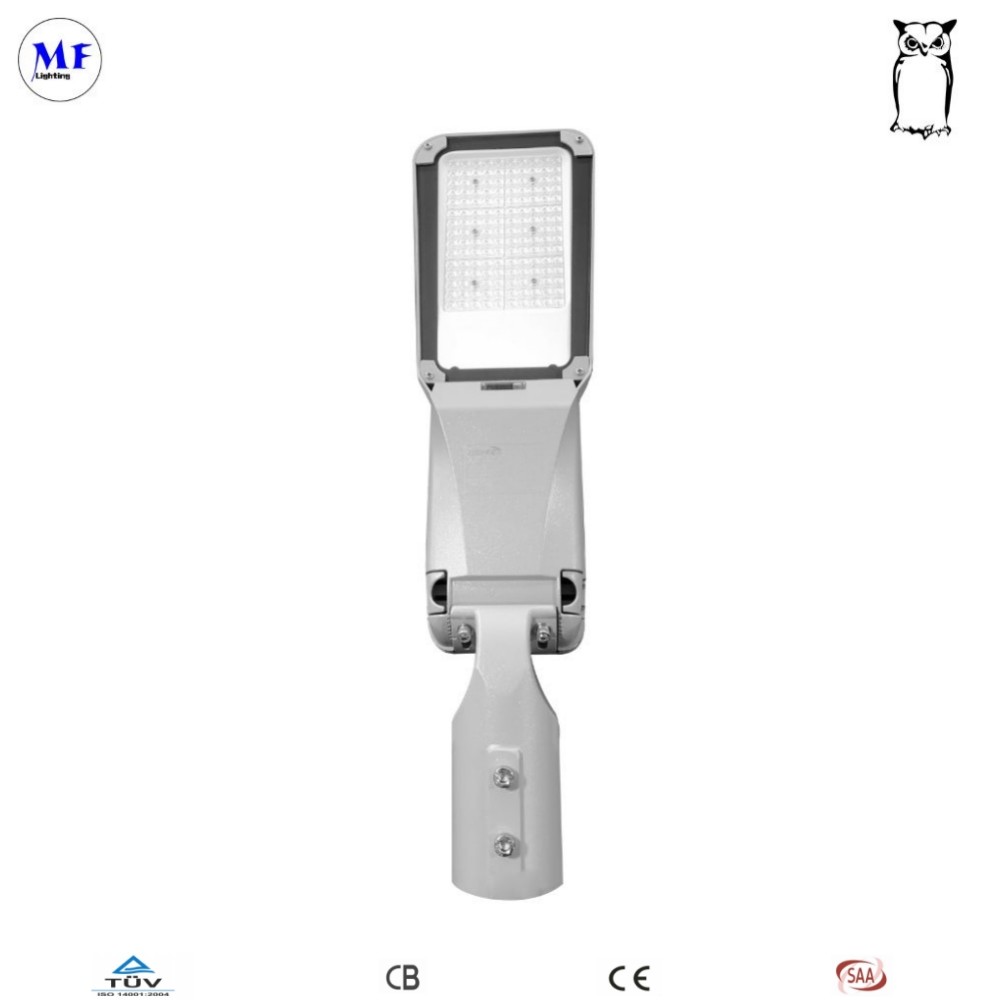

IP65 Outdoor LED Street Light 45W-250W With Photocell Motion Sensor Zigbee Dimming For Highway Expressway

Minimum Order Quantity : 100PCS Price : Negotiable
Packaging Details : 16.5*15*22cm/1pcs, G.W: 1.2Kg Delivery Time : Depends on orders
Payment Terms : T/T, Western Union, L/C, Paypal Supply Ability : 5,000pcs/Month
Place of Origin: China Brand Name: MF
Certification: CE, RoHS,SAA,TUV,CB,ETL,UL Model Number: MF Owl Street light 3

Detail Information

Power Supply: AC CCT: 3000K-6500K
Material: ADC12 Aluminum Die-Casting + PC Power: 45W/75W/100W/150W/200W/250W
IP RATE: IP65 Voltage: AC 100V-277V
LED Chip: LuMileds3030 Ik Rate: Ik10
Beam Angle: Typeii,Typeiii,Typeiv,Typev,25°,60°,90° Lens: PC+Glass
Smart Control: Photocell, Motion Sensor, Lora, Zigbee Luminous Efficacy: 175lm/W
Adjustable Bracket: 90degree And 180 Degree Support, Up And Down 30deg Function: 0-10V Dimming/Timer Control/Photocell
Function 2: Occupancy Sensor/Solar Compatible
High Light:

Outdoor LED Street Light 45W

,

Motion Sensor Outdoor LED Street Light

Product Description

IP65 Outdoor LED Street Light 45W-250W With Photocell Motion Sensor Zigbee Dimming For Highway ExpresswayIP65 Outdoor LED Street Light 45W-250W With Photocell Motion Sensor Zigbee Dimming For Highway Expressway 0



Waterproof IP65,high thermal conductivity housing


Beam angle TypeII,TypeIII,TypeIV,TypeV,25° 60° 90° PC+glass lens


Support smart control: photocell, motion sensor, lora, zigbee etc


High lumen SMD3030 chip, luminous efficacy 175Im/w

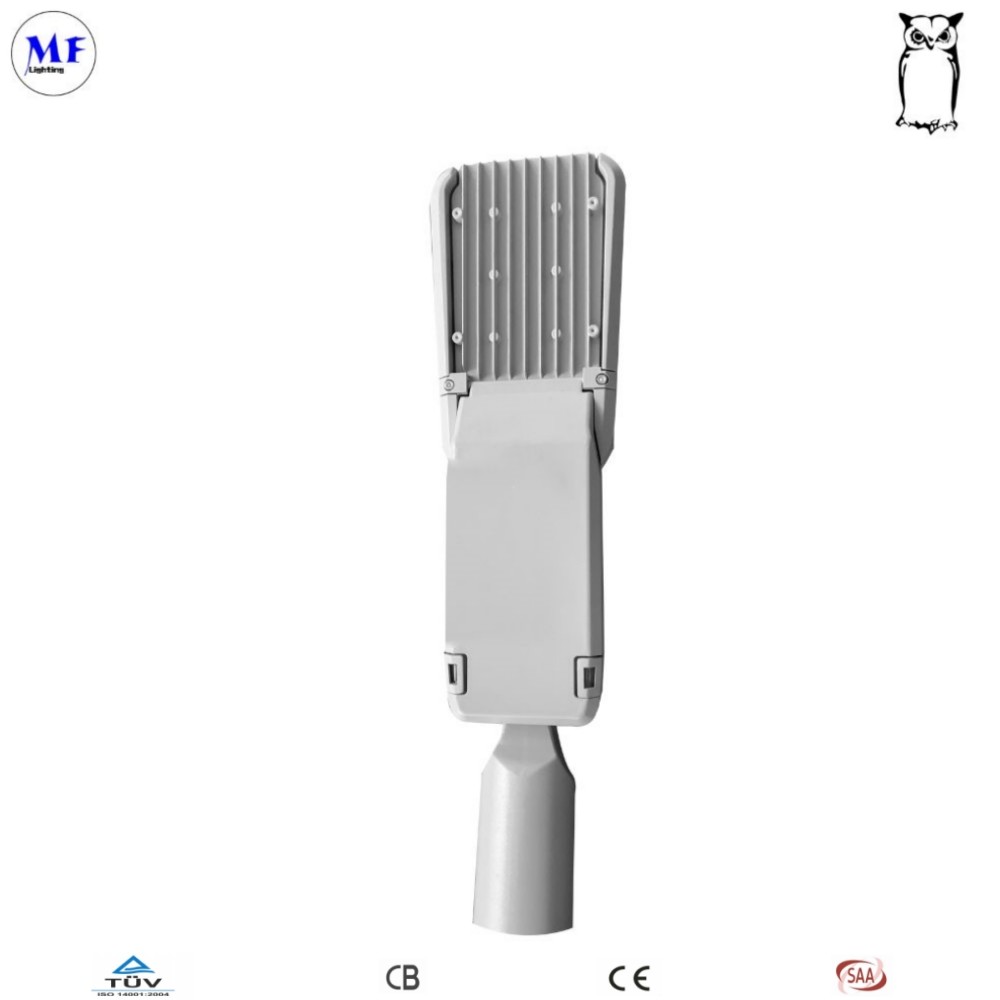

Ultra slim heat sink design makes the lamp lighter and betier in heat dissipation

IP65 Outdoor LED Street Light 45W-250W With Photocell Motion Sensor Zigbee Dimming For Highway Expressway 1

ENERGY SAVING CONTROL OPTION:DIM - 0-10 volt dim-ming enabled with controls by others.

EXPECTED LIFE:Minimum 100,000 hours depending uponthe ambient temperature of the installation location.

LEDS:Select high-brightness LEDs in Warm White NeutralWhite or Cool White color temperature, 80 CRl.

DISTRIBUTION/PERFORMANCE:High performance, multifaceted, reflector provides uniform Forward Throw (FI) dis-tribution with sharp backlight cutoff photometric data istested in accordance with IESNA quidelines

OPERATNG TEMPERATURE: -30°C to +55°C(-40F to +122°F)

WARRANTY: 7 years warranty SHIPPING WEIGHT:3.6 KG/4.2 KG3.6 KG/42 KG -5 KG/5.8 KG (in carton)

HOUSING:One-piece, die-formed aluminum housing contains factory prewired driver in a gasketed, weather-resistant wiring compartment.Hinged wiring access door (with safety lanyard) located underneath. Fixture is IP65 rated.

OPTICAL UNIT:Precision engineered lenses made of opti.cal grade Mitsubishi polycarbonate for maximum lightintensity. Come standard with field-rotatable optics



IP65 Outdoor LED Street Light 45W-250W With Photocell Motion Sensor Zigbee Dimming For Highway Expressway 2

Owl-3 LED Street Light is the most cost-effective professional LEDstreet light launched by MF Lighting . Owl-3 was designed toprovide customers with tool-free installation, lower maintenancecosts, and lower operating costs. Hi-rise LED Street Light featuresmodern streamlined geometry, exquisite design, attention todetail, and outstanding application performance, energy efficiency
and system reliability

IP65 Outdoor LED Street Light 45W-250W With Photocell Motion Sensor Zigbee Dimming For Highway Expressway 3



IP65 Outdoor LED Street Light 45W-250W With Photocell Motion Sensor Zigbee Dimming For Highway Expressway 4


IP65 Outdoor LED Street Light 45W-250W With Photocell Motion Sensor Zigbee Dimming For Highway Expressway 5



WATT LUMEN OUTPUT LED CHIP EFFICACY LED QUANTITY
75W 13125lm Lu-mileds3030 175LM/W 96pcs
100W 17500lm 144pcs
120W 21000lm 192pc
150W 26250lm 192pc
200W 35000lm 288pcs
250W 43750lm 360pcs



LIGHT ANGLE CCT&CRI VOLTAGE CERTIFICATION
25°/60°/90°
TYPE II,III,IV,V
3000K-6500K
≥80
AC100-277V
347V/480V
50/60Hz
U-L
DLC Premium
SAA
VEET
CB



IP65 Outdoor LED Street Light 45W-250W With Photocell Motion Sensor Zigbee Dimming For Highway Expressway 6







IP65 Outdoor LED Street Light 45W-250W With Photocell Motion Sensor Zigbee Dimming For Highway Expressway 7

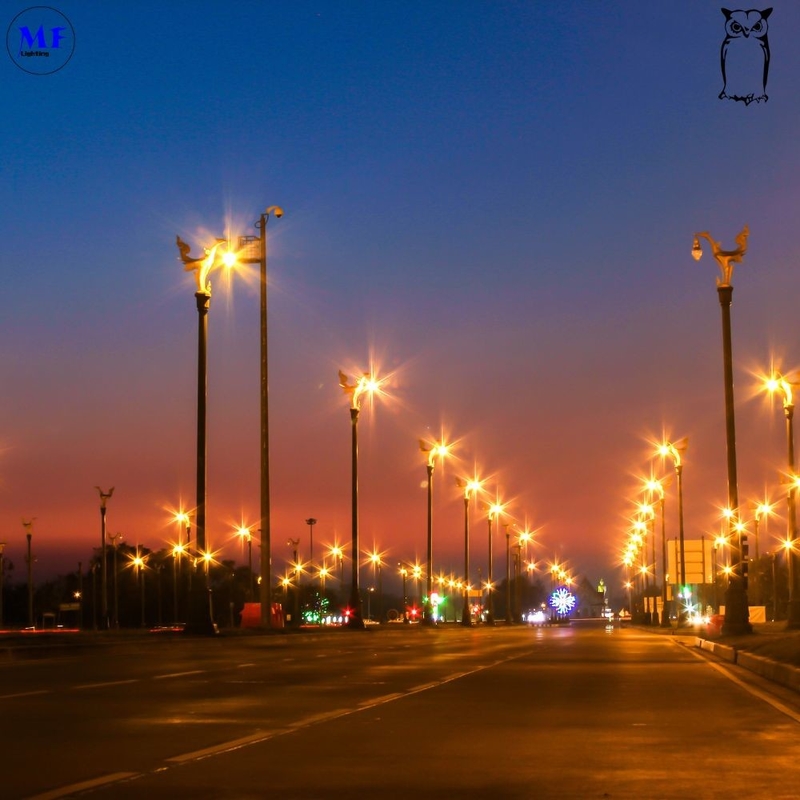

  1. Parking lot light
  2. Urban/Village Street
  3. Road
  4. Highways
  5. Garden/Park
  6. Schoole/Square/Hospital
  7. Any Large Outdoor Are,etc




IP65 Outdoor LED Street Light 45W-250W With Photocell Motion Sensor Zigbee Dimming For Highway Expressway 8



LED Street Lights find a wide range of applications in various urban and outdoor settings. Their versatility and efficiency make them an ideal choice for illuminating streets, roads, and highways. Here are some key applications of LED Street Lights: City Streets: LED Street Lights are commonly used to light up city streets, ensuring safe and well-lit pathways for pedestrians, cyclists, and drivers. Their bright and uniform illumination improves visibility and reduces the risk of accidents, enhancing overall road safety. Highways and Expressways: LED Street Lights are extensively deployed on highways and expressways to provide clear visibility over long distances. They help drivers navigate these high-speed roads safely by ensuring well-lit surroundings, minimizing glare, and improving overall visibility.



LED Street Lights find a wide range of applications in various urban and outdoor settings. Their versatility and efficiency make them an ideal choice for illuminating streets, roads, and highways. Here are some key applications of LED Street Lights: City Streets: LED Street Lights are commonly used to light up city streets, ensuring safe and well-lit pathways for pedestrians, cyclists, and drivers. Their bright and uniform illumination improves visibility and reduces the risk of accidents, enhancing overall road safety. Highways and Expressways: LED Street Lights are extensively deployed on highways and expressways to provide clear visibility over long distances. They help drivers navigate these high-speed roads safely by ensuring well-lit surroundings, minimizing glare, and improving overall visibility.

IP65 Outdoor LED Street Light 45W-250W With Photocell Motion Sensor Zigbee Dimming For Highway Expressway 9

Residential Areas: LED Street Lights are also used in residential areas, providing adequate lighting for neighborhoods and communities. They enhance security by illuminating residential streets, driveways, and public spaces, creating a sense of safety and discouraging criminal activities. Parking Lots: LED Street Lights are commonly installed in parking lots to ensure sufficient lighting for vehicles and pedestrians. Their bright and evenly distributed light helps drivers park safely, improves visibility during nighttime, and enhances security in parking areas.

IP65 Outdoor LED Street Light 45W-250W With Photocell Motion Sensor Zigbee Dimming For Highway Expressway 10

Parks and Recreational Areas: LED Street Lights are used in parks, playgrounds, and recreational areas to provide a safe and inviting environment for outdoor activities. They enhance visibility for evening walks, jogging, and sports activities, allowing people to enjoy these spaces even after dark. Commercial and Industrial Areas: LED Street Lights are employed in commercial and industrial areas to ensure proper lighting for businesses, warehouses, and manufacturing facilities. They offer energy-efficient lighting solutions that contribute to cost savings and create a well-lit working environment. Smart City Integration: LED Street Lights can be integrated into smart city systems, enabling advanced control and management features. They can be connected to a centralized control system for remote monitoring, dimming, and scheduling, optimizing energy consumption and reducing maintenance efforts.





IP65 Outdoor LED Street Light 45W-250W With Photocell Motion Sensor Zigbee Dimming For Highway Expressway 11



About us:





Our factory has been producing LED lights for indoor and outdoor applications, Such as LED down lights, LED Panel Light,LED wall light,LED tube light, LED spot light, LED track light,LED ceiling light,LED high bay light,LED tri-proof light,LED flood light, LED high mast light, LED Stadium light, LED street light, LED Garden light and LED explosion proof light. Our products are widely intalled in large-scale lighting applications, such as in large farms, factories, schools, bridges, tunnels, ports, subways,airports,minings, hospitals and many other applications.

Mingfeng specializes in LED lights, and produces and exports high-quality LED light fixtures to Asia, Europa, North American, Latin American and Pacafic ocean island for almost 132 countries, all LED lights are under ISO9001 system with professional team management, the certificate of CE, CB, ENEC,RoHS,CSA, UL, SAA and REACH are certifiedy by SGS or TUV depends on LED lights family.

MF R&D team are with passion, persistence and technology know-how to develp our LED lights, our engineers takes our LED develpment as baby care onto any single tiny details, the aim to this is that providing high quality LED lights by our vision plus knowleadge ,and at the end of story,enable an quality life and work under MF lights for all users in this planet, MF stuff knows "LIGHTS THE WORLD" is not a joke, but make it happen day by day with hard working.
