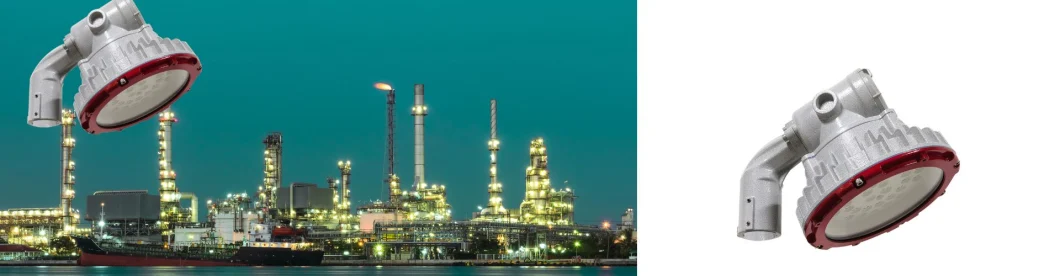

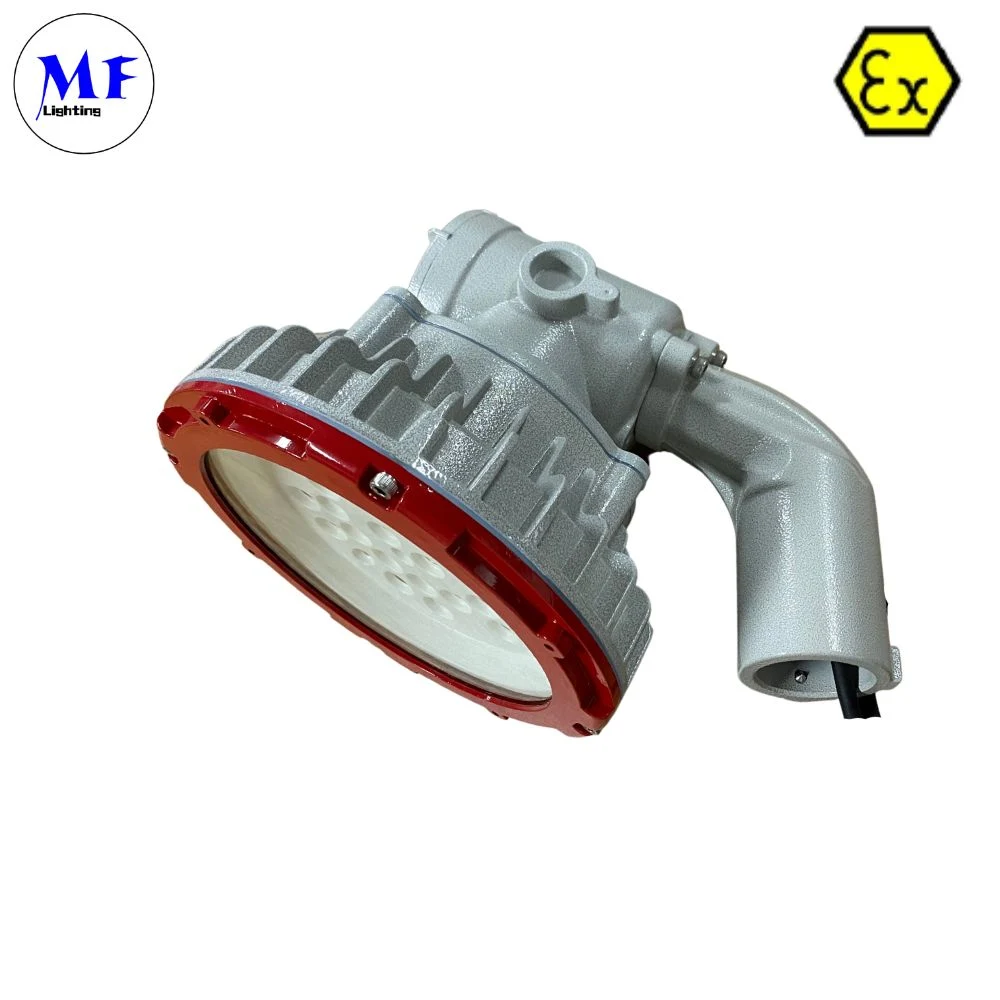

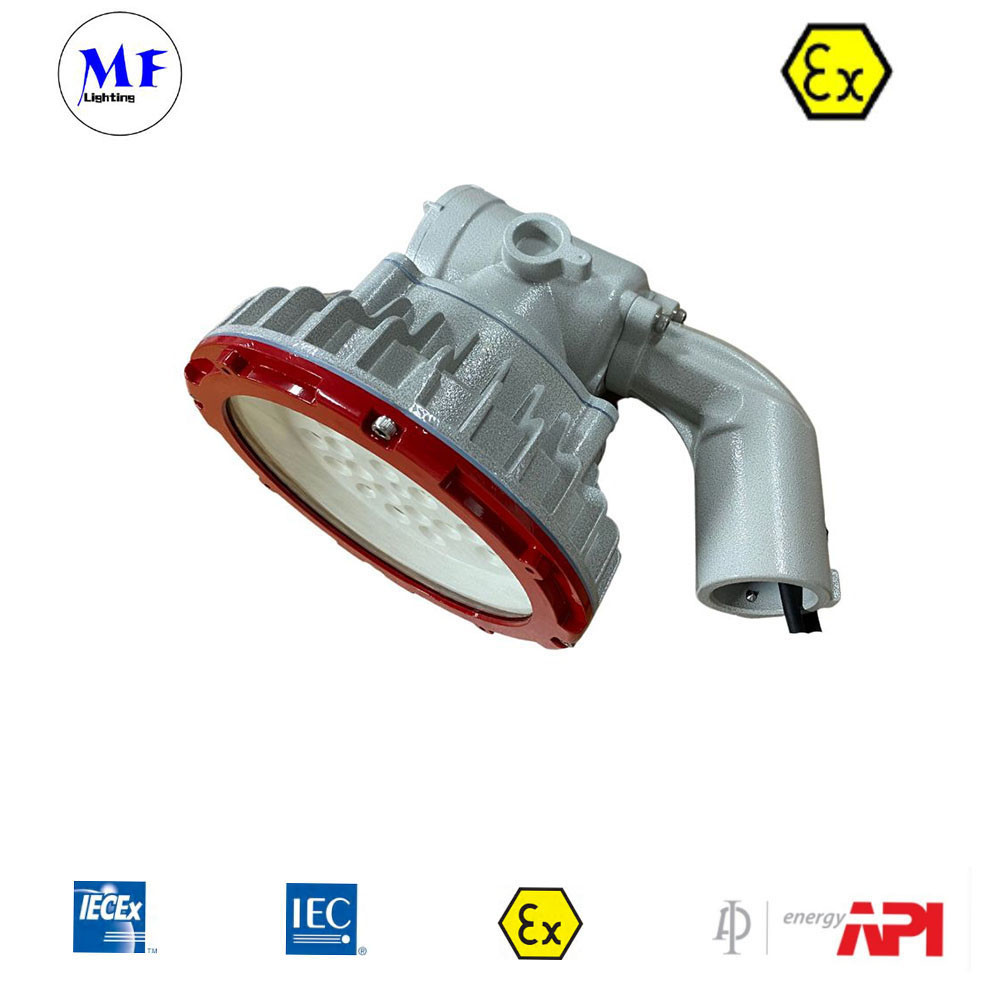

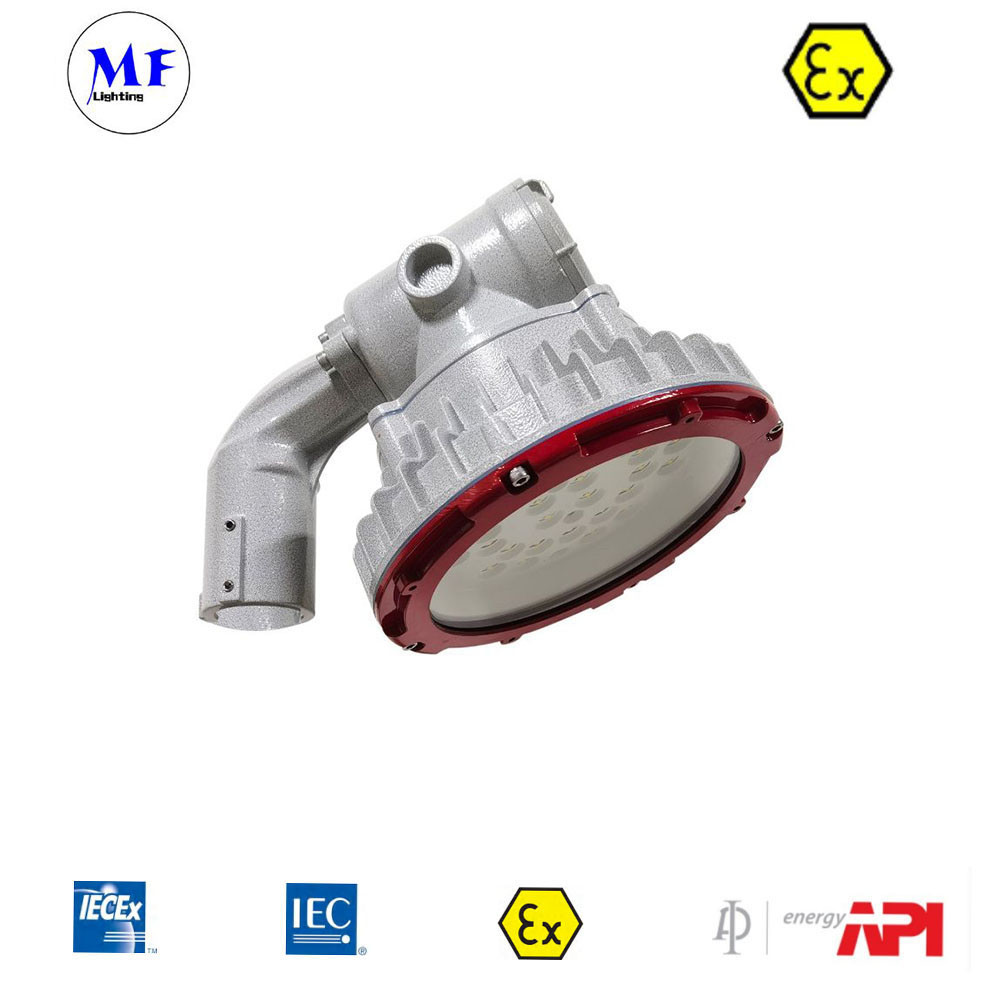

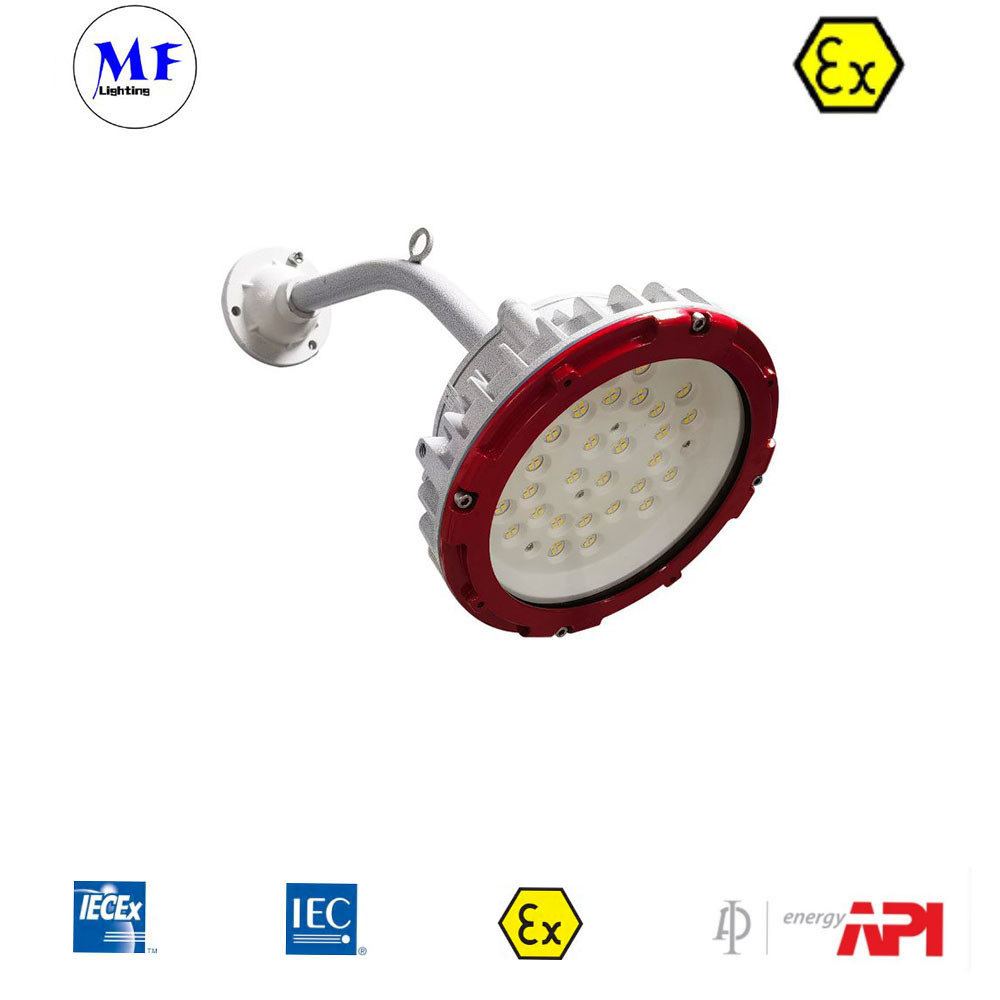

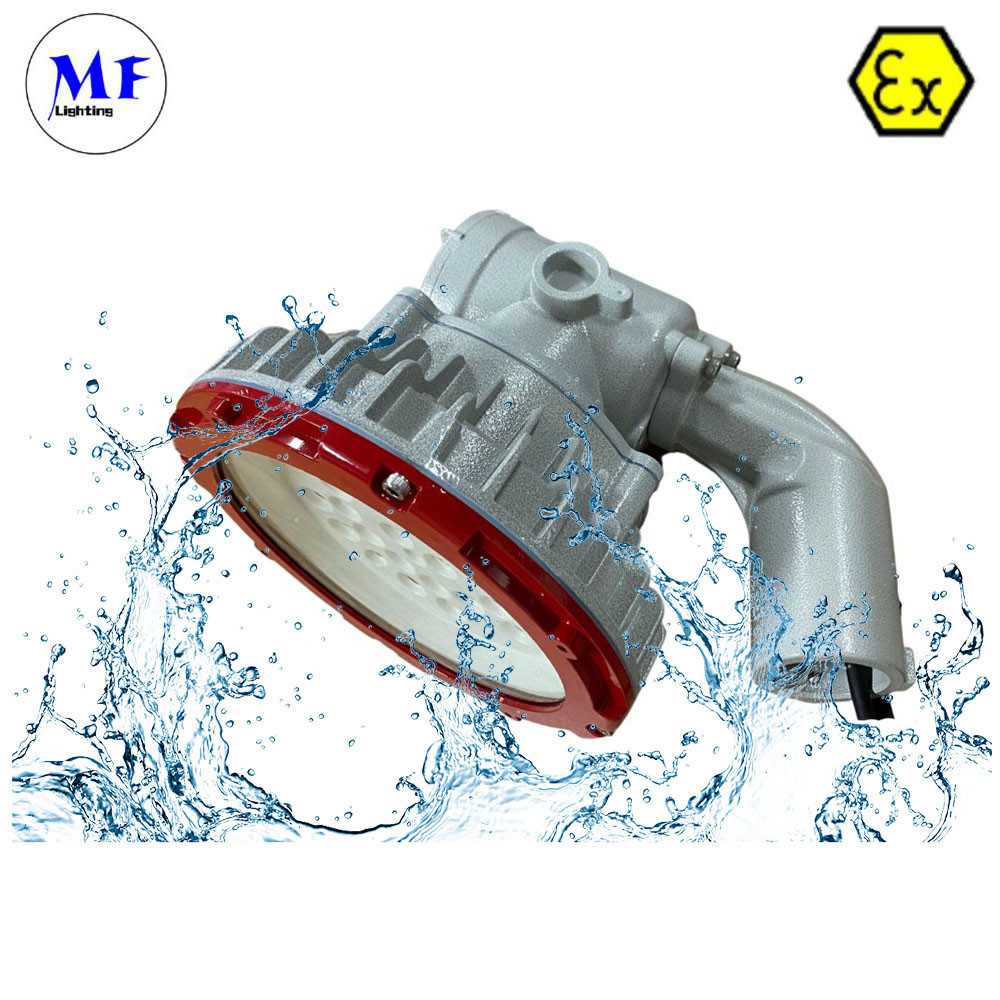

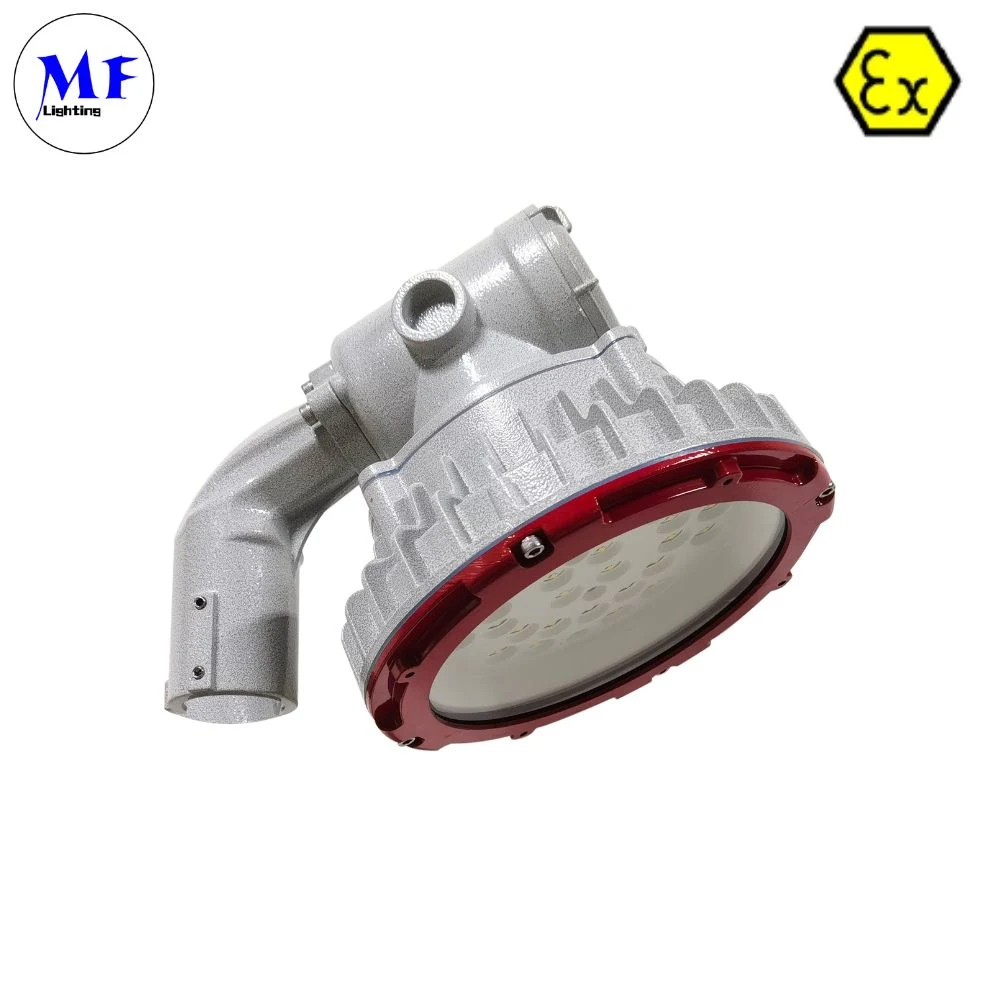

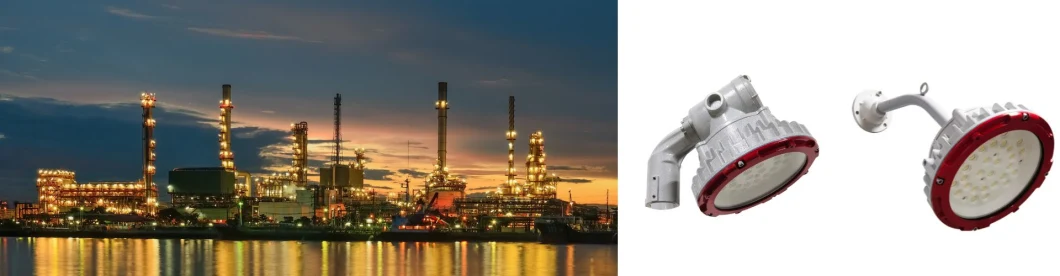

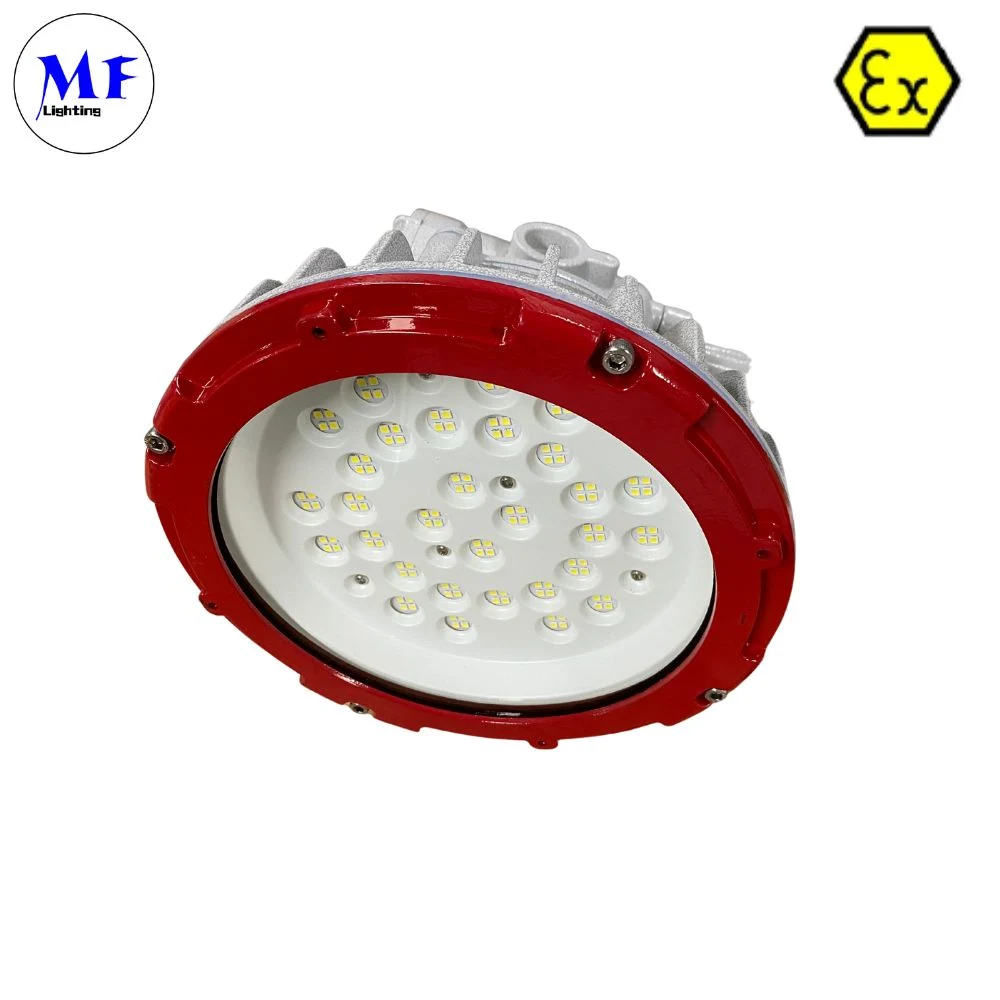

Ex LED Explosion Proof Light Atex Certified 60W Zone 1 Zone 2 LNG Gas Station Oil Industry Light Ocean Platform Light

Product Description

Factory price Atex certified 60W Zone 1 Zone 2 LNG Gas Station Oil Industry Light Ocean Platform Light Chemical Plant Explosion proof light

Materials
• Housing: Aluminum
• Lens: Tempered Glass
• Hardware: Aluminum
• Mounting Bracket: Aluminum/SUS 304

Features
• Working Temperature: -40°C ~ +60°C.
• High quality SMT LED and Meanwell Driver.
• Heat and impact resistant glass lens.
• Compact structure, small size and light weight for easy installation.
• Fixture constructed of die-castin aluminum and epoxy powder coat.
• High vibration and impact resistant.
• Changeable light source and battery to make replacement super easy.

ltem	Power	Color Temperature	Voltage	Lumens	Warranty	CRI
EX-20W M1YZDA	20w	2200K-7000K	AC100-277/220-480V	2800	5 years	80
EX-40W M1YZDA	40w			5600
EX-60W M1YZDA	60w			8400
EX-80W M1YZDA	80w			11200
EX-100W M2YZDA	100W			14000

1. Safety:

   • IK 10 rating
   • Designed to prevent explosions in hazardous environments
   • Safe lighting option for areas with flammable gases, liquids, or dust

2. Energy efficiency:

   • LED lights consume less energy than traditional lighting options
   • Cost-effective and eco-friendly choice for industrial and commercial applications

3. Durability:

   • Built to withstand harsh environments and extreme temperatures
   • Ensures long-lasting and reliable performance

4. Low maintenance:

   • LED lights have a longer lifespan than traditional lighting options
   • Reduces the need for frequent replacements and maintenance

5. Customization:

   • Available in a range of sizes and designs to fit specific applications

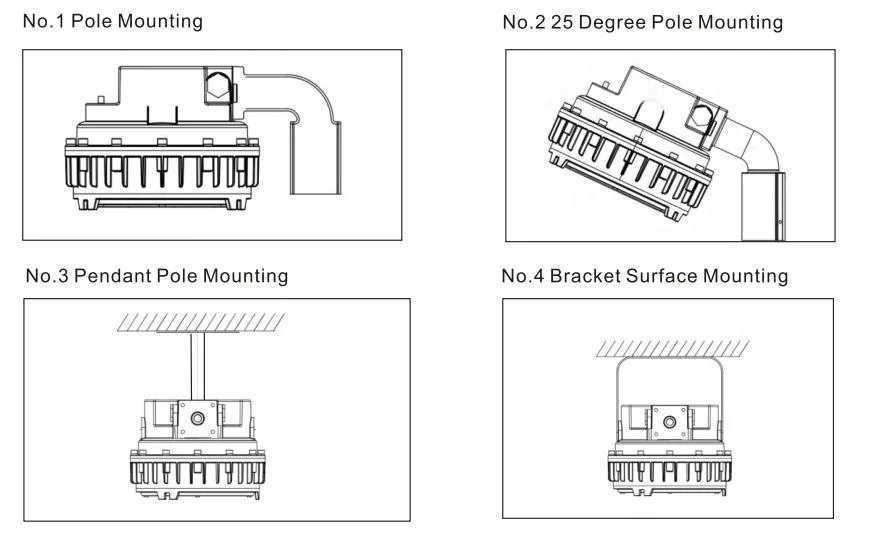

   • Customizable with various mounting options and beam angles for optimal lighting coverage.

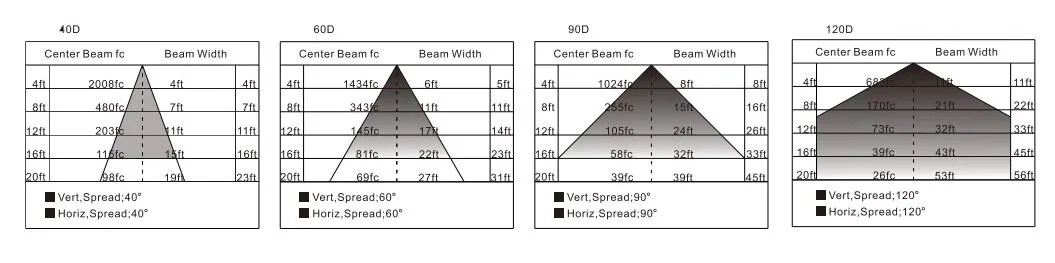

Photometry

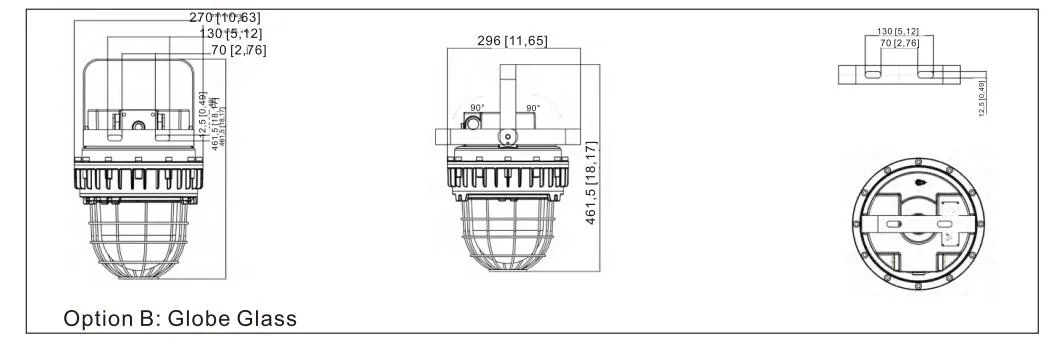

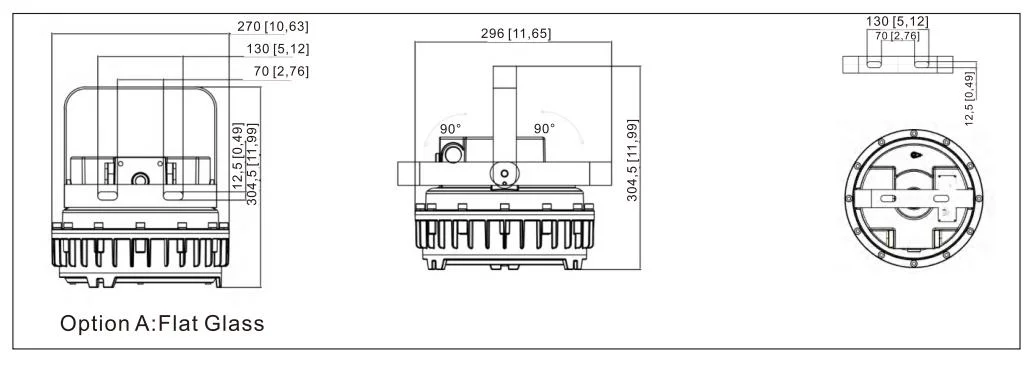

Product dimension:

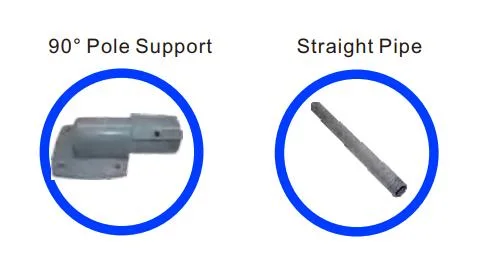

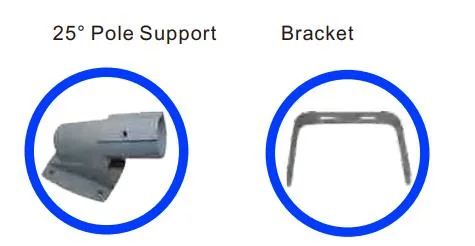

Accessories

1.Safe and reliable for hazardous environments
2.High-quality components for bright and even light output
3.Robust construction for durability and resistance to damage
4.Accurate color representation with 80Ra color rendering index
5.Energy-efficient LED technology
6.Easy to install and maintain
7.Environmentally friendly with no hazardous materials
8.Long lifespan
9.Versatile for a wide range of industrial and hazardous settings.

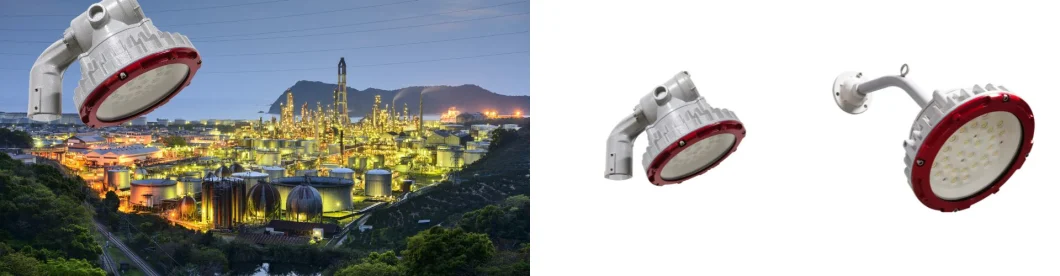

Oil and Gas industry
• All petroleum production and refining
• Petroleum loading and transportation
• Petroleum storage and retail
• LNG industry
• All mining operations and service

Chemical industry
• All types of paint facilities
• Chemical production and storage Ocean, marine and aerospace field
• Ocean platform operation

facilities and structure
• Aerospace clean room and production
• Ocean vessel operations

Metal treatment
• Steel and aluminum factories
• Pumping stations in any environment
• Metal smelting, foundry and fabrication

Food and alcohol industry
• Flour and fine particle production and storage
• Food and distilling production
• Alcohol industry

Other high humidity, high dust,high temperature, vapor locations

What is the function of explosion-proof lights
Explosion-proof lamps are one level lighting fixtures with explosion-proof performance, mainly used in industrial places. They are industrial lighting fixtures, so what is the use of explosion-proof lamps?
The main function of explosion-proof lamps is to prevent electric arcs, sparks, and high temperatures that may occur inside the lamp from causing flammable gases and dust in the surrounding environment, thereby achieving
According to the explosion-proof requirements, qualified explosion-proof lamps must be used for lighting in flammable and explosive places.
Where are explosion-proof lamps mainly used

Explosion proof lamps are mainly used in hazardous areas where combustible gases and dust exist, including:

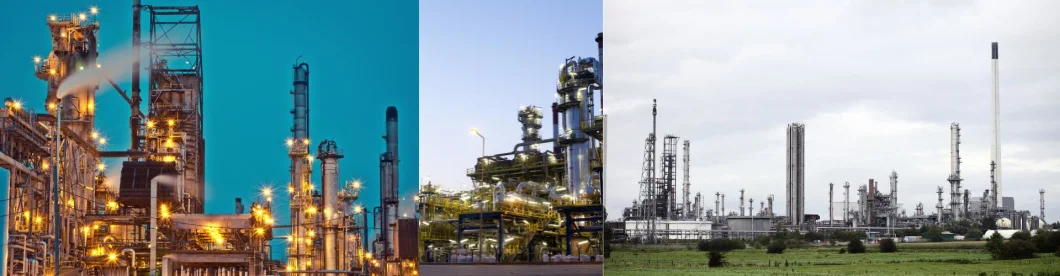

1. Petrochemical enterprises
With the rapid expansion of petrochemical enterprises, the level of labor protection technology has also been correspondingly improved. Petrochemical industry is a continuous large-scale production that is technology intensive and capital intensive
Full production is particularly important, and explosion-proof lamps are one of the necessary equipment for safe production in the petrochemical industry.
2. Ports and docks
Ports and docks are used to handle and store the increasing amount of crude oil, liquefied natural gas, and sensitive grain, all of which increase the need for on-site use of hazardous area lighting
Seek. The nature of port applications and their coastal location also require the use of anti slow lighting fixtures.

3. Offshore Platforms
The nature of offshore platforms provides a challenging environment for designated lighting- Once a danger occurs, the relevant areas of the platform may experience or accumulate explosive hazards
Gas. When this gas reaches the explosive concentration range and encounters an open flame, it will explode. Considering continuous exposure to ocean conditions such as high wind speeds and saline environments, high quality and
Durable explosion-proof lighting fixtures that can withstand these factors are crucial.

4. Coal mining industry
The coal mining industry contains explosive mixtures of gases such as methane and coal dust. It is also necessary to use explosion-proof lamps for floodlighting in underground tunnels and chambers of coal mines.

5. Medical Pharmaceuticals
Pharmaceutical companies, whether they are biopharmaceuticals, chemical synthetic drugs, or raw materials, often use various flammable and slow organic solvents in their production processes and processes
The quality belongs to flammable and explosive substances, so a series of explosion-proof measures must be taken to ensure safe production, and the use of explosion-proof lamps is one of them.
