Red Aeronautical LED Aviation Obstruction Light Factory Price for Marking Obstacles with Yellow color and Aluminum

Contact Now

Red Aeronautical LED Aviation Obstruction Light Factory Price for Marking Obstacles with Yellow color and Aluminum

Minimum Order Quantity :	1	Packaging Details :	Standard Carton
Delivery Time :	Depends On Order	Payment Terms :	T/T, L/C, Western Union, MoneyGram
Supply Ability :	5000PCS/Months

Place of Origin:	China	Brand Name:	MF
Certification:	CE,CCC,ETL,FCC	Model Number:	MF-MI-B2/BF

Detail Information
Available Colors:	Red	Horizontal Outpu:	360
Mounting:	3/4 Inch Pipe Thread Or D140mmxm10*3	Input Voltage:	100-240VAC
Lighting Surge:	IEC61000-4-5 L- N ±3kv	Warranty:	5 Years
IP:	66	Wind Speed:	130lm/s
Base Material:	Die-casting Aluminum	Beam Angle:	120°
Product Life Expectancy:	10 Years	Operation Temperature:	-40°~+50°

Product Description

ElectrostaicLighting SurgeFlash CharacteristicVertical DivergenceIntensity
IP66 AC110-240V LED Aircraft Warning Red Beacon Aeronautical Aviation Obstacle Light for Power Transmission Tower Wind Turbine Control Tower

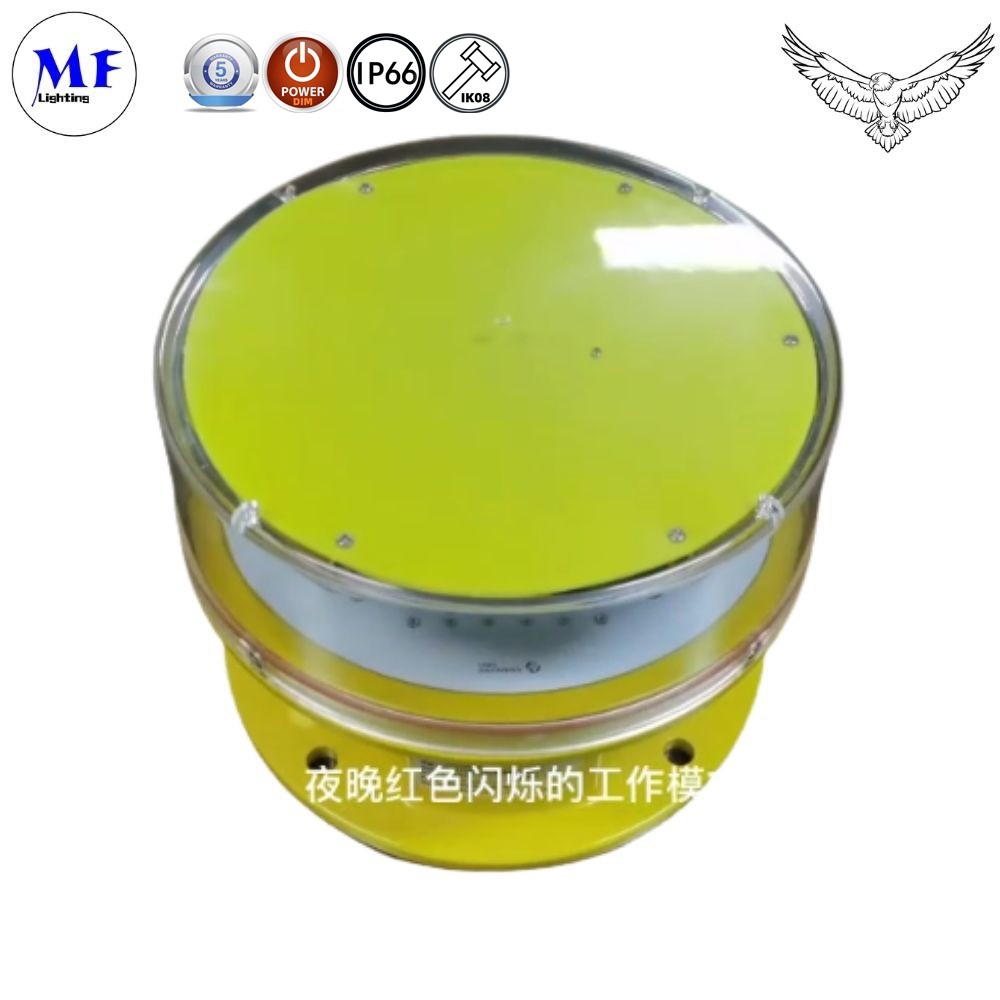

Red Aeronautical LED Aviation Obstruction Light Factory Price for Marking Obstacles with Yellow color and Aluminum 1

This LED Medium-intensity Red&White Dual Aviation Obstruction Light flashing white color at daytime and red color at night.It's designed for marking top of obstacle which height is between 45-150 meters.Ultra high intensity CREE LED is used for the light source ensure the long life experience and good performance.Self-designed reflector is used to converge light, which could reach the standard light intensity with as less as the power consumption.

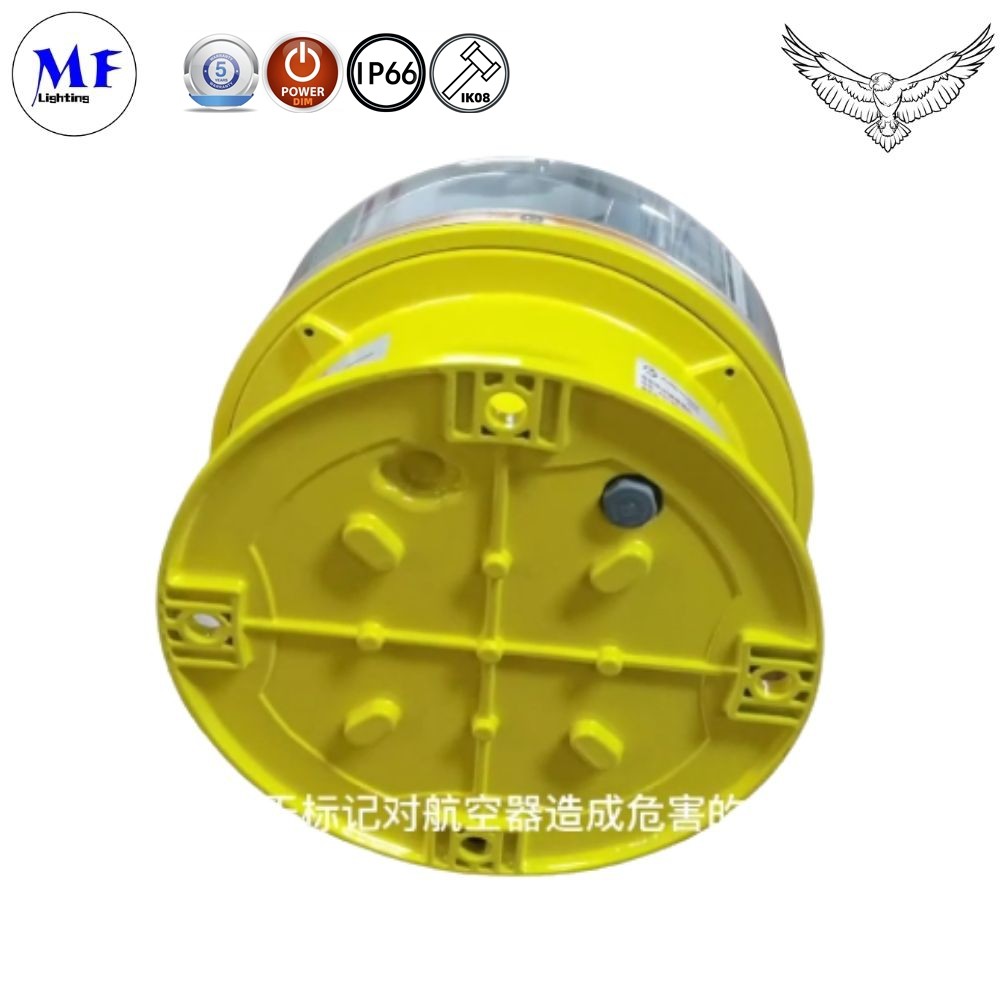

Red Aeronautical LED Aviation Obstruction Light Factory Price for Marking Obstacles with Yellow color and Aluminum 2

1.High Efficiency and Energy Saving:
Utilizing CREE high-output LEDs as the light source, it significantly reduces energy consumption and subsequent maintenance costs compared to traditional incandescent or halogen bulbs.

2.High Reliability:
Integrated surge protection and lightning strike design ensure stable operation in various harsh weather conditions.

3.Precise Light Control:
The uniquely designed polycarbonate reflector effectively focuses the light, meeting standard light intensity requirements even from a distance.

4.Intelligent Control:
The built-in photocell enables automatic day/night mode switching without the need for manual intervention.

5.Rich Optional Configurations:
Offering a variety of flash frequency options, it supports additional functions such as dry contact alarm output and GPS synchronized flashing to meet different application requirements.

more

Electrical

1.CREE ultra high intensity LED as light source saving power consumption and maintenance than incandescent light or halogen

lamp

2.Power supply in DC(48V)& AC(110-240VAC), the light could work normally when input 48VDC/110VAC/240VAC

Physical

1.Unique design and UV protected polycarbonate reflector for converging light

2.UV protection Powder coated bright yellow color base make better visibility

3.Base material is die casting aluminum which has strong corrosion resistance, Shock and Vibrations protection

4.Pressure equalizing valve installed under the base to make sure the air could go through but water is avoid, so

that the whole light temperature won't be high to avoid the moist air enter due to pressure and temperature difference.

System design

1.Built-in photocell for day/night operation(dusk to dawn operation, automatically turn on when background luminance is below

50cd/m2

2.Surge and lightning protection

Optional

1.Dry contact Alarm output for remote monitoring

2.GPS synchronization

3.Infrared LED for pilot using NVG

Compliance

ICAO Annex 14 Volume 1, Eight edition, 2018, table 6.3 Medium Intensity Type A, Medium Intensity Type B/C Obstruction Light

FAA L-865 & FAA L-864

1.High-rise Buildings: Applicable for the top of high-rise buildings to alert low-flying aircraft.
2.Communication Towers: Used to mark the top of communication towers to prevent collisions with low-flying aircraft.
3.Chimneys: Suitable for the top of chimneys to warn pilots of their altitude.
Wind Turbines: Applied to the tips of wind turbine blades to alert low-flying aircraft.
4.High Poles: Applicable for the top of lamp posts, traffic surveillance poles, and other tall pole structures.
Tower Cranes: Used for the top of tower cranes to alert low-flying aircraft.

The obstruction light can be used alone or in combination with low-intensity lights and medium-intensity Class B lights to create a comprehensive aviation obstruction lighting system. Its intelligent design greatly reduces daily maintenance work, making it an ideal solution for aviation obstruction lights.

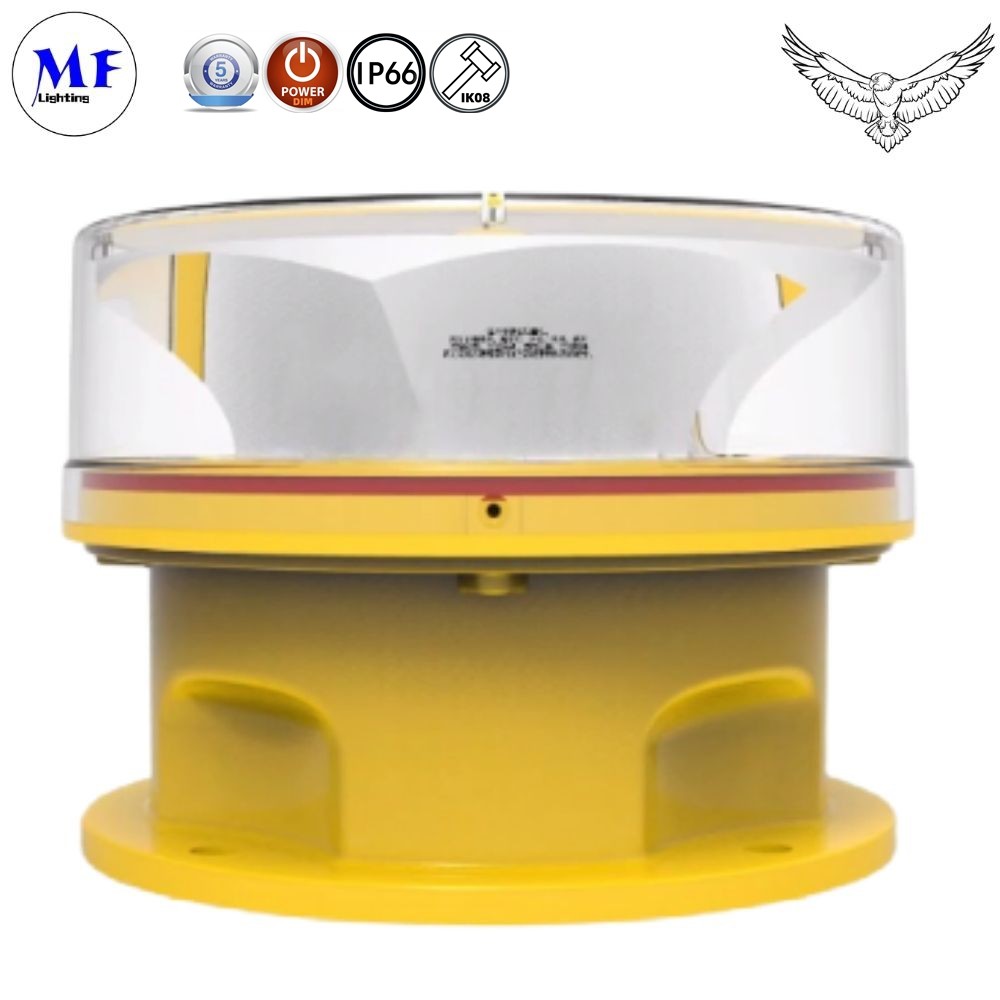

Red Aeronautical LED Aviation Obstruction Light Factory Price for Marking Obstacles with Yellow color and Aluminum 8

Light Source	LED
Intensity	≥32.5cd(typeB),others optional(10cd,100cd,etc)
Vertical Divergence	≥10
Flash Characteristic	Steady-burning/20/30/60 adjustable
Lighting Surge	IEC61000-4-5 L-N ±3kv IEC61000-4-5 L-PE ±6kv IEC61000-4-5 N-N ±6kv
Electrostaic	IEC61000--42 Contact discharge 8KV
Circuit Protection	Intergrated
Ambient Temperature	-40~+75
Storage Temperature	-55~+70
Options Available	Flashing rate NVG(Night Vision Goggles) compatible LED Dry contact alarm (NO COM NC) GPS sync flashing

Model	Power input	Light source	Flash rate	Lens color	Photocell	Dry contact alarm	GPS sync flashing	Control
MF-LI-B2	110-240Vac&48Vdc 12VDC 36VDC	LED IR	Steady 20FPM 30FPM 40FPM 60FPM	Red/Clear	Built-in No	No Alarm Alarm	NO SYNC GPS SNYC	Used alone Used with controller

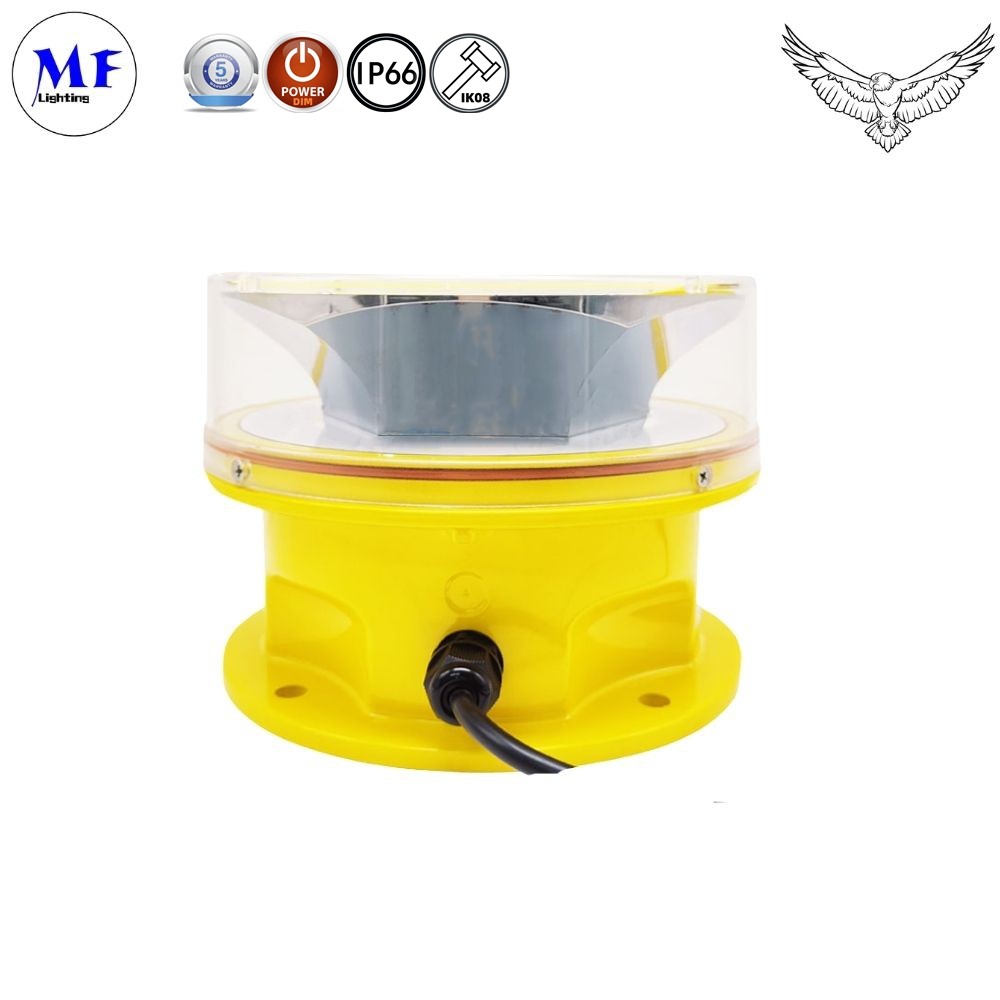

Red Aeronautical LED Aviation Obstruction Light Factory Price for Marking Obstacles with Yellow color and Aluminum 14
